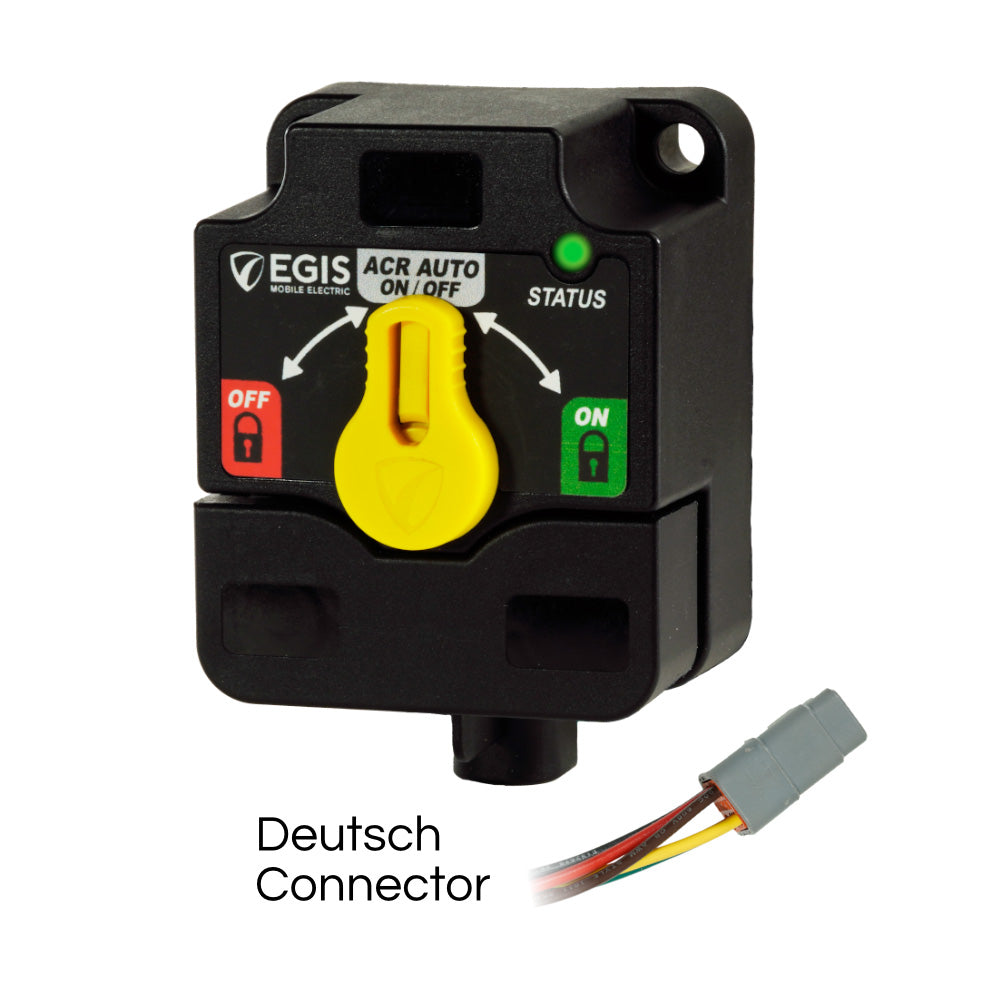

Egis Mobile Electric XD Series Single Flex 2 ACR-Relay, 500A, 8-36VDC

Optimize your marine or mobile electrical system with the Egis Mobile Electric XD Series Single Flex 2 ACR-Relay. Engineered for advanced space and weight savings, this bi-stable solenoid relay provides a 35-75% reduction in mounting space and product weight compared to traditional setups. It efficiently manages power to eliminate dead-start batteries by sharing charging across two batteries and isolating them when no charge sources are present. With a 4-year industry-leading warranty, the XD Series ensures reliable performance for your critical electrical needs. Upgrade your system for superior power management and peace of mind today.

• Egis XD Series Single Flex 2 ACR-Relay with Knobs
• Protective Cover
• 40 Circuit Label Sheet
• Stainless Steel Studs and Self-Locking Flanged Nuts

• Continuous Current: Handles 500A continuously, supporting demanding electrical loads.
• Max Cranking Current: Delivers 1500A for reliable engine starting.
• Wide Voltage Range: Operates efficiently across 8-36 VDC, compatible with both 12V and 24V systems.
• Ultra-Low Off-State Current Draw: A mere 1.3 mA standby current minimizes battery drain and preserves battery life.
• Robust Ingress Protection: Sealed to IP67/IP6K9K, it withstands harsh marine and mobile environments, allowing flexible mounting anywhere.
• Exceptional Durability: Boasts a mechanical switching life of 1,000,000 cycles, guaranteeing long-term reliable operation.
• Flexible Programmability: Simple dip switches allow versatile functionality as a battery disconnect switch, voltage sensing relay, or low voltage disconnect.
• Intuitive Manual Control: A 3-position manual override knob provides direct control and status awareness, with the ability to lock relays ON or OFF for servicing.
• Compact Design: Achieves a 35-75% reduction in mounting space and product weight, optimizing your installation footprint.
• High-Temperature Electronics: Utilizes high-temperature rated materials, allowing reliable performance in diverse mounting locations.
• Ignition Protected: Meets SAE J1171 / ISO 8846 standards, ensuring safety in engine compartments.
• Clear Status Feedback: Features an easy-to-see front-facing LED indicator and remote LED capability for real-time visual device status.

• Expandable System: Easily expands with link and cross-link busbars to additional dual, triple, or single XD relays, supporting 2 or 3 battery systems.
• Legacy Integration: Plug-and-play compatible with legacy competitor products, featuring DTM/ATM connector pins for compatibility with ML Series bi-stable relays.
