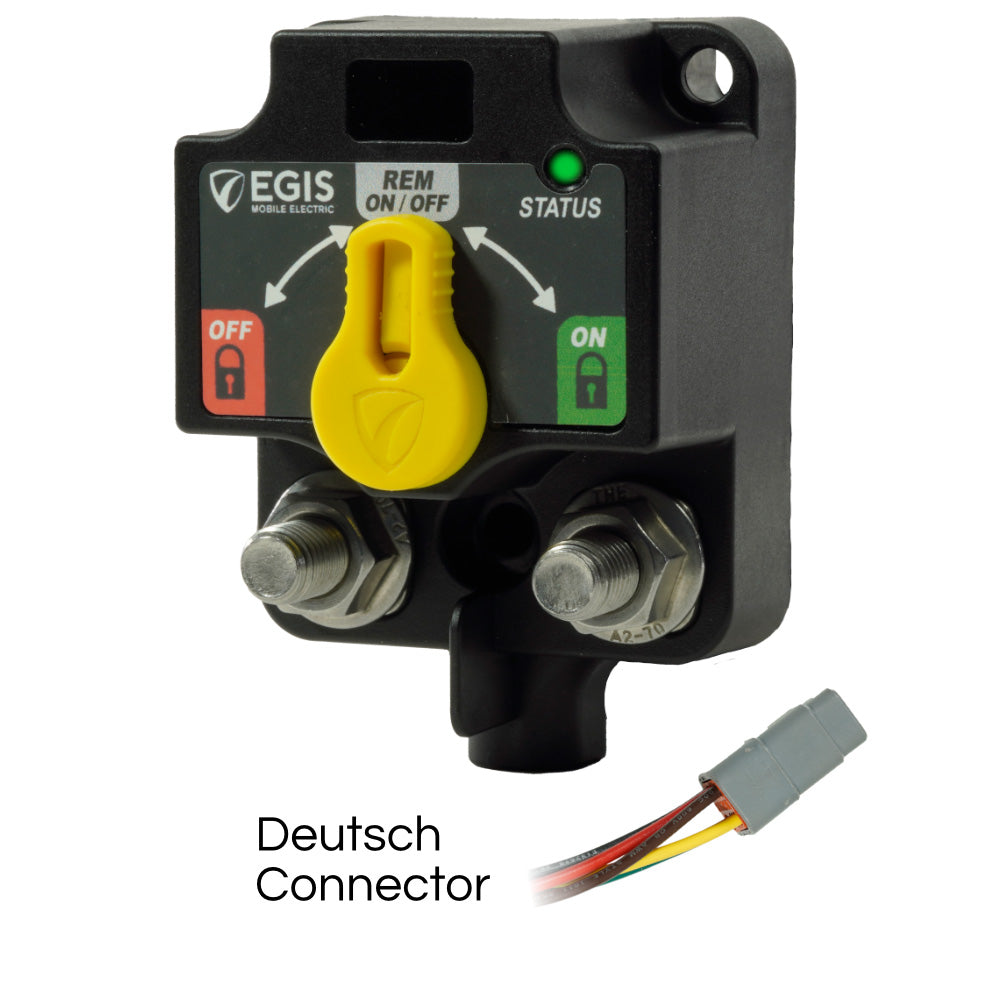

Egis Mobile Electric XD Series Single Flex 2 Relay-ACR, 500A with Knobs – DTM

Revolutionize your mobile electrical system with the Egis Mobile Electric XD Series Single Flex 2 Relay-ACR. Engineered for superior performance and a significantly reduced footprint, this advanced bi-stable solenoid relay provides robust, automated power management for demanding applications in marine, RV, and specialty vehicles. Its bullet-proof construction, coupled with an ultra-low off-state current draw, ensures unparalleled efficiency and long-term reliability even in the harshest environments. Upgrade to Egis and experience smarter power control with peace of mind.

• Egis XD Series Single Flex 2 Relay-ACR with Knobs
• Protective Cover
• 40 Circuit Label Sheet
• Stainless Steel Hardware (Studs and self-locking flanged nuts)

• Space and Weight Efficiency: Reduces mounting space and product weight by 35-75% compared to traditional electrical system layouts, simplifying installation.
• High Current Capacity: Handles 500A total continuous current and 1500A max cranking current for reliable power distribution.
• Extreme Durability: Sealed to IP67/IP6K9K, featuring high-temperature electronics, materials, and integrated Gortex vents for bullet-proof performance in harsh conditions.
• Ultra-Low Power Draw: Boasts a mere 1.3 mA off-state current draw, representing a 90-95% reduction over competitive products for superior energy efficiency.
• Intuitive Manual Control: Features a 3-position manual override with knobs, allowing you to force relays open or closed and lock them in position for enhanced operational awareness and safety.
• Wide Voltage Compatibility: Operates efficiently across an 8-36 VDC voltage range, suitable for various mobile applications.
• Programmable Flexibility: Simple dip switch programming under the protective cover allows for custom relay functions and versatile applications.
• Visual Status Indication: An easy-to-see front-facing LED indicator provides clear visual device status.
• Extended Lifespan: Designed for a mechanical switching life of 1,000,000 cycles, ensuring long-term dependability.

• Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products for seamless integration.
• Expandable with link and cross-link busbars to additional XD relays, supporting 2 or 3 battery systems.
