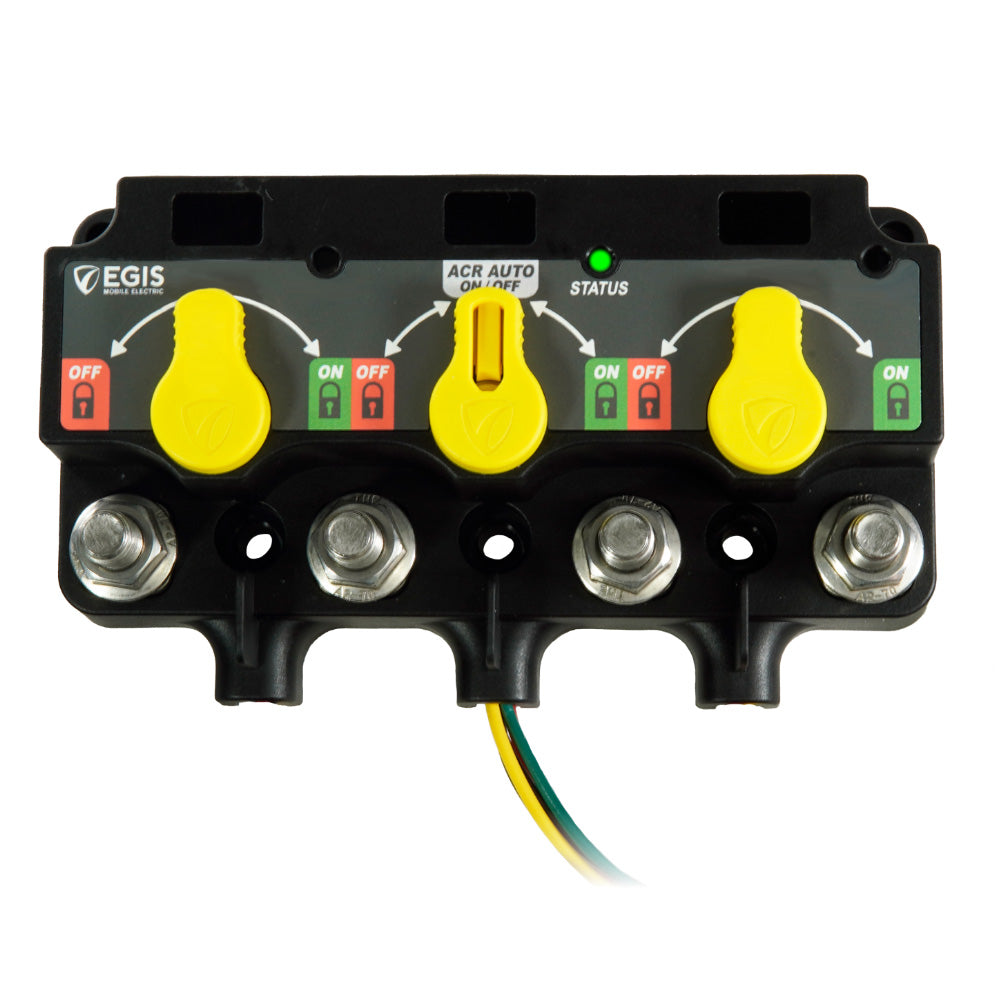

Egis Mobile Electric XD Series Triple Flex 2 ACR Switch, 500A/1500A, IP67/IP6K9K

Revolutionize your marine and mobile electrical systems with the Egis Mobile Electric XD Series Triple Flex 2 Automatic Charging Relay (ACR) Switch. Engineered to consolidate up to three high-amp relays into a single, compact module, this advanced solution significantly reduces wiring complexity, saves mounting space, and enhances operational awareness. Its bullet-proof construction, sealed to IP67/IP6K9K standards, ensures robust performance in the harshest environments. Upgrade your system today for unparalleled efficiency and reliability.

In the Box:

• Egis XD Series Triple Flex 2 ACR Switch
• Protective Cover
• 40 Circuit Label Sheet
• Stainless Steel Mounting Hardware

Key Benefits & Specifications:

• High-Current Capability: Offers 500 Amps continuous and 1500 Amps cranking current ratings, ideal for handling critical loads and ensuring reliable engine starts.
• Space & Weight Reduction: Replaces up to three individual high-amp relays, achieving a 35-75% reduction in mounting space and product weight compared to traditional systems.
• Extreme Durability: Sealed to IP67/IP6K9K standards with high-temperature electronics and materials, allowing mounting anywhere and ensuring long product life in harsh marine or demanding environments.
• Versatile Voltage Range: Operates reliably across an 8-36 VDC voltage range, compatible with a wide array of electrical setups.
• Minimized Power Drain: Features an ultra-low 1.3 mA off-state current draw, reducing parasitic battery drain by 90-95% compared to competitive products.
• Intuitive Manual Control: Equipped with a 3-position manual override knob, simplifying operation and providing clear awareness of the relay's forced state (on/off/auto).
• Flexible Programming: Simple programming via dip switches allows significant flexibility for OEMs and installers to customize relay functions for various applications.
• Clear Status Indication: An easy-to-see front-facing LED indicator provides visual device status, with a remote LED replicating the local on-device LED for convenient monitoring.
• Integrated Venting: High-quality Gore-Tex vents regulate internal device pressure, eliminating moisture entry across seals and ensuring longevity.
• Plug-and-Play Integration: Features a DTM connector for compatible integration, including plug-and-play compatibility with legacy ML Series bi-stable relays.

Compatibility & Pairings:

• Designed for common multi-battery mechanical switching and charge management functions, supporting 3 or 4 battery systems with standard busbar interconnect accessories.
• Ideal for use in marine, RV, and commercial vehicle applications requiring robust circuit switching and efficient battery management.
