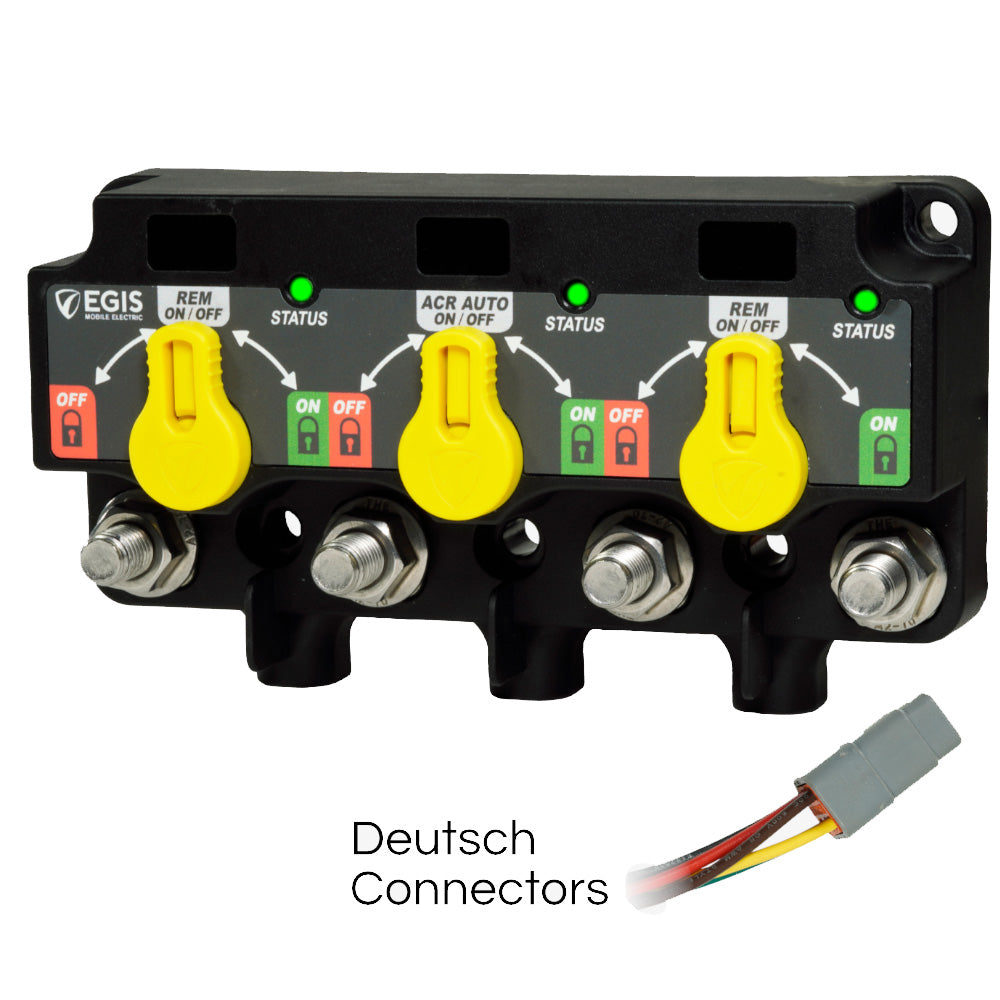

Egis Mobile Electric XD Series Triple Flex 2 ACR-Relay, 500A, 8-36VDC, IP67

Maximize efficiency and reliability in your DC electrical system with the Egis Mobile Electric XD Series Triple Flex 2 ACR-Relay. This advanced, all-in-one module consolidates the functions of multiple relays, offering superior control, reduced weight, and significant space savings for demanding DC electrical systems in marine, RV, and industrial applications. Upgrade your system today for intelligent, robust power management.

In the Box:

• Protective Cover
• 40 Circuit Label Sheet
• 3x DTM Connectors

Key Benefits:

• Continuous Current Rating: 500A. Robustly handles high sustained electrical loads.
• Cranking Current Rating: 1500A. Delivers the surge power necessary for engine starts.
• Voltage Range: 8-36 VDC. Offers broad compatibility with various DC power systems.
• Sealed Construction: IP67 / IP6K9K rated. Provides superior protection against dust, water immersion, and high-pressure washdowns, suitable for harsh environments.
• Space and Weight Reduction: 35-75% less than competitive solutions. Optimizes installation space and reduces overall system weight, ideal for mobile applications.
• Off-State Current Draw: Low 1.3 mA. Minimizes quiescent current to conserve battery power when the relay is inactive.
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC. Efficient power consumption during relay state transitions.
• Mechanical Switching Life: 1,000,000 Cycles. Engineered for exceptional durability and long-term operational reliability.
• Programmability: Via integrated dip switches. Allows for customizable relay functions and tailored system configurations.
• Manual Override: 3-Position with lock-on/lock-off capability. Provides intuitive, physical control and clear status indication of manual overrides.
• LED Status Display: Integrated front-facing LED. Offers immediate visual feedback on the relay's operating status.
• Venting: Integrated Gortex vent. Regulates internal pressure, preventing moisture ingress and ensuring longevity in extreme conditions.

This relay is plug-and-play compatible with legacy competitor products and can be expanded with link and cross-link busbars for multi-battery systems.
