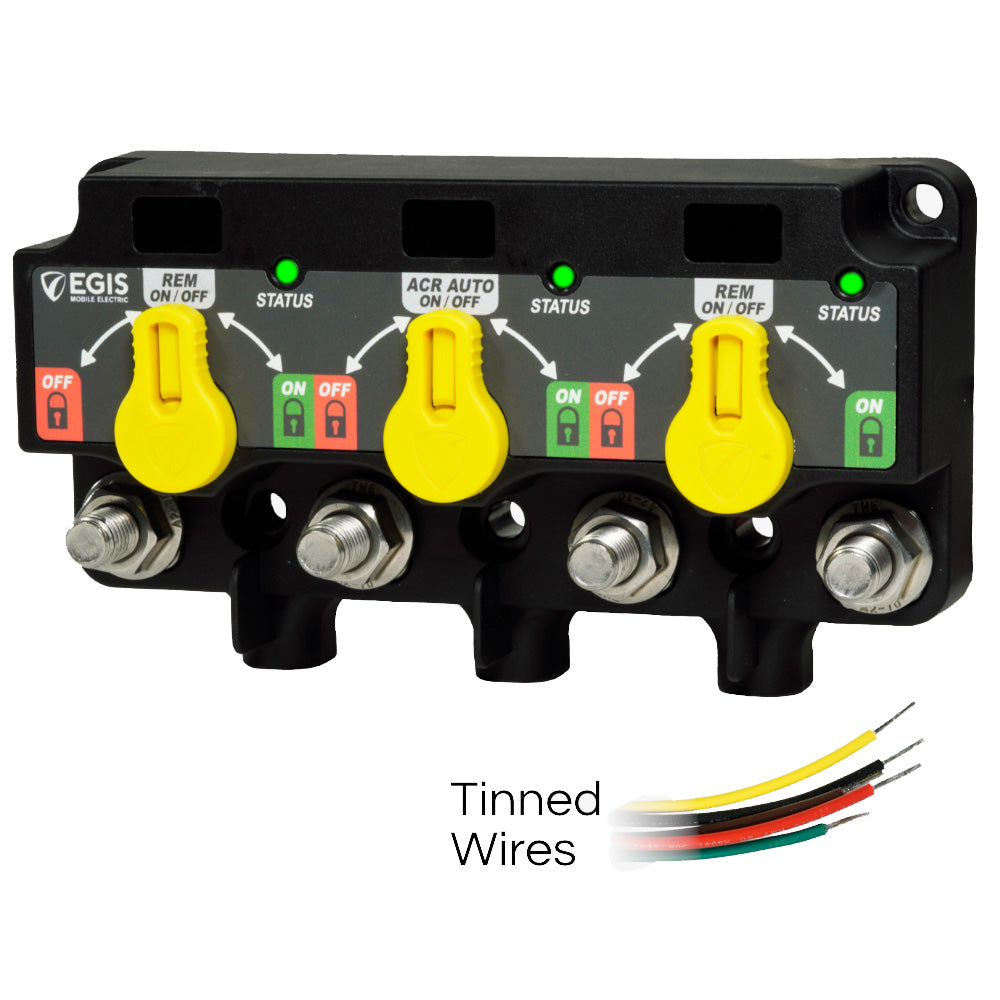

Egis Mobile Electric XD Series Triple Flex 2 Relay-ACR, 500A

The Egis Mobile Electric XD Series Triple Flex relay module consolidates three high-amp relays into one compact, space-saving unit. Designed for efficient battery switching and charge management, this module replaces multiple individual relays, reducing weight, installation footprint, and the need for external link cabling. It is suitable for 3-4 battery systems and is built to withstand demanding environments.

Key Features:

• Replaces three individual high-amp relays in a single, integrated assembly.
• Supports 500A continuous current and 1500A max cranking current.
• Sealed to IP67/IP6K9K standards for flexible mounting.
• Includes 3-position manual overrides for forcing relays open or closed with a locked-state option.
• Programmable via internal dip switches with an integrated configuration guide.
• Equipped with LED status indicators and a remote LED replication option.
• Features Gortex venting to regulate internal pressure and prevent moisture ingress.
• Stainless steel cable lug studs and self-locking flanged nuts included.
• Compatible with common legacy ML Series bi-stable relays using DTM/ATM connector pins.

Technical Specifications:

• Voltage Range: 8-36 VDC
• Mechanical Switching Life: 1,000,000 cycles
• Off-State Current Draw: 1.3 mA
• State Change Current: 5A at 12 VDC; 3A at 24 VDC
• Manufacturer Part Number: 8730-1535

Included Accessories:

• Protective terminal cover.
• 40-circuit weatherproof label sheet (includes blank labels).
