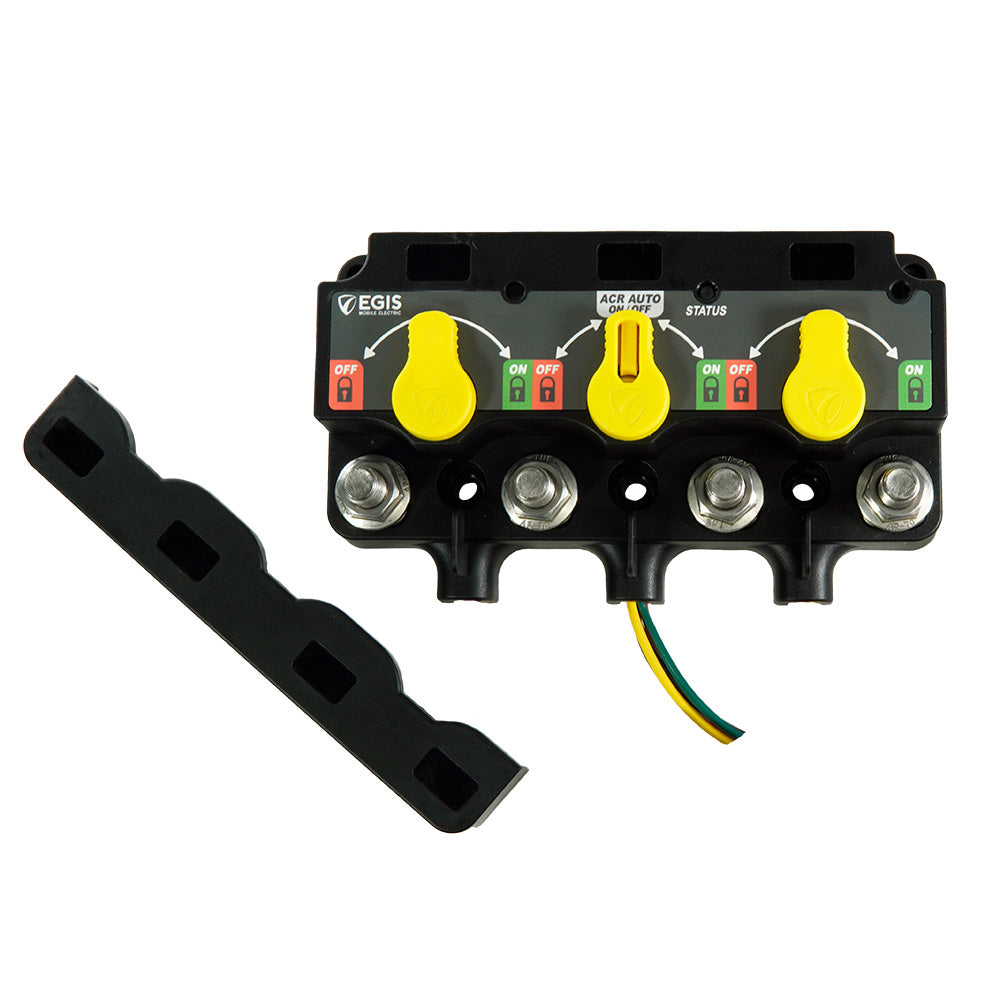

Egis Mobile Electric XD Series Triple Flex 2 Relay/VSR/Relay with Knobs, 12 P DT

Streamline and optimize your vessel's electrical system with the Egis Mobile Electric XD Series Triple Flex 2 Relay Module. This advanced unit masterfully consolidates the functionality of three individual high-amp relays, a Voltage Sensitive Relay (VSR), and an Automatic Charging Relay (ACR) into a single compact module. Designed to replicate common multi-battery switching and charge management functions, it significantly reduces installation complexity, wiring, and the risk of loose connections, making it an indispensable solution for modern marine and mobile electrical systems. Upgrade your power management for superior reliability and efficiency today.

Key Benefits & Features:

• Consolidated Functionality: Replaces three individual high-amp relays with one compact module, streamlining wiring and eliminating the cost and risk associated with external link cables.
• Advanced Multi-Battery Management: Expertly designed to replicate common multi-battery switching and charge management functions, allowing for efficient power distribution and isolation across multiple battery banks, including 3-4 battery systems.
• Robust & Versatile Construction: Engineered with bullet-proof construction, sealed to IP67/IP6K9K, and featuring high-temperature electronics and materials, allowing for universal mounting in harsh environments. Includes stainless steel cable lug studs and large mounting holes for 1/4-20 / M6 hardware.
• Intuitive Manual Control: Features manual control knobs for simplified operation, providing clear status awareness and the option to lock relays in either an ON or OFF state, a capability often unavailable in competitive solutions. Front-facing LED indicators provide visual device status.
• Flexible Configuration: Easily programmable via simple dip switches, allowing each relay to function independently as a relay, battery disconnect, or Automatic Charging Relay (ACR), offering significant flexibility for OEMs and installers.
• Space & Weight Reduction: Achieves a 35-75% reduction in mounting space and product weight due to its advanced bi-stable solenoid design, ideal for tight engine compartments.
• Ultra-Low Power Draw: Boasts an off-state current draw of just 1.3 mA, representing a 90-95% reduction compared to competitive products, significantly preserving battery life.
• Seamless Integration: Plug-and-play compatible with legacy competitor products and features DTM/ATM connectors, ensuring pin-for-pin compatibility with ML Series Bi-stable Relays for easy integration.
• Corrosion Resistance: Quality stainless steel studs and self-locking flanged nuts prevent corrosion, while Gore-Tex vents regulate internal device pressure to eliminate moisture entry.

Specifications:

• Total Continuous Current: 500A
• Max Cranking Current: 1500A
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range: 8-36V DC
• Off-State Current: 1.3 mA
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Compatibility & Pairings:

• Expandable with Link and Cross-Link Busbars to accommodate additional Dual, Triple, or Single XD Relays, supporting complex 3 or 4 battery systems with standard accessories.
• Equipped with convenient recesses for the included weatherproof label set for easy circuit identification.
