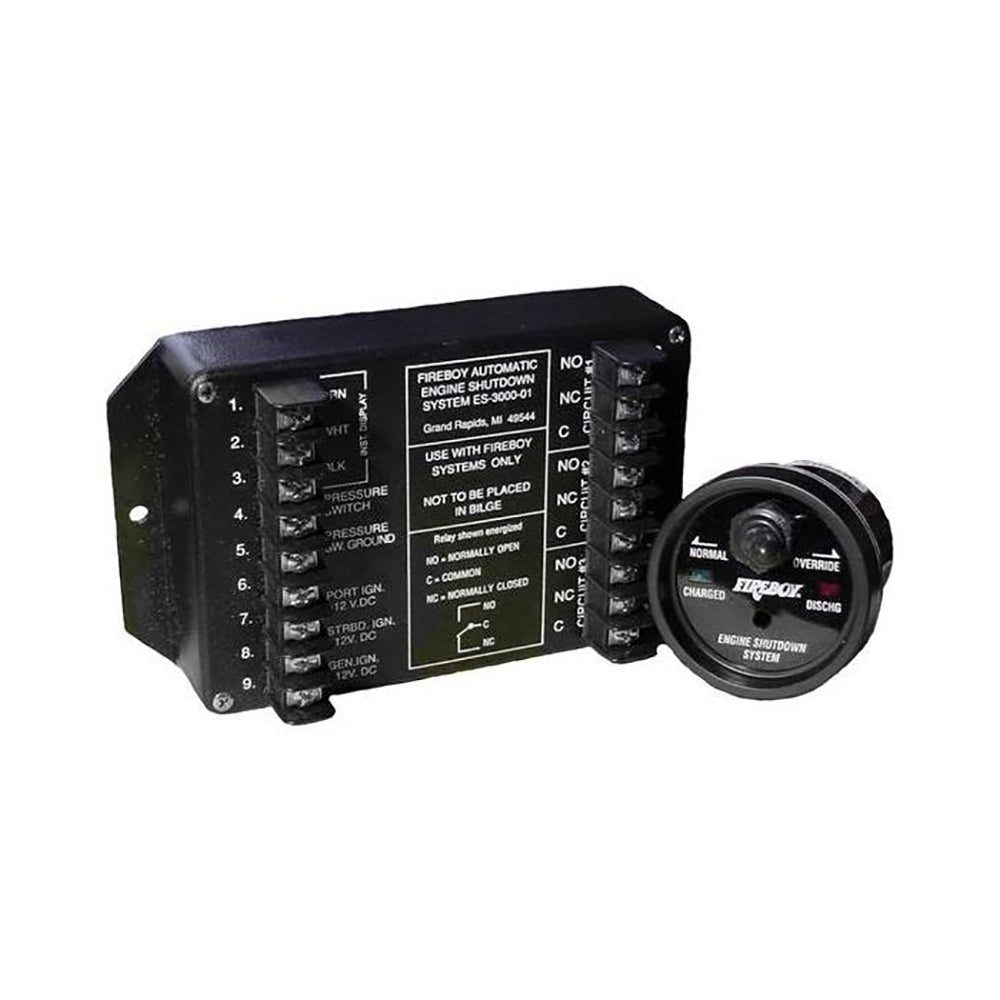

Fireboy-Xintex 8-Circuit Engine Shutdown with Time Delay, Round Display – 12VDC

Ensure critical safety and compliance aboard your vessel with the Fireboy-Xintex 8-Circuit Engine Shutdown System. This advanced system is engineered to automatically shut down engines, generators, and blowers in the event of a fire, allowing your fire suppression system to achieve optimal agent concentration and effectively extinguish the blaze. Essential for diesel engine applications in protected spaces, this robust control unit offers enhanced protection and peace of mind. Invest in Fireboy-Xintex's proven marine safety solutions today.

In the Box:

• Fireboy-Xintex 8-Circuit Engine Shutdown Unit
• Round Display Unit with Integrated Alarm Horn
• 3 ft Cable for Helm Display Connection

Key Features & Benefits:

• 8-Circuit Control: Manages up to eight engine room components, including main propulsion engines, generators, and blowers, to prevent continued operation during a fire.
• Integrated Time Delay (15 Seconds): Features a crucial 15-second delay, specifically beneficial for GM diesel engines, providing a brief interval before shutdown.
• Water-Resistant Round Display (DU-RBH-20): Provides clear visual alerts with "Charged/Discharged" status lights and an audible alarm horn directly at the helm.
• Manual Override Switch: Allows for immediate engine restart after the fire suppression system has discharged and the fire is extinguished, or for manual control during non-emergency situations.
• Expandable System: Designed to integrate additional display units and wire harnesses for convenient second station monitoring.
• 12VDC Operation: Compatible with standard marine 12-volt DC electrical systems, drawing 448mA at 12VDC.
• Certified Safety: Approved by Factory Mutual, U.S.C.G., RINA (ISO 9094 (2015)), and CE certified (B.V.), ensuring adherence to rigorous marine safety standards. Wiring conforms to ABYC Standards.

Recommended Pairings:

• Pair with a Fireboy-Xintex pre-engineered fire extinguishing system for complete engine room fire protection.
• Extend helm display reach with Fireboy-Xintex wire harness extensions (e.g., B-2174-10 or B-2174-30).
