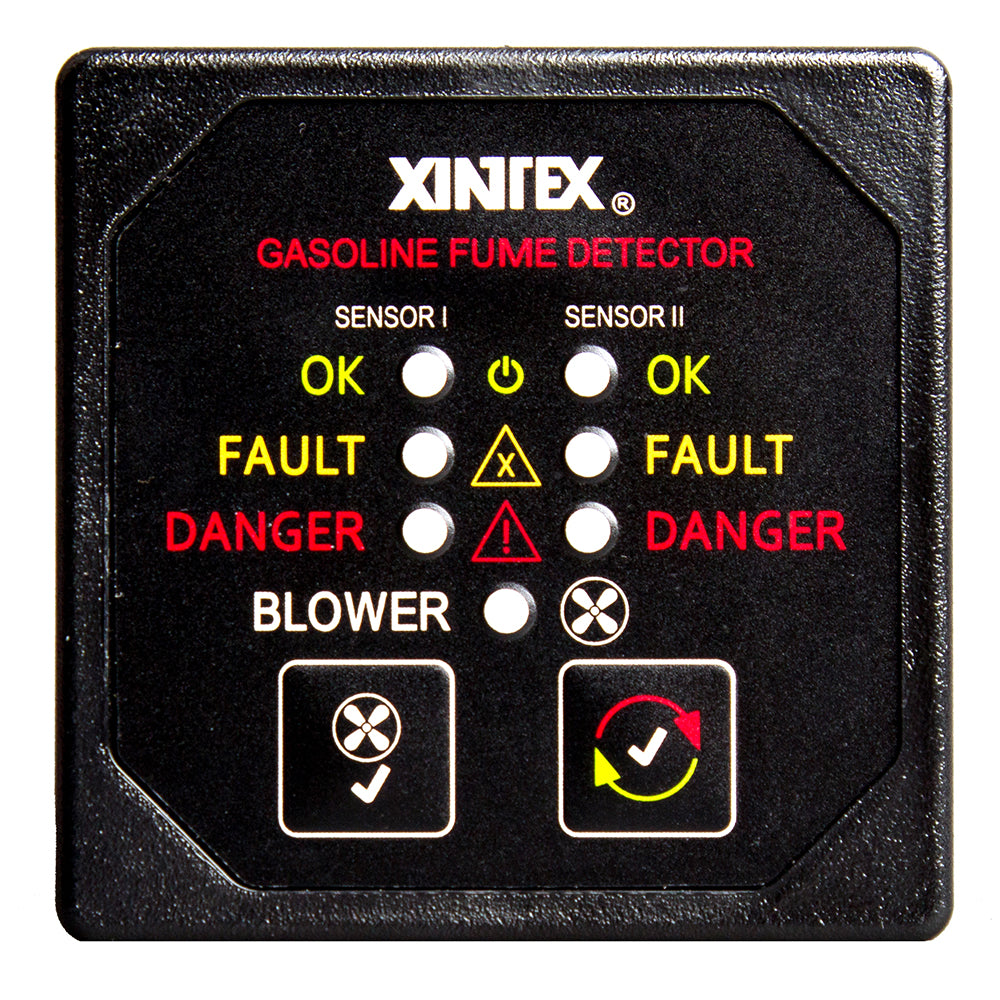

Fireboy-Xintex Dual Channel Gasoline Fume Detector with Blower Control, 9-30V

The Fireboy-Xintex Gasoline Fume Detector provides reliable monitoring for gasoline fumes in engine compartments, fuel storage areas, and other enclosed spaces where vapors may accumulate. This system monitors two distinct areas simultaneously and features an integrated blower control relay that automatically activates the bilge blower when gas levels reach the Lower Explosive Level (LEL).

Key Features:

• Dual-channel monitoring for two separate areas
• Audible and visual LEL alarms
• Includes blower control relay for automatic ventilation
• Operating voltage: 9-30V DC
• Square display with black bezel
• Nominal current draw: 55mA; Maximum current draw: 150mA
• Operating temperature range: -40°F to 185°F (-40°C to 85°C)
• Alarm horn: 68 dB
• Display dimensions: 2-5/8" x 2-5/8"
• Required cutout: 2-1/8" round hole

Included in the Box:

• Fume detector display
• Two fuel sensors
• Two 20' extension cables
• Blower relay
• Instruction manual

Manufacturer part number: G-2BB-R. UPC: 619749202561.
