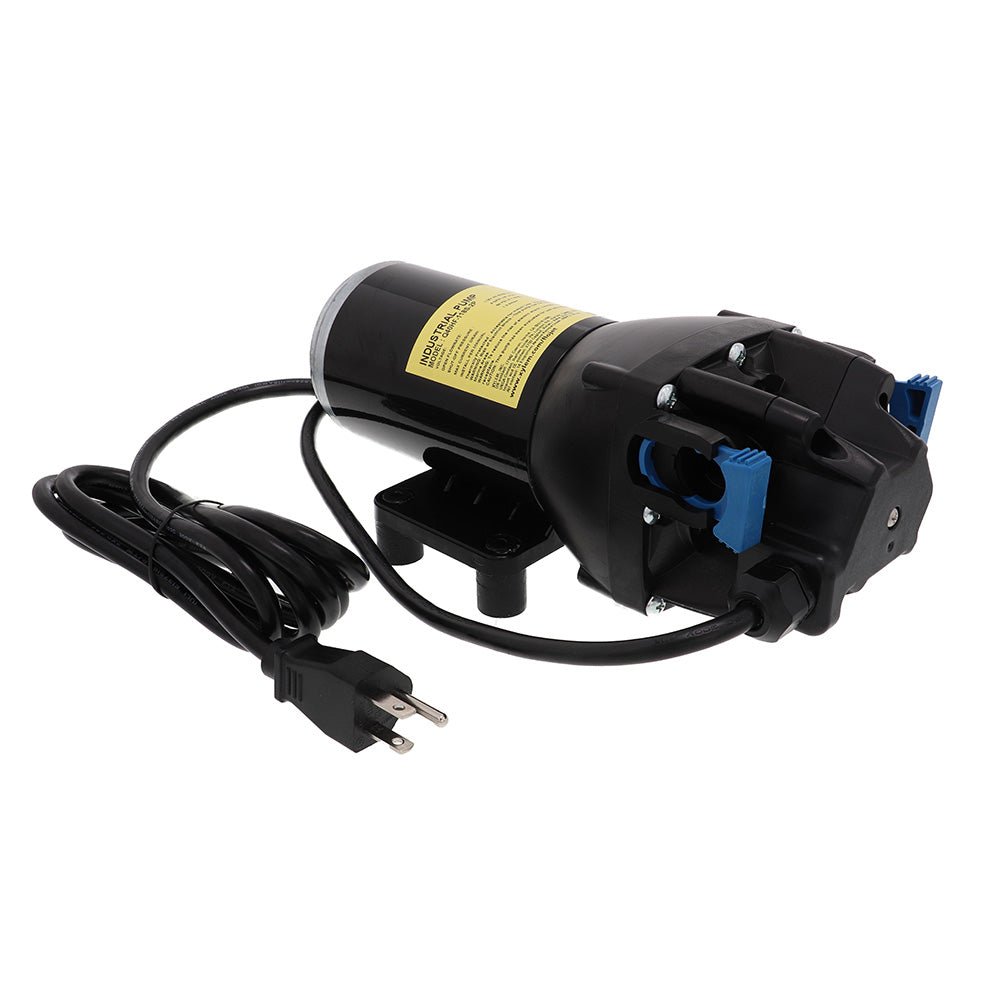

Flojet VersiJet Industrial Diaphragm Pump, 115 VAC, 4 GPM, 60 PSI, Q40FF-118S-2P
Flojet VersiJet Industrial Diaphragm Pump, 115 VAC, 4 GPM, 60 PSI, Q40FF-118S-2P
2 available
About this product
The Flojet VersiJet Industrial Diaphragm Pump provides self-priming fluid transfer at up to 4 GPM and up to 60 PSI for liquid transfer, spraying, cooling, circulation, filtration, and dispensing applications. Its integrated pressure switch supports automatic shutoff at 60 PSI, while the self-priming design provides up to 8 ft. of dry lift and allows the pump to run dry without damage.
- Model: Q40FF-118S-2P
- Electrical: 115 VAC nominal; 104–126 VAC range; maximum current draw of 1.3 amps at 60 PSI
- Performance: Open flow rate up to 4 GPM (15 LPM); maximum operating pressure and pressure-switch cutoff of 60 PSI (4.1 bar)
- Inlet and priming: Maximum inlet pressure of 30 PSI (2.2 bar); self-priming up to 8 ft. (2.4 m) dry prime
- Construction: Glass-filled polypropylene upper housing, cast aluminum lower housing, Santoprene diaphragm, polypropylene check valve retainer, EPDM seals, stainless steel fasteners, and nylon baseplate with rubber feet
- Connections: Two 3/4 in. straight hose barb port fittings; 14 in. 18 AWG stripped-wire leads
- Features: Four-chamber diaphragm design, internal bypass, quick-connect fittings, noise-dampening baseplate, and intermittent-duty operation
- Fluid temperature: 32 deg F to 140 deg F (0 deg C to 60 deg C)
- Dimensions and weight: 11.25 x 5.47 x 5.07 in. (286 x 139 x 129 mm); 5.2 lb. (2.4 kg)
- Mounting: Horizontal preferred, or vertical with the pump head facing down
- Certifications and rating: UR listed and IPX6 rated
- Replaces: Flojet models 04300042A and 04300043A
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-120397
- Model / MPN
- Q40FF-118S-2P
- UPC / GTIN
- 705474223619
- Package dimensions (H × W × L)
- 5" X 6" X 11"
- Package weight
- 7.2 lb
- Country of origin
- MEXICO
