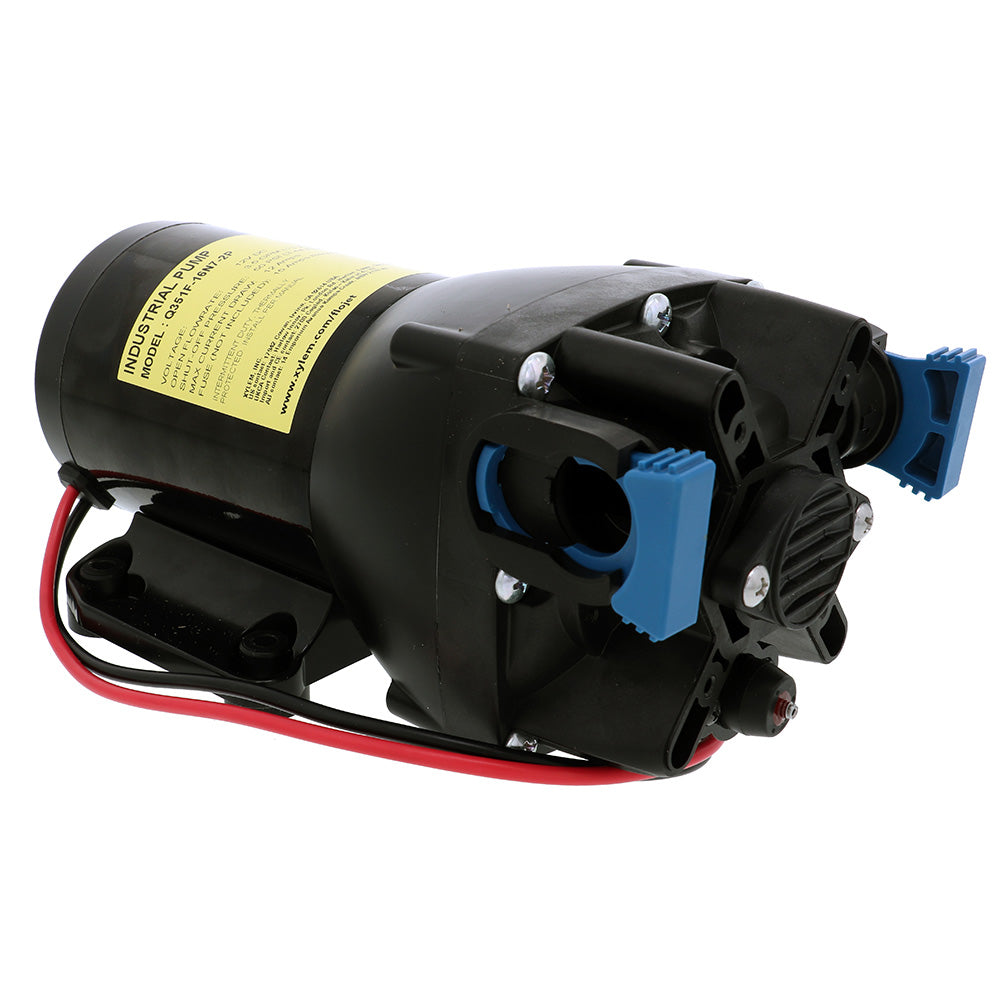

Flojet VersiJet Series Diaphragm Pump, 3.5 GPM, 12V, 50 PSI (Q351F-16N7-2P)

The Flojet VersiJet 3.5 GPM Diaphragm Pump is a 4-chamber industrial pump engineered for reliable performance in liquid transfer, spraying, cooling, and filtration applications. Designed for durability, this self-priming pump features a heavy-duty motor, a noise-dampening baseplate, and chemical-resistant construction for demanding environments.

Key Specifications:

• Model Number: Q351F-16N7-2P
• Performance: 3.5 GPM (13.2 LPM) open flow; 50 PSI (3.4 BAR) max operating pressure
• Voltage: 12V DC (9V - 13.6V range)
• Construction: Glass-filled polypropylene housing, Santoprene diaphragm, and Viton seals for chemical resistance
• Operational Features: Self-priming up to 8', capable of running dry, and includes internal bypass
• Ports: Includes two 1/2" straight hose barbs
• Protection: Thermal motor protection (TCO) included; 15A fuse recommended (not included)
• Temperature Range: 32°F to 140°F (0°C to 60°C)

The unit features a TENV permanent magnet motor and comes with 12" leads with stripped wire connections. It weighs 5.1 lbs and is intended for intermittent duty cycles.
