Garmin APK 10 Vertical Autopilot Keyboard
Garmin APK 10 Vertical Autopilot Keyboard
Sold out
About this product

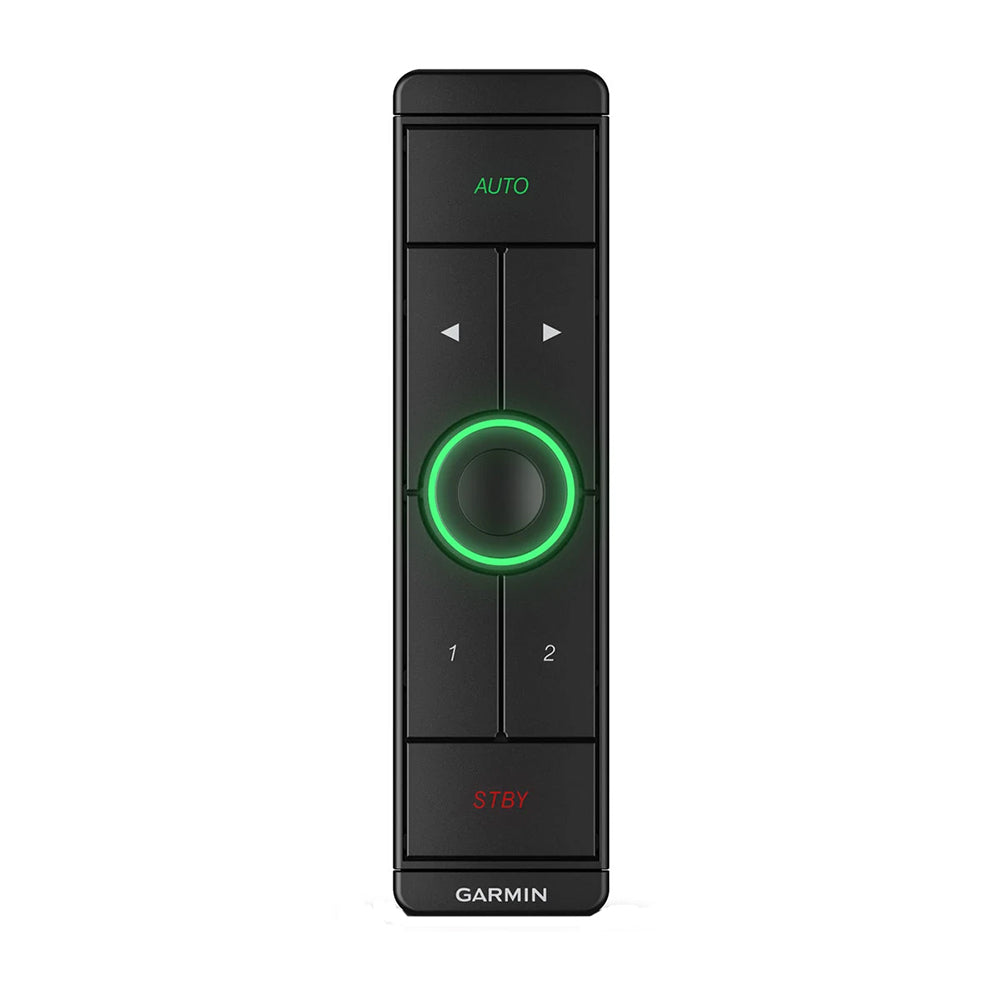

The Garmin APK 10 is a vertical autopilot keyboard designed to provide precise, intuitive control of your Reactor 40 autopilot system. It features a rotary knob for heading adjustments with LED status indication, along with dedicated engage, standby, and customizable multipurpose buttons.
Key Features:
- Low-profile design matches the GHC 50 instrument and GPSMAP chartplotter height
- NMEA 2000 network connectivity for simple integration and power
- IPX7 water rating for marine environments
- Constructed from fully-gasketed, high-impact plastic
- Operating temperature range: 5°F to 158°F
- Compass-safe distance: 4.5 in.
Included in the box:
- APK 10 autopilot keypad (vertical)
- 2 m NMEA 2000 backbone/drop cable and T-connector
- Flush and surface mounting hardware
- Documentation
Physical Specifications:
- Flush mount dimensions: 1.6 in. x 6.2 in. x 0.28 in.
- Surface mount dimensions: 1.6 in. x 6.2 in. x 0.65 in.
- Weight: 3.5 oz.
- Manufacturer Part Number: 010-03197-01
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-118007
- Model / MPN
- 010-03197-01
- UPC / GTIN
- 753759343712
- Package dimensions (H × W × L)
- 3" X 5" X 8"
- Package weight
- 1.04 lb
- Country of origin
- TAIWAN
