Garmin GMI/GNX Wired Sail Pack 52 with gWind™ and DST810 Transducers

Achieve superior sailing performance and situational awareness with the Garmin GMI/GNX Wired Sail Pack 52. This comprehensive marine instrument bundle provides critical wind and water data, empowering you to make confident decisions on the water. Featuring the GMI 20 color display, GNX 20 monochrome display, gWind™ Wired transducer, and the advanced Airmar DST810 thru-hull smart transducer, this pack seamlessly integrates into your NMEA 2000® network for optimized sailing. Upgrade your vessel's navigation today for an unparalleled experience.

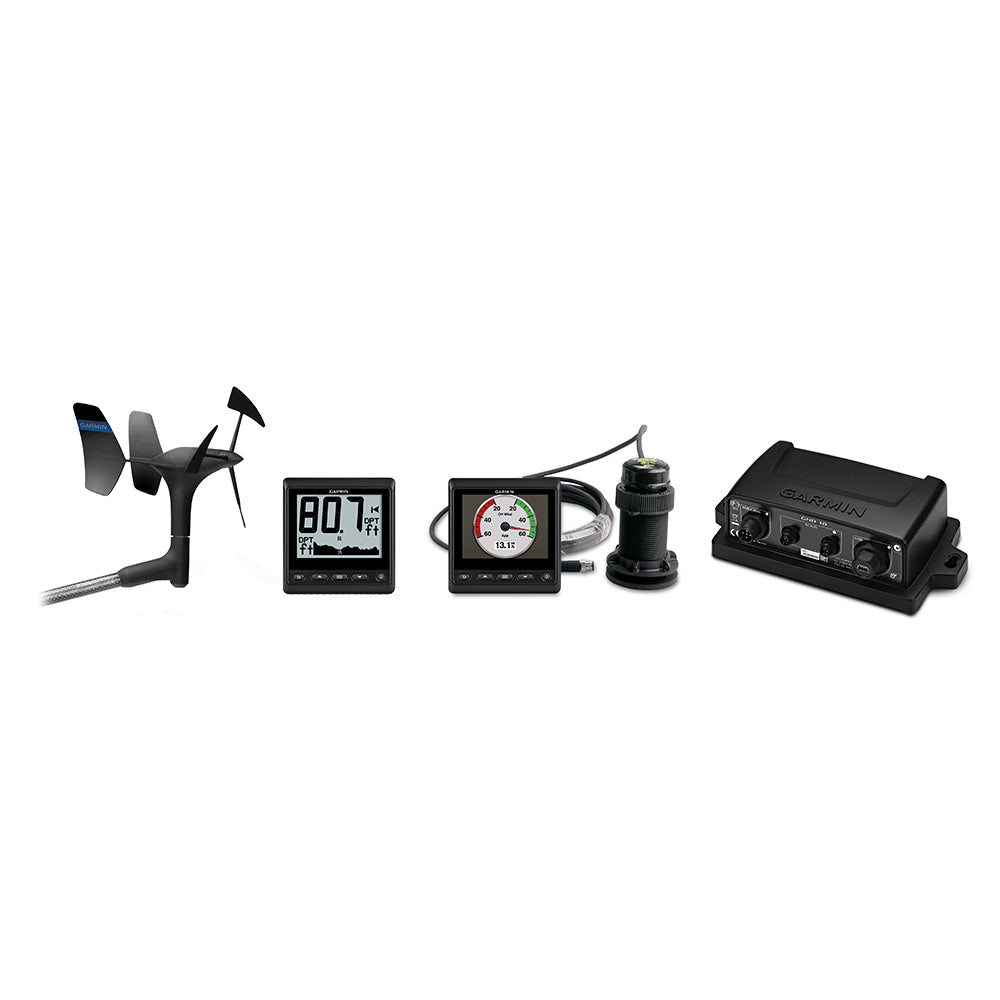

In the Box:

• gWind™ transducer
• GMI™ 20 marine instrument
• GNX™ 20 marine instrument
• GND™ 10 black box bridge
• Airmar DST810 thru-hull smart transducer
• 3 NMEA 2000® drop cables (2 m)
• NMEA 2000® power cable
• 5 NMEA 2000® T-connectors
• NMEA 2000® terminators
• Mast cable with female connector (25 meters)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

Key Features & Benefits:

• GMI 20 Marine Instrument: Features a bright 4” color glass-bonded display with anti-glare finish and 170-degree viewing angle, ensuring excellent readability in any light conditions and from a wide range of positions.
• Comprehensive Data Display (GMI 20): Clearly shows depth, speed, wind, and over 100 marine and vessel parameters for complete situational awareness.
• Customizable Profiles (GMI 20): Offers default profiles for powerboat, sailboat, fishing, and engine/fuel, allowing you to tailor data presentation to your specific activity.
• Enhanced Night Visibility (GMI 20): Provides backlight dimmer control and choice of red/black, green/black, or normal night mode color schemes for optimal viewing after dark.
• GNX 20 Marine Instrument: Equipped with a highly visible monochrome LCD display with black digits on white or color backgrounds, delivering high contrast for easy reading day or night.
• Glass-Bonded & Anti-Glare Displays: Both GMI 20 and GNX 20 feature glass-bonded, anti-glare lenses to prevent fogging and maximize visibility.
• Low Power Consumption (GNX 20): Operates efficiently with minimal power draw (25 mA, 350 mW no backlight/400 mW mid-level backlight), ideal for extended use on sailboats.
• gWind™ Transducer: Utilizes twin-fin technology and a 3-bladed propeller for accurate True Wind Speed (TWS) in light air and stable True Wind Angle (TWA).
• Airmar DST810 Thru-hull Smart Transducer: Combines precise depth, speed, water temperature, and attitude sensing (heel/trim, pitch/roll) to provide comprehensive underwater and vessel motion data.
• Advanced Speed Performance (DST810): Features a Gen2 paddlewheel and a fast 5 Hz (5X per second) water speed signal output, ensuring ultra-responsive and accurate speed readings from 0.3 to 45 knots.
• Wireless Calibration (DST810): Offers Bluetooth® connectivity to Airmar's CAST™ app, enabling advanced heel-compensated speed calibration directly from your mobile device.
• NMEA 2000® Network Compatibility: Ensures seamless integration with your existing marine electronics system.
