Brand: Garmin
Garmin GPSMAP 8610xsv 10 in. Touchscreen Chartplotter and Fishfinder Combo with Navionics+
Garmin GPSMAP 8610xsv 10 in. Touchscreen Chartplotter and Fishfinder Combo with Navionics+
Regular price
$2,373.95
Regular price
Sale price
$2,373.95
Shipping calculated at checkout.
10+ available
About this product

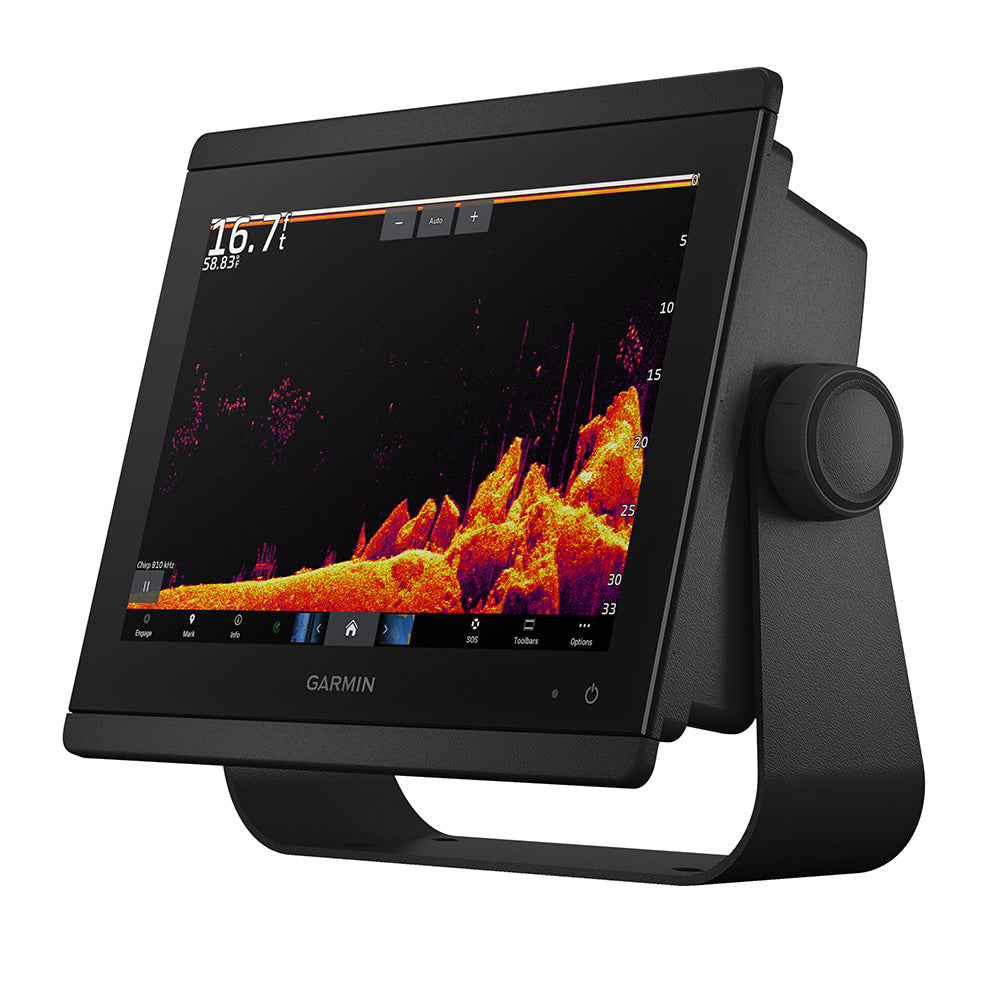

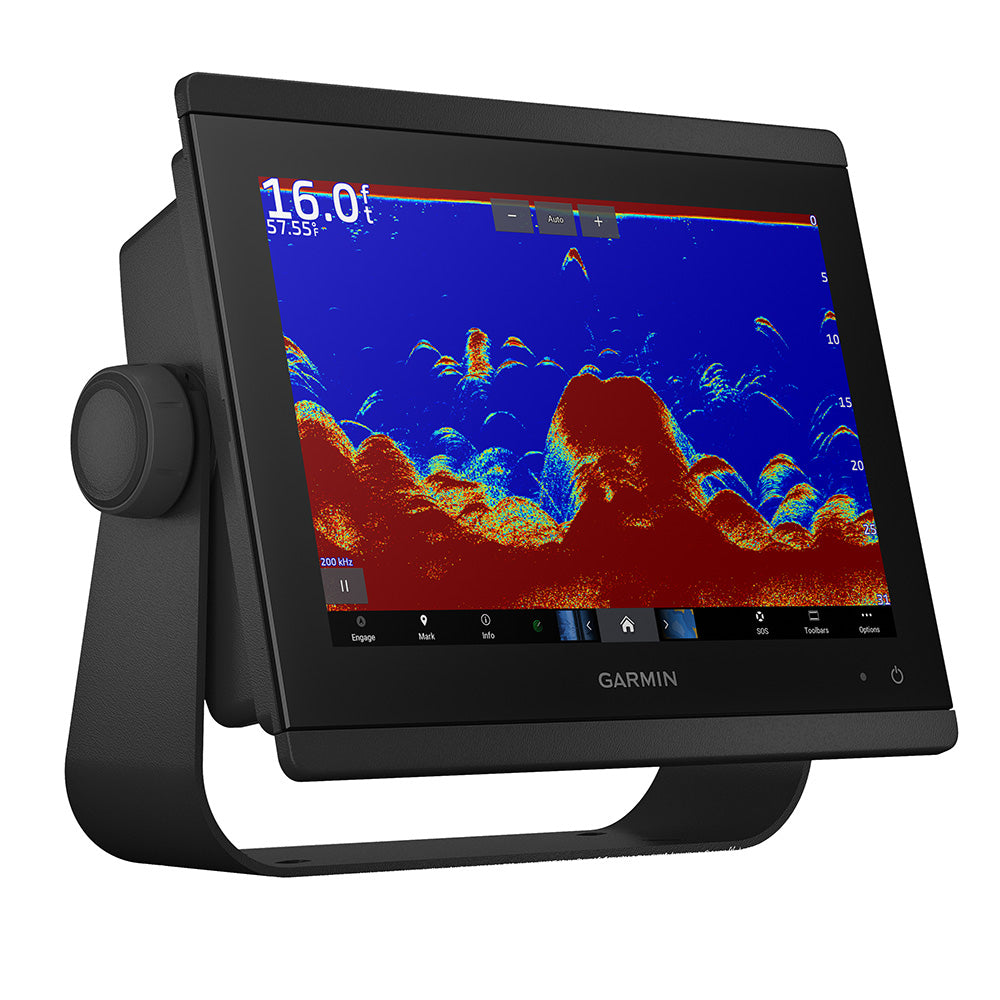

The Garmin GPSMAP 8610xsv combines a network chartplotter and fishfinder with a 10 in. full HD IPS touchscreen and preloaded Garmin Navionics+ coastal charts and inland mapping.

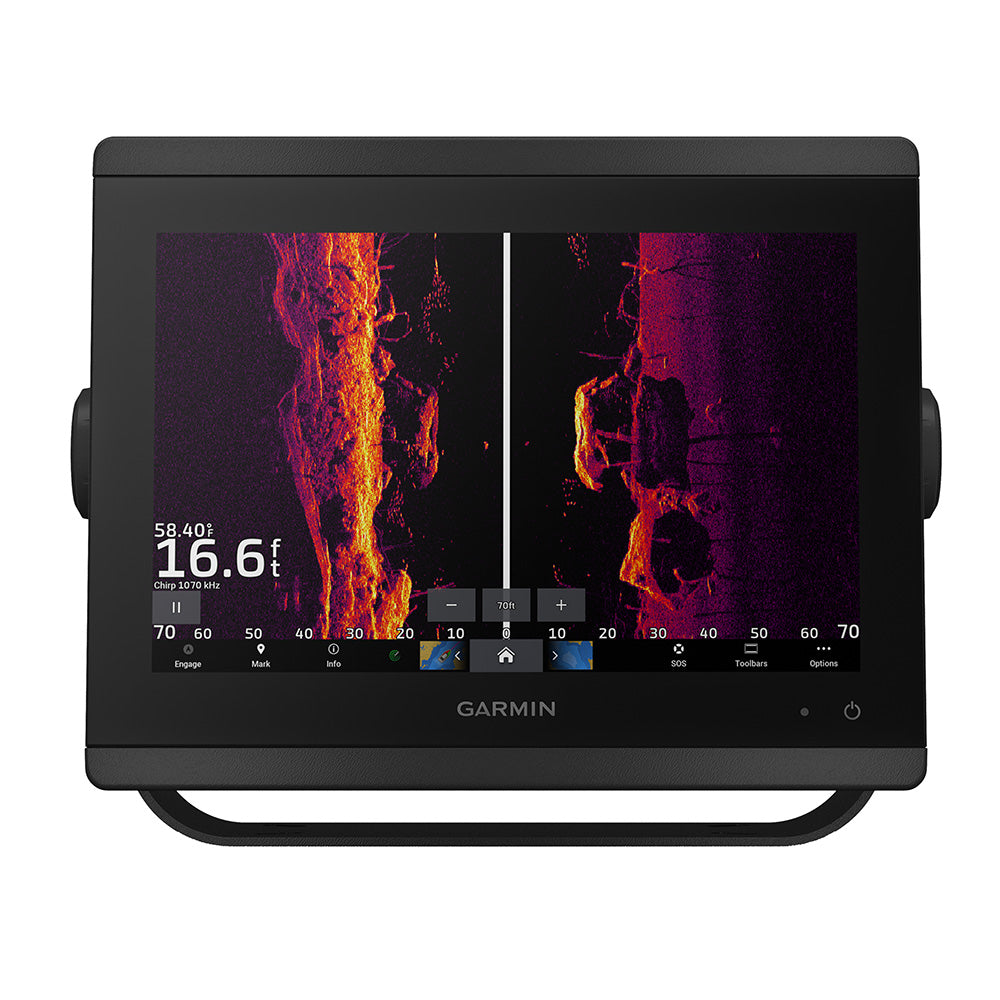

- Built-in support for dual-channel 1 kW traditional CHIRP, ClearVü, SideVü, Ultra High-Definition scanning, Panoptix, and LiveScope sonar; transducers are sold separately.

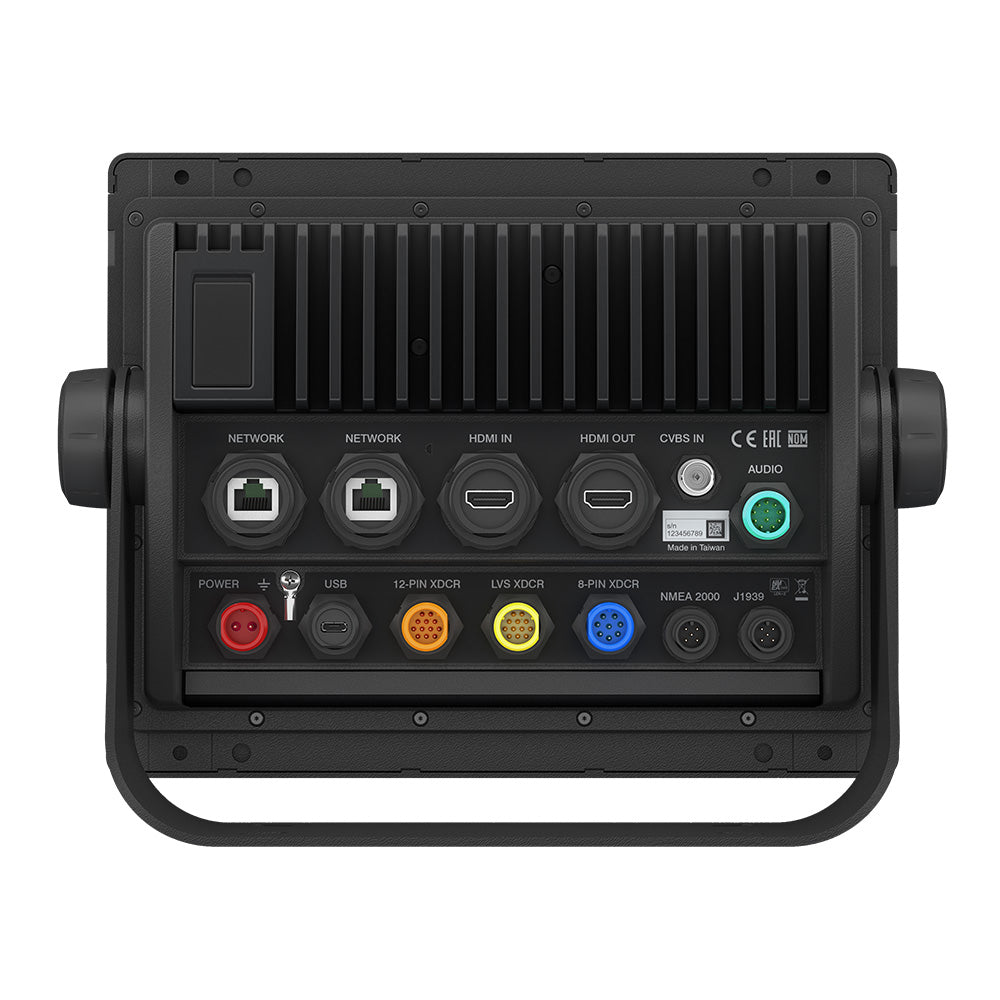

- Supports NMEA 2000 and Garmin Marine Network connections, plus ANT and Wi-Fi networking.
- Includes SmartMode station controls, OneHelm integration, Garmin SailAssist, ActiveCaptain app connectivity, and dual microSD card slots.
- Supports optional Garmin Navionics Vision+ premium map content. Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.
- Compatible with the SmartCraft Connect gateway to display data for up to four compatible Mercury engines.
- Includes chartplotter, power cable, NMEA 2000 T-connector and drop cable, bail mount with knobs, flush mount kit, protective cover, trim piece snap covers, and documentation. The bail mount with knobs is specified for 8610 and 8612 series units.
- Preloaded Garmin Navionics+ offshore, coastal, and inland water charts cover the U.S. and Canada.
- Transducer is not included.
- Regulatory note: This product can expose you to nickel (metallic), known to the State of California to cause cancer.
Quantity
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-117390
- Model / MPN
- 010-02091-51
- UPC / GTIN
- 753759285364
- Package dimensions (H × W × L)
- 9" X 12" X 17"
- Package weight
- 12.75 lb
- Country of origin
- TAIWAN
Specifications
- Cartography Brand
- Garmin Navionics+
- Screen Size
- 10"
- Touchscreen
- Yes
- Transducer Included
- No
