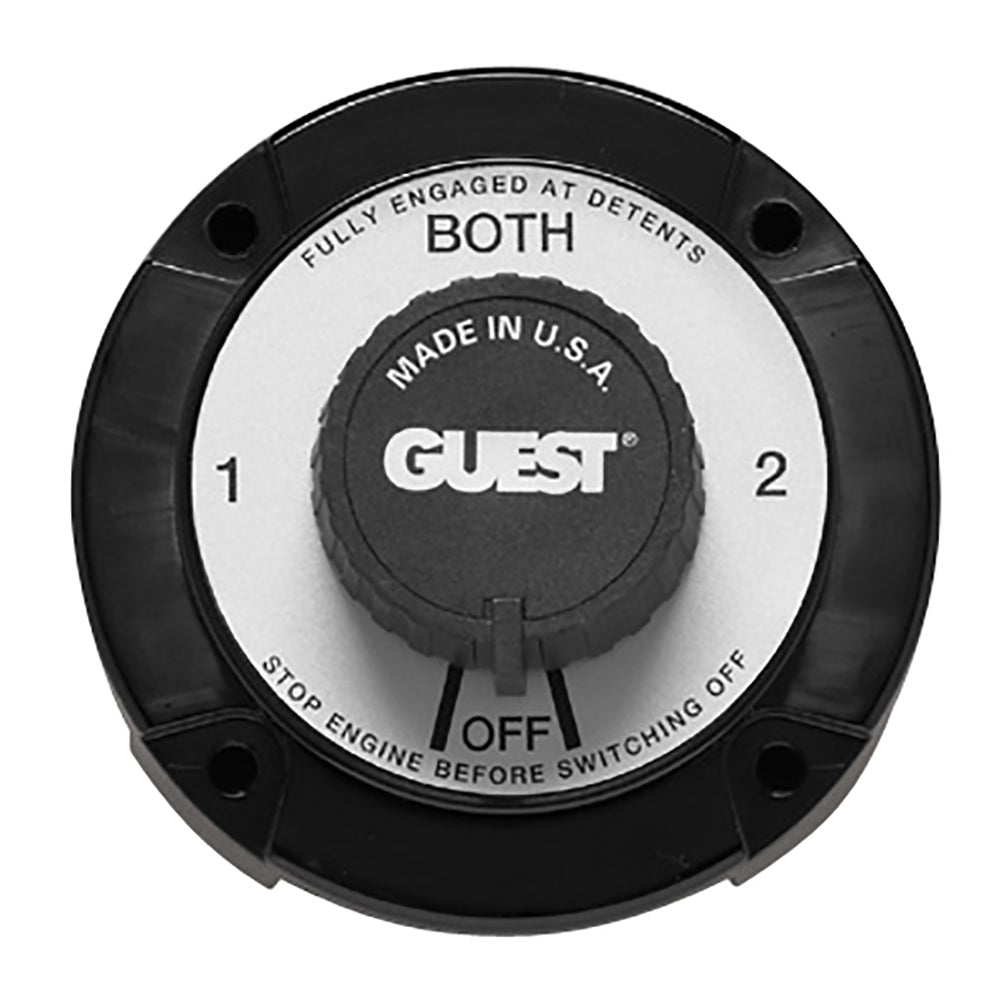

Guest Heavy-Duty Battery Selector Switch, 230A, UL Listed

Ensure robust and reliable power management aboard your vessel with the Guest 2111A Heavy-Duty Battery Selector Switch. Engineered for demanding marine environments, this universal mount switch allows you to easily manage power between two battery banks, operate them in parallel, or completely disconnect them. Its make-before-break contact design ensures seamless switching without interrupting power, safeguarding your electrical system. Trust Guest for proven durability and performance. Upgrade your marine electrical system today.

Key Benefits & Features:

• Ergonomic Operation: Features a newly styled turn knob with clear graphics for easy ON/OFF switching and quick status determination.
• Enhanced Installation: Longer stud lengths improve assembly and simplify cable routing.
• Superior Circuit Control: Heavy-duty copper sweep contacts ensure positive circuit engagement and reliable current flow.
• Extreme Durability: Housed in a tough, impact-resistant polycarbonate casing that is impervious to harsh marine elements.
• Seamless Switching: A make-before-break contact design allows switching between battery banks without power interruption.
• Secure Positioning: Positive click-stops on all selector positions provide secure and reliable operation.
• Versatile Mounting: Designed for both surface and rear panel mounting, fitting most competitor's mounting hole patterns.
• Protected Connections: A built-in skirt helps protect cable connections from environmental exposure.

Specifications:

• Switch Type: Selector, 4-position (single pole, triple throw)
• Continuous Rating: 230 Amps
• Intermittent Rating (5 min.): 345 Amps
• Nominal Voltage: 6 / 12 / 24 / 32V DC
• Cable Lug Size: 3/8 inch
• Dimensions: 5 inch diameter x 2.75 inch depth
• Regulatory Compliance: CE marked, UL listed, and conforms to Coast Guard standards for ignition protection (USCG 183.410).
• Warranty: Backed by a one-year limited warranty.

Important Note: The Guest 2111A model does not include an Alternator Field Disconnect (AFD) feature. It should never be turned to the "Off" position with the engine running to prevent potential damage to the alternator.
