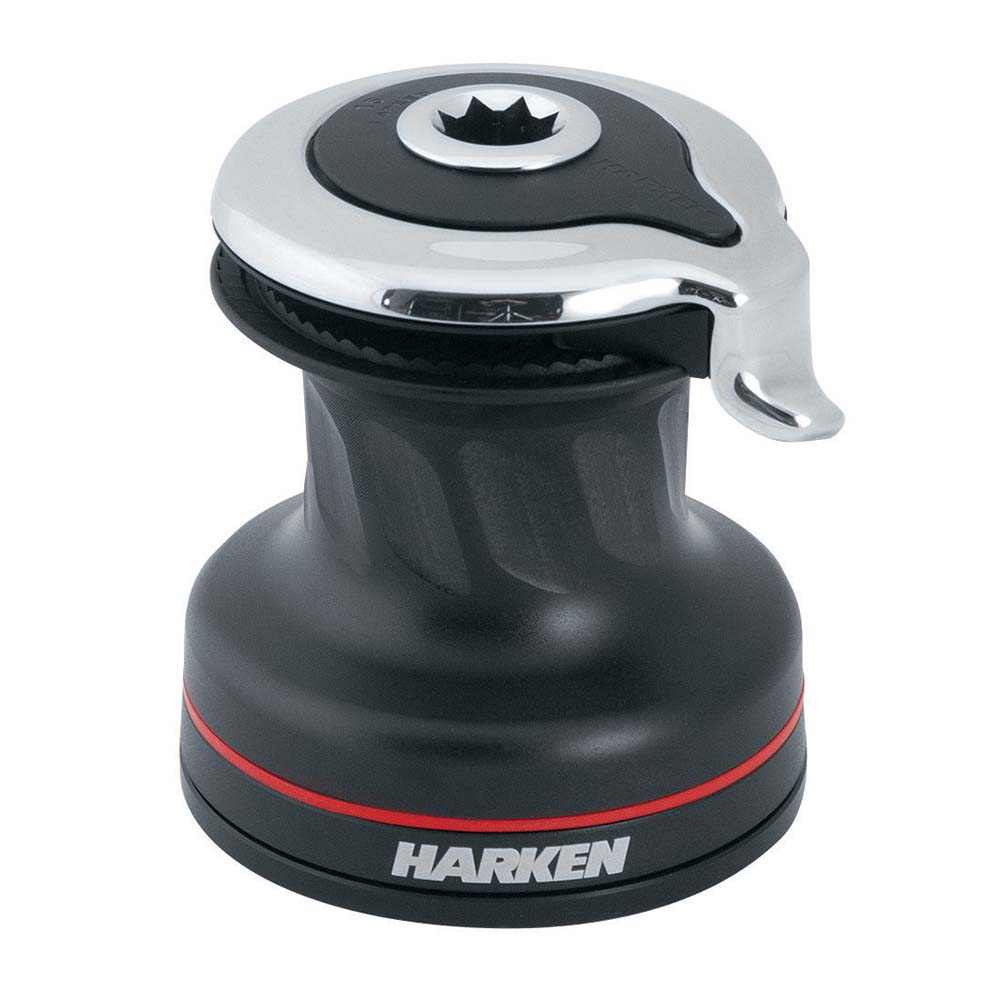

Harken 15STA Self-Tailing Radial Aluminum Winch, 1-Speed, 16.9:1 Power Ratio

Experience effortless sail handling with the Harken 15STA Self-Tailing Radial Aluminum Winch, engineered for efficient performance on deck. This single-speed winch delivers robust power and reliability, making it ideal for trimming sheets on small daysailers, hoisting halyards, and managing control lines on medium-sized boats up to 30 feet (9 meters). Upgrade your vessel's rigging for smoother, more controlled sailing.

• Lightweight Aluminum Drum: Crafted from durable aluminum for exceptional strength while maintaining a lighter weight compared to classic winches.
• Efficient Self-Tailing Mechanism: Allows a single crew member to quickly and easily trim or raise sails, simplifying sail management and freeing up deckhands.
• Radial Drum with Diagonal Ribs: Features a uniquely shaped gripping surface with diagonal ribs that maximize holding power and significantly reduce line wear, preventing overrides and ensuring a smooth, controlled line release.
• Durable Internal Components: Load-carrying gears and pins are constructed from 17-4PH stainless steel for superior strength and long-term durability, even in demanding marine environments.
• Maintenance-Friendly Design: Composite roller bearings reduce friction and do not require lubrication. The snap-fit design keeps bearings captive in a high-strength Delrin® cage, allowing the drum to lift out as a single unit for quick and mistake-free seasonal maintenance.
• Versatile Line Compatibility: Designed to accommodate line diameters from 1/4 inch (6 mm) to 3/8 inch (10 mm) for broad application versatility.
• Optimized Power Ratio: Boasts a power ratio of 16.90:1 and a gear ratio of 2.43:1 for effective line management with less effort.
• Compact & Robust Dimensions: Features a drum diameter of 2-7/8 inches (73 mm), a base diameter of 4-3/4 inches (120 mm), and a height of 5-1/2 inches (139 mm), weighing just 4.6 pounds (2.1 kg), ideal for space-conscious installations.

• Material: Aluminum
• Configuration: Self-tailing, Single Speed
• Drum Diameter: 2-7/8 in (73 mm)
• Base Diameter: 4-3/4 in (120 mm)
• Height: 5-1/2 in (139 mm)
• Weight: 4.6 lbs (2.1 kg)
• Line Entry Height: 2-1/4 in (58 mm)
• Minimum Line Diameter: 1/4 in (6 mm)
• Maximum Line Diameter: 3/8 in (10 mm)
• Fastener Circle: 3-15/16 in (100 mm)
• Number of Fasteners: 5 (1/4 SH or HH)
