• Harken 16mm Swivel Block, 250 lb Max Load
1 1
1 product view Open images for a closer look Compare photos with product details

Harken

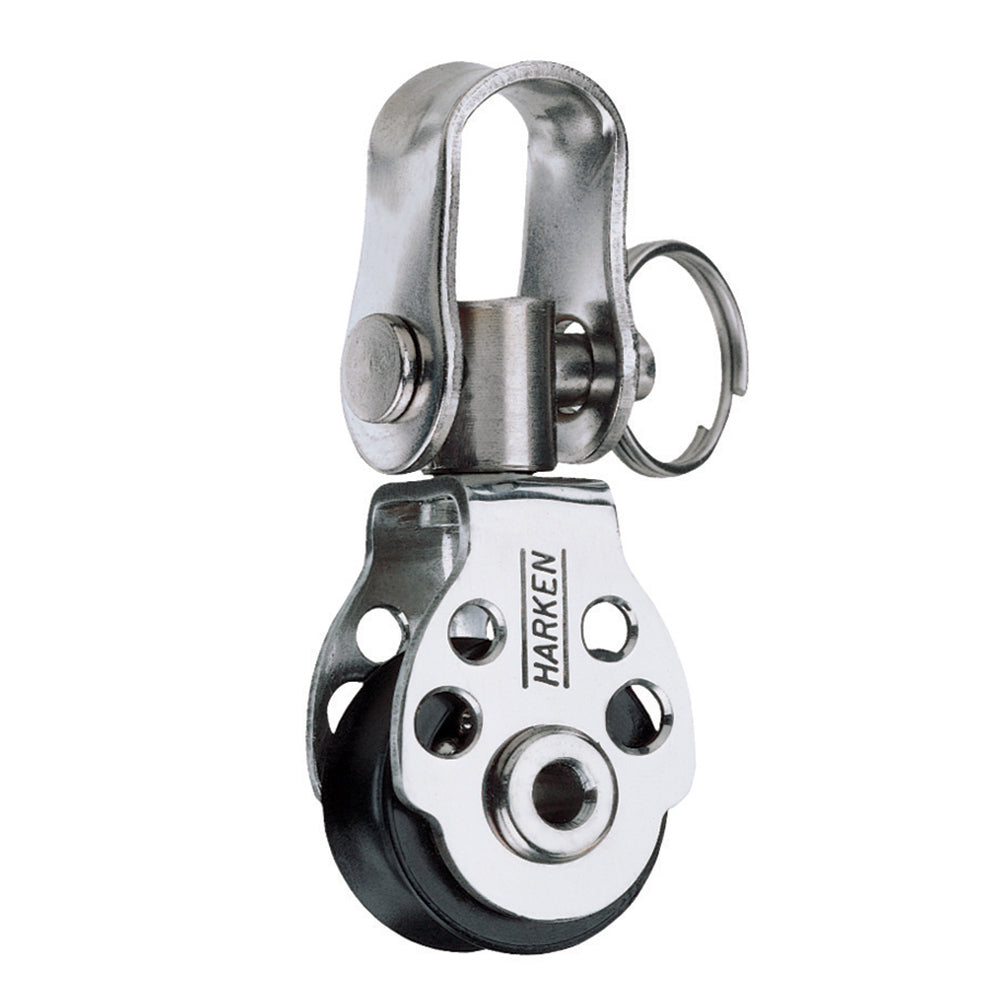

Harken 16mm Swivel Block, 250 lb Max Load

Harken 16mm Swivel Block, 250 lb Max Load

SKUCT-108330

$31.95
$31.95
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

In stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Optimize your sailing control lines with the Harken 16mm Swivel Block. This compact, high-performance block is engineered for demanding maneuvers on high-tech dinghies, providing smooth, reliable operation where weight and precision are critical. Upgrade your rigging for superior performance on the water.

Key Benefits:

  • Ultra-Compact Design: As Harken's smallest block, it's ideal for weight-sensitive applications on small boats and dinghies.
  • Low-Friction Performance: Features Harken's patented bearing system with stainless steel balls in a captive grooved race for exceptionally smooth operation.
  • Versatile Swivel Mount: The integrated swivel head allows for proper line alignment and flexible mounting options.
  • Robust Working Load: Safely handles control lines with a maximum working load of 250 lbs (113 kg), offering a strong safety margin.
  • Lightweight Construction: Weighs only 18g (0.63oz) to minimize impact on your boat's performance.
  • Durable Materials: Built with Harken's renowned quality for lasting performance in marine environments.

Specifications:

  • Sheave Diameter: 16mm (5/8 inch)
  • Maximum Line Diameter: 5mm (7/32 inch)
  • Working Load Limit: 250 lbs (113 kg)
  • Breaking Load: 750 lbs (339 kg)
  • Weight: 18g (0.63oz)
  • Length: 46mm (1-13/16 inch)

Shipping & returns

Shipping methods, delivery estimates, and final costs appear at checkout before payment. Some bulky, supplier-shipped, or special-handling items may ship separately. See Shipping & Returns for return windows and eligibility.

Fit & compatibility

Review the product title, description, images, dimensions, part numbers, and manufacturer details before purchase. For fit-sensitive items, confirm compatibility with your boat, RV, trailer, vehicle, or equipment.

Need help choosing?

Send us the product link or SKU, plus details about your boat, RV, trailer, vehicle, or project. We will help you narrow down the right option when product fit is not obvious.

View full details
