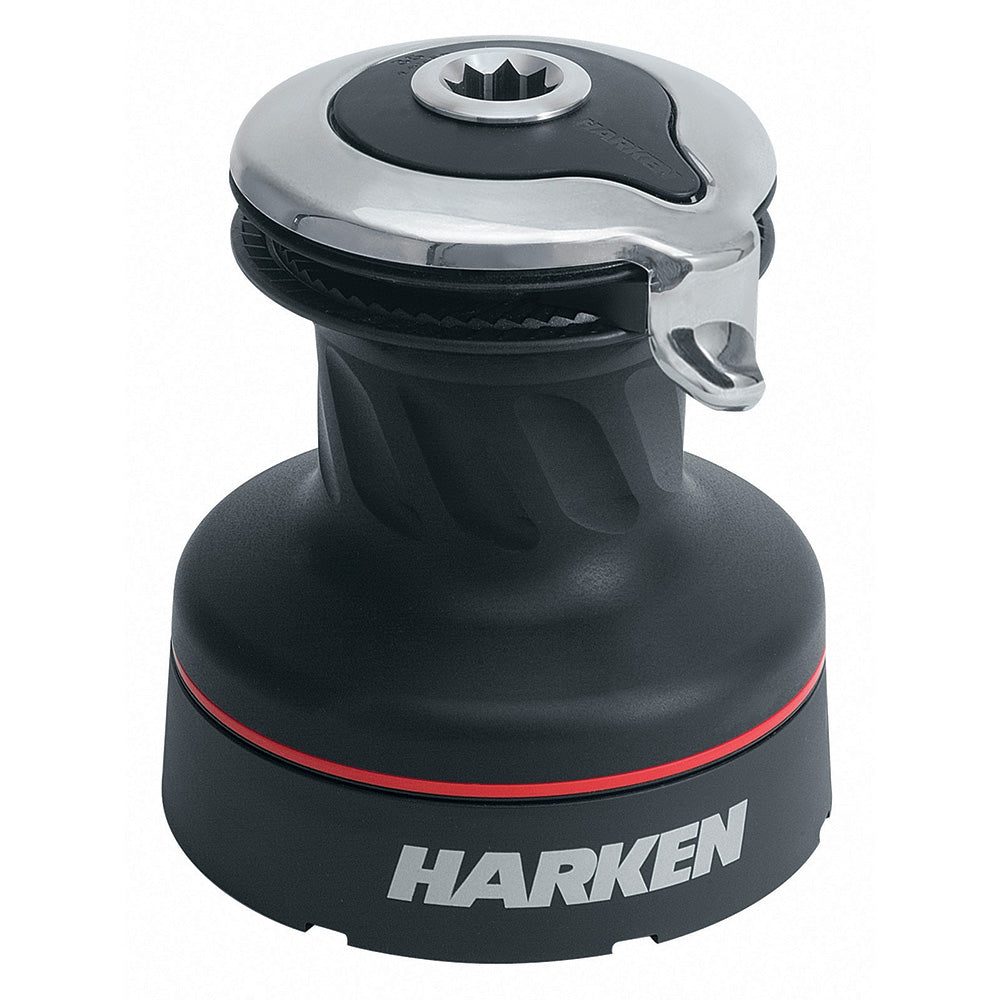

Harken 40.2STA Self-Tailing Radial Aluminum Winch, 2-Speed

Master your sail handling with the Harken 40.2STA Self-Tailing Radial Aluminum Winch, meticulously engineered for both performance and ease of use. This two-speed, self-tailing winch empowers a single crew member to effortlessly trim or raise sails, significantly enhancing your sailing efficiency. Crafted from durable, lightweight aluminum, it's designed to withstand harsh marine environments while delivering reliable, high-power performance. Upgrade your vessel's capabilities with Harken's renowned quality and innovation.

Key Benefits & Specifications:

• Effortless Single-Handed Operation: The self-tailing mechanism allows one person to trim or raise sails quickly and easily, freeing up other crew members. Its upper jaw adjusts automatically to accept a variety of line sizes.
• Superior Line Grip & Protection: The unique Radial drum design features diagonal ribs that maximize gripping power while greatly reducing line wear compared to abrasive textures. This design also prevents overrides and ensures a smooth, controlled line release.
• Versatile Two-Speed Control: Provides optimal power and speed for various sailing conditions with gear ratios of 2.13:1 (1st speed) and 6.28:1 (2nd speed), offering power ratios of 13.50:1 and 39.90:1 respectively.
• Robust & Lightweight Construction: Made from high-quality aluminum, ensuring exceptional durability and corrosion resistance without adding unnecessary weight to your deck.
• Enhanced Safety Features: An integrated stripper arm fully covers the rotating winch top, acting as a stable platform that helps prevent fingers and clothing from catching in moving parts.
• Streamlined Installation: Features a patent-pending stud-bolt mounting system that allows for quick, one-person installation without the need to remove the drum.
• Simplified Maintenance: Equipped with composite roller bearings that reduce friction, resist corrosion, and require no lubrication. The snap-fit design keeps bearings captive for easy, mistake-free servicing on deck.
• Generous Line Capacity: Accommodates lines from 8 mm (5/16 in) up to 12 mm (1/2 in) in diameter.
• Compact & Powerful Design: Boasts an 80 mm (3 1/8 in) drum diameter, 157 mm (6 3/16 in) base diameter, and a height of 175 mm (6 7/8 in), weighing 3.8 kg (8.4 lb).

Safety Note: This winch has a maximum working load (MWL) of 850 kg (1874 lb). Exceeding this limit can result in winch failure or detachment from the deck, leading to severe injury or death. Ensure proper installation with five M6 stainless steel bolts (not supplied by Harken).
