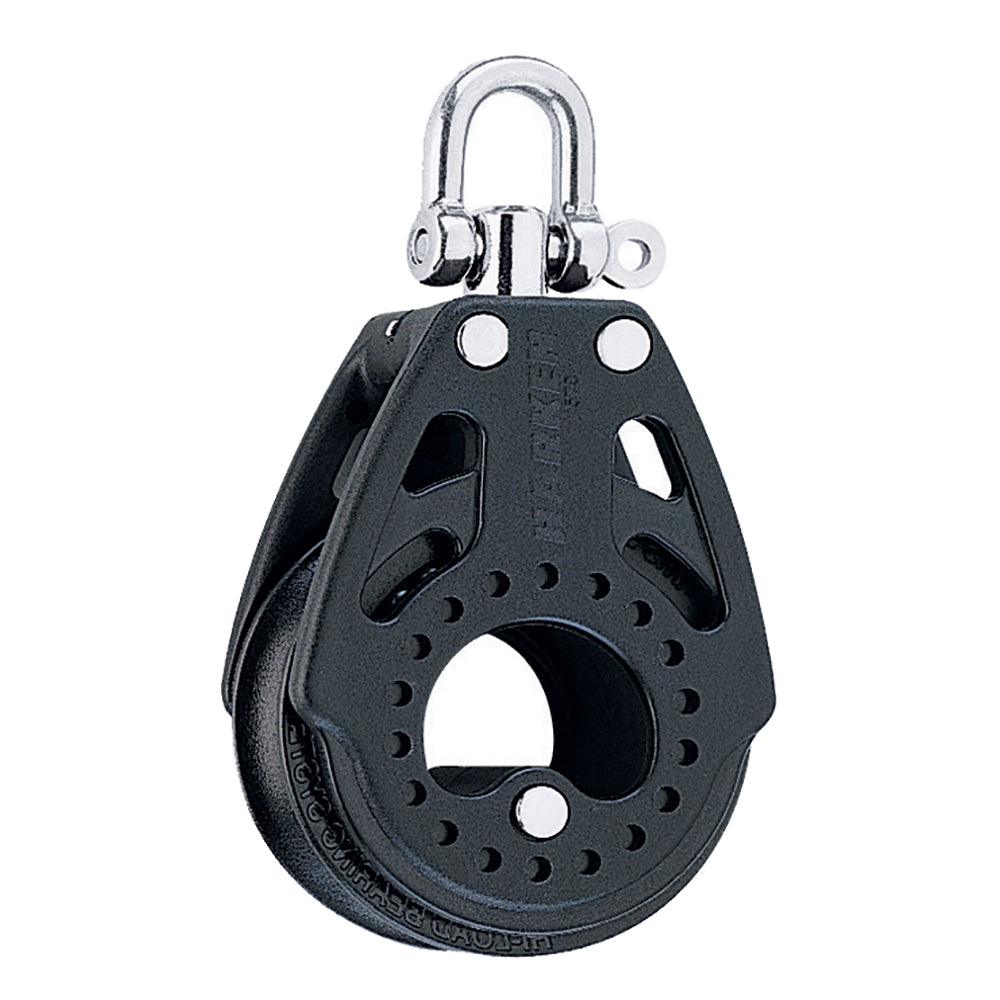

Harken 57mm Carbo Air Block with Swivel, High-Strength & Low-Friction

Harken 57mm Carbo Air Block with Swivel, High-Strength & Low-Friction

SKUCT-108339

$55.95
$55.95
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

Experience superior performance and durability with the Harken 57mm Carbo Air Block with Swivel. Engineered for efficient sail trimming, this lightweight and strong block delivers low-friction operation for fast trim and release, making it a reliable and affordable choice for any sailor. Its open-air design strategically eliminates unnecessary material, contributing to a lighter assembly without compromising strength. Upgrade your rigging with Harken's innovative design for safe, easy sailing.

Key Benefits & Features:

  • Low-Friction Efficiency: Free-running ball bearings roll on curved races, efficiently dispersing load for fast trimming and smooth line handling.
  • Lightweight & Strong Design: Up to 30% lighter and boasts a 60% higher working load than Harken's Classic blocks, thanks to its open-air design and glass fiber-reinforced nylon resin sideplates.
  • UV-Stabilized Durability: Ball bearings, sheave, and side plates are UV-stabilized with carbon black, offering maximum protection against harsh marine environments.
  • Versatile Swivel Head: A patented switch allows the shackle to lock in front or side positions, or swivel freely to prevent line twisting.

Specifications:

  • Sheave Diameter: 57mm (2-1/4in) for smooth line passage.
  • Maximum Line Diameter: Accommodates lines up to 10mm (3/8in) for broad compatibility.
  • Maximum Working Load: 359kg (792lb) ensures reliable performance under load.
  • Breaking Load: 1079kg (2380lb) for exceptional safety margins.
  • Length: 110mm (4-5/16in) compact design.
  • Weight: 87g (3.1oz) minimizes overall rigging weight.
  • Shackle Pin: 5mm (3/16in) for secure attachment.

Recommended Applications:

  • Ideal for main/jib sheets, mainsheet fine-tune, control lines, vangs, cunninghams, and outhauls.
  • Commonly used on centerboard and keelboats such as Lightnings, Dragons, Solings, and J/24's, as well as mainsheet systems on catamarans.
  • Specific one-design applications include Flying Scot Mainsheet Boom Block and MC Scow Boom Block (Foreward).
