Brand: HEISE LED Lighting Systems

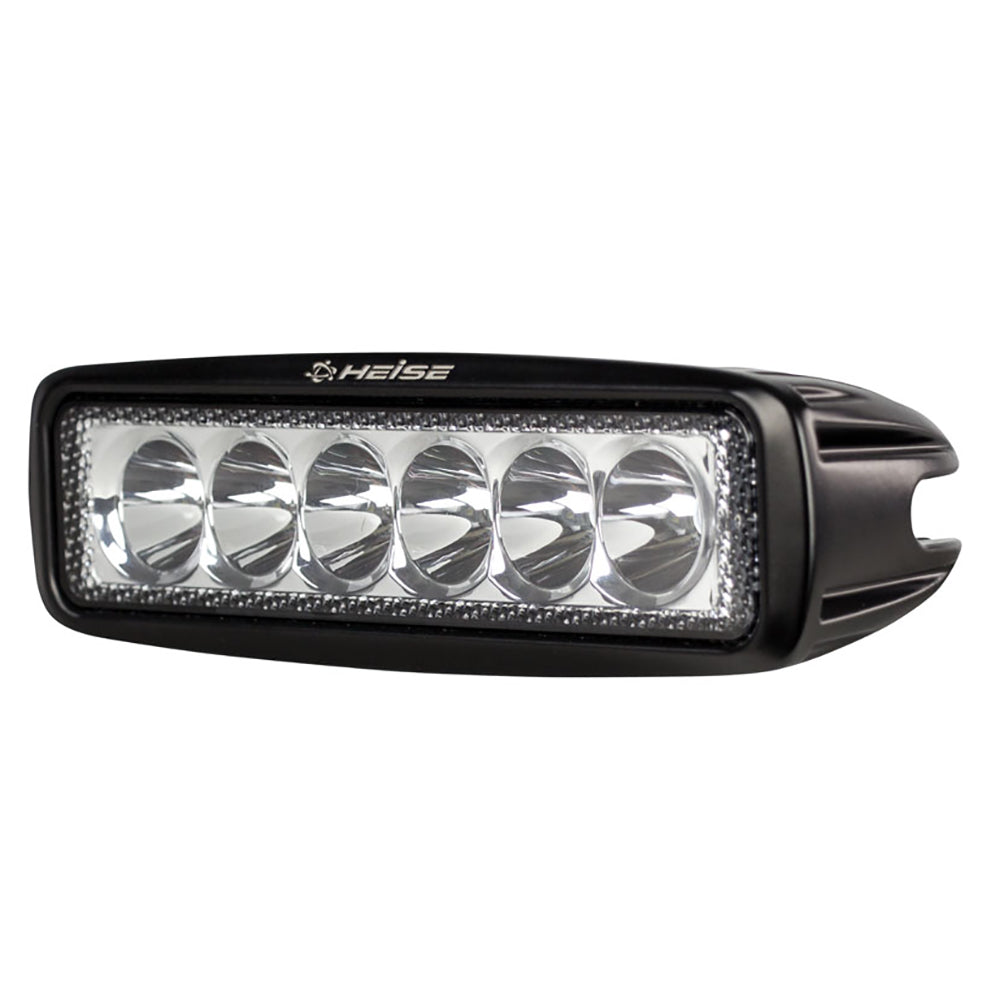

HEISE LED Lighting Systems 6-LED Single Row Driving Light, 6.25 in.
HEISE LED Lighting Systems 6-LED Single Row Driving Light, 6.25 in.
Sold out
This Heise single row driving light features six 3-watt OSRAM LEDs, delivering 1440 raw lumens with a 25-degree spot beam pattern. Designed for automotive and RV use, the light is built for durability with a die-cast aluminum housing and a polycarbonate lens.
Key Specifications:
- Input Voltage: 10-30V DC
- Wattage: 18W
- Color Temperature: 6000K
- Dimensions: 6.25 in. length
- Housing: Black finish with black powder-coated steel mounting bracket
- Hardware: Stainless 316 steel
- Electronics: Integrated-epoxy encapsulated with reverse polarity protection
- Operating Temperature: -40°C to +60°C
- Current Draw: 0.9 amps at 13.8V
- IP Rating: IP67
- Part Number: HE-DL1
Regulatory note: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-106291
- Model / MPN
- HE-DL1
- UPC / GTIN
- 086429312917
- Package dimensions
- 4" X 4" X 8"
- Package weight
- 1.2 lb
- Specifications
- Beam Pattern = Driving\nVoltage - Input Range (Volts) = 10-30v\nLength (Inches) = 6.25"\nHousing = Black
