Brand: HEISE LED Lighting Systems

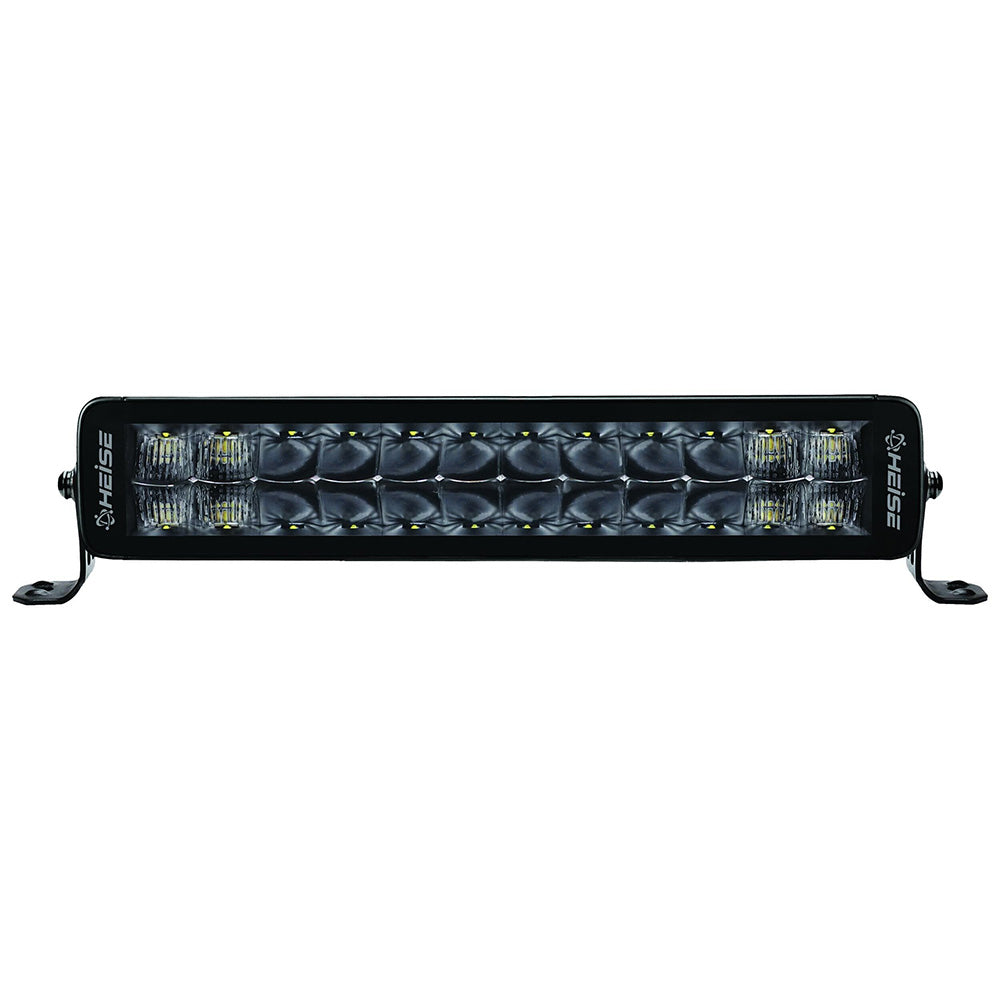

HEISE 14" Dual Row Blackout LED Lightbar (HE-BD14)
HEISE 14" Dual Row Blackout LED Lightbar (HE-BD14)
Sold out
About this product
This HEISE Dual Row Blackout 14-inch LED lightbar provides a versatile, high-output lighting solution for a wide range of vehicles. Featuring an updated design, it utilizes indirect optics for enhanced control over beam patterns and coverage. The hybrid beam configuration combines a focused 8-degree spot beam with a 90-degree flood beam to deliver both long-range intensity and broad peripheral illumination.
The unit is housed in durable die-cast aluminum with a protective vent port that allows internal moisture to escape while preventing external water ingress. It includes integrated, epoxy-encapsulated electronics and is rated IP67 for dust and water resistance.
- Length: 14 in.
- Beam Pattern: Combo (90° flood and 8° spot)
- Raw Lumens: 10,080 lm
- Wattage: 120W
- Input Voltage: 10-30V DC
- Color Temperature: 5700K
- Housing Material: Die-cast aluminum with black finish
- Lens Material: Polycarbonate
- Hardware: 316 stainless steel
- Operating Temperature: -40°F to +140°F
- Mounting: Side and rear (0.25 in. mounting bolt drill)
- Features: Reverse polarity protection, integrated-epoxy encapsulated electronics
- Protection Rating: IP67
- Part Number: HE-BD14
- Warranty: Limited lifetime warranty
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-117550
- Model / MPN
- HE-BD14
- UPC / GTIN
- 086429414536
- Package dimensions (H × W × L)
- 5" X 6" X 24"
- Package weight
- 5.5 lb
Specifications
- Beam Pattern
- Spot-Flood Combo
- Housing
- Black
- Length (Inches)
- 14"
- Voltage - Input Range (Volts)
- 12/24v
