Brand: HEISE LED Lighting Systems

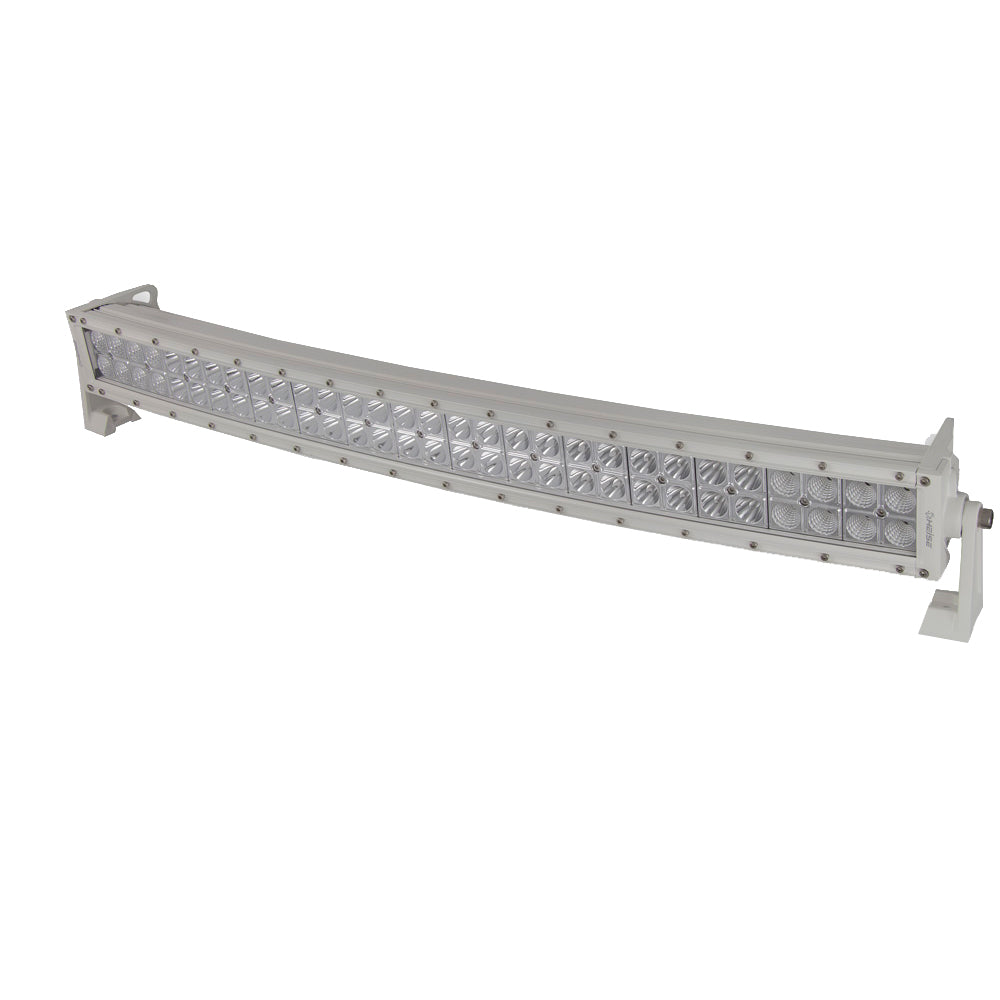

HEISE Dual Row Marine LED Curved Light Bar, 30 in., White
HEISE Dual Row Marine LED Curved Light Bar, 30 in., White
3 available
The HEISE Dual Row Marine LED Curved Light Bar provides high-intensity illumination for marine environments. This 30-inch light bar features a durable white die-cast aluminum housing with UV inhibitors and an IP67 waterproof rating for long-term reliability.
Key Specifications
- Length: 30 in.
- Output: 14400 raw lumens from 60 x 3W CREE LEDs
- Beam Pattern: Combo (90-degree flood and 8-degree spot)
- Color Temperature: 6000K
- Input Voltage: 10-30V DC
- Wattage: 180W
- Current Consumption: 9.5A at 13.8V
- Operating Temperature: -40°C to +60°C
Construction and Mounting
- Housing: White powder-coated die-cast aluminum with Gore® membrane
- Lens: Polycarbonate
- Hardware: Stainless 316
- Dimensions: 3 in. height, 3.5 in. depth
- Mounting Hole Width: 25 in. (bolt to bolt)
- Bracket Width: 31 in. (inward) or 33.5 in. (outward)
- Integrated electronics are epoxy-encapsulated for protection against vibration and moisture.
- Reverse polarity protection is included.
Regulatory Note: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-106296
- Model / MPN
- HE-MDRC30
- UPC / GTIN
- 086429348275
- Package dimensions
- 5" X 9" X 35"
- Package weight
- 10.8 lb
- Specifications
- Beam Pattern = Spot-Flood Combo\nLength (Inches) = 30"\nHousing = White\nVoltage - Input Range (Volts) = 10-30v
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
