Brand: Hella Marine

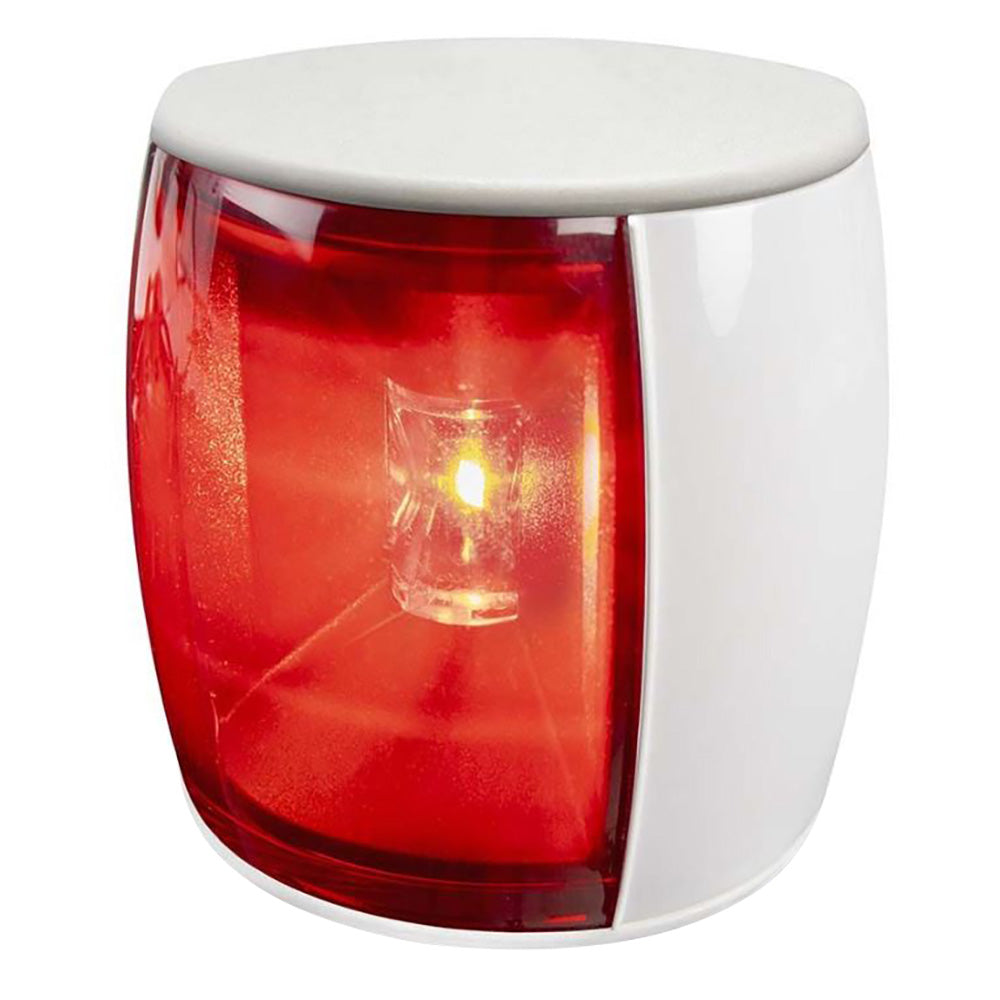

Hella Marine NaviLED PRO Port Navigation Lamp, 2 NM, White Shroud, 017460011
Hella Marine NaviLED PRO Port Navigation Lamp, 2 NM, White Shroud, 017460011
Last one
About this product
The Hella Marine NaviLED PRO Port Navigation Lamp is a red-lens LED navigation light with a white shroud and 2 NM visibility for 12/24V marine applications.
- Manufacturer part number: 017460011
- Operating voltage: 9–33V DC for 12/24V DC applications
- Visibility: 2 nautical miles
- Material: High-impact, UV-resistant acrylic
- Includes 2.5 m of tinned marine cable
- Power consumption: less than 2 W (0.17 A at 12V / 0.09 A at 24V DC)
- Protection: IP67 sealed; spike protected to +500V and reverse-polarity protected to -500V
- UV resistant
- Compliance: IMO COL REG 72, USCG, ABYC C-5, RCM, and Maritime NZ
- Made in New Zealand
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-119553
- Model / MPN
- 017460011
- UPC / GTIN
- 9416325253242
- Package dimensions (H × W × L)
- 4" X 4" X 6"
- Package weight
- 0.75 lb
- Country of origin
- NEW ZEALAND
Specifications
- Housing
- White
- LED
- Yes
- Lens Color
- Red
- Visible Range (Miles)
- 2 NM
- Voltage - Input Range (Volts)
- 12/24V
- Minimum Visible Distance
- 2 nautical miles
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
