Brand: Hella Marine

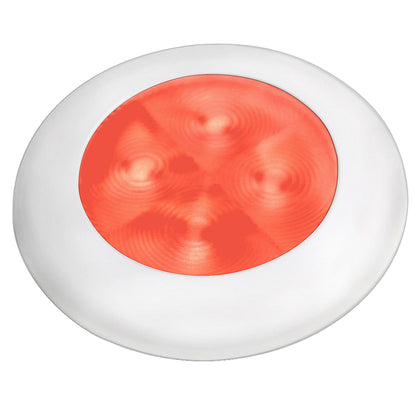

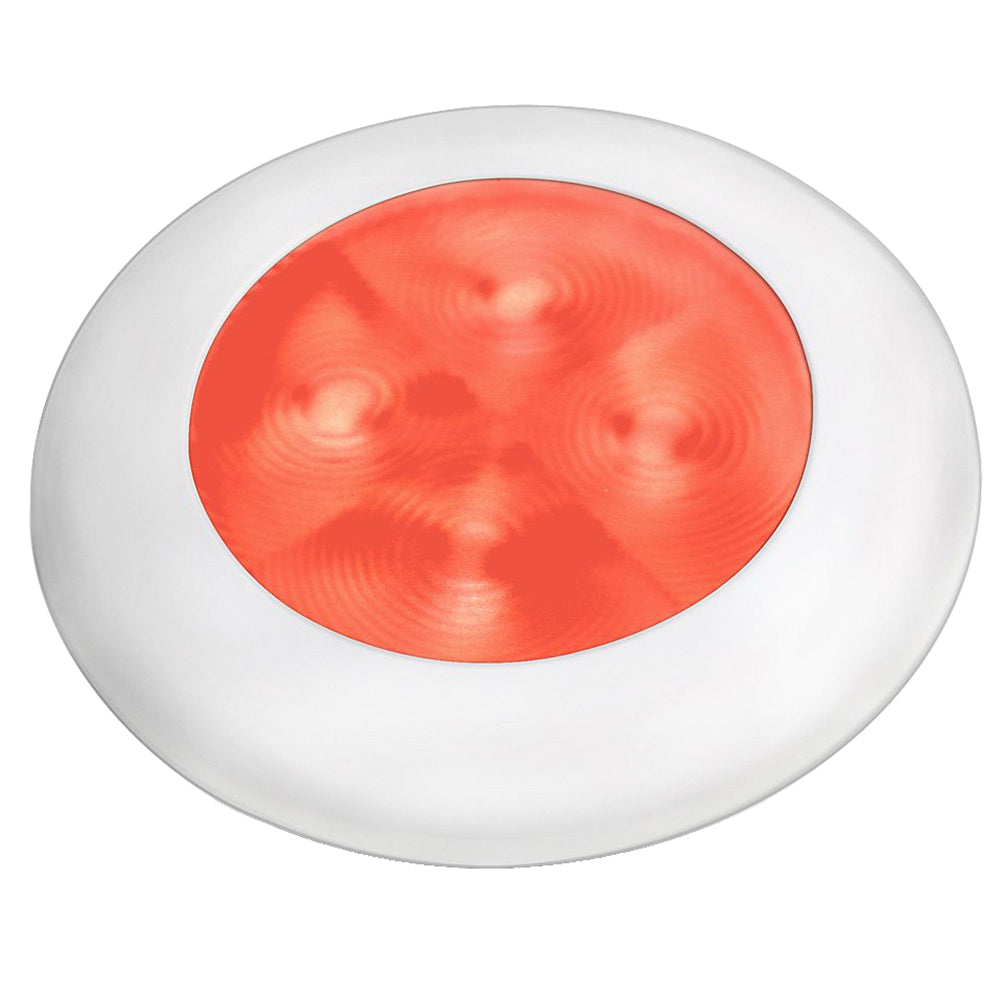

Hella Marine Slim Line LED Round Courtesy Lamp, Red LED, White Bezel, 12V/24V

Hella Marine Slim Line LED Round Courtesy Lamp, Red LED, White Bezel, 12V/24V

$31.95
$31.95
Sale Sold out
Shipping calculated at checkout.

5 available

The Hella Marine Slim Line LED Courtesy Lamp provides energy-efficient illumination for interior and exterior marine applications. This enhanced brightness model features advanced lens technology to deliver a uniform, glare-free spread of red light.

  • LED Color: Red
  • Housing: White plastic bezel
  • Power Consumption: Less than 0.5W (< 0.042A at 12V / < 0.02A at 24V)
  • Operating Voltage: 12V DC or 24V DC
  • Protection Rating: IP 67 (completely sealed)
  • Durability: Shock, impact, and vibration resistant
  • Lens Material: UV-resistant, high-impact acrylic
  • Mounting: Surface mount with included stainless steel screws
  • Connection: Pre-wired with 120mm of single-core marine cable
  • Weight: 50g
  • Part Number: 980507241

This lamp is designed to operate safely in lightweight materials due to its low heat output. The unit is compatible with the Hella Marine 5XA 998 572-001 dimmer for brightness control.

Product facts

CT SKU
CT-105484
Model / MPN
980507241
UPC / GTIN
9416325165095
Package dimensions
2" X 4" X 8"
Package weight
0.2 lb
Specifications
Bulb Type = LED\nVoltage - Input Range (Volts) = 12v\nHousing = White\nLED Color = Red\nDimming = No
