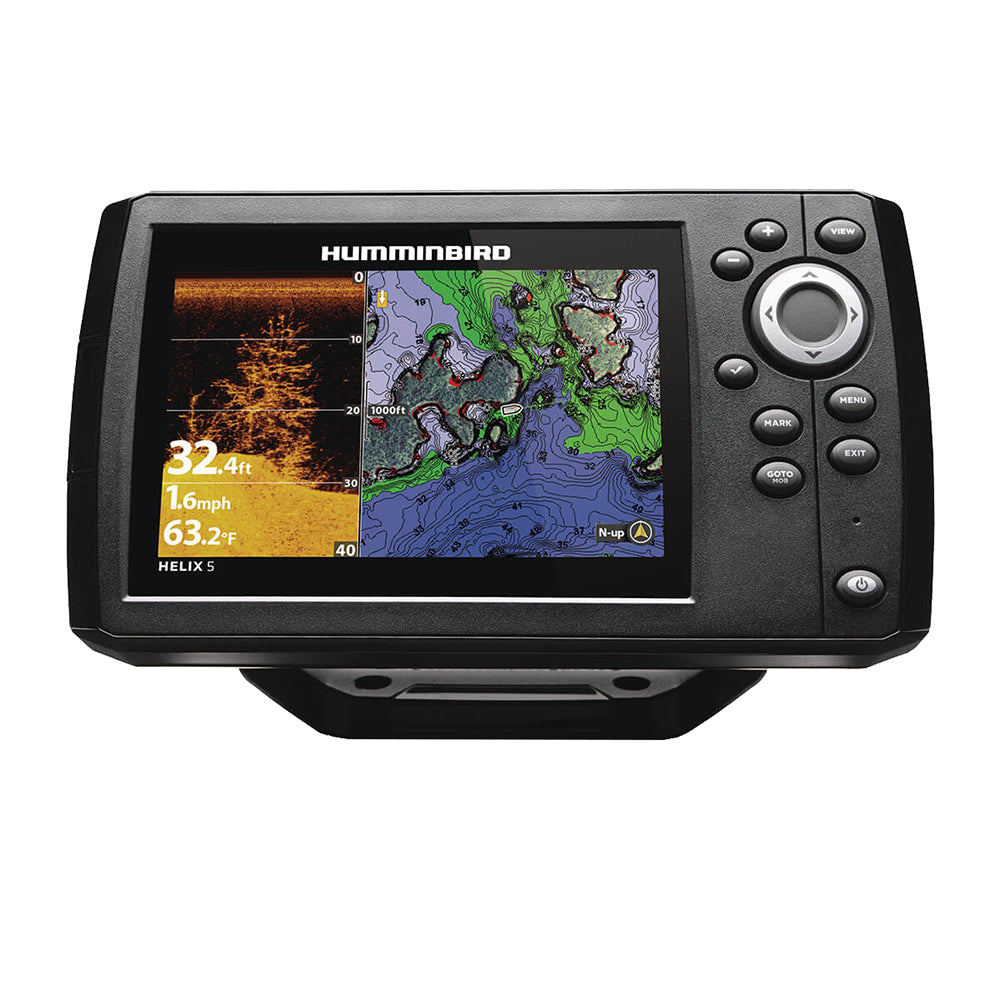

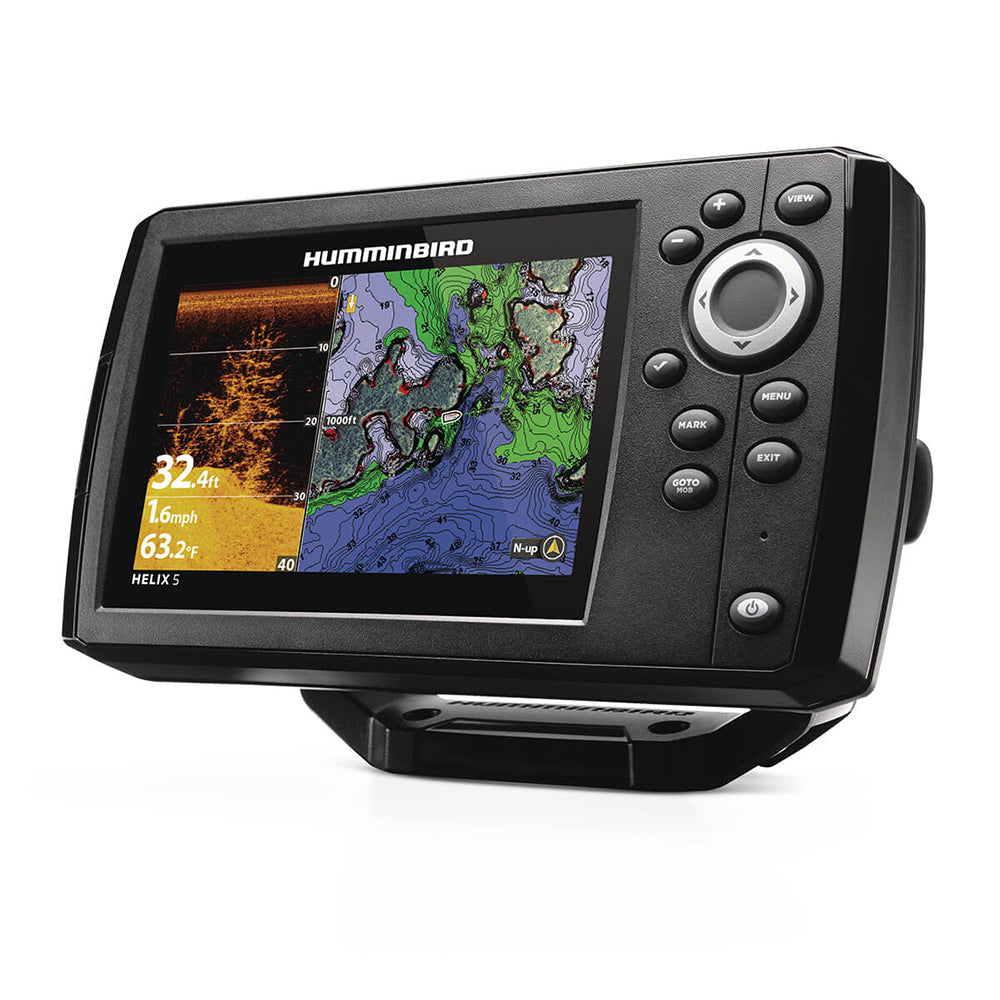

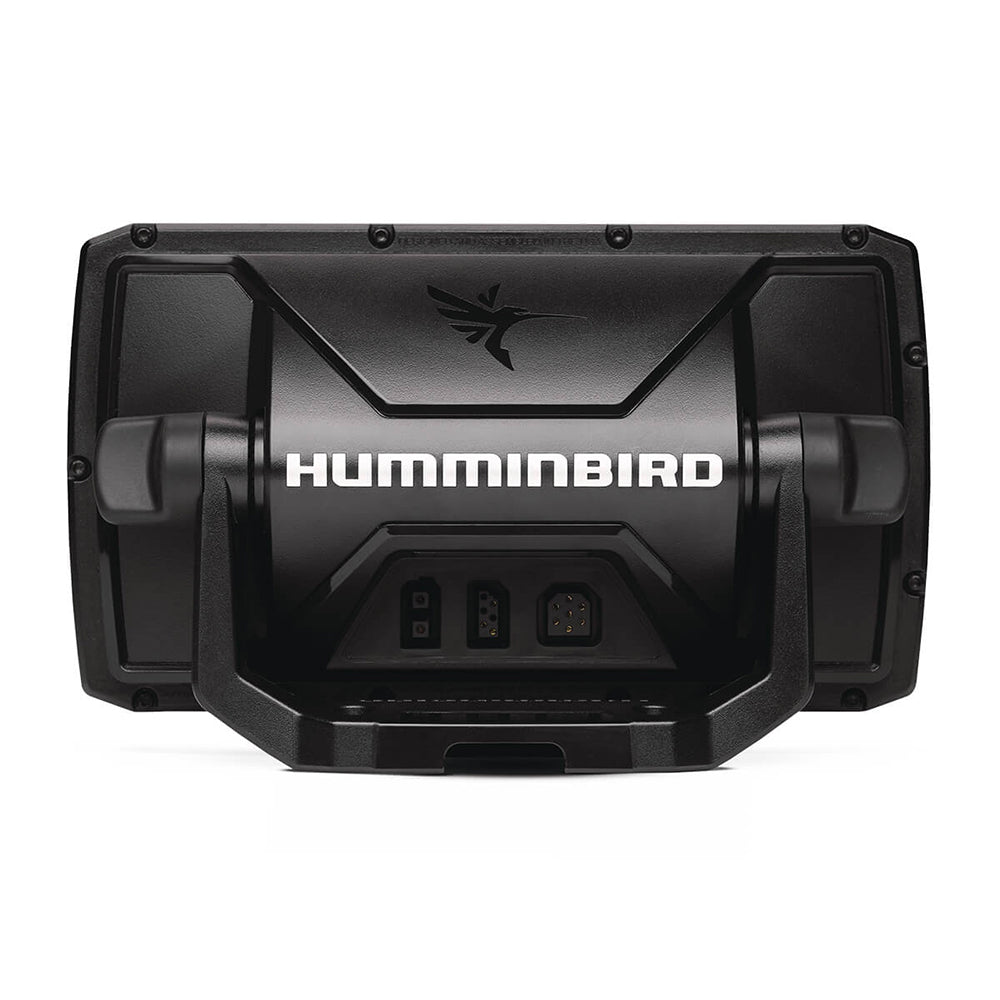

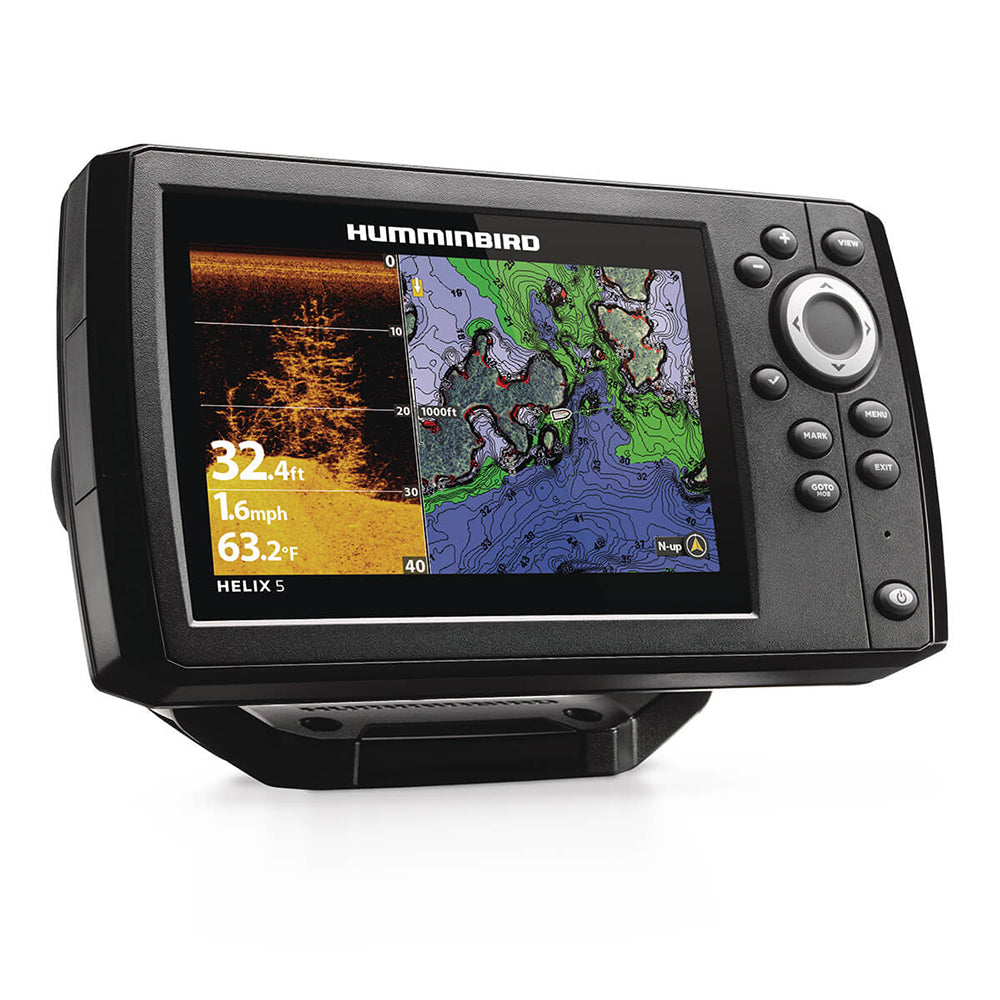

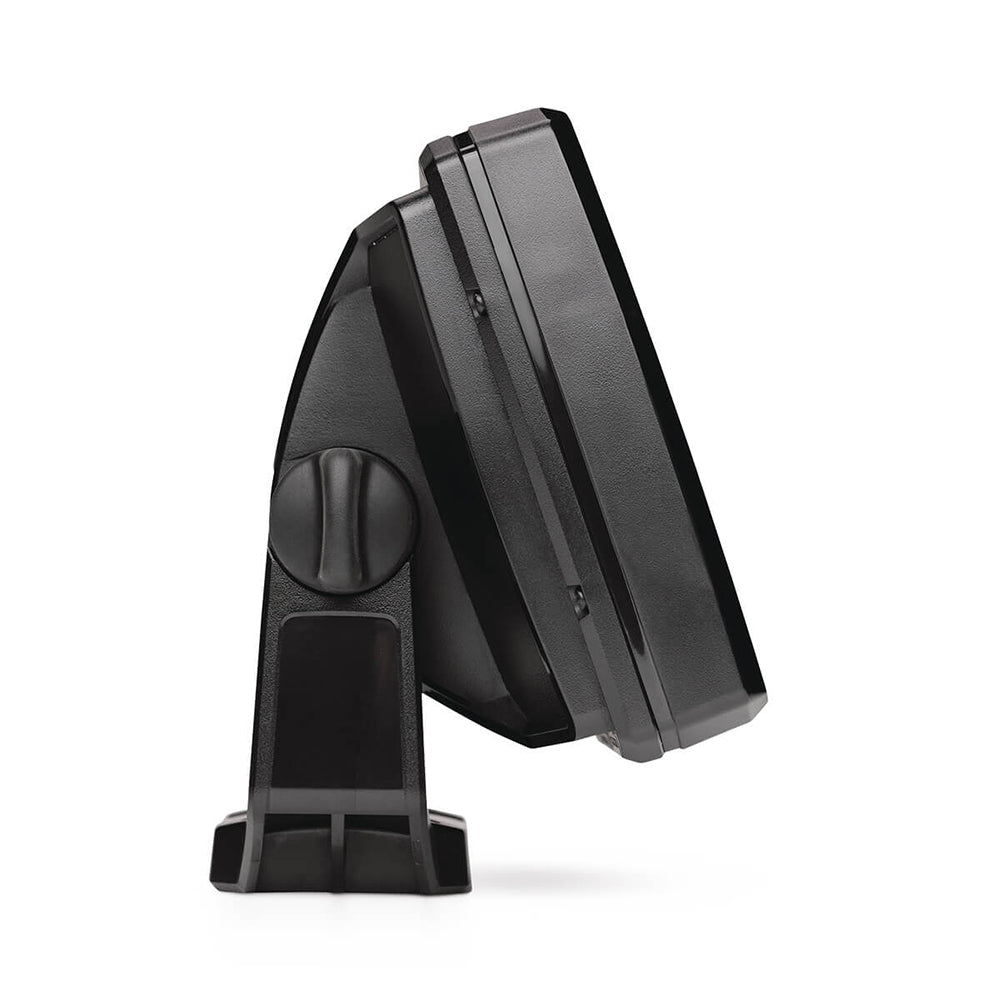

Humminbird HELIX 5 CHIRP DI GPS G3 Fishfinder with Transducer

The Humminbird HELIX 5 CHIRP DI GPS G3 is a compact marine fishfinder and chartplotter featuring a 5" widescreen color display. This model provides Dual Spectrum CHIRP 2D sonar and CHIRP Down Imaging to deliver detailed views of underwater structure and fish. It includes an internal GPS with pre-loaded Humminbird Basemap and AutoChart Live for real-time map creation.

Key Features:

• Control head with reliable keypad operation.
• Dual Spectrum CHIRP sonar with Wide and Narrow search modes.
• Internal GPS with Humminbird Basemap featuring over 10,000 lakes and continental U.S. coastal coverage.
• AutoChart Live supports real-time depth, bottom hardness, and vegetation mapping with 8 hours of internal recording time.
• Compatible with Humminbird LakeMaster, CoastMaster, and Navionics premium fishing charts.
• Includes XNT-9-HW-DI-T transom-mount transducer, power cable, gimbal mounting bracket, and hardware.
• 1-year limited warranty.

Technical Specifications:

• Display: 5" diagonal, 800H x 480V pixel matrix.
• Standard Sonar: Dual Spectrum CHIRP, CHIRP Down Imaging.
• Sonar Frequencies: 50/83/200/455 kHz.
• CHIRP Supported Frequencies: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz).
• Sonar Coverage: 20°, 42°, and 60° at -10dB.
• Depth Capability: 1,200 ft with included transducer (up to 3,000 ft with optional 50 kHz transducer).
• Manufacturer Part Number: 411670-1.
