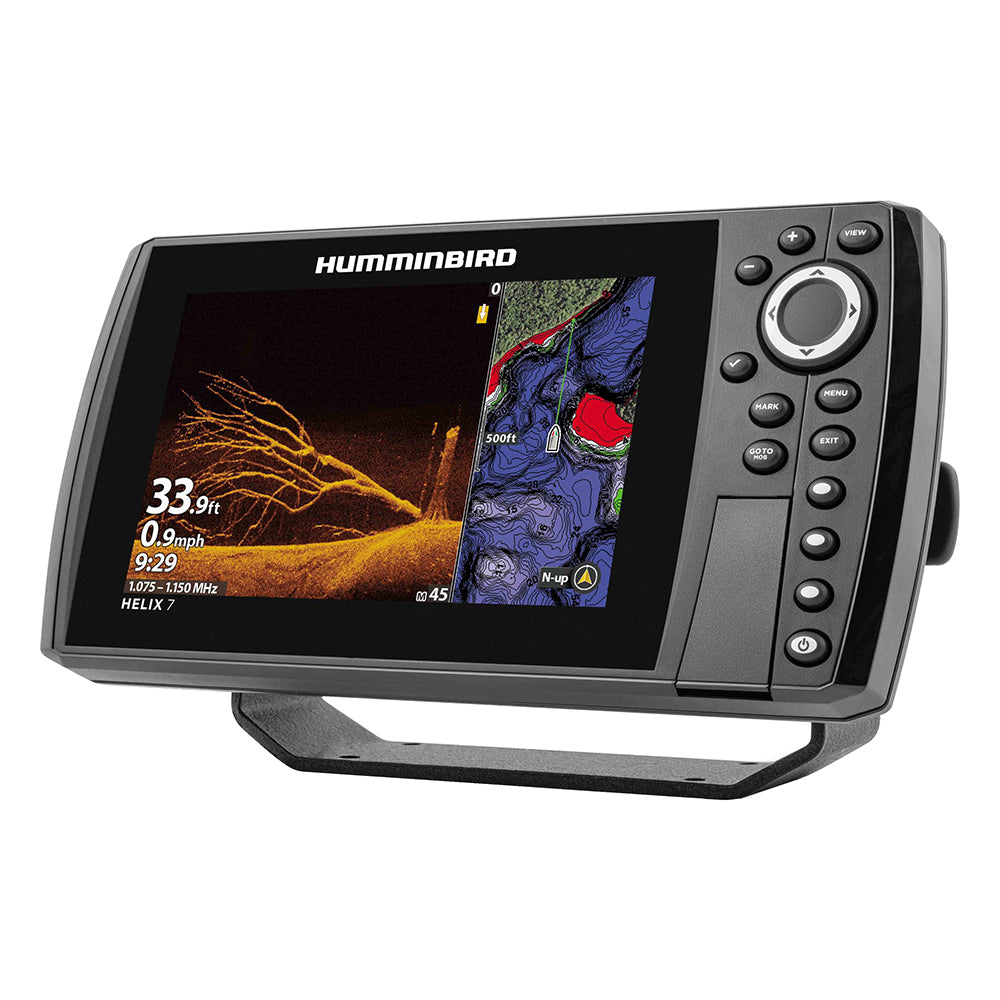

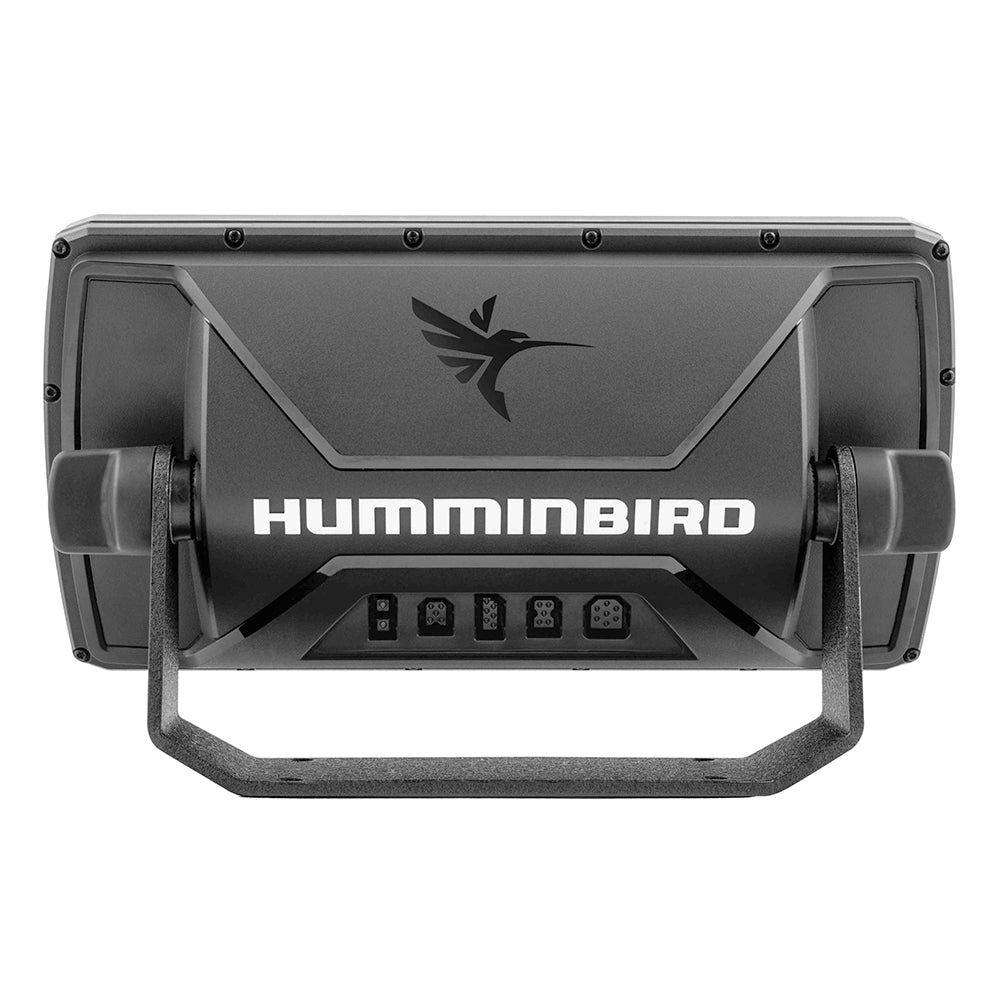

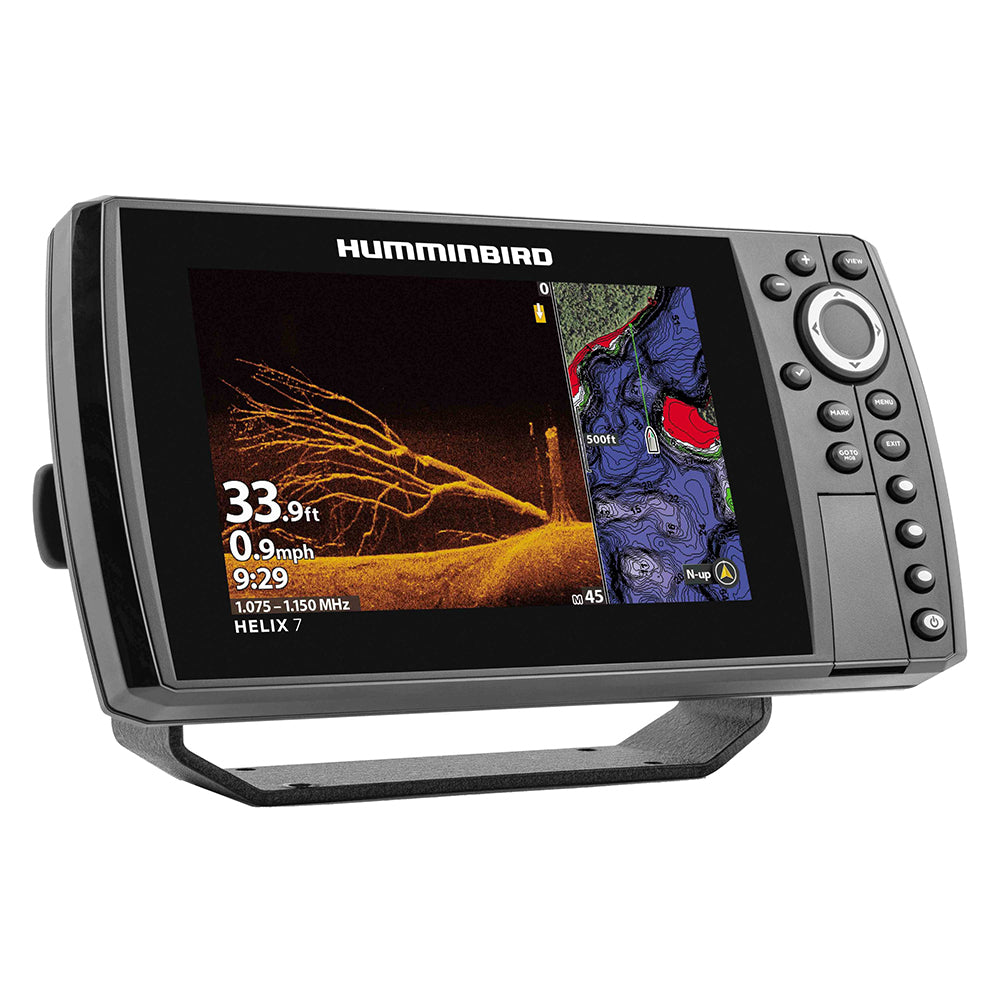

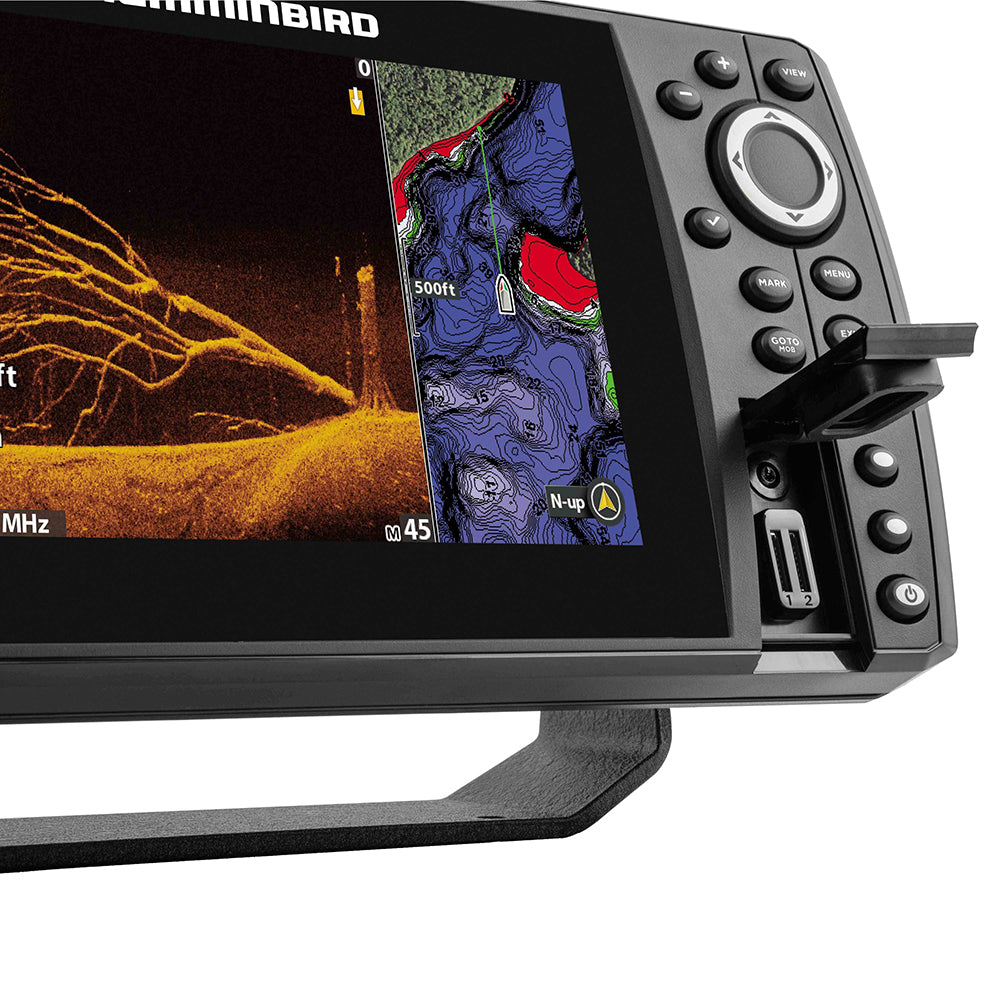

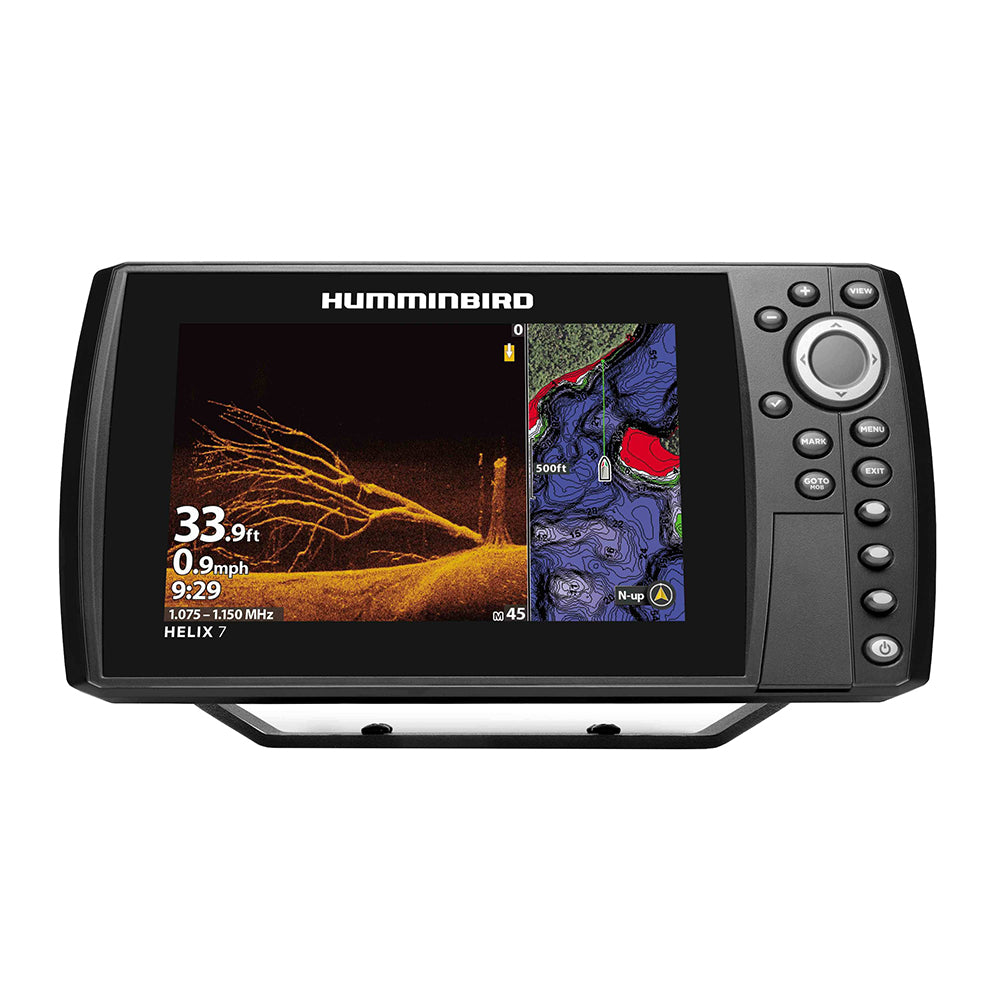

Humminbird HELIX 7 CHIRP MEGA DI GPS G4N CHO Control Head

The Humminbird HELIX 7 CHIRP MEGA DI GPS G4N CHO is a high-definition fish finder control head designed for integration into existing marine systems or use with Minn Kota motors featuring built-in sonar. This model does not include a transducer, making it an ideal choice for anglers looking to connect to Universal Sonar 2 or built-in MEGA Down Imaging on compatible trolling motors, or to expand an existing Humminbird Ethernet network.

Key Features:

• High-Definition Display: Features a 7-inch, 1024H x 600V pixel display with user-friendly keypad control.
• Advanced Sonar Technology: Supports MEGA Down Imaging for detailed underwater views up to 125 feet and Dual Spectrum CHIRP 2D sonar with adjustable Wide and Narrow modes.
• Integrated Mapping: Includes internal GPS and the Humminbird Basemap, providing coverage for over 10,000 lakes and continental U.S. coastal waters.
• Networking Capabilities: Fully compatible with Ethernet, Bluetooth, NMEA 2000, and Wi-Fi, allowing integration with Minn Kota i-Pilot Link, Talon and Raptor shallow water anchors, and radar.
• System Expansion: Supports AutoChart Live for real-time mapping of depth contours, bottom hardness, and vegetation, with 8 hours of internal recording time.
• Compatibility: Ready for premium chart options including LakeMaster, CoastMaster, and Navionics.
• In the Box: Includes the control head, power cable, gimbal mounting bracket, and mounting hardware.

Specifications:

• Depth Capability: Up to 1,200 ft with standard transducer; up to 3,500 ft with optional 50 kHz transducer.
• Frequencies Supported: 50/83/200/455/800 kHz and 1.2 MHz.
• Warranty: 1-year limited warranty.
