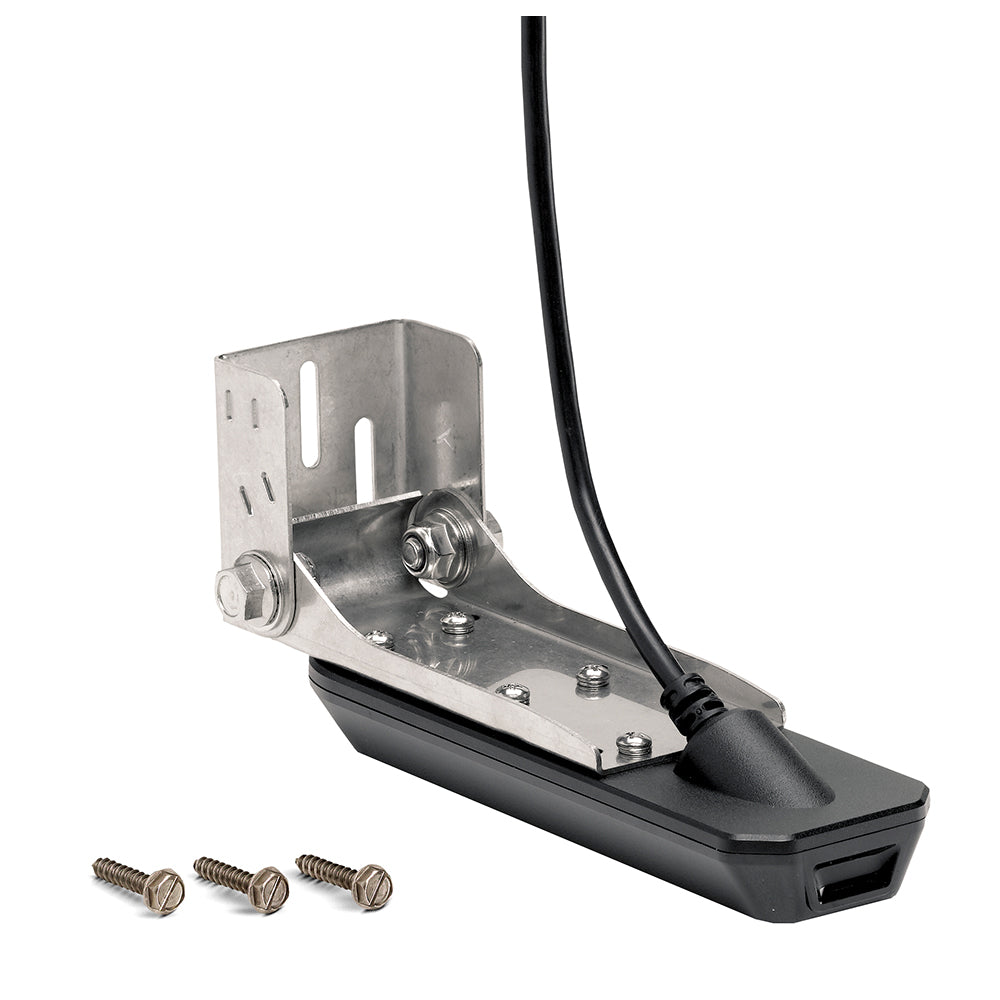

Humminbird XM 9 HW MDI T Transom Mount Transducer
Humminbird XM 9 HW MDI T Transom Mount Transducer
Last one
The Humminbird XM 9 HW MDI T is a rugged transom-mount transducer designed for high-resolution imaging and sonar performance. This unit supports MEGA Imaging+ technology, 800kHz and 455kHz imaging frequencies, and Dual Spectrum CHIRP 2D sonar.
Key Features:
- Dual Spectrum CHIRP Frequencies: Full (150-220 kHz), Narrow (180-240 kHz), and Wide (140-200 kHz)
- Dual Spectrum CHIRP Max Depth: 1200 ft.
- Down Imaging Depths: 400 ft. at 455 kHz, 125 ft. at 800 kHz, and 200 ft. at MEGA DI+
- Built-in temperature sensor
- Impact-release mounting bracket
- 20' cable length
- Includes 1-year limited warranty
Compatibility: This transducer is compatible with HELIX 8, 9, 10, and 12 G3N Series MEGA DI+ and MEGA SI+ models. Regulatory Note: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
Product facts
- CT SKU
- CT-107033
- Model / MPN
- 710280-1
- UPC / GTIN
- 082324053207
- Package dimensions
- 7" X 8" X 10"
- Package weight
- 2.25 lb
- Specifications
- Temperature = Yes\nSpeed Included = No\nPins = 7\nMounting Style = Transom\nImagining = Standard/Down\nChirp = High Wide\nCable Length (Feet) = 20'
