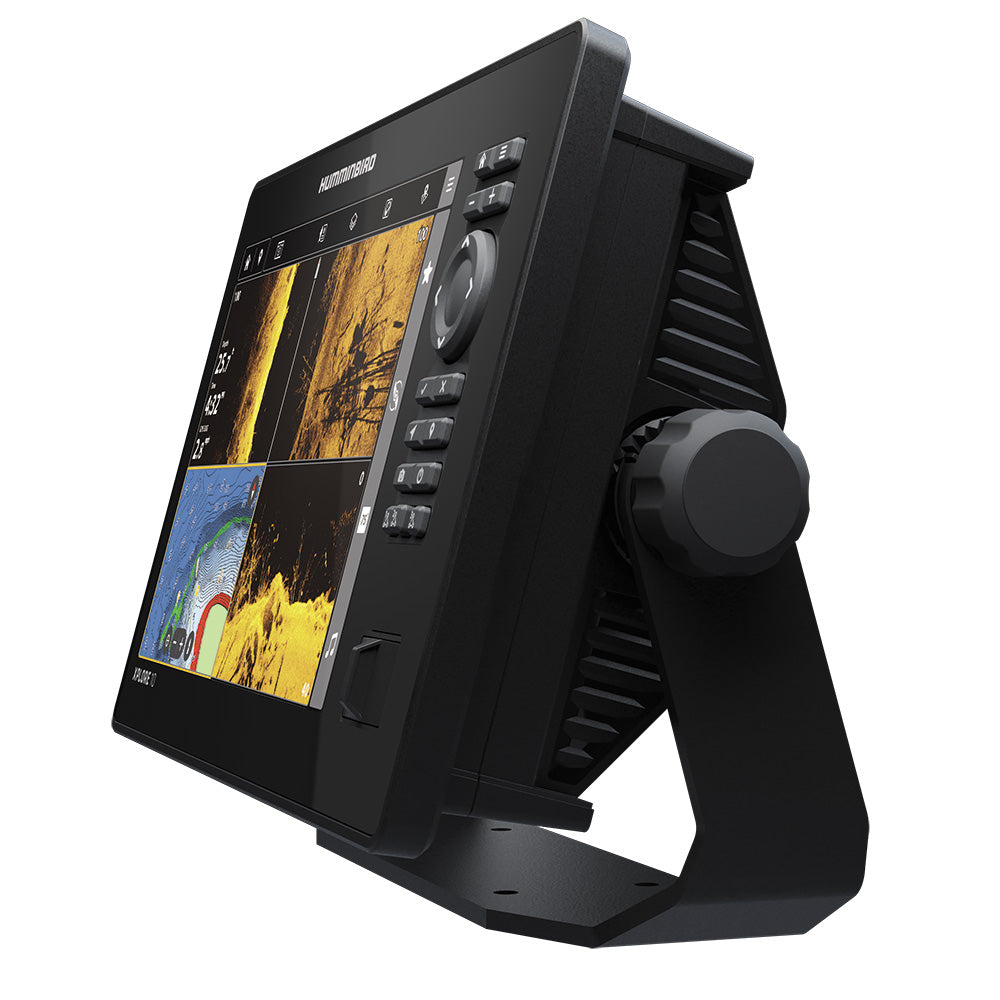

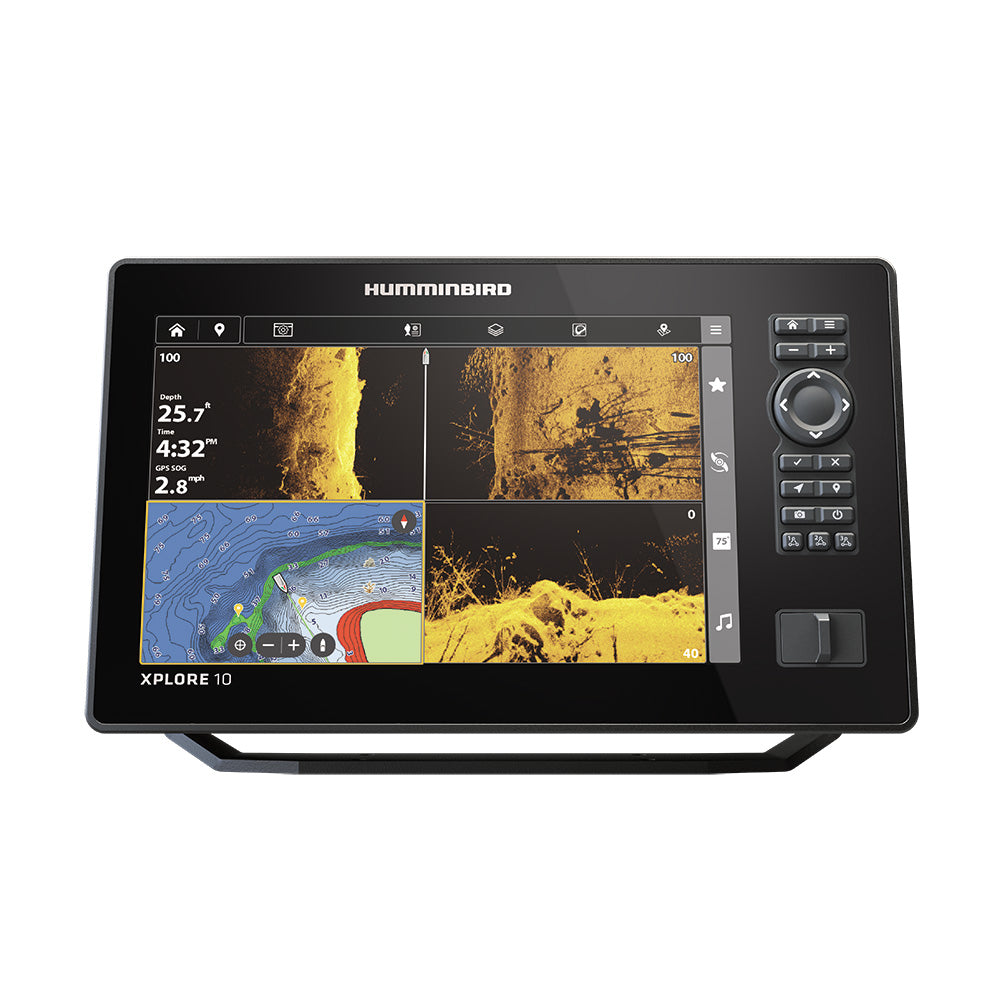

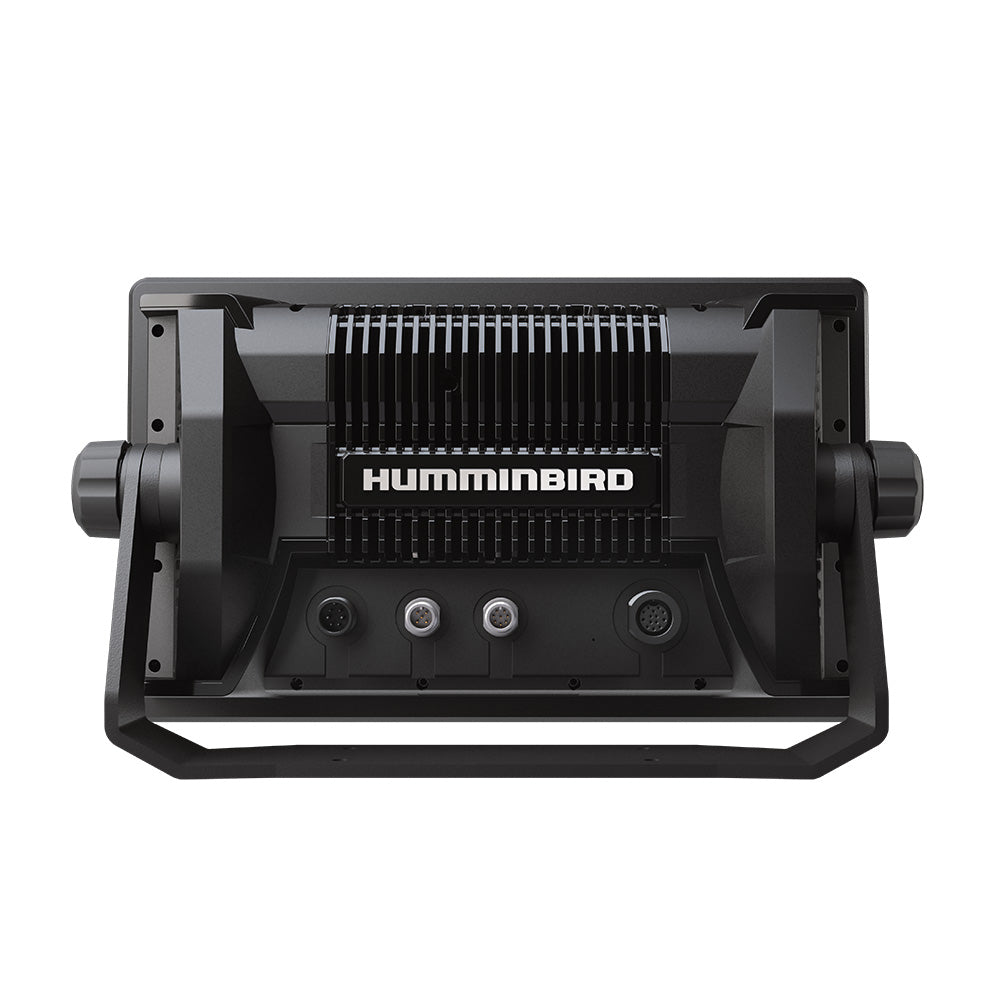

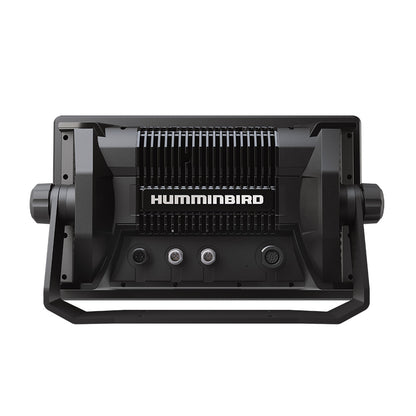

Humminbird XPLORE 10 Control Head Only

The Humminbird XPLORE 10 Control Head provides a professional-grade fish-finding and navigation solution for your boat, featuring a bright 10" display. This model is designed for users who want to select their own transducer or integrate with existing Minn Kota Built-in MEGA Imaging trolling motors, MEGA Live Imaging, or networked sonar sources.

Equipped with a flexible Cross Touch interface, you can navigate the user-friendly menu using the responsive touchscreen or the built-in directional keypad. The system includes an internal GPS and a preloaded Humminbird Basemap, providing detailed coverage of over 10,000 lakes and continental U.S. coastal data. It is fully compatible with the One-Boat Network, allowing for seamless integration with Minn Kota and Cannon equipment via Ethernet, NMEA 2000, Bluetooth, and Wi-Fi connectivity.

Key Features:

• High-Definition Display: 1280H x 720V color TFT display ensures clear viewing of charts and sonar imagery.
• Advanced Sonar Ready: Ready to support Dual Spectrum CHIRP, MEGA Side Imaging+, and MEGA Down Imaging+ with an compatible transducer.
• Real-Time Mapping: AutoChart Live allows you to create detailed custom maps of depth, vegetation, and bottom hardness while driving.
• Premium Chart Support: Compatible with LakeMaster, CoastMaster, and Navionics chart cards for expanded navigation detail.
• Networking Capabilities: Built-in Ethernet, NMEA 2000, and Bluetooth for system expansion, including radar, shallow water anchors, and downrigger control.
• Control Head Only: Package includes the display, gimbal mounting bracket, power adapter, and unit cover; does not include a transducer.
• Warranty: Covered by a 2-Year Limited Warranty.

Technical Specifications:

• Mounting Dimensions: 12.098" W x 7.702" H x 3.891" D.
• Memory: Dual Micro SD card slots.
• Power Requirements: 10.8-20 VDC.
• Waypoints/Routes: Supports up to 10,000 waypoints and 50 routes.
