Humminbird XPTH 14 HW MSI T Plastic Thru-Hull Transducer
Humminbird XPTH 14 HW MSI T Plastic Thru-Hull Transducer
Sold out

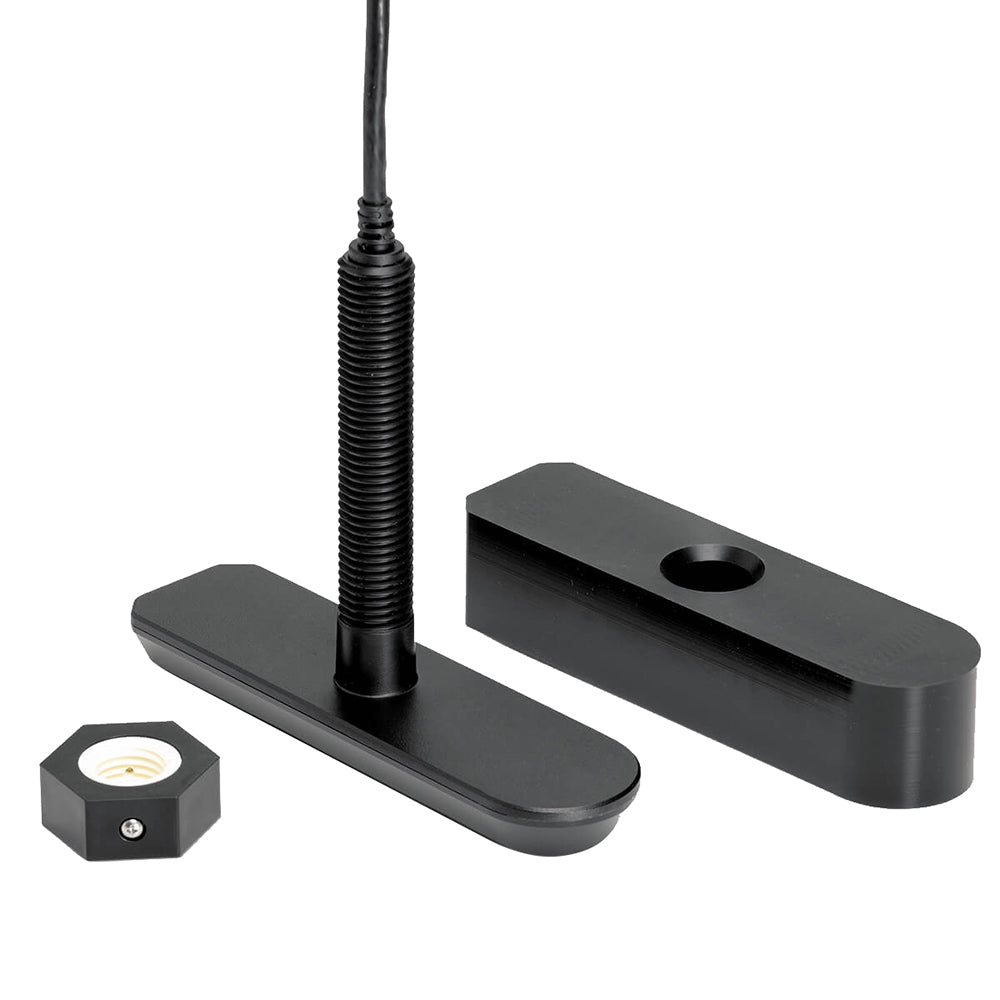

The Humminbird XPTH 14 HW MSI T is a plastic thru-hull transducer designed for MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar systems. It features a rugged composite construction with a built-in temperature sensor and includes a 30 ft. cable.
Key Specifications:
- Mounting Style: Thru-hull
- Compatibility: SOLIX 10, 12, and 15 CHIRP MEGA SI+ GPS G2 series
- Dual Spectrum CHIRP: 150-220 kHz (Full), 180-240 kHz (Narrow), 140-200 kHz (Wide)
- Max Depth (2D Sonar): 1200 ft.
- MEGA Imaging+ Frequencies: 455 kHz, 800 kHz, and MEGA frequency range
- Physical Dimensions: 8.4 in. L x 2.3 in. W x 1.0 in. D
- Stem: 5 in. length, 1 in. diameter

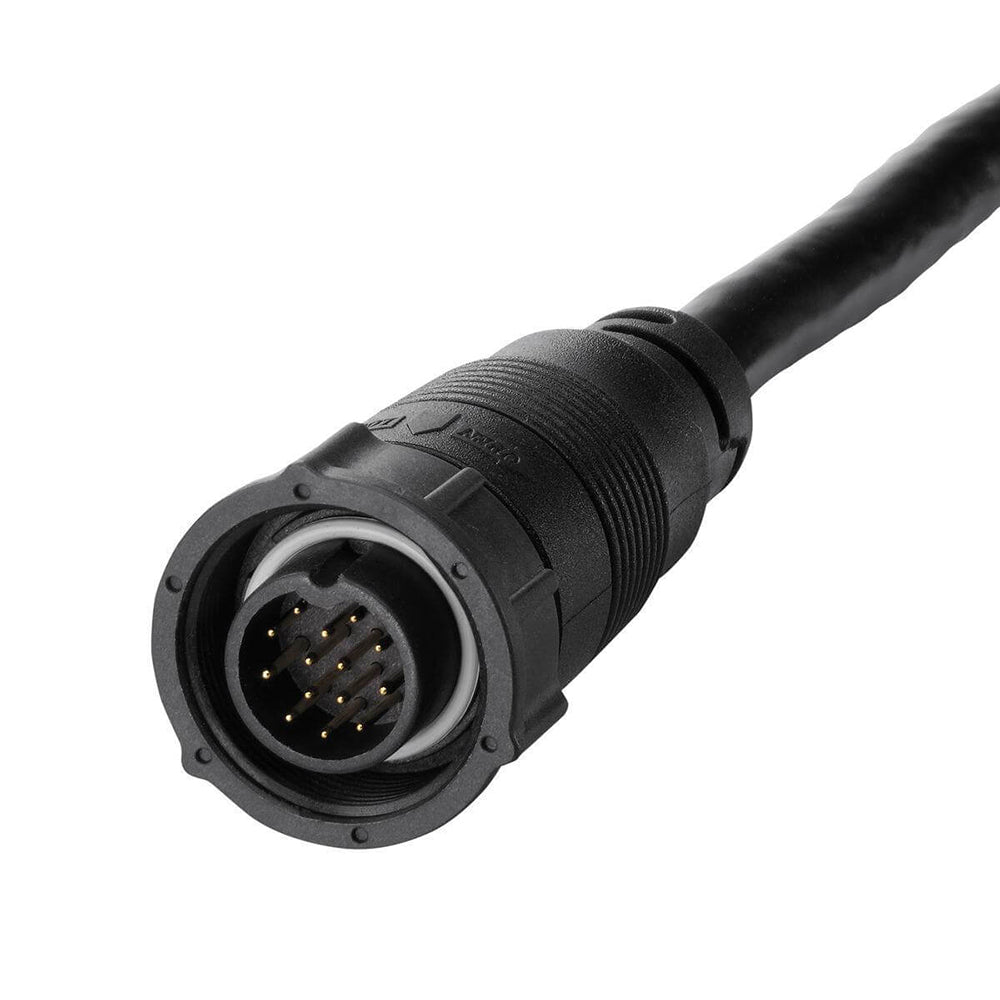

- Connector: 14-pin
- Warranty: 1-Year Limited Warranty
- Model Number: 710294-1
Product facts
- CT SKU
- CT-108731
- Model / MPN
- 710294-1
- UPC / GTIN
- 082324053283
- Package dimensions
- 4" X 10" X 15"
- Package weight
- 2.9 lb
- Specifications
- Imagining = Standard/Down/Side\nChirp = High Wide\nCable Length (Feet) = 30'\nSpeed Included = No\nMounting Style = Thru-Hull\nTemperature = Yes\nPins = 14
