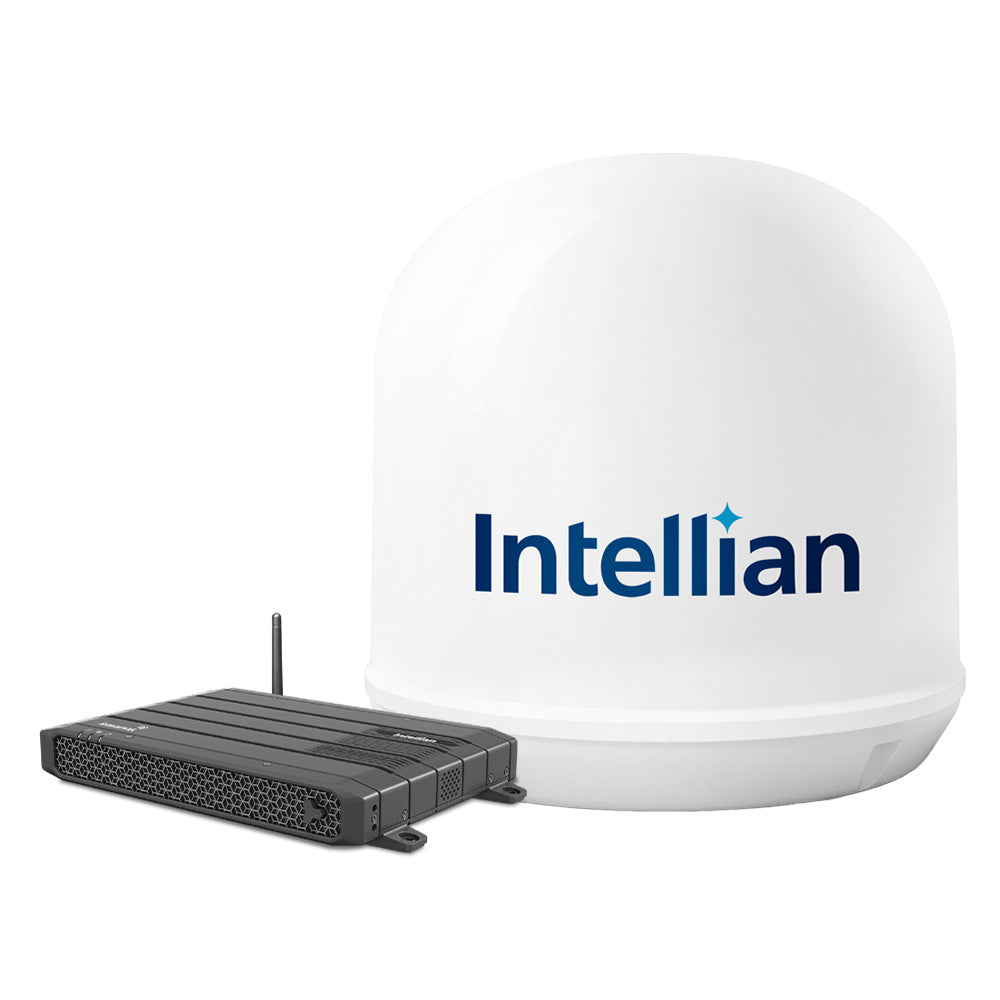

Intellian Fleet One Maritime Terminal for Inmarsat, 150 Kbps Voice & Data

Ensure resilient and reliable connectivity at sea with the Intellian Fleet One Maritime Terminal. Designed for Inmarsat's advanced L-band network ELERA, this terminal provides simultaneous voice and data services up to 150 Kbps, making it ideally suited for smaller coastal vessels and leisure craft. With its straightforward installation and robust feature set, the Intellian Fleet One ensures you stay connected globally, enhancing both communication and safety. Upgrade your vessel's communication capabilities today.

In the Box:

• ADU (Above Deck Unit)
• BDU (Below Deck Unit)
• Coaxial Cable
• Quick Installation Guide
• Installation Template
• DC Power Cable
• Ethernet Cable

Key Features & Benefits:

• Simultaneous Voice & Data: Enjoy essential communication and internet access with speeds up to 150 Kbps.
• Built-in Firewall: Enhances data security to protect your onboard network.
• 505 Emergency Calling: Provides direct, critical connection to a Maritime Rescue Coordination Centre (MRCC) in emergencies.
• Maritime Safety Terminal (MST) Support: GMDSS-ready for comprehensive safety at sea.
• Intuitive Management: Features the built-in aptusLX tool for user-friendly control and accessibility via LAN or Wi-Fi from a smartphone or tablet.
• Dual LAN Ports with PoE: Simplifies the integration of network devices and powers compatible equipment, reducing cable clutter.
• Compact ADU: Dimensions of 291.1 x 294.5 mm (11.5" x 11.6") and a weight of 4.9 kg (10.8 lbs) facilitate easy handling and installation on a variety of vessels.
• Efficient BDU: Below Deck Unit dimensions of 280 x 190 x 41 mm (11.0″ x 7.5″x 1.45″) and a weight of 1.2 kg (2.6 lbs) offer flexible, space-saving installation.
• Wide DC Input Range: Operates efficiently with 10.8-30 VDC, compatible with most marine power systems.
• Optimized Frequencies: Tx (1626.5-1675.0 MHz) and Rx (1518.0-1559.0 MHz) frequencies are perfectly tuned for Inmarsat's L-band ELERA network.
• Integrated WiFi (802.11 b/g): Enables convenient wireless connection to the terminal.

Compatibility & Pairings:

• Specifically designed for Inmarsat's Fleet One service, leveraging the reliable ELERA L-band network.
• Can be paired with Intellian i-Series antennas for a unified and aesthetically pleasing dome solution on your vessel.
