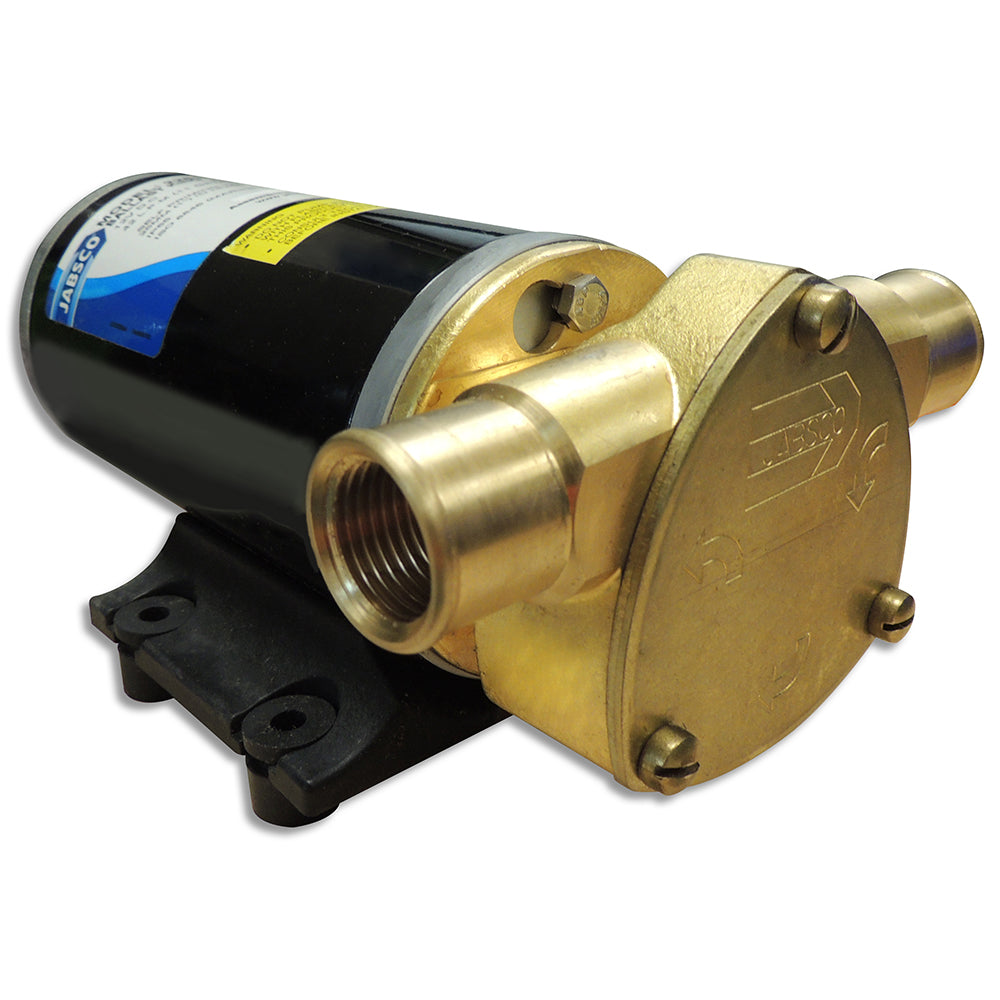

Jabsco Ballast King Bronze Pump, 15 GPM, 12V, Marine Certified

Optimize your wakeboard or ski boat's ballast system with the Jabsco Ballast King Bronze DC Pump. Engineered for rapid and precise water management, this powerful pump allows you to quickly fill and empty ballast tanks, enabling superior control over your boat's wake. Its robust construction and comprehensive marine certifications ensure reliable performance in demanding aquatic environments. Invest in cutting-edge ballast control for a premium on-water experience.

Key Benefits & Features:

• High-Speed Ballast Management: Delivers a flow rate of 15 US gallons/min (57 Litres/min) and adds approximately 125 lbs (56 kgs) of ballast per minute, for quick tank filling and emptying.
• Reversible Operation: Equipped with an integrated reversing switch, allowing effortless bidirectional pumping for both filling and emptying ballast tanks.
• Self-Priming Capability: Primes itself from dry up to 1.2m (4ft), simplifying installation and operation.
• Durable Marine-Grade Construction: Features a corrosion-resistant bronze body and Jabsco Neoprene compound impeller for exceptional longevity in saltwater conditions.
• Advanced Run-Dry Protection: Includes a patent-pending Run-Dry Protection Device that automatically shuts off the pump to prevent impeller damage if mistakenly left on after the ballast tank is empty.
• Ignition Protected: Complies with ISO 8846 MARINE and USCG 183.410 standards for ignition protection, ensuring safe installation in marine engine compartments.
• Efficient Power Draw: Operates on 12V DC with a 19 amp draw, utilizing a permanent magnet motor with a fully enclosed stainless steel shaft.
• Robust Port Configuration: Features 1/2-inch internal pipe threads and 1-inch external hose barb ports for versatile plumbing connections.

Specifications:

• Body Materials: Bronze
• Impeller: Jabsco Neoprene compound
• Seal: Lip Type
• Port(s): 1/2" Internal Pipe Threads, 1" External Hose Barb
• Voltage: 12 Vdc
• Amp Draw: 19 amp
• Fuse Size: 25 amp
• Motor Type: Permanent Magnet, Fully Enclosed, Stainless Steel Shaft, Ball Type Shaft Bearing, Reversible
• Duty Cycle: 30 Minutes Max
• Dimensions: 3 5/8" x 8" x 4 3/4" (inches)

Compatibility & Pairings:

Designed specifically for wakeboard and ski boat liquid ballast systems, this pump is ideal for quickly adjusting water weight. Pair with appropriate marine-grade hoses and clamps for optimal performance.
