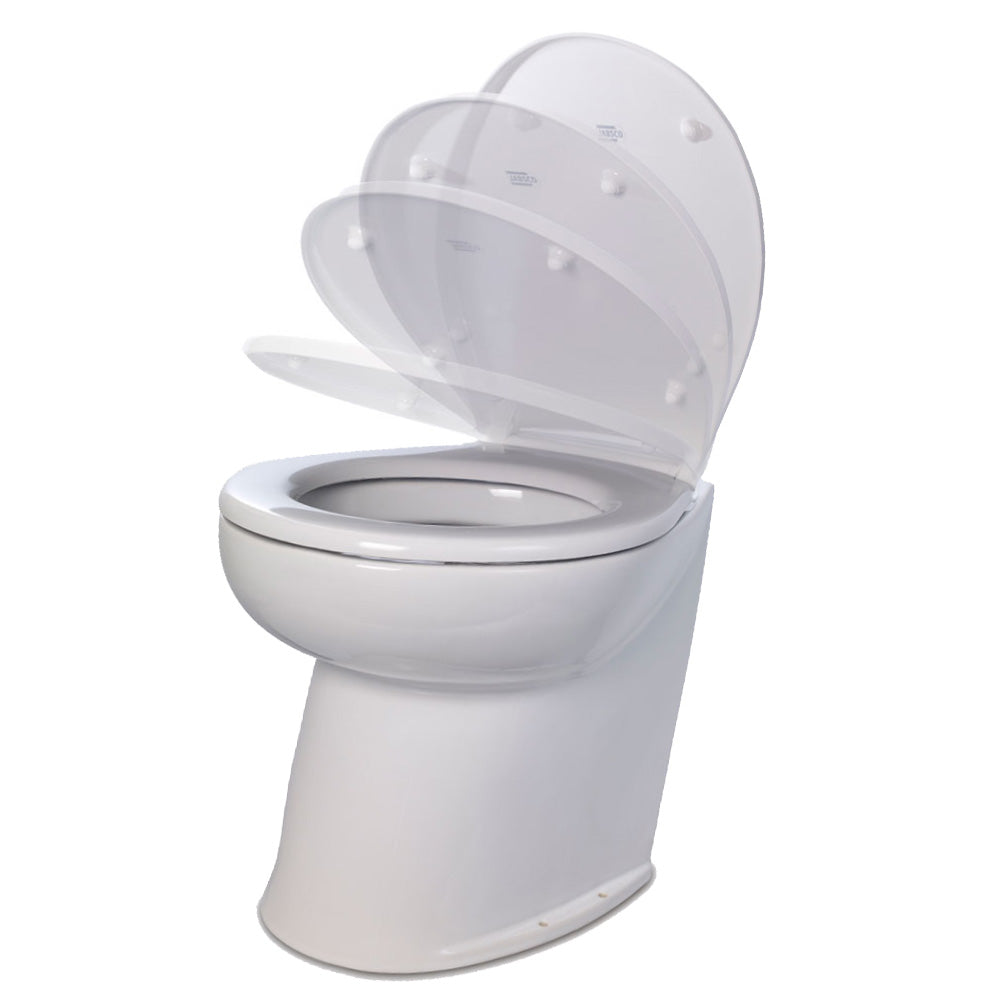

Jabsco Deluxe Flush Electric Marine Toilet, 12V Freshwater, 14" Angled Back

Experience the pinnacle of marine sanitation with the Jabsco Deluxe Flush Electric Marine Toilet. Engineered for luxury, minimal water usage, and virtually silent operation, this 12V freshwater system brings the comforts of home to your vessel. Its space-saving 14-inch angled back design and household-sized soft-close lid integrate seamlessly into modern marine interiors. Designed for the discerning owner, this toilet ensures efficient waste management with a powerful macerating pump. Upgrade your onboard experience with Jabsco's trusted quality today.

In the Box:

• Jabsco Deluxe Flush Electric Marine Toilet Unit
• Multi-function, 4-button One-Touch Control Pad with white bezel
• Solenoid Valve Assembly with dual non-return valves
• Siphon Breaker Assembly

Key Features & Benefits:

• Angled Back Design: Features a 14-inch angled back, ideal for flexible installation against sloping bulkheads.
• Household Comfort: Enjoy the familiarity of a domestic-sized bowl and a soft-close composite seat for enhanced onboard luxury.
• Virtually Silent Operation: Provides a quiet flush cycle, ensuring peace and comfort on your vessel.
• Efficient Freshwater Rinse: Utilizes your existing pressurized freshwater system via an included solenoid valve, offering hygienic flushing and conserving water.
• Powerful Macerating Pump: Equipped with a non-clogging large bore flush pump that macerates waste effectively for reliable discharge.
• Intuitive Control: A 4-button touch panel allows for easy operation with options like Fill, Quick Flush, Flush, and Empty, plus adjustable dry/wet bowl settings for optimized water use.
• Integrated Safety: The solenoid valve includes dual non-return valves to protect your onboard freshwater system from potential blackflow.

Specifications:

• Voltage: 12V DC
• Recommended Fuse Size: 25 Amp
• Dimensions (H x W x D): 14.4" (366mm) x 14.8" (375mm) x 18.7" (475mm)
• Weight: 59.5 lbs (27 kg)
• Minimum Pressurized Water Flow: 2.9 GPM (11 LPM)
• Approvals: Complies with ISO 8846 Marine (Ignition Protection)
• Water Consumption: Less than 1 quart for Quick Flush (dry setting); 2.5 quarts for heavy Flush

Compatibility & Pairings:

• Designed for seamless connection to any existing onboard pressurized freshwater system.
• For optimal plumbing, a 1-1/2 inch (38mm) vented loop fitting (Jabsco part #29015-0010) is recommended for the discharge hose to prevent siphoning.
