Brand: Jabsco
Jabsco HotShot HD4 Heavy Duty Washdown Pump, 12 V, 4 GPM, 60 PSI, Q401J-118N-3A
Jabsco HotShot HD4 Heavy Duty Washdown Pump, 12 V, 4 GPM, 60 PSI, Q401J-118N-3A
10+ available
About this product

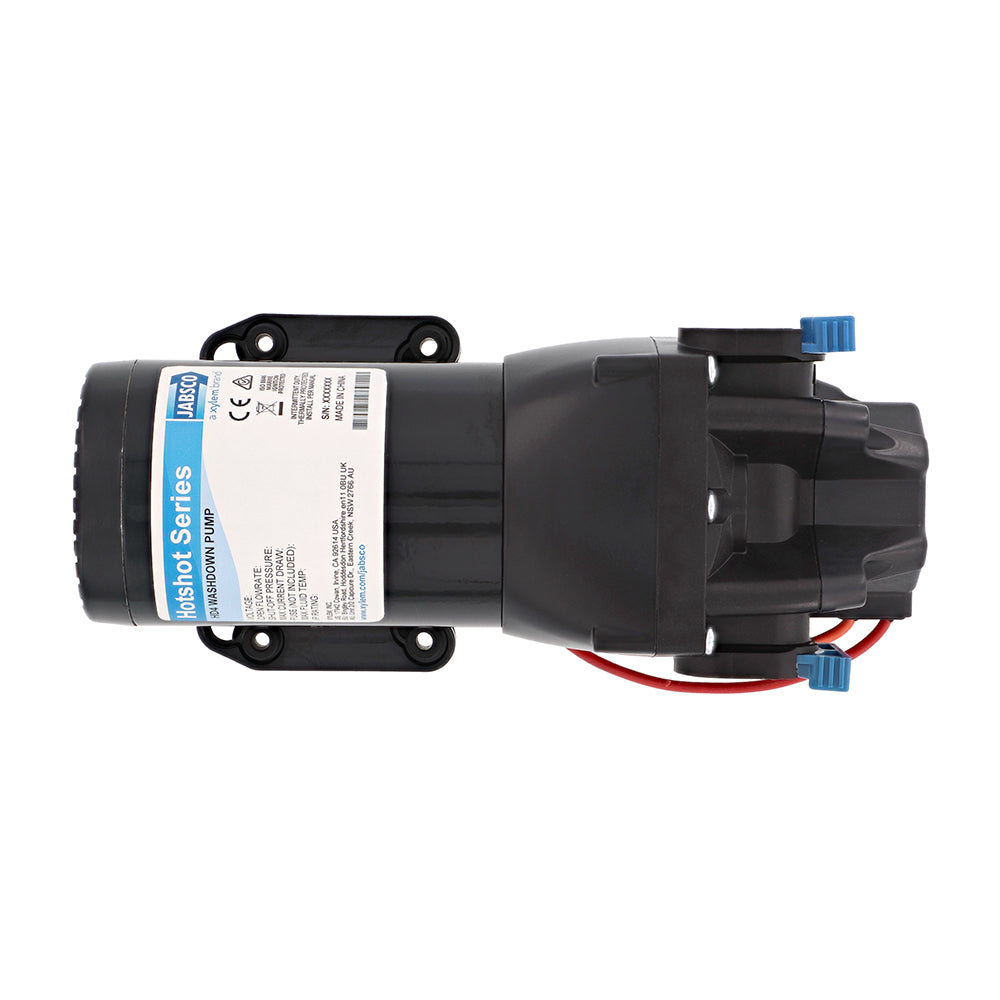

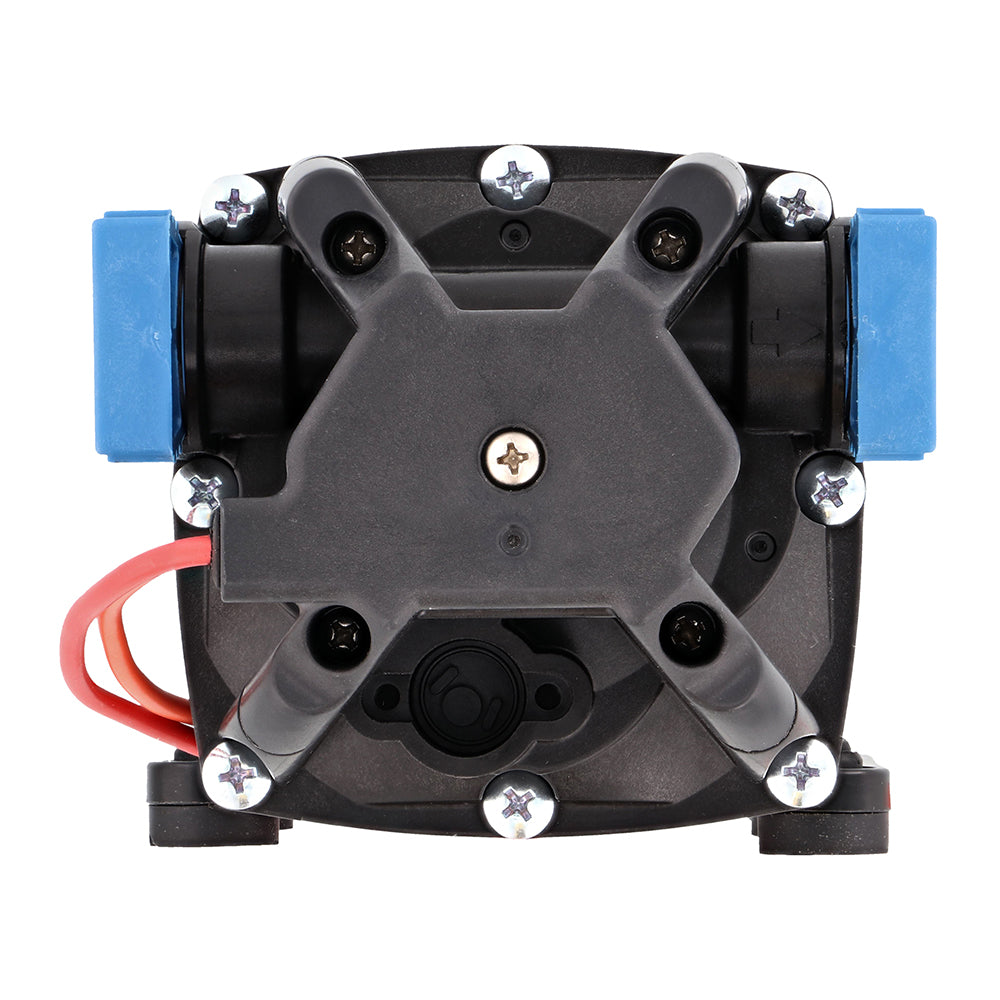

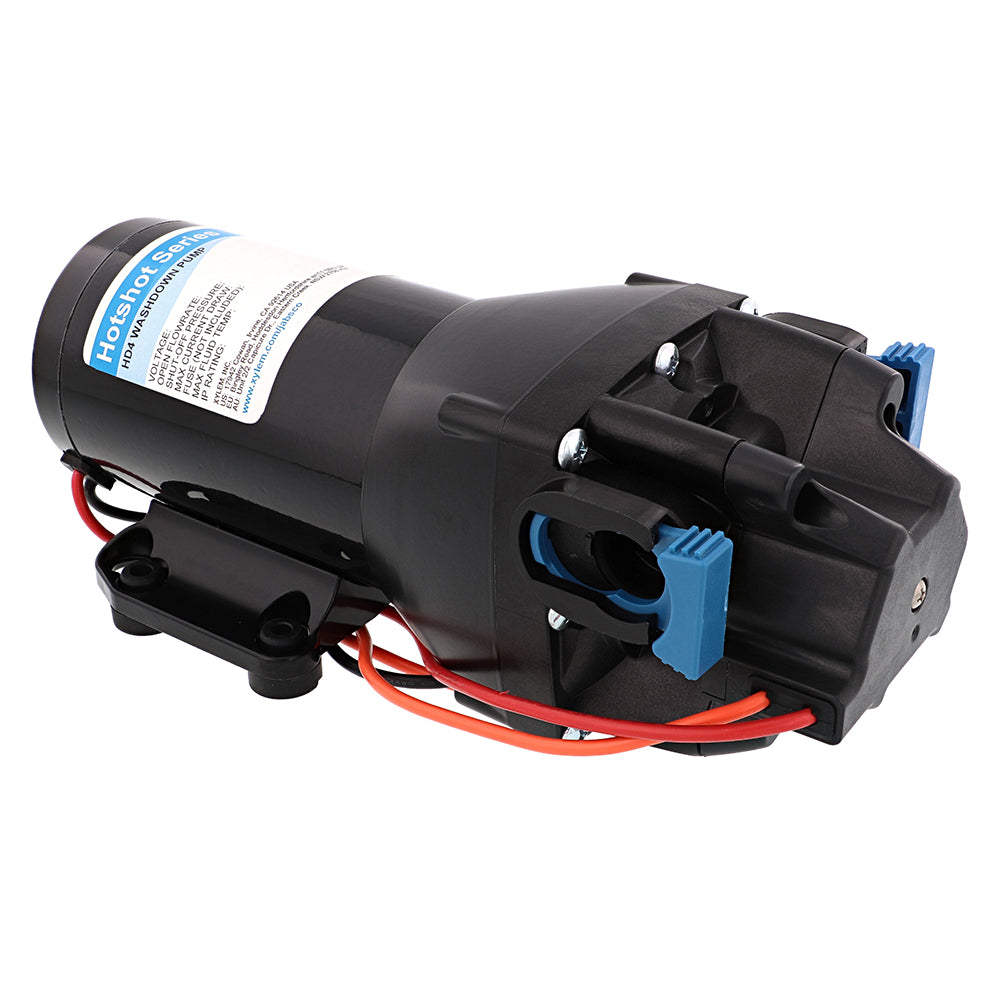

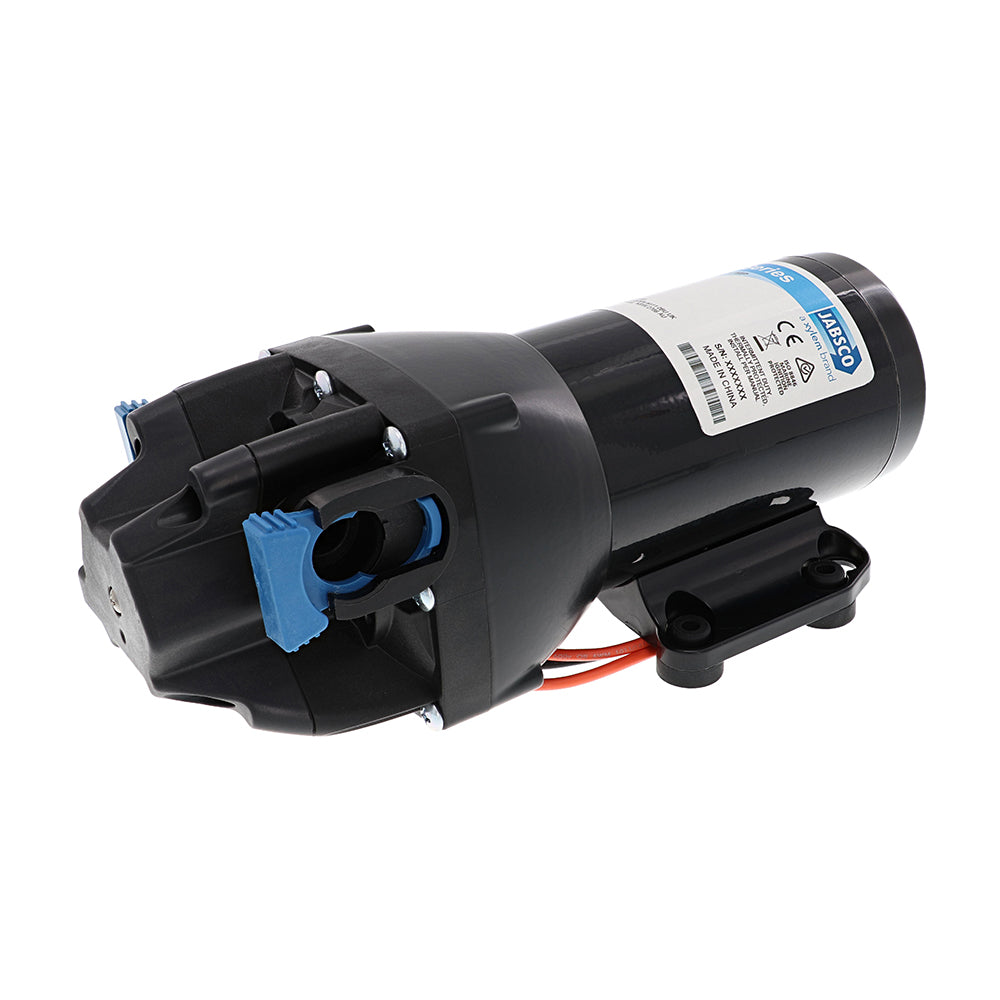

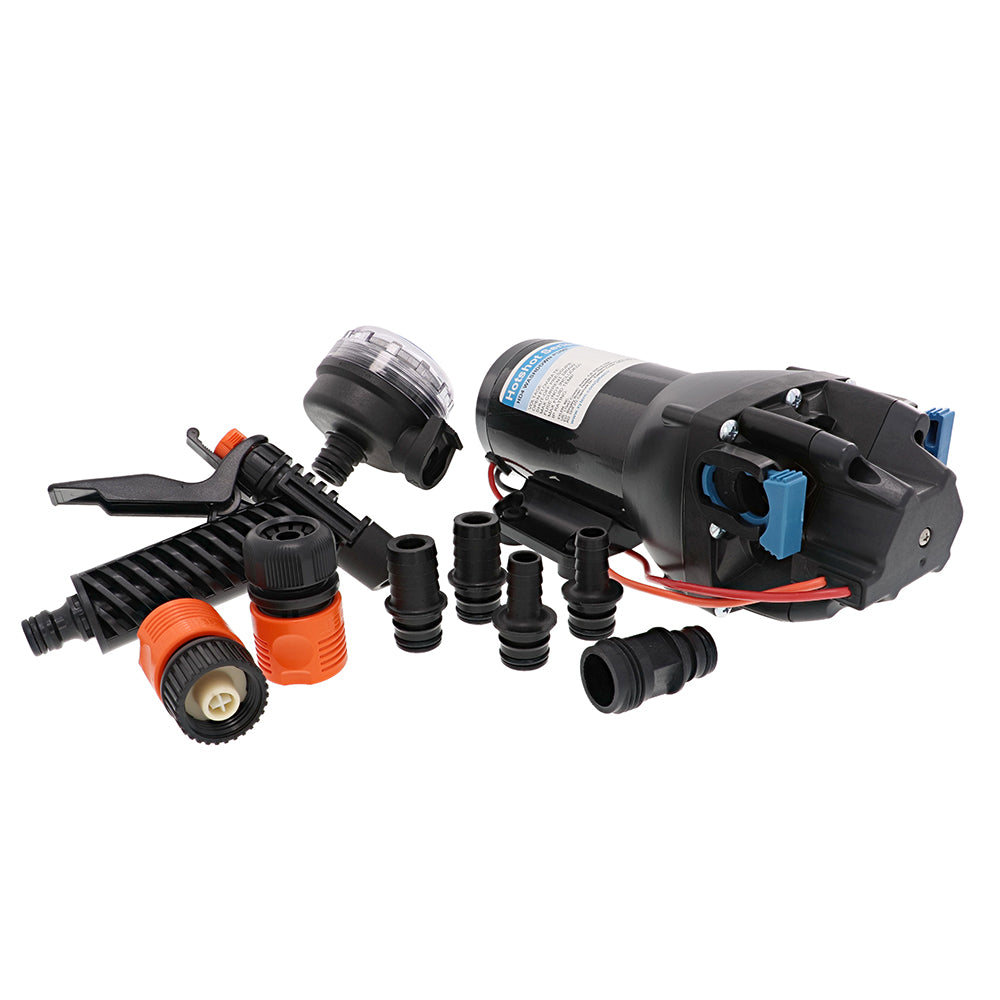

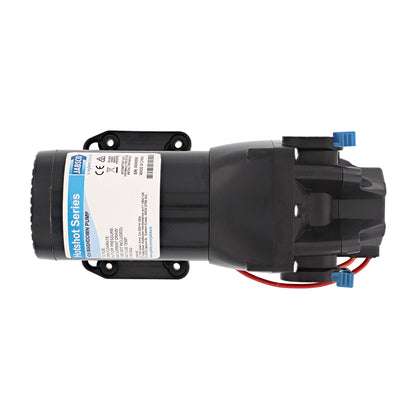

The Jabsco HotShot HD4 is a 12 V heavy-duty diaphragm washdown pump rated for 4 GPM and a maximum pressure of 60 PSI. Its sealed pressure switch provides on-demand operation, while self-priming capability and quick-connect ports support flexible installation and servicing.
- Maximum inlet pressure: 30 PSI
- Heavy-duty motor with powder-coated shell; cast aluminum endbells and lower housing
- Brushed, permanent-magnet TENV motor
- Pumphead upper housing: glass fiber reinforced polypropylene; co-molded TPV diaphragm; EPDM check valves
- Dry self-priming capability: at least 7 ft; can run dry without damage
- Fluid temperature range: 32 to 140 deg F
- Ingress protection: IPX6; certifications: CE, ISO8846, RCM
- Manufacturer part number: Q401J-118N-3A; GTIN: 671880841917
- Country of origin: China
- Package dimensions: 17 x 8 x 6 in.; shipping weight: 8.80 lb
- California Proposition 65 warning: This product can expose you to antimony oxide (antimony trioxide), a chemical known to the State of California to cause cancer.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-109665
- Model / MPN
- Q401J-118N-3A
- UPC / GTIN
- 671880841917
- Package dimensions (H × W × L)
- 6" X 8" X 17"
- Package weight
- 8.8 lb
- Country of origin
- CHINA
Specifications
- Max PSI
- 60
- Volts
- 12v
- Gallons Per Minute
- 4 GPM
- Type
- Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM -
