Brand: Jabsco

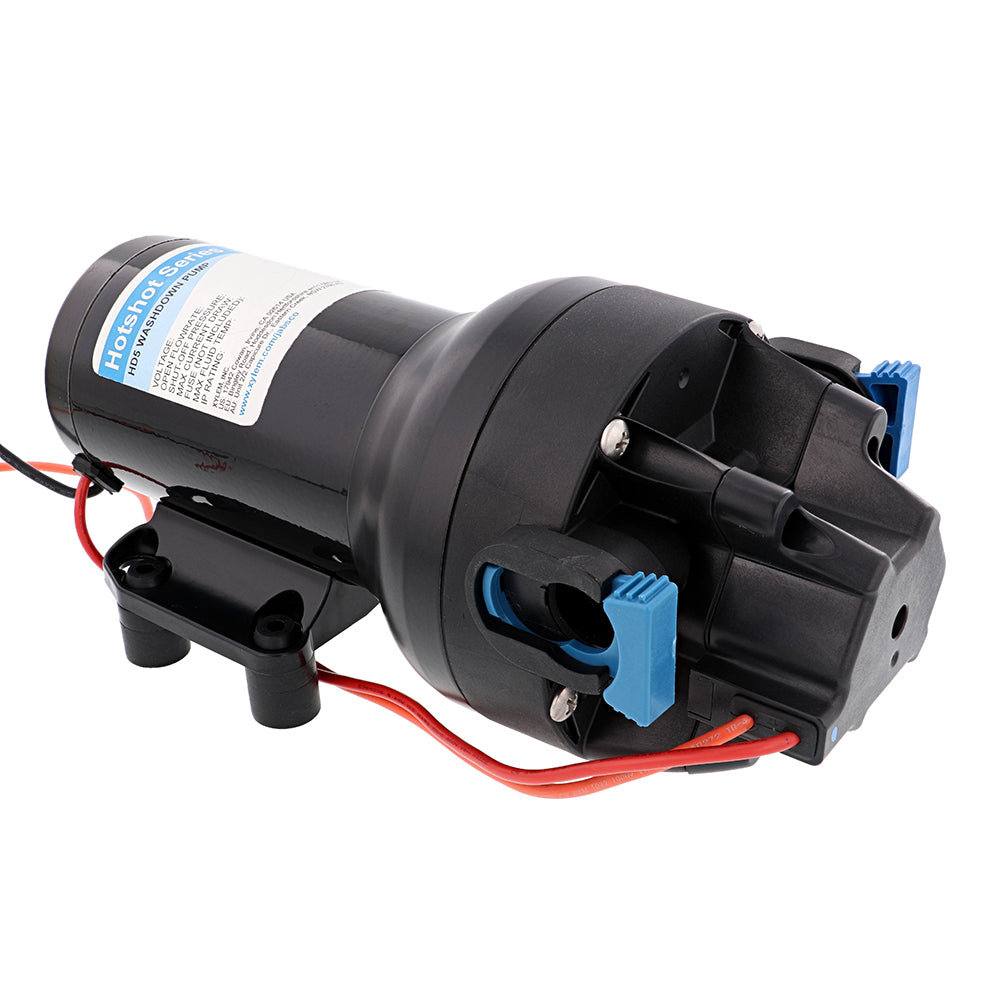

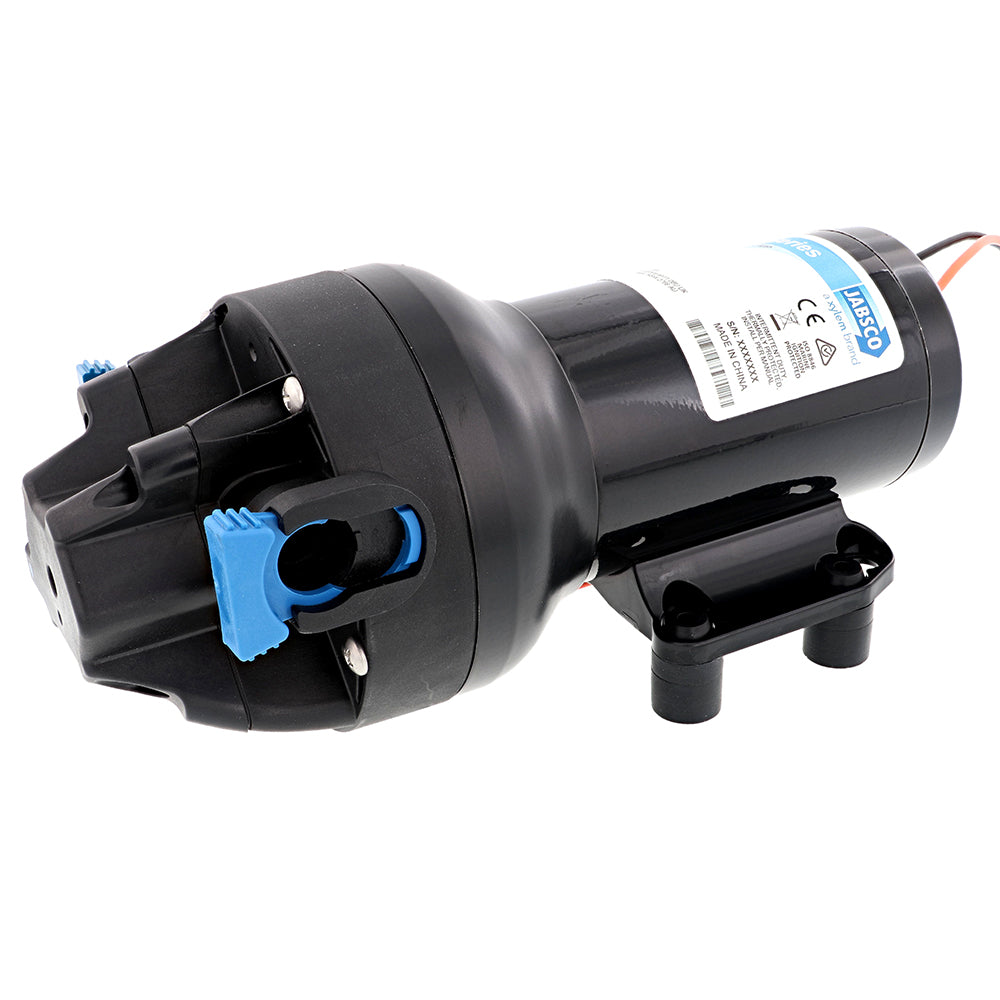

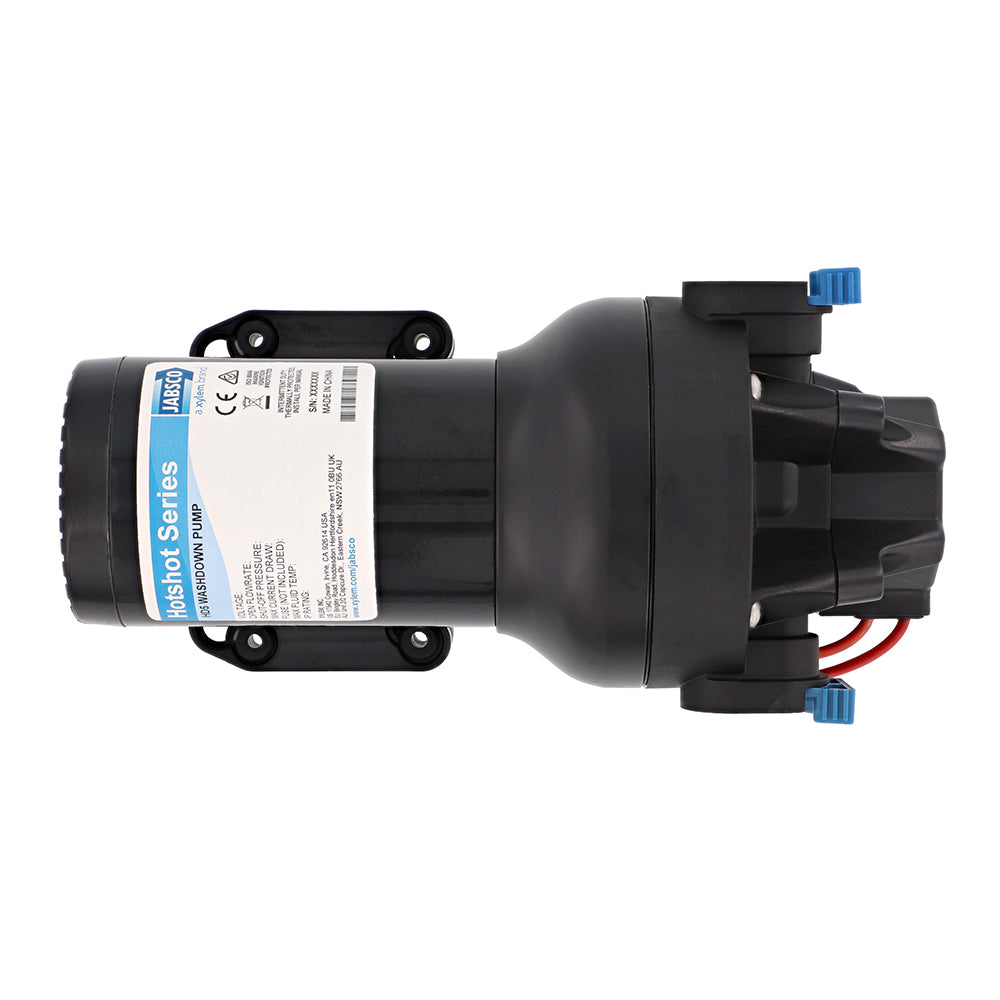

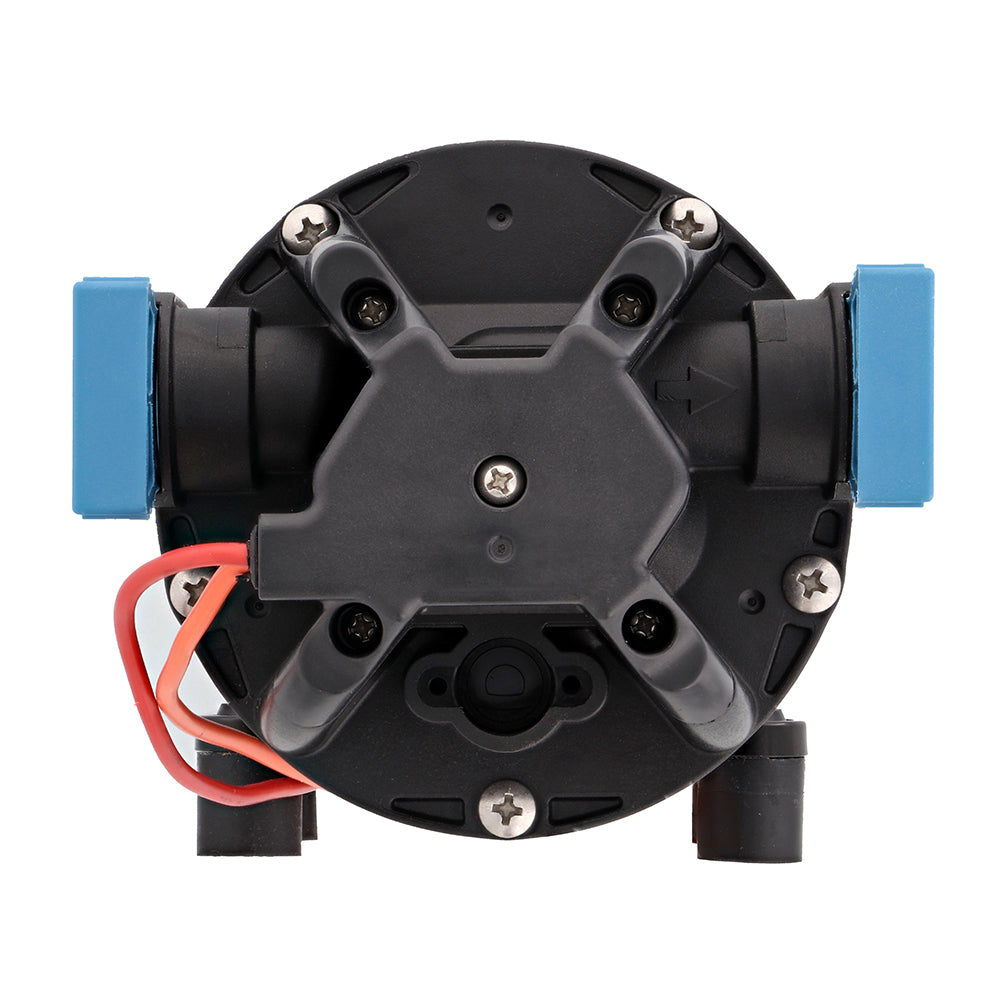

Jabsco HotShot HD5 Heavy-Duty Washdown Pump, 12V, 5 GPM, 70 PSI, P501J-119N-3A
Jabsco HotShot HD5 Heavy-Duty Washdown Pump, 12V, 5 GPM, 70 PSI, P501J-119N-3A
10+ available
About this product
The Jabsco HotShot HD5 is a heavy-duty 12V diaphragm washdown pump delivering 5 GPM at up to 70 PSI for marine washdown applications.
- Performance: 5 GPM flow rate and 70 PSI maximum pressure
- Operation: Self-priming, on-demand operation with an integrated sealed pressure switch
- Construction: Powder-coated motor shell, cast aluminum endbells and lower housing, glass fiber reinforced polypropylene pumphead upper housing, co-molded TPV diaphragm, and EPDM check valves
- Motor: Brushed, permanent-magnet TENV design
- Features: Efficient and quiet operation, dry-running capability, quick-connect ports, and vibration-dampening mounting feet
- Inlet and temperature limits: 30 PSI maximum inlet pressure; fluid temperature range of 32 deg F to 140 deg F
- Self-priming capability: 7 ft. minimum dry lift

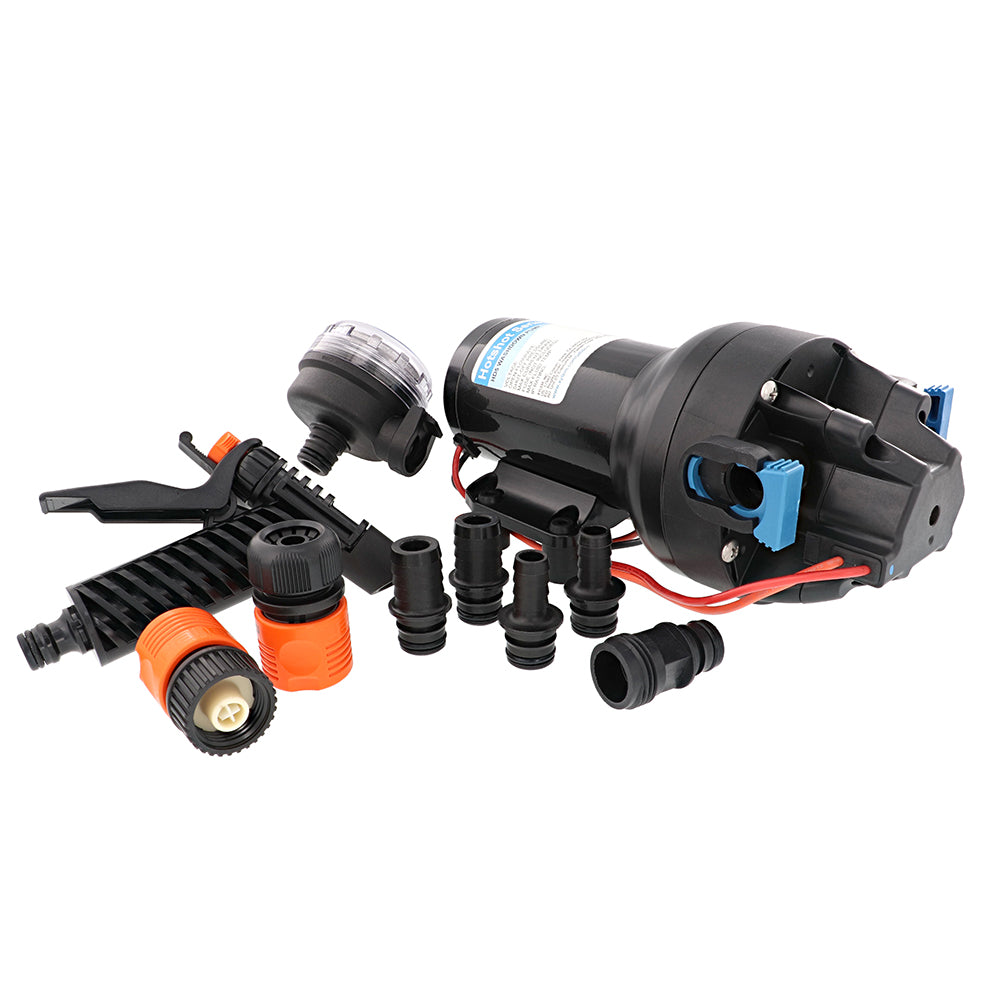

- Fittings and accessories: Quick-connect straight hose barb and GHT fittings, a 90-degree 20-mesh quick-connect strainer, trigger nozzle, and quick-connect hose adapters; fitting size varies by model
- Protection and certifications: IPX6 ingress protection; CE, ISO8846, and RCM certifications
- Regulatory note: This product can expose you to chemicals including antimony oxide (antimony trioxide), which is known to the State of California to cause cancer. See P65Warnings.ca.gov for more information.
- Manufacturer part number: P501J-119N-3A
The listed full-kit version includes a 25 ft. hose coil; this product listing is for the pump and does not specify that a hose coil is included.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-109667
- Model / MPN
- P501J-119N-3A
- UPC / GTIN
- 671880841962
- Package dimensions (H × W × L)
- 6" X 8" X 17"
- Package weight
- 9.1 lb
- Country of origin
- CHINA
Specifications
- Gallons Per Minute
- 5 GPM
- Volts
- 12v
- Max PSI
- 70
