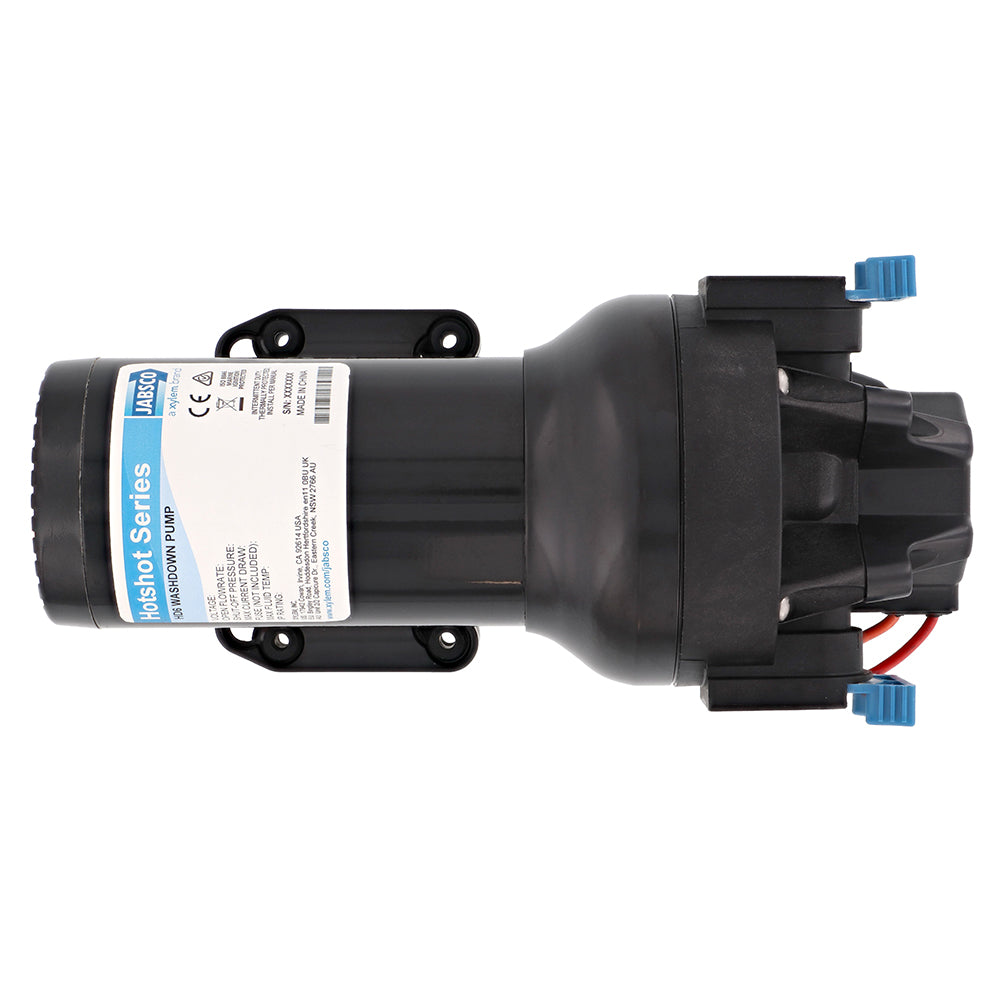

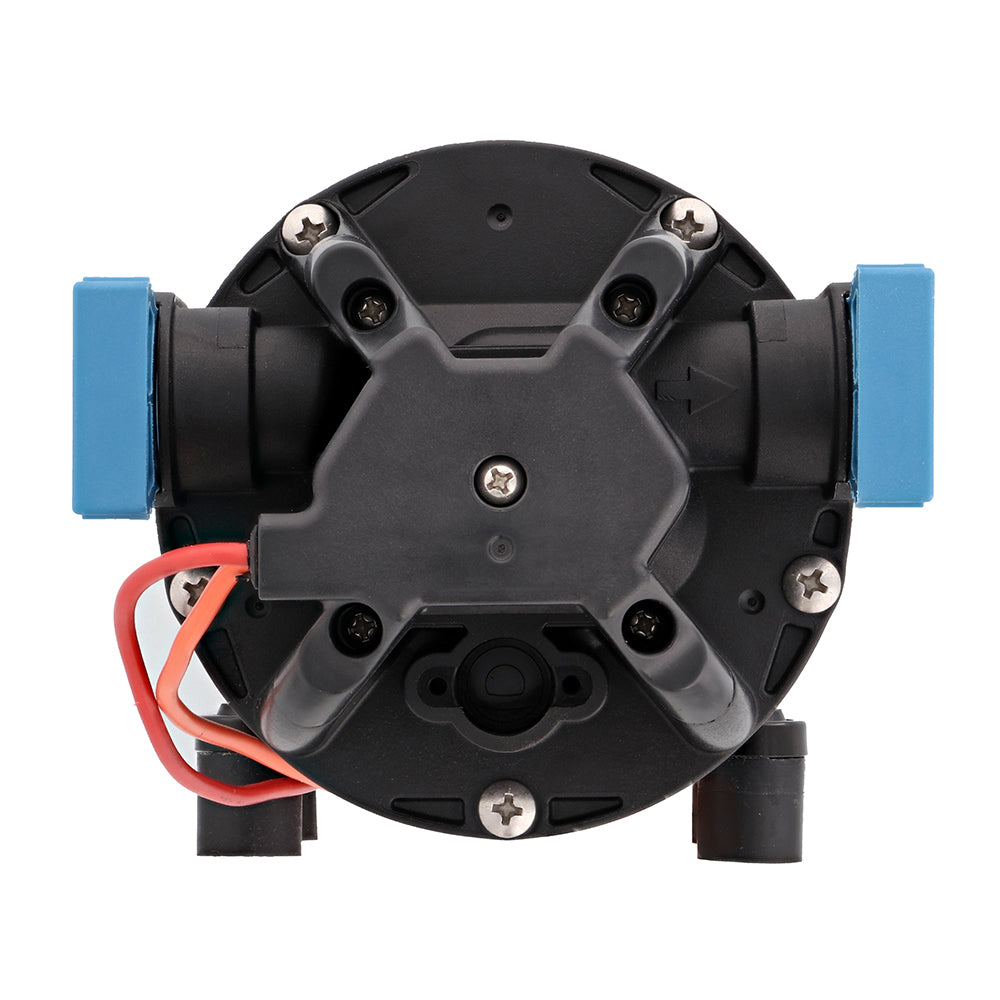

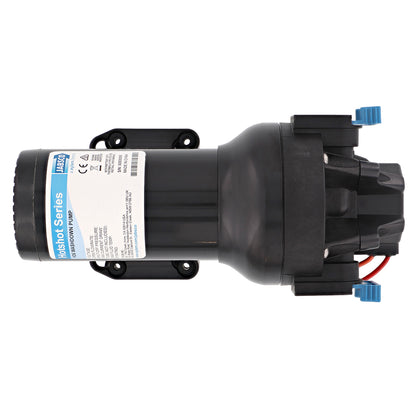

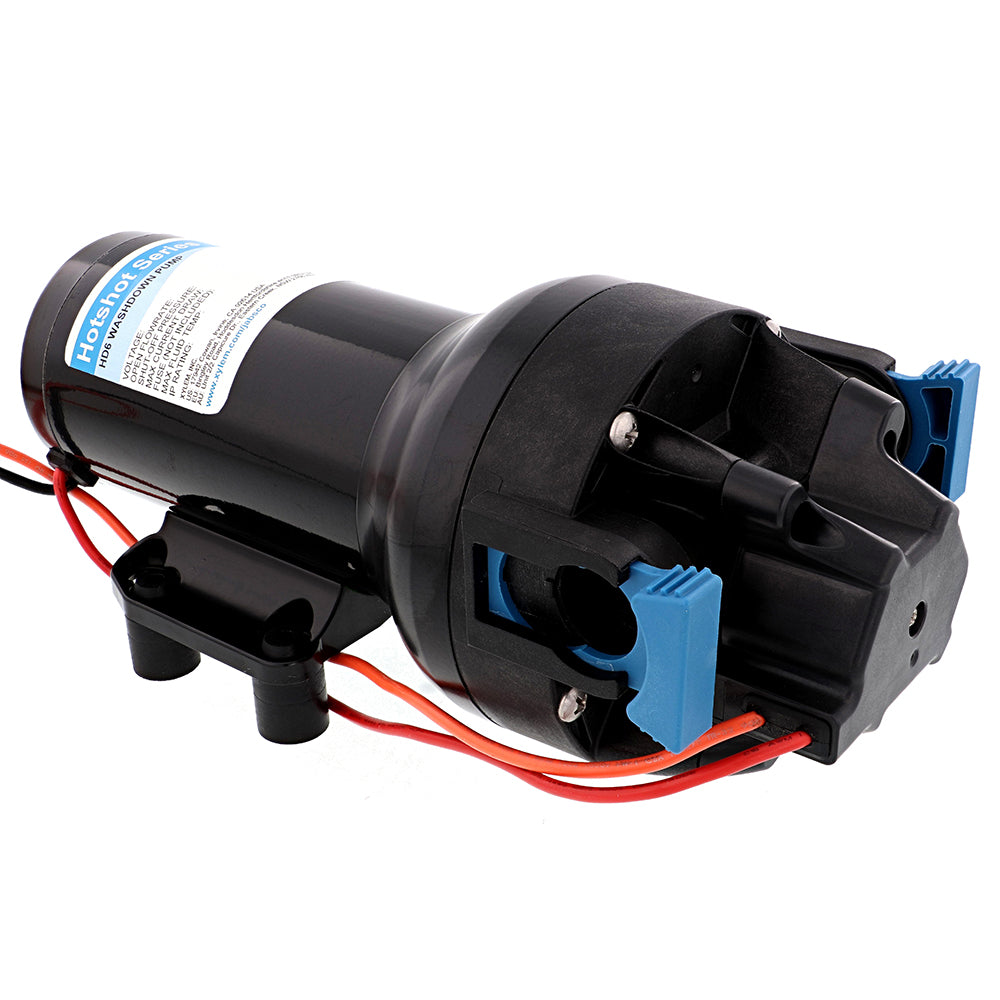

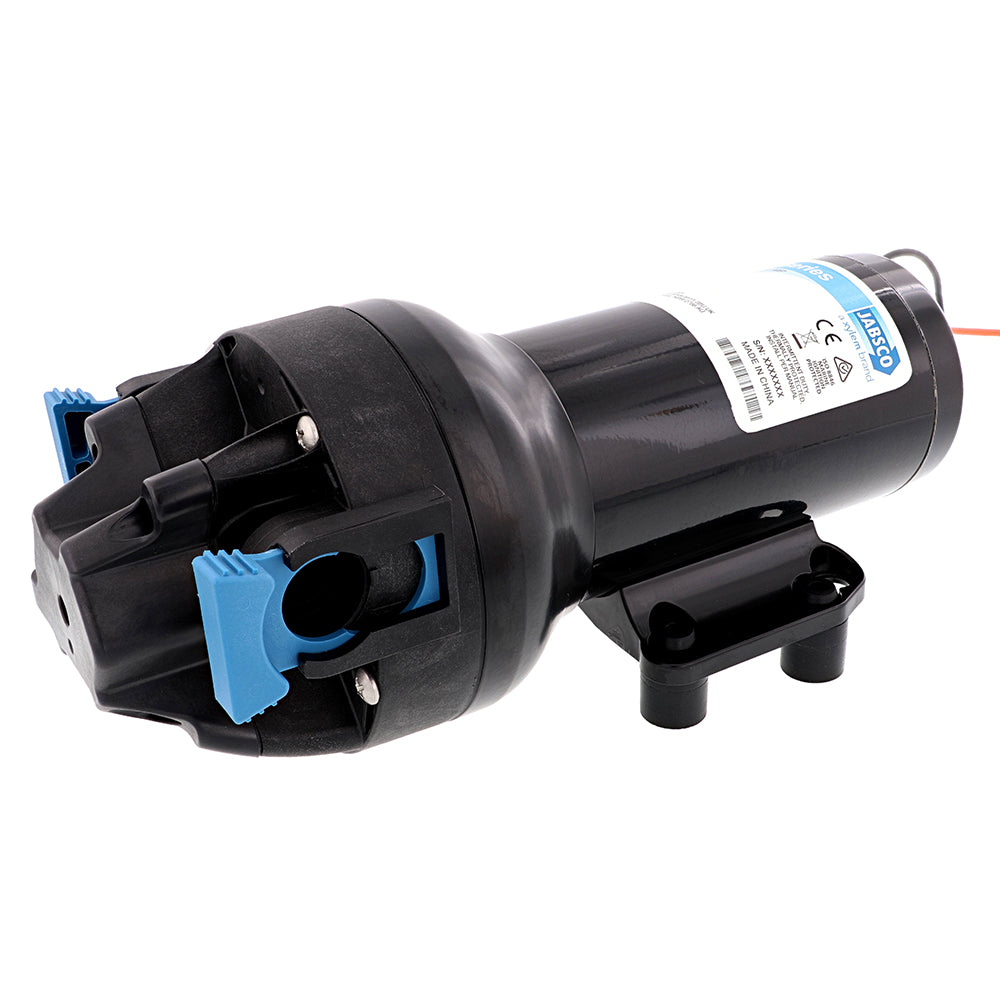

Jabsco HotShot HD6 Washdown Pump, 24V, 6 GPM, 70 PSI, Marine-Grade

Experience unparalleled cleaning power with the Jabsco HotShot HD6 Washdown Pump, engineered for robust performance in the demanding marine environment. Delivering a powerful 70 PSI at 6 GPM, this heavy-duty pump efficiently blasts away stubborn grime, salt, and debris from decks, anchors, and cockpits. With its durable construction and advanced features, the HotShot HD6 ensures years of reliable service. Equip your vessel with the HotShot HD6 and keep your decks pristine.

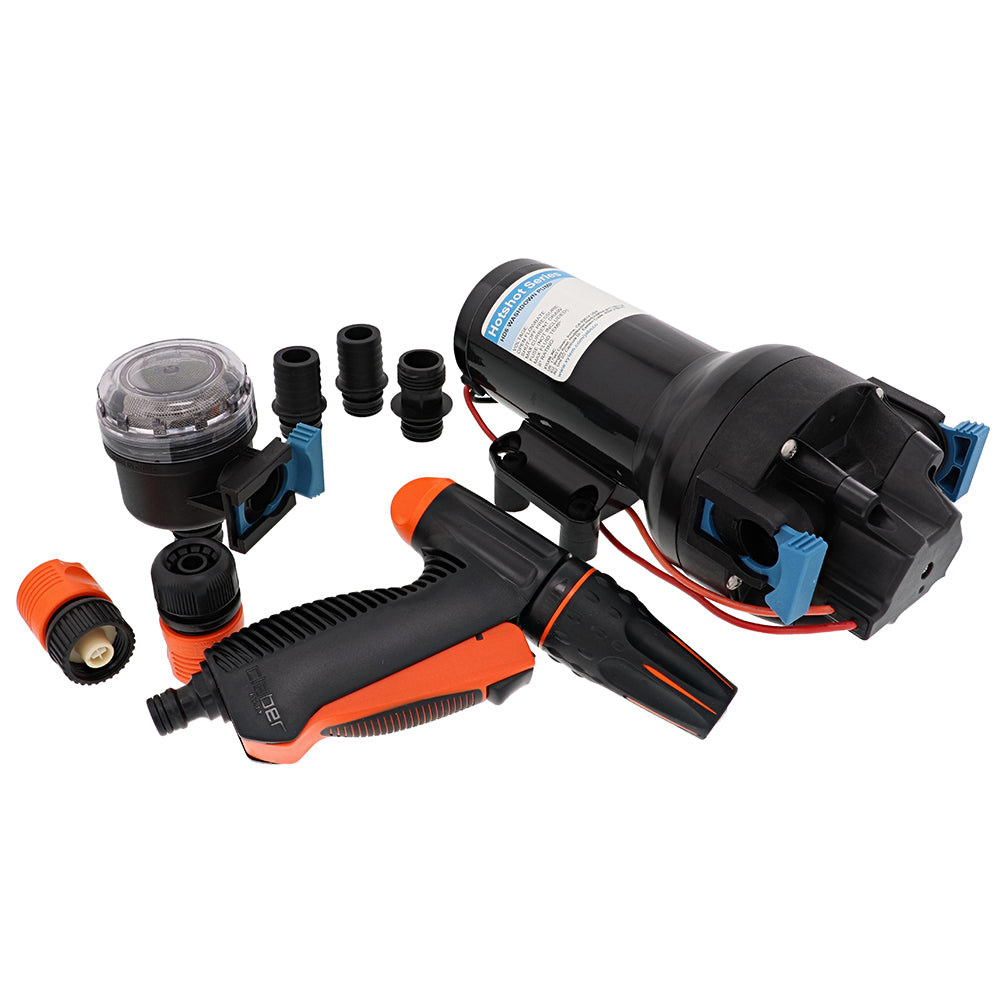

In the Box:

• Jabsco HotShot HD6 Washdown Pump Unit
• Quick Connect Straight Hose Barb Fittings (various sizes)
• Quick Connect GHT (Garden Hose Thread) Fittings
• 90° 20 Mesh Quick Connect Strainer
• Trigger Nozzle with Quick Connect Hose Adapters

Key Features & Benefits:

• High-Performance Output: Operates on a 24V system, delivering a powerful 6 GPM (23 LPM) flow rate at up to 70 PSI (4.8 bar) to tackle the toughest cleaning tasks.
• Enhanced Durability: Features co-molded diaphragm technology for exceptional long-term durability and resistance to wear.
• Heavy-Duty Construction: HD models include a wider diameter motor with a powder-coated shell, cast aluminum endbells, and a lower housing, improving pressure capability and extending service life.
• On-Demand Operation: Designed with an integrated, sealed pressure switch for automatic, on-demand activation when the nozzle is opened.
• Versatile Installation: Self-priming capability up to 7 feet (2.1m) dry allows for flexible mounting options and the pump can run dry without sustaining damage.
• Marine-Grade Protection: IPX6 rated, guaranteeing robust protection against powerful water jets and harsh marine conditions.
• Effortless Connectivity: Quick connect ports facilitate easy installation, servicing, and maintenance.
• Quiet Operation: Vibration-dampening mounting feet contribute to a quieter environment onboard.
• Certified Reliability: Meets CE, ISO8846, and RCM certifications, ensuring compliance with international safety and quality standards.
• Optimized Materials: Features a glass fiber reinforced polypropylene pumphead, co-molded TPV diaphragm, and EPDM check valves for chemical resistance and longevity.

Specifications:

• Motor Design: Brushed, permanent magnet TENV
• Max Inlet Pressure: 30 PSI (2.1 Bar)
• Fluid Temperature Range: 32°F – 140°F (0°C – 60°C)
• Nominal Voltage: 24 VDC
