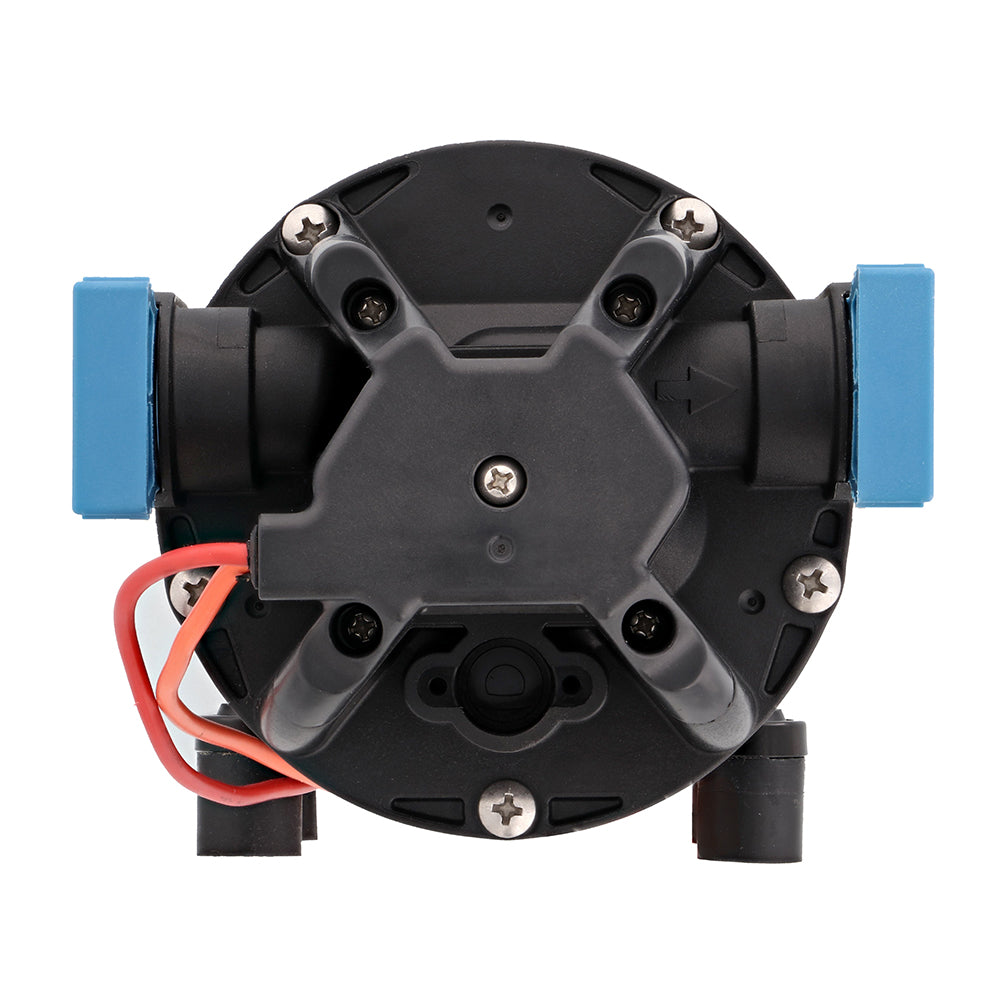

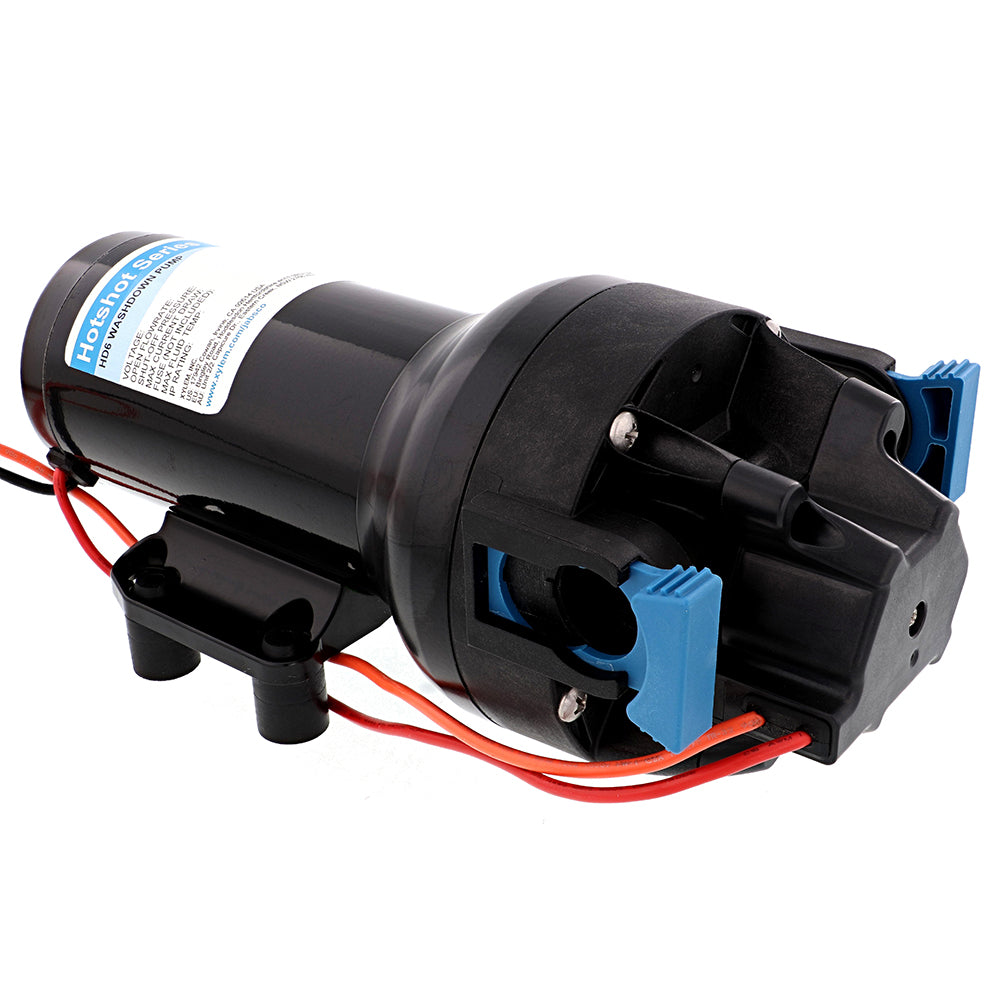

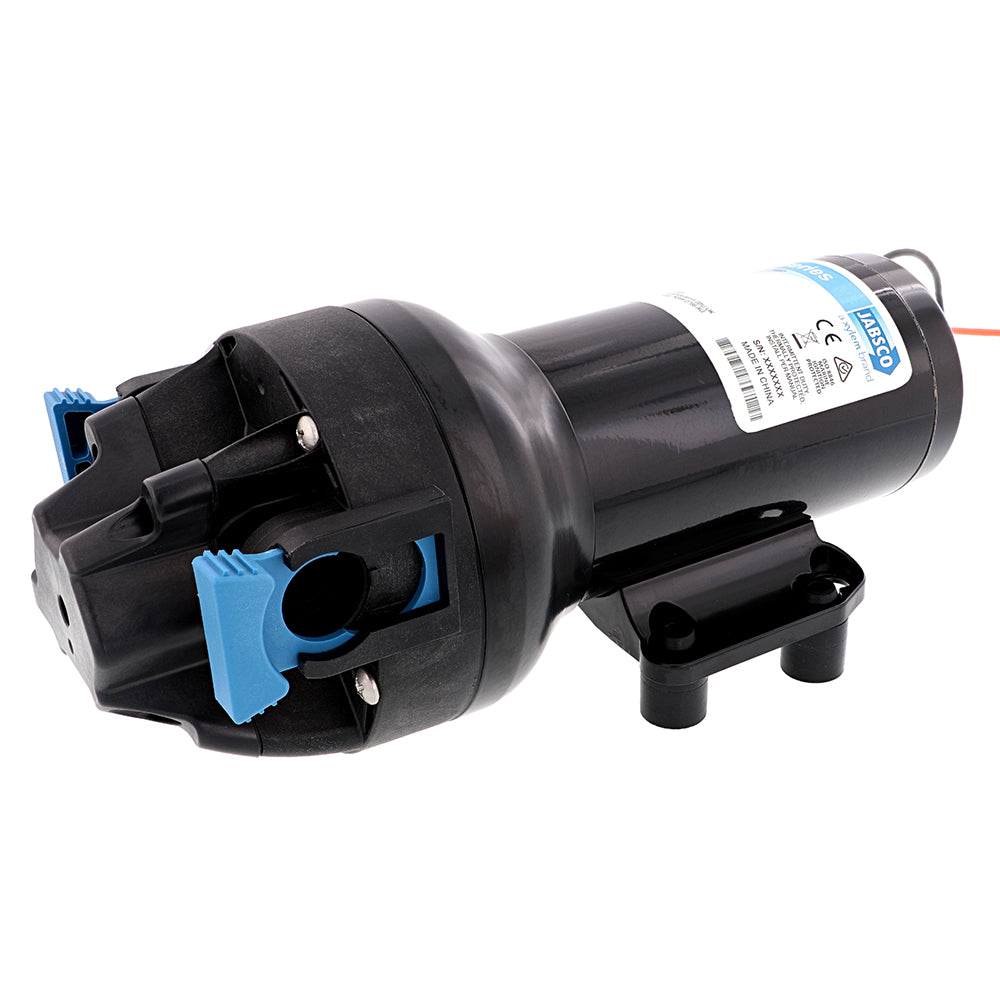

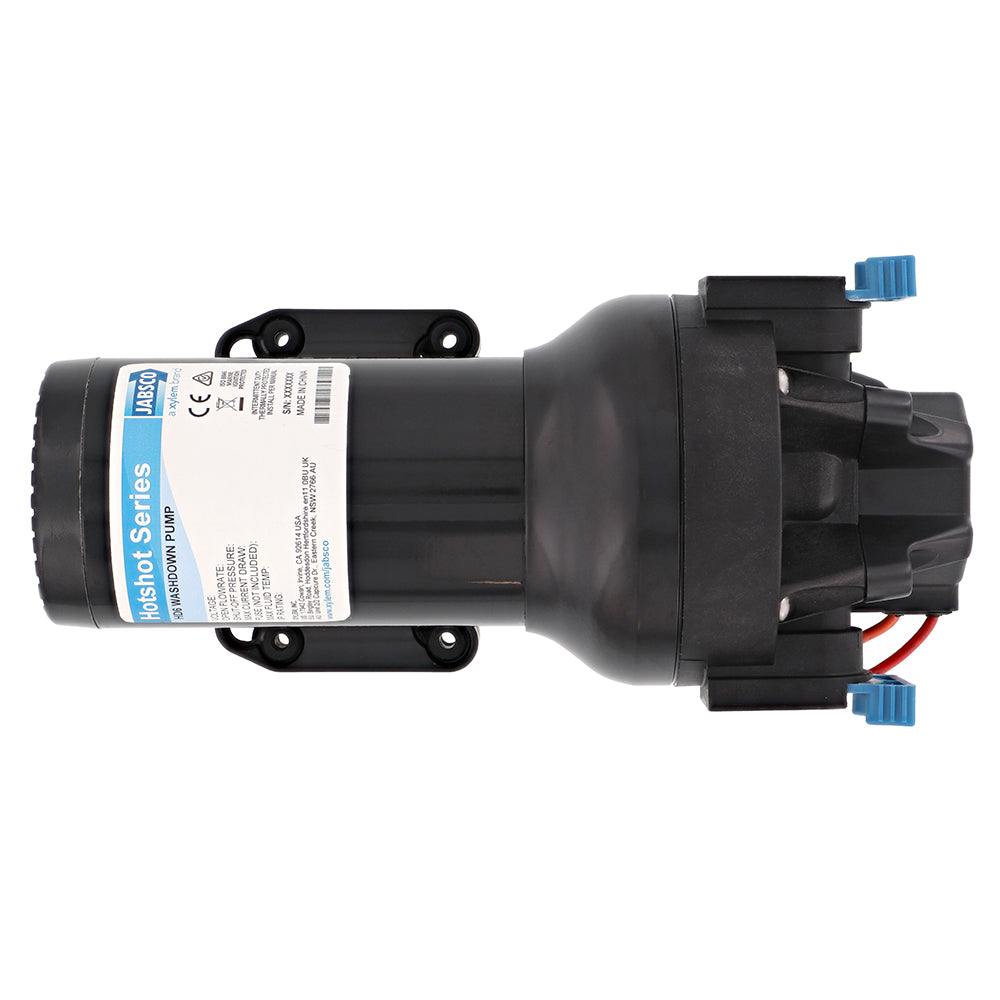

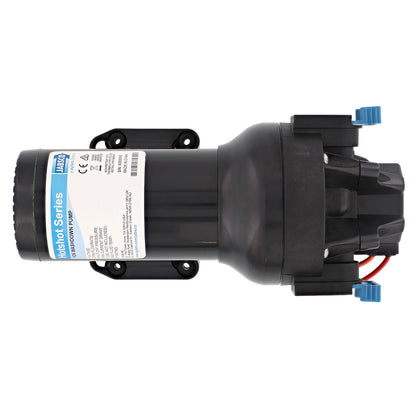

Jabsco HotShot HD6 Heavy Duty 12V Washdown Pump Kit, 6 GPM, 70 PSI

The Jabsco HotShot HD6 is a heavy-duty 12V diaphragm washdown pump designed for reliable high-flow performance. This kit includes a 25' HoseCoil and features a robust motor with a powder-coated shell and cast aluminum lower housing to ensure long-term durability at high pressures.

Key Features:

• 6 GPM flow rate with a 70 PSI maximum pressure capacity.
• Co-molded diaphragm technology and sealed, on-demand pressure switch.
• Self-priming capability with vibration-dampening mounting feet.
• Engineered for quiet operation and capable of running dry without damage.
• Quick-connect ports facilitate straightforward installation and maintenance.

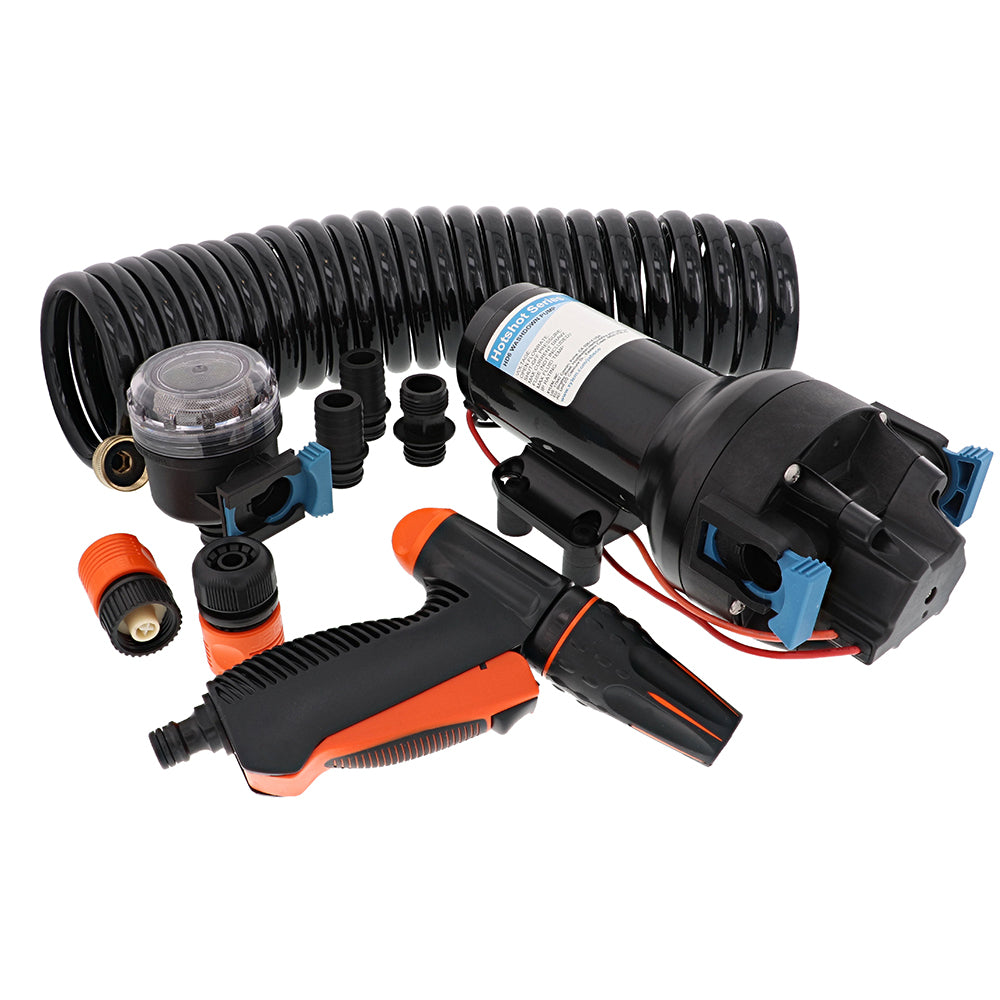

• Includes trigger nozzle, hose adapters, and a 90-degree 20-mesh strainer.
• Regulatory note: This product can expose you to chemicals including Antimony Oxide (Antimony Trioxide), which is known to the State of California to cause cancer.

Technical Specifications:

• Motor: Brushed, permanent magnet TENV.
• Materials: Glass fiber reinforced polypropylene upper housing and TPV co-molded diaphragm.
• Operating temperature range: 32°F to 140°F.
• Maximum inlet pressure: 30 PSI.
• Dry self-priming height: 7 ft.
• Ingress protection rating: IPX6.
• Certifications: CE, ISO8846, RCM.
