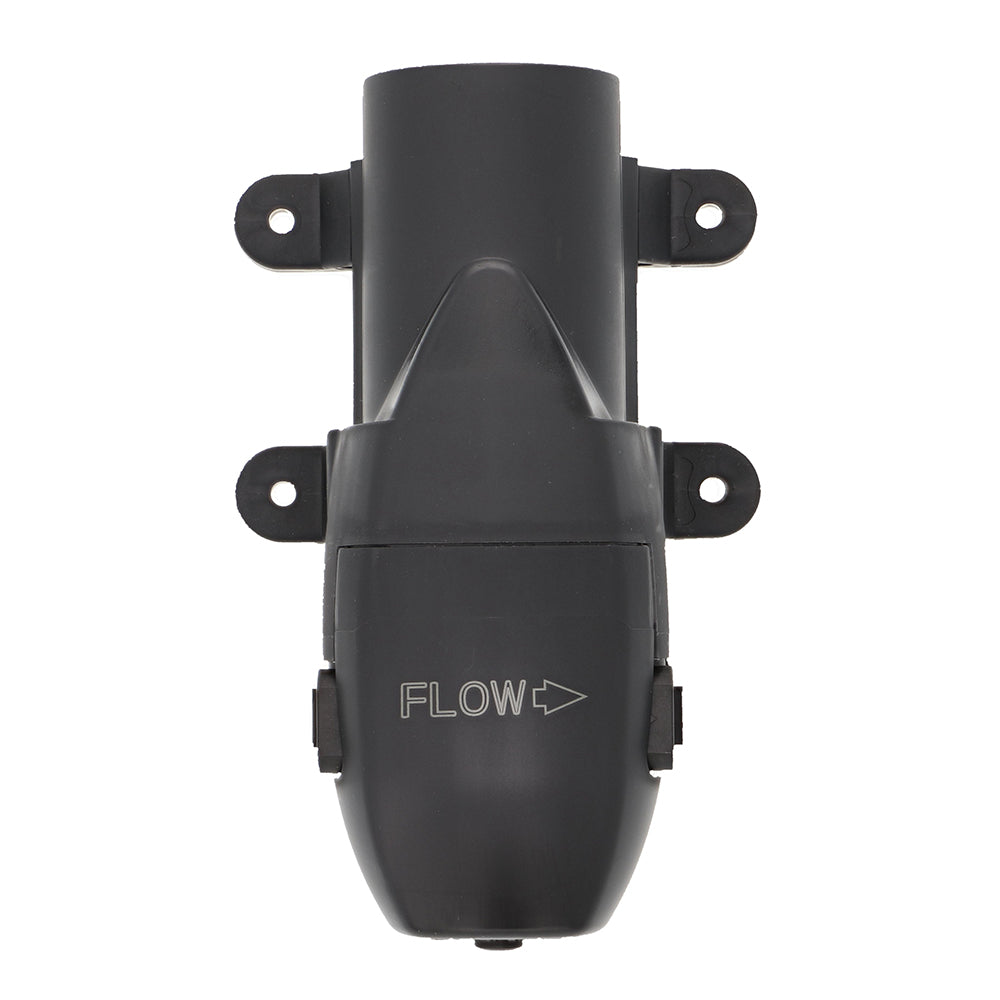

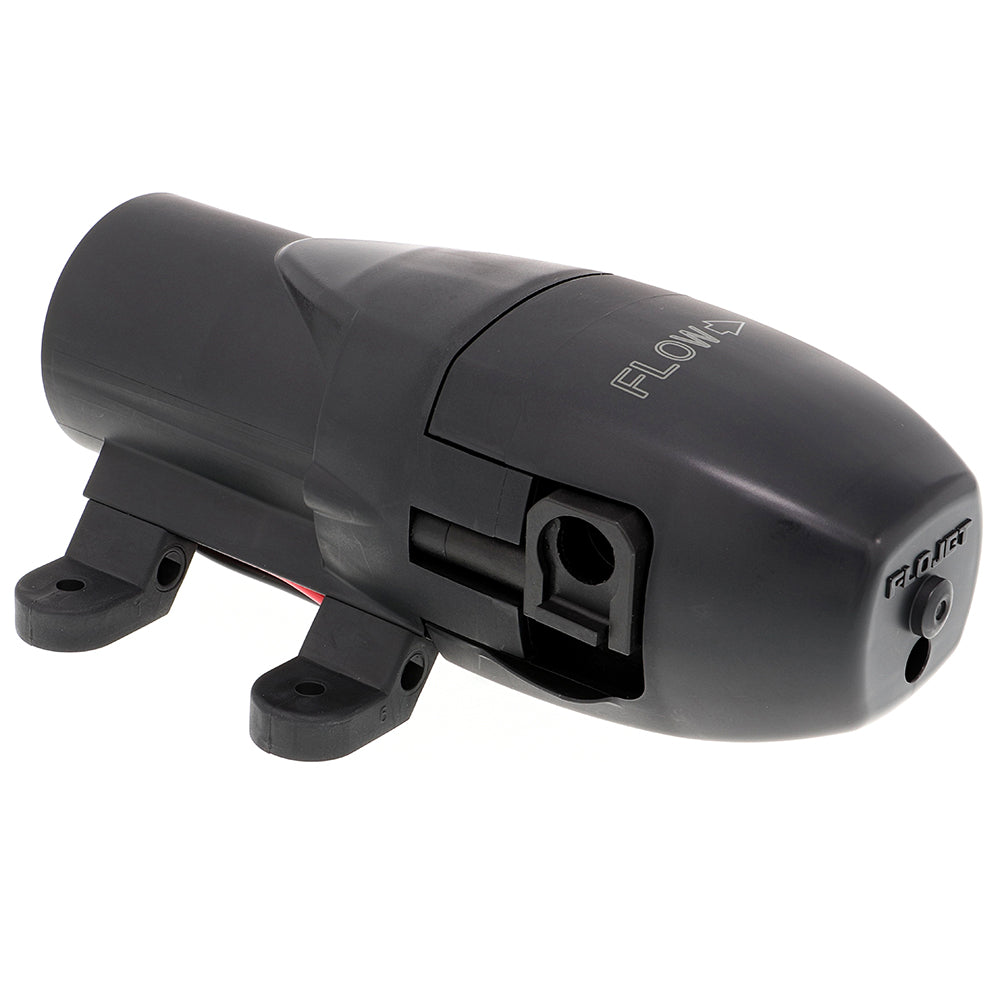

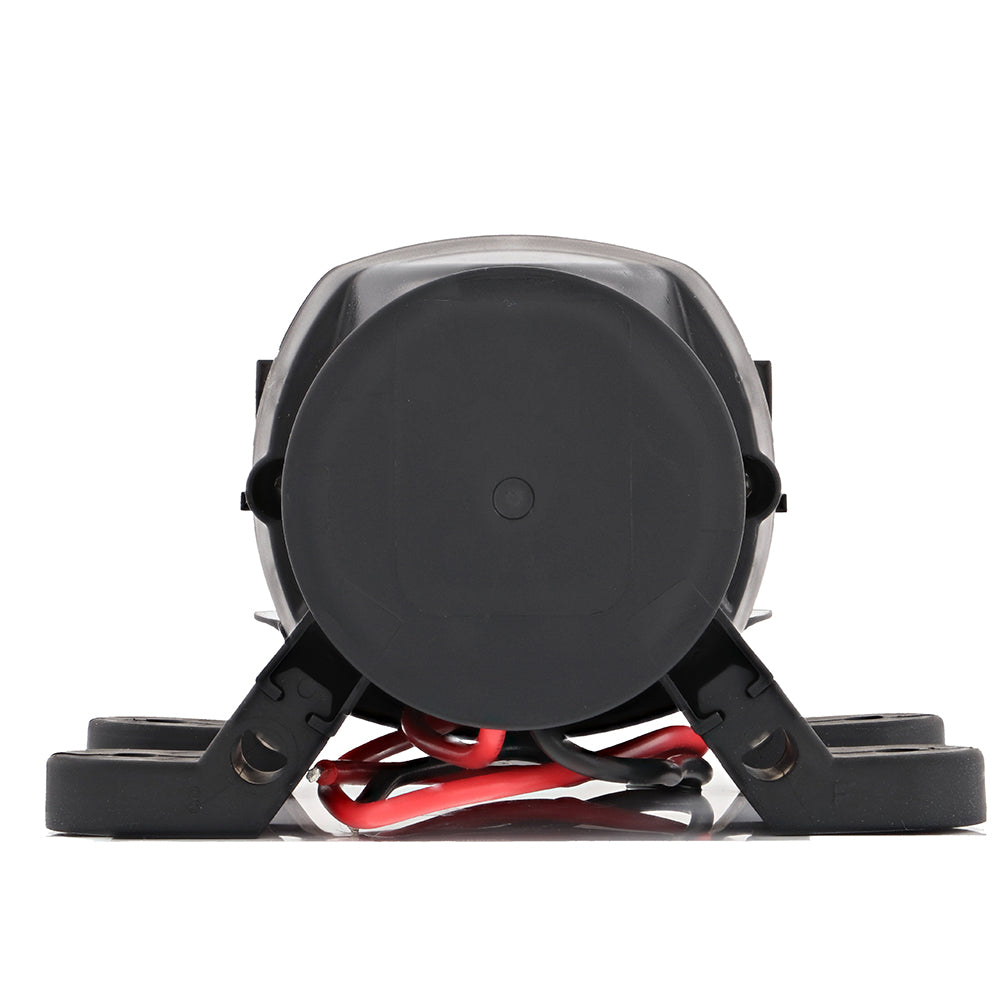

Jabsco Par-Max 1 Water Pressure Pump, 12V, 1 GPM, 35 PSI
Jabsco Par-Max 1 Water Pressure Pump, 12V, 1 GPM, 35 PSI
3 available
About this product
The Jabsco Par-Max 1 is a 12V water pressure pump designed for efficient and quiet operation on marine vessels. This standard-model pump provides a flow rate of 1 GPM and is suitable for systems with 1-3 outlets.
Key Features:
- Integrated, sealed pressure switch for on-demand operation
- Co-molded diaphragm technology for durability
- Self-priming capability up to 7 ft.
- Can run dry without damage
- Quick-connect ports for easy installation and maintenance
- Vibration-dampening mounting feet
- Integrated bypass module to reduce cycling and provide smoother flow
Specifications:
- Voltage: 12V DC
- Flow Rate: 1 GPM
- Max Pressure: 35 PSI
- Motor: Brushed, permanent magnet TENV
- Pump Head Material: Glass fiber reinforced polypropylene
- Diaphragm Material: Co-molded TPV
- Check Valve Material: EPDM
- Fluid Temperature Range: 32°F – 140°F
- Max Inlet Pressure: 30 PSI
- Ingress Protection: IPX6
- Certifications: CE, ISO8846, RCM
- Manufacturer Part Number: 42630-3512-3C
Regulatory note: This product can expose you to chemicals including antimony oxide (antimony trioxide), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-109675
- Model / MPN
- 42630-3512-3C
- UPC / GTIN
- 671880841757
- Package dimensions (H × W × L)
- 2" X 6" X 6"
- Package weight
- 2.2 lb
- Country of origin
- CHINA
Specifications
- Volts
- 12v
- Max PSI
- 35
- Gallons Per Minute
- 1 GPM
- Type
- Jabsco Par-Max 1 Water Pressure Pump - 12V - 1 GPM - 35 PSI
