Brand: Jabsco

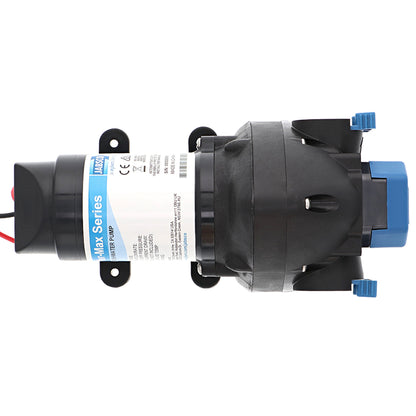

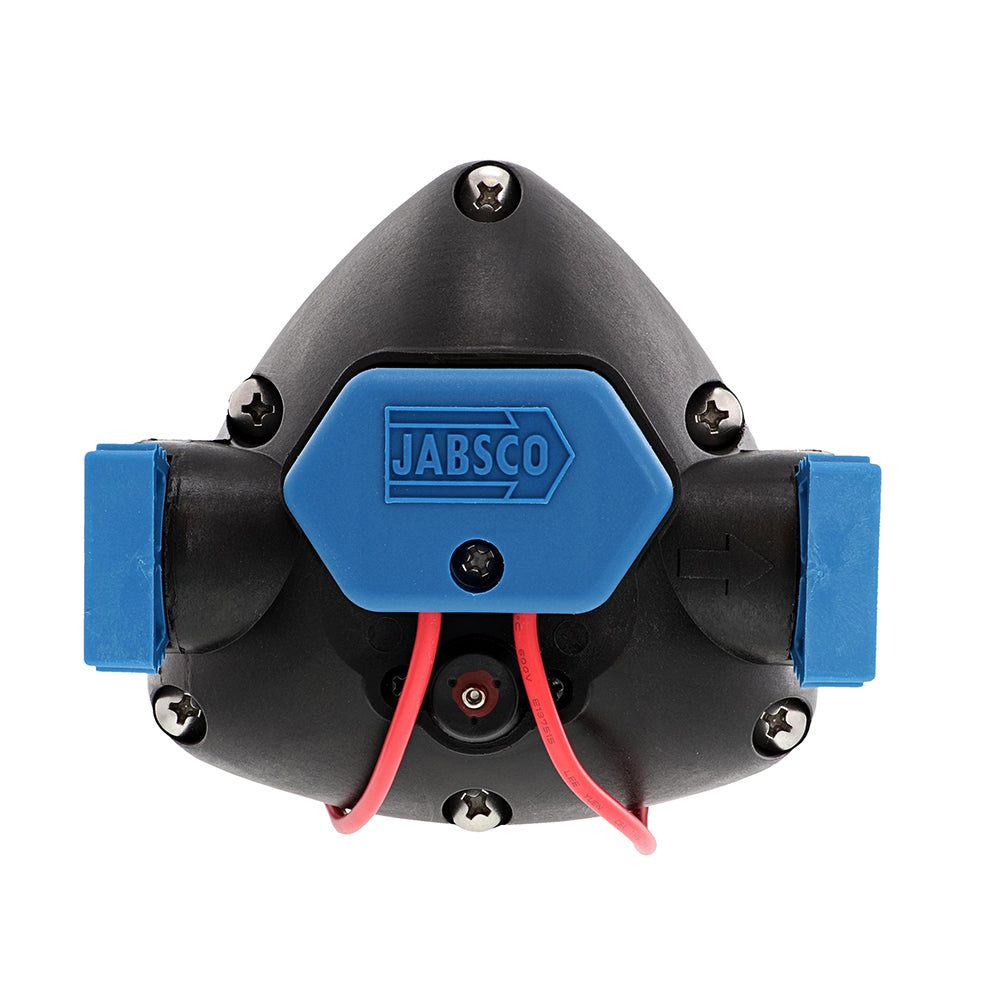

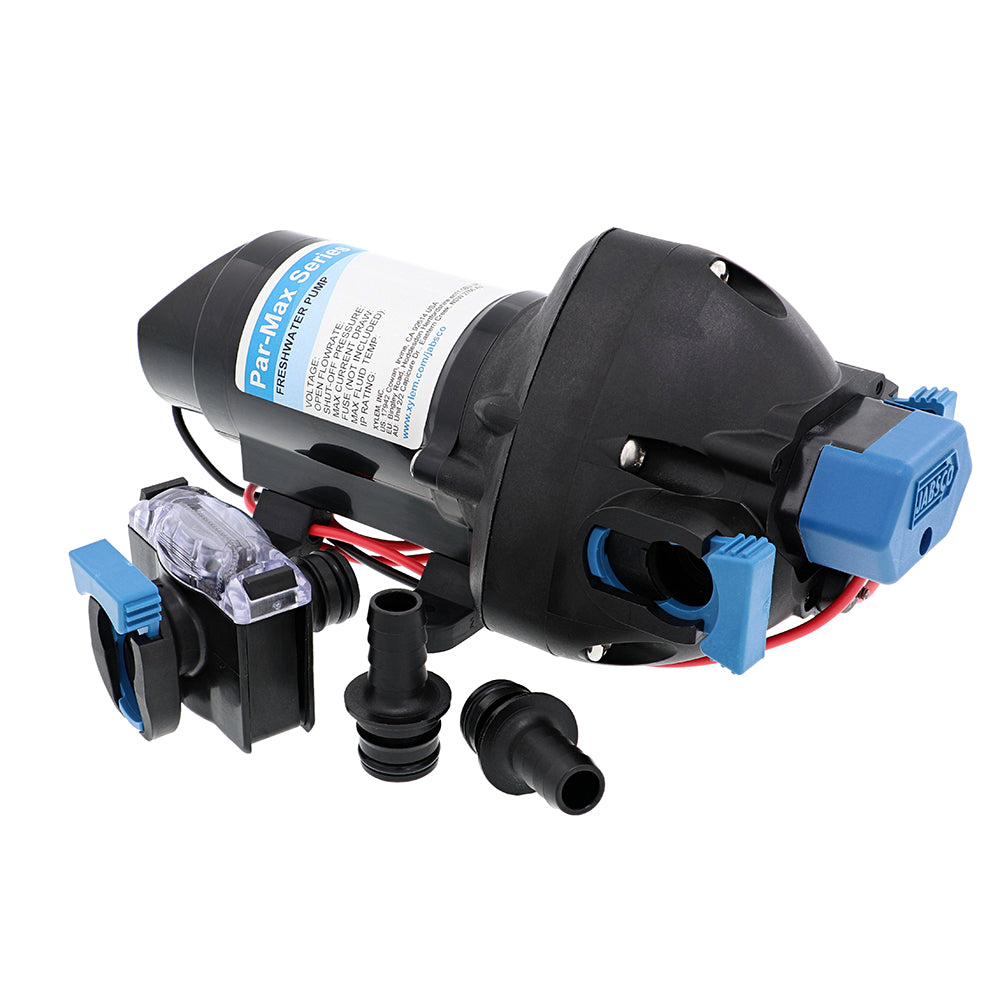

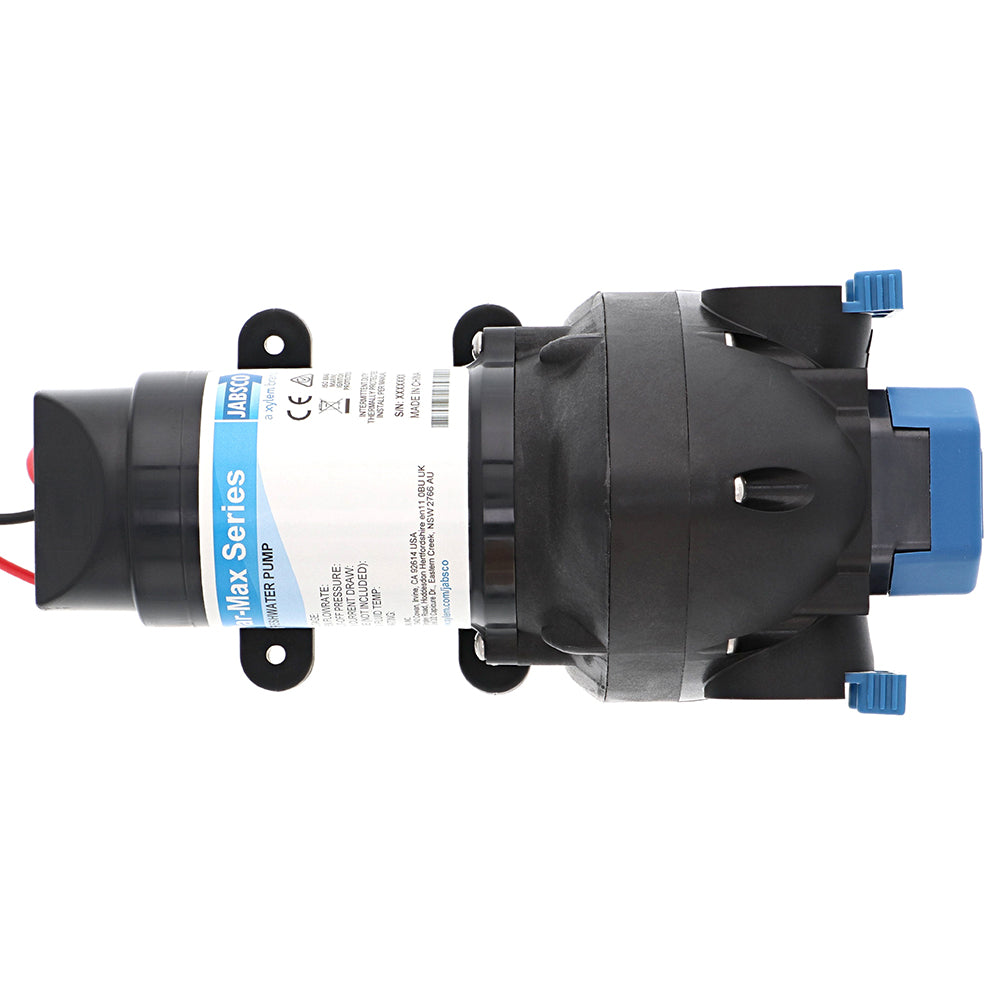

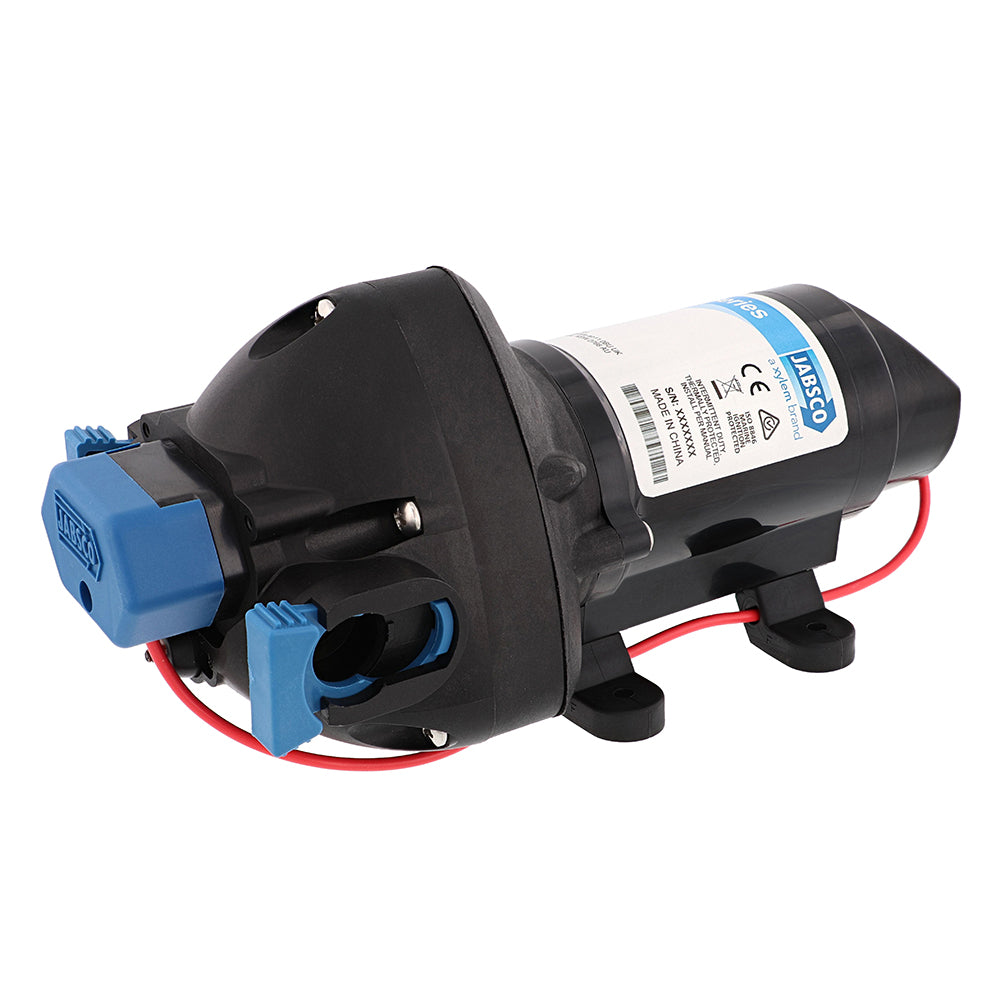

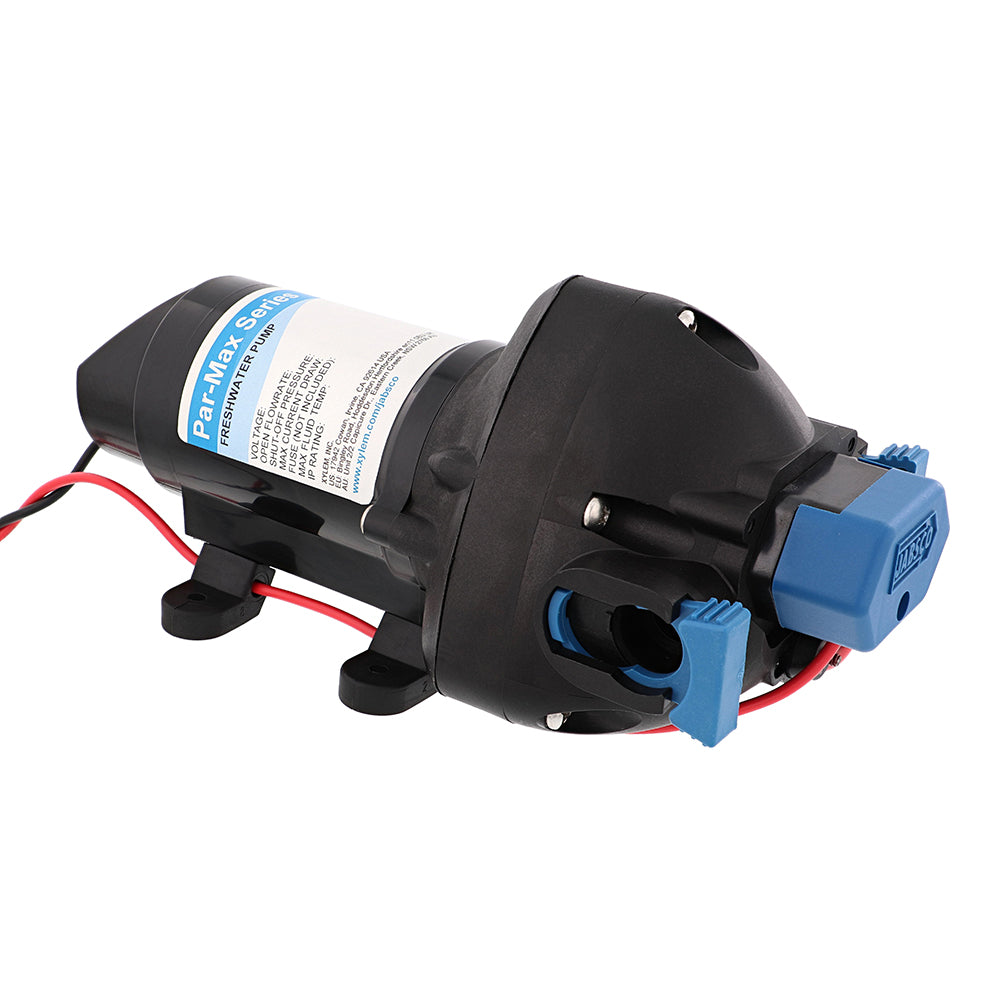

Jabsco Par-Max 3 Water Pressure Pump, 24V, 3 GPM, 25 PSI
Jabsco Par-Max 3 Water Pressure Pump, 24V, 3 GPM, 25 PSI
5 available
The Jabsco Par-Max 3 is a 24V water pressure pump designed for reliable performance in marine plumbing systems. This unit provides a flow rate of 3 GPM at 25 PSI and is suitable for vessels with 1-3 outlets.
Key Features:
- Co-molded diaphragm technology for durability
- Efficient, quiet operation with an integrated, sealed pressure switch for on-demand use
- Self-priming capability allows for versatile installation
- Able to run dry without damage
- Quick-connect ports for easy maintenance and installation
- Equipped with vibration-dampening mounting feet and an integrated bypass module for smoother flow
Technical Specifications:
- Model: 31395-2524-3A
- Motor: Brushed, permanent magnet TENV
- Pumphead Material: Glass fiber reinforced polypropylene
- Diaphragm Material: Co-molded TPV
- Check Valve Material: EPDM
- Max Inlet Pressure: 30 PSI
- Fluid Temperature Range: 32°F to 140°F
- Dry Self-Priming Capability: 7 ft/min
- Ingress Protection: IPX6
- Certifications: CE, ISO8846, RCM
Regulatory note: This product can expose you to chemicals including Antimony Oxide (Antimony Trioxide), which is known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-109688
- Model / MPN
- 31395-2524-3A
- UPC / GTIN
- 671880841795
- Package dimensions
- 5" X 6" X 15"
- Package weight
- 4.45 lb
- Specifications
- Volts = 24v\nMax PSI = 25\nGallons Per Minute = 3 GPM
