Brand: Jabsco

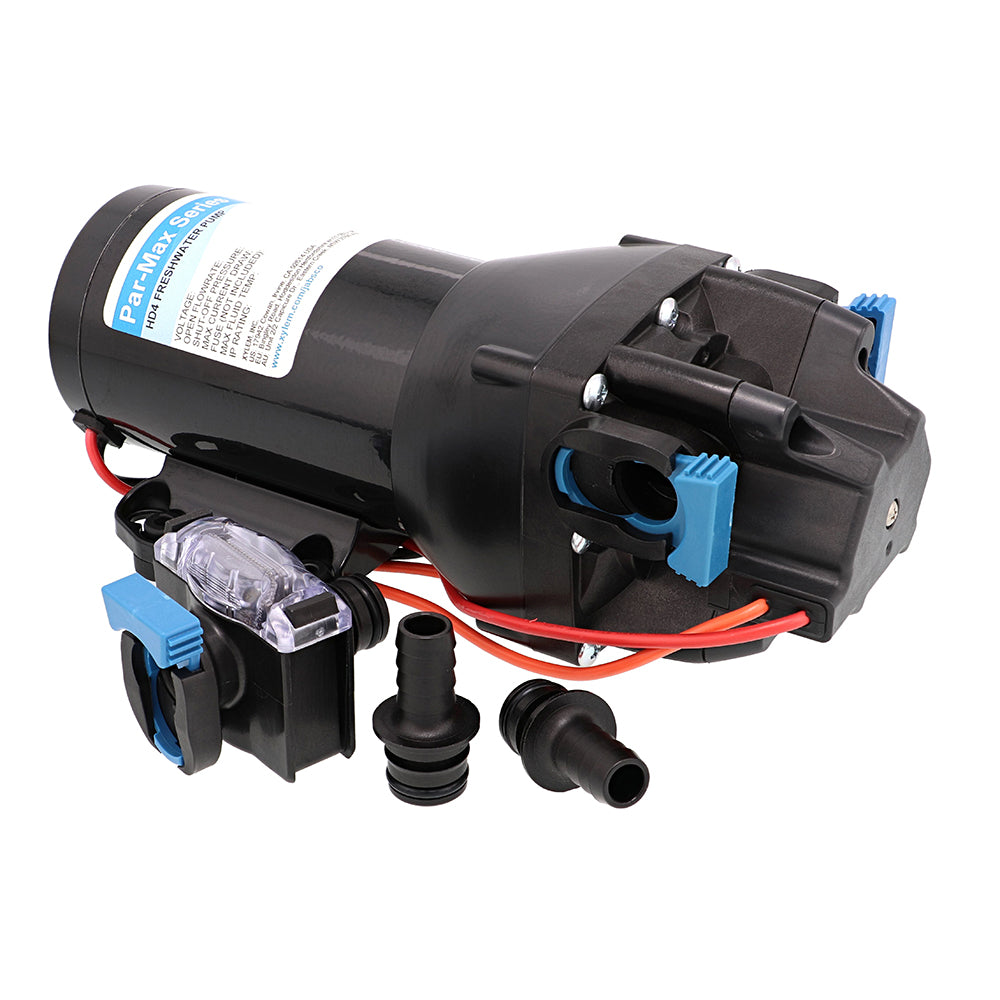

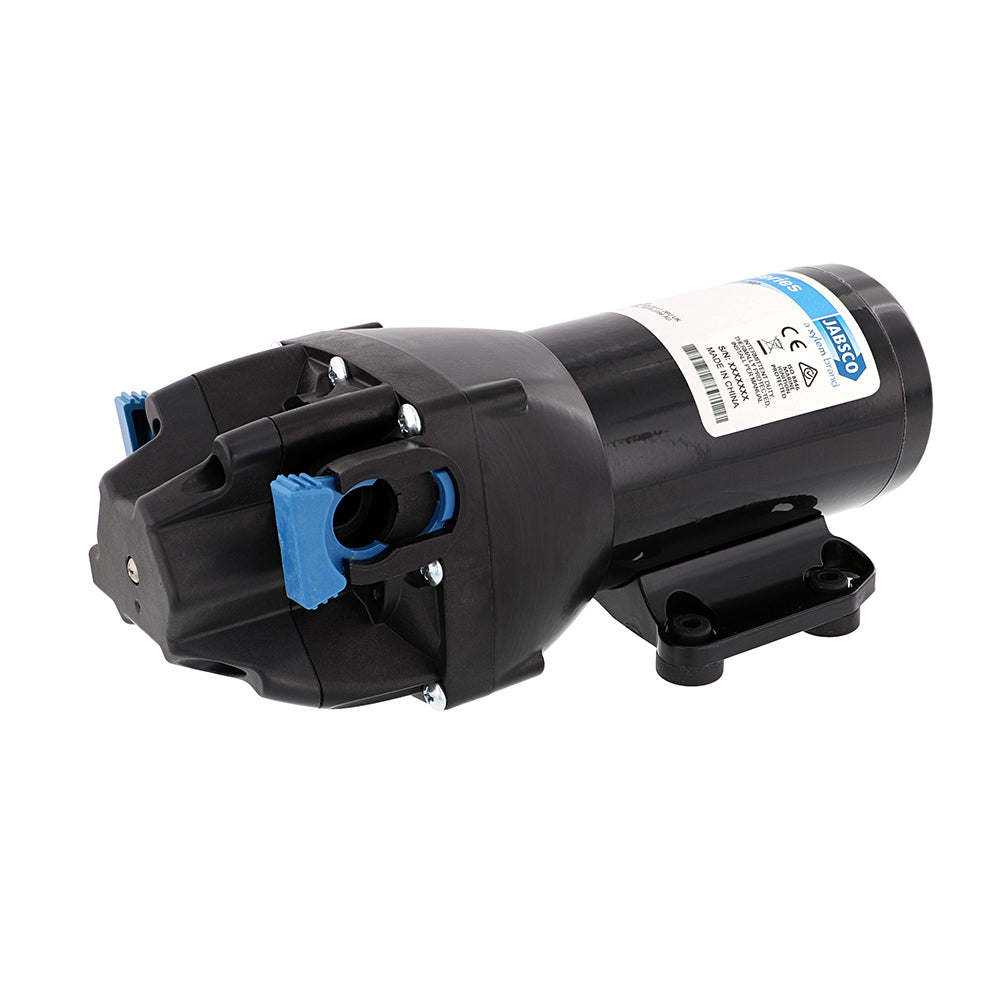

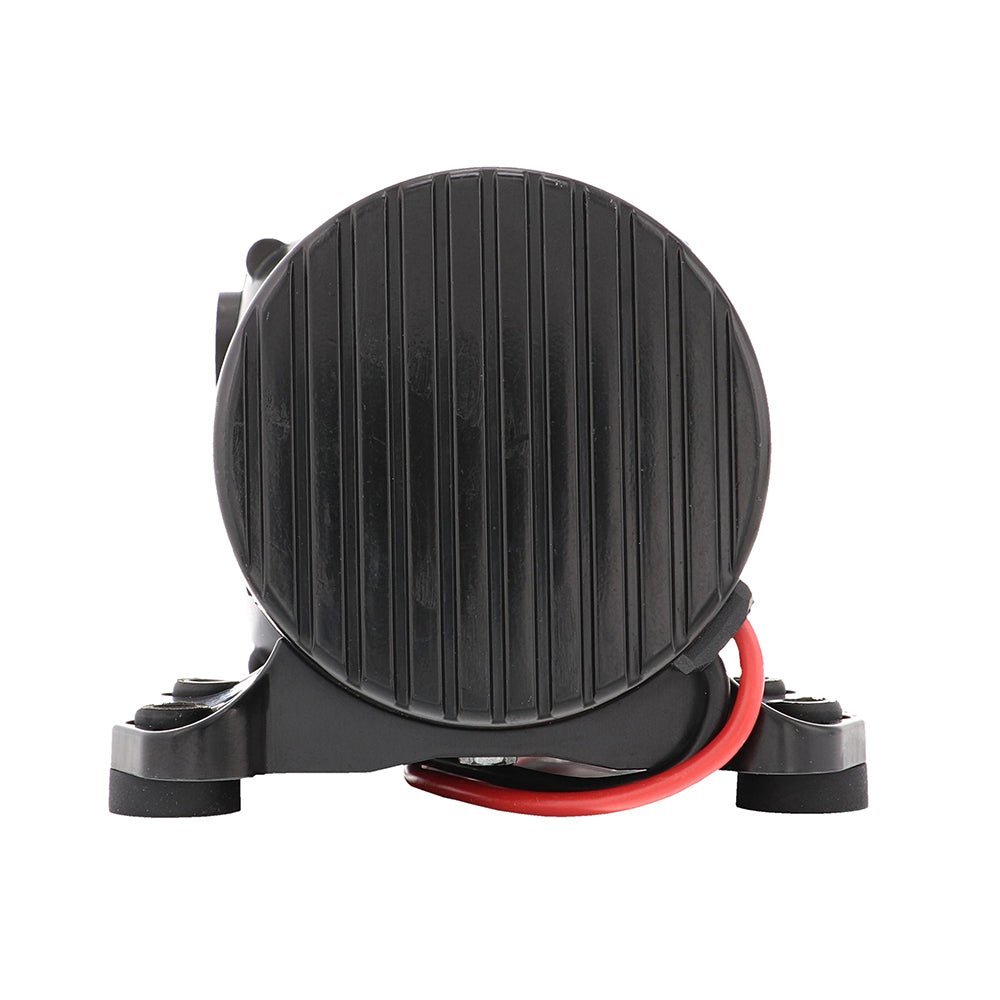

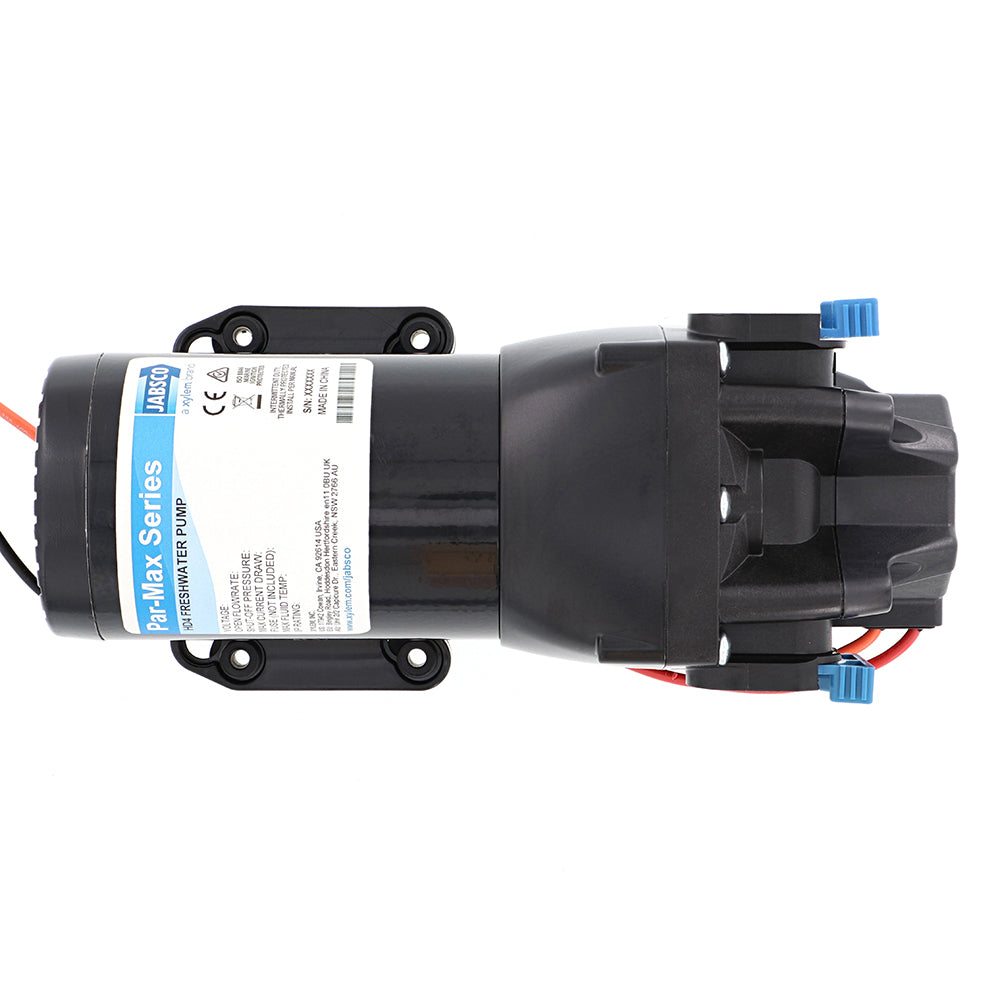

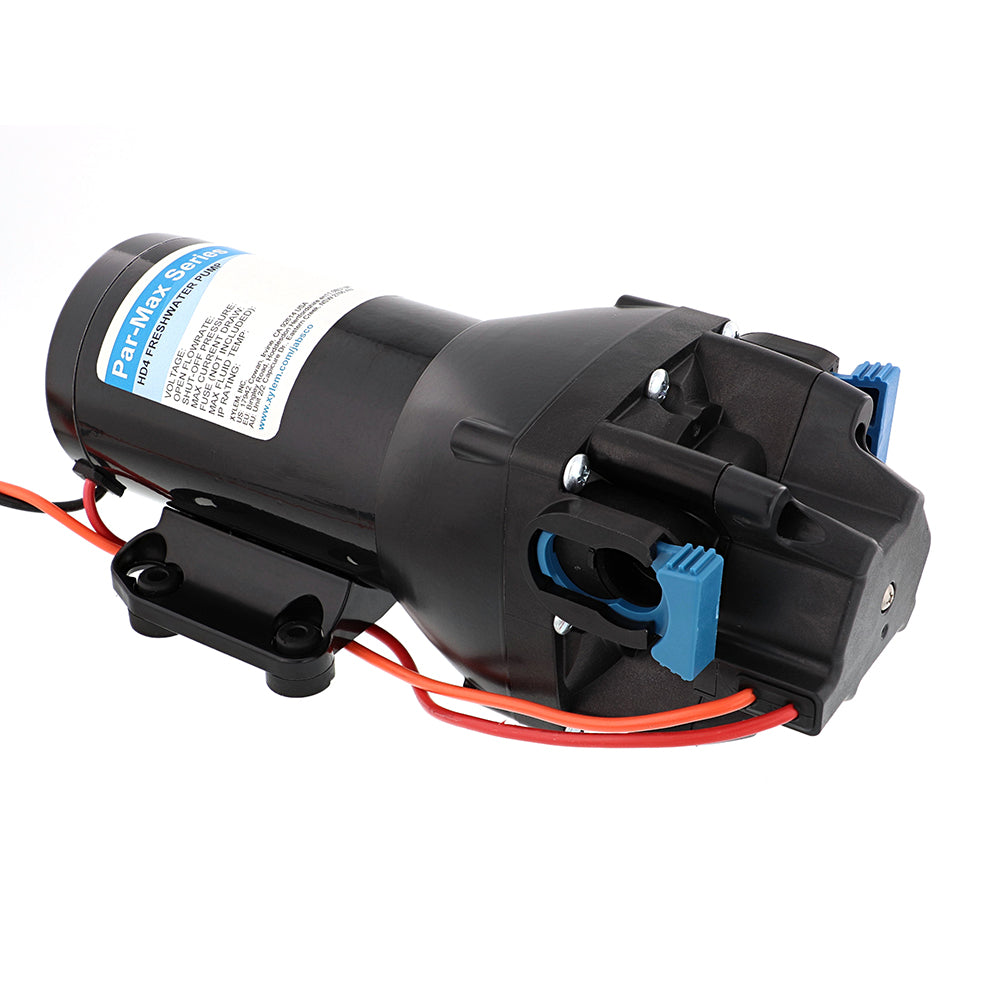

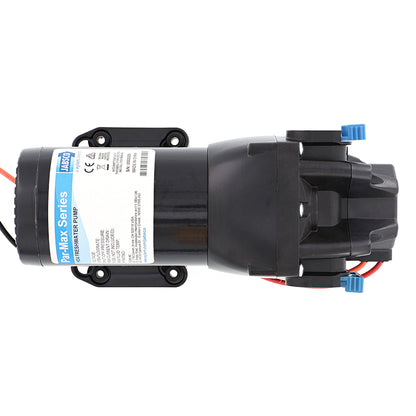

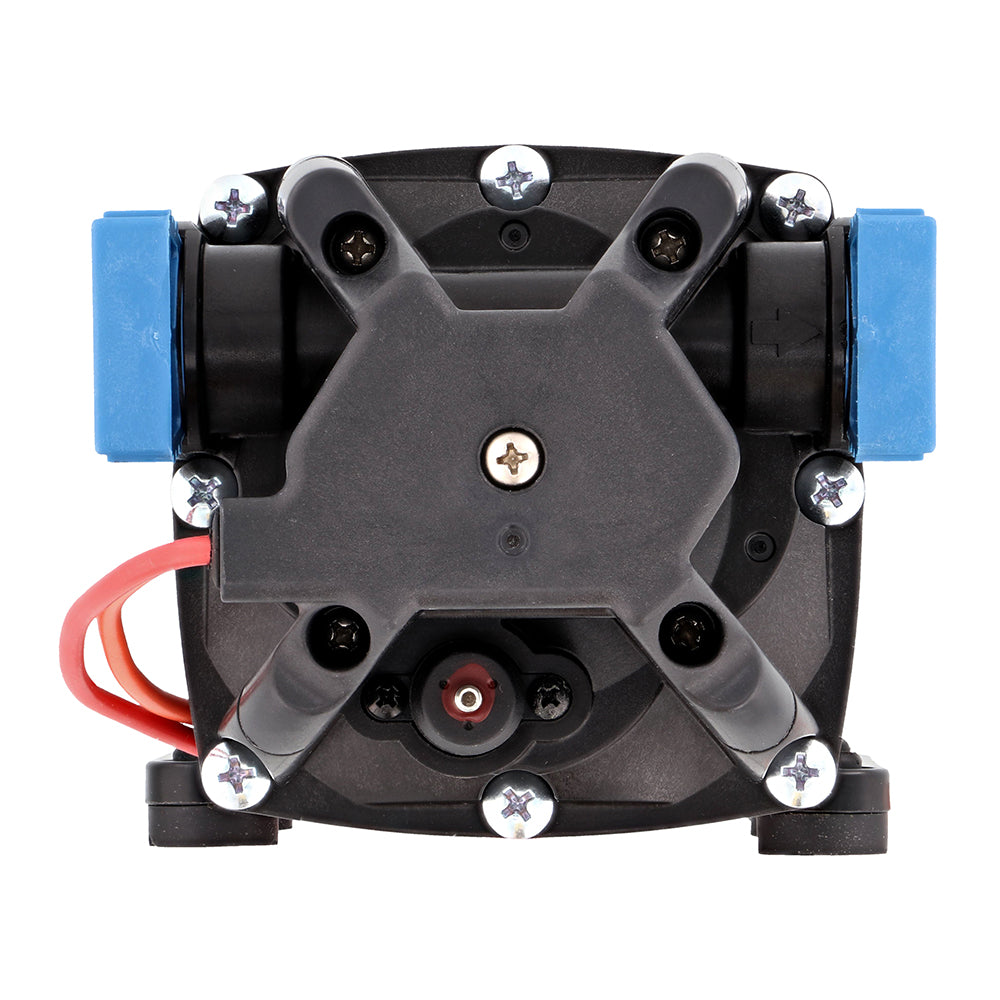

Jabsco Par-Max HD4 Heavy-Duty Water Pressure Pump, 12V, 4 GPM, 60 PSI, Q401J-118S-3A
Jabsco Par-Max HD4 Heavy-Duty Water Pressure Pump, 12V, 4 GPM, 60 PSI, Q401J-118S-3A
10+ available
About this product
The Jabsco Par-Max HD4 is a 12V heavy-duty water pressure pump delivering up to 4 GPM at 60 PSI for marine water systems.
- Co-molded diaphragm technology with a brushed, permanent-magnet TENV motor
- Glass fiber reinforced polypropylene pumphead upper housing, co-molded TPV diaphragm, and EPDM check valves
- Self-primes dry up to 8 ft. (2.4 m) and can run dry without damage
- Integrated sealed pressure switch for on-demand operation
- Integrated bypass module helps reduce cycling and provide smoother flow
- Quick-connect ports, vibration-dampening mounting feet, and efficient, quiet operation
- Maximum inlet pressure: 30 PSI (2.1 bar)
- Fluid temperature range: 32 deg F to 140 deg F (0 deg C to 60 deg C)
- Ingress protection: IPX6
- Certifications: CE, ISO8846, and RCM
- Manufacturer part number: Q401J-118S-3A
- UPC: 671880841870
- Regulatory note: This product contains antimony oxide (antimony trioxide), a chemical identified by the State of California as causing cancer under Proposition 65.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-109682
- Model / MPN
- Q401J-118S-3A
- UPC / GTIN
- 671880841870
- Package dimensions (H × W × L)
- 6" X 6" X 15"
- Package weight
- 7.85 lb
- Country of origin
- CHINA
Specifications
- Volts
- 12v
- Max PSI
- 60
- Gallons Per Minute
- 4 GPM
- Dry self-priming capability
- Up to 8 ft (2.4 m) dry prime
