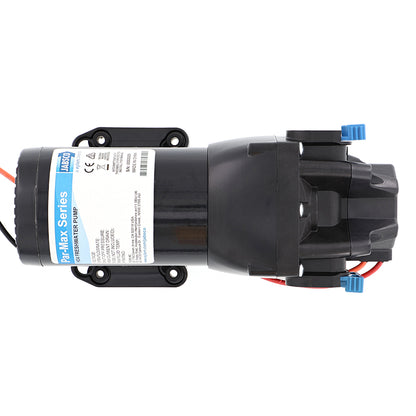

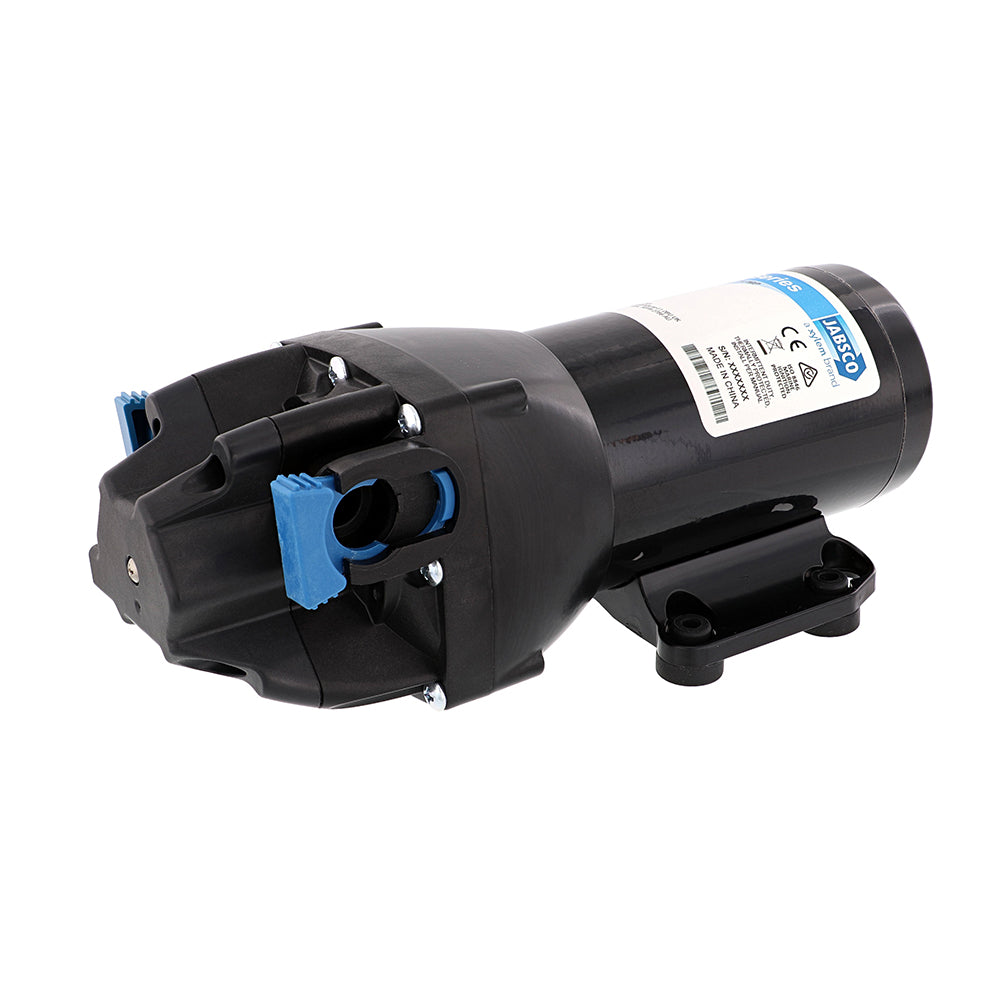

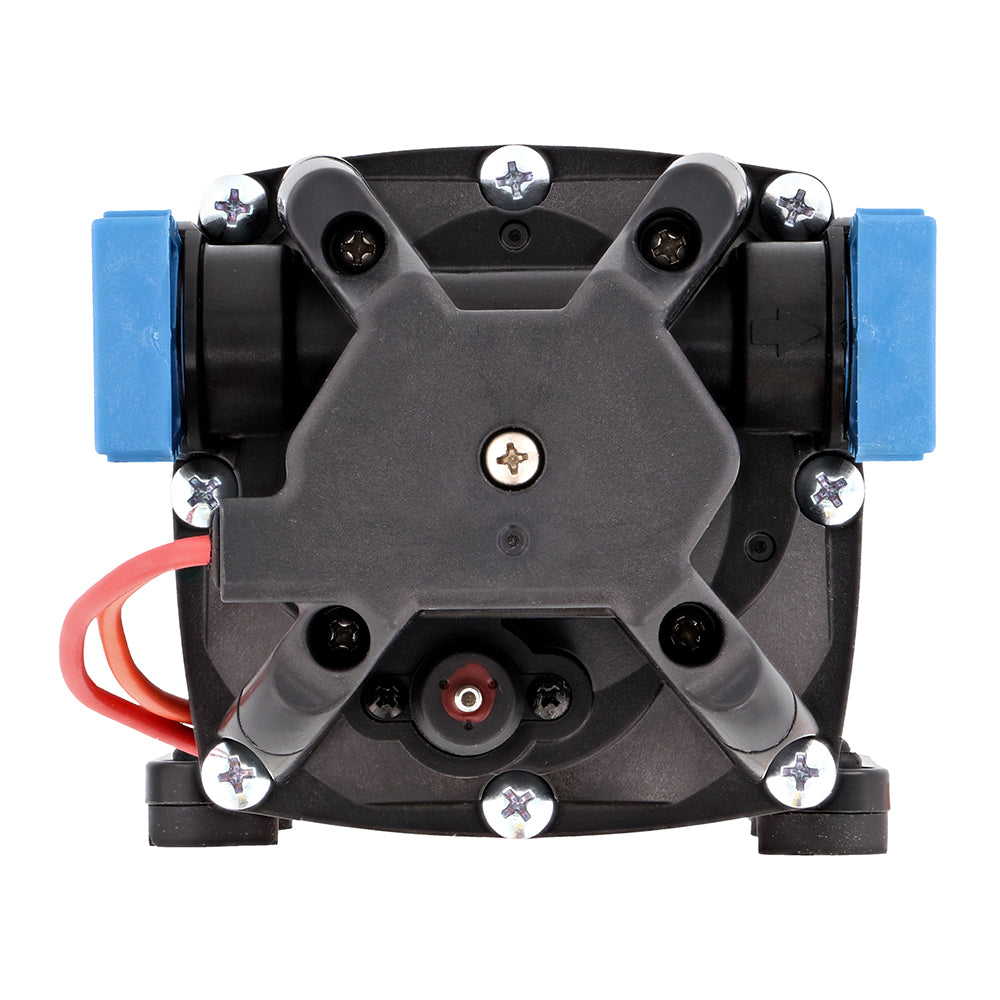

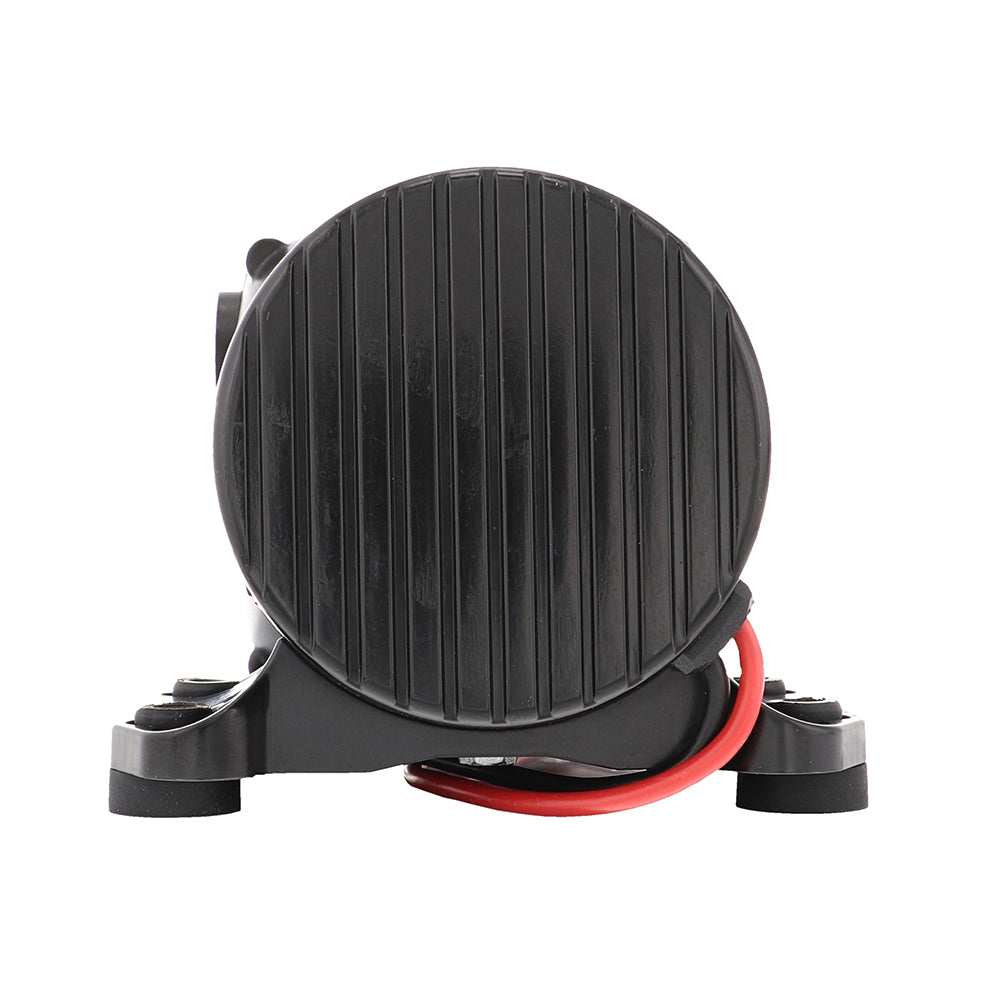

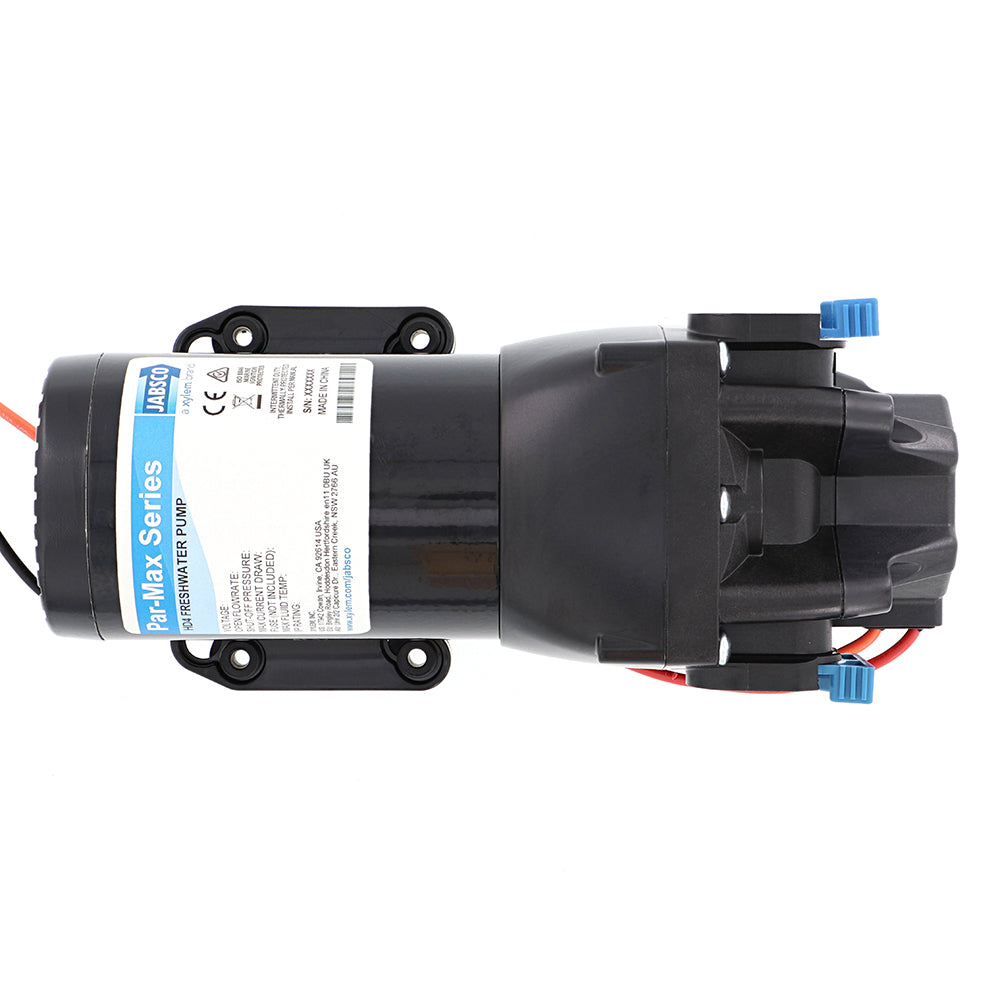

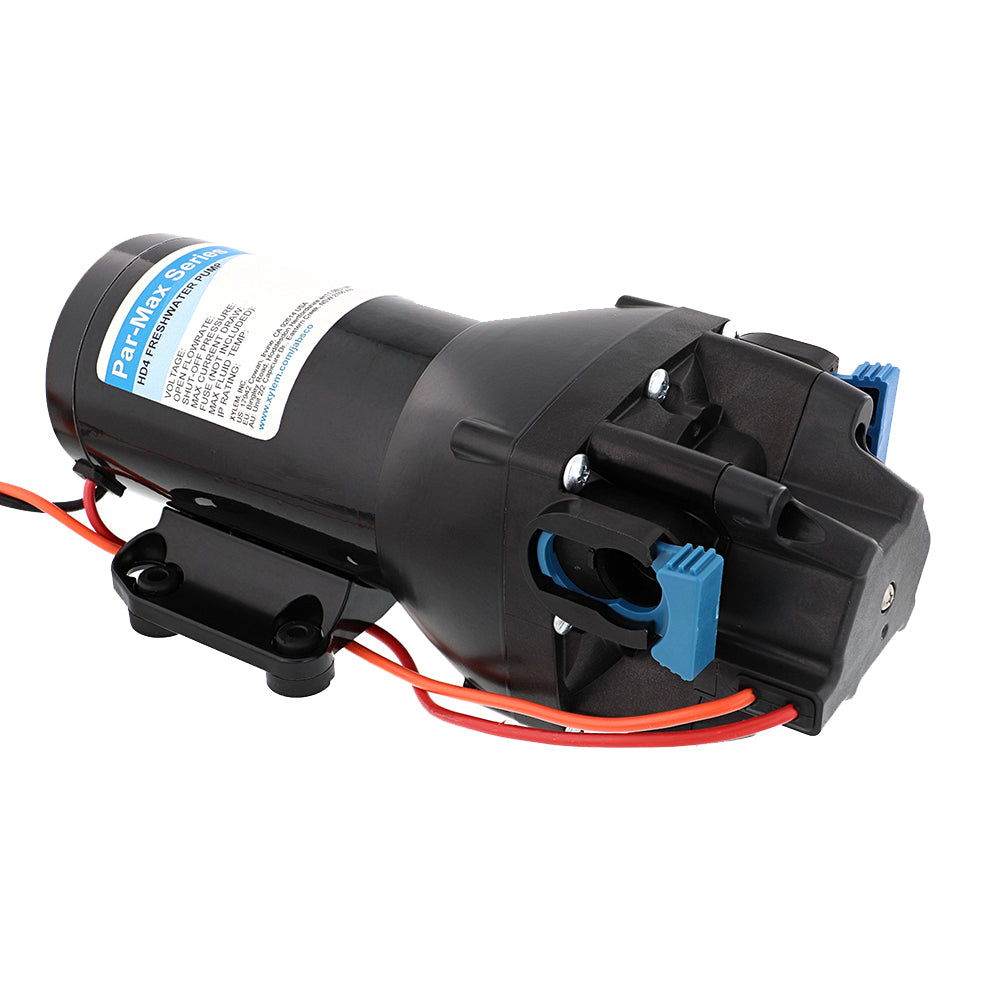

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump, 24V 4 GPM 40 PSI – IPX6 Rated

Ensure a consistent and robust freshwater supply with the Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump. Engineered with heavy-duty components and advanced co-molded diaphragm technology, this pump delivers exceptional performance and reliable water pressure for demanding marine and RV applications. Its efficient, quiet operation and integrated features provide a smooth, on-demand water flow without cycling. Upgrade to the Jabsco Par-Max HD4 for unparalleled water system reliability.

In the Box:

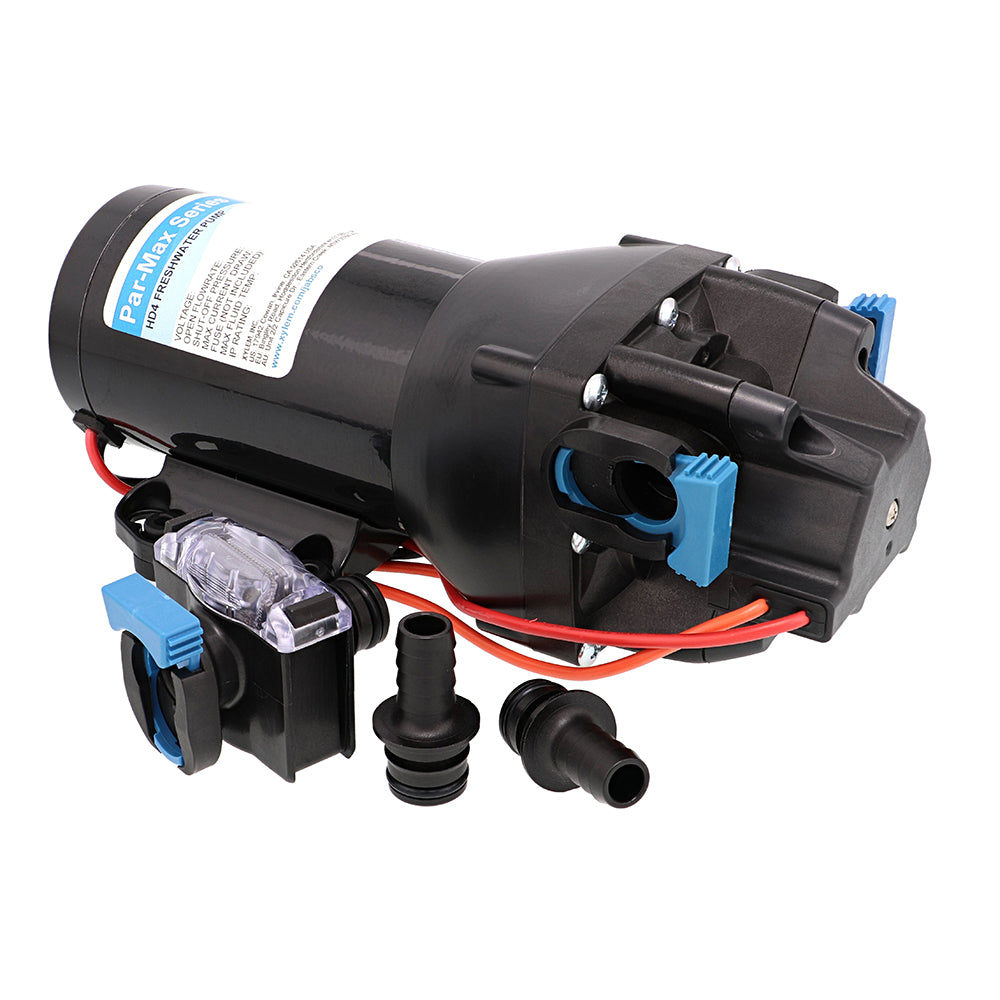

• Jabsco Par-Max HD4 Water Pressure Pump (Model Q402J-115S-3A)
• Two (2) 1/2 inch Straight Hosebarb Quick-Connect Port Fittings
• One (1) Inline 40 Mesh Strainer

Key Features & Benefits:

• Robust Performance: Delivers 4 GPM (15.1 LPM) open flow rate at a consistent 40 PSI shut-off pressure, ideal for multiple outlets.
• Heavy-Duty Construction: Features a wider diameter motor with a powder-coated shell, cast aluminum endbells, and lower housing for superior pressure capability and extended service life.
• Enhanced Durability: Utilizes co-molded diaphragm technology for long life and resistance to wear.
• Quiet & Efficient Operation: Engineered for smooth water flow with minimal noise disruption, enhancing onboard comfort.
• On-Demand Water Flow: Equipped with an integrated, sealed pressure switch that provides instant water when needed and prevents pump cycling.
• Run-Dry Capable: Designed to operate safely without water, preventing damage and increasing pump longevity.
• Self-Priming Versatility: Capable of dry self-priming up to 7 feet (2.13 meters), allowing for flexible installation locations.
• Quick-Connect Ports: Facilitate easy and secure installation, servicing, and maintenance.
• Integrated Bypass Module: Reduces pump cycling and ensures a consistently smoother, more even water flow.
• Vibration Dampening: Mounting feet with soft rubber mounts absorb noise and reduce operational vibrations for stable performance.
• IPX6 Rated: Provides strong protection against powerful water jets, making it suitable for demanding marine environments.
• Certified Quality: CE, ISO8846, and RCM certified for compliance with international safety and quality standards.

Specifications:

• Voltage: 24V DC
• Max Current Draw: 5.0 Amps
• Recommended Fuse Size: 10 Amps
• Motor Design: Brushed, permanent magnet TENV
• Pumphead Upper Housing Material: Glass fiber reinforced polypropylene
• Diaphragm Material: Co-molded TPV
• Check Valve Material: EPDM
• Max Inlet Pressure: 30 PSI (2.1 Bar)
• Fluid Temperature Range: 32°F – 140°F (0°C – 60°C)
