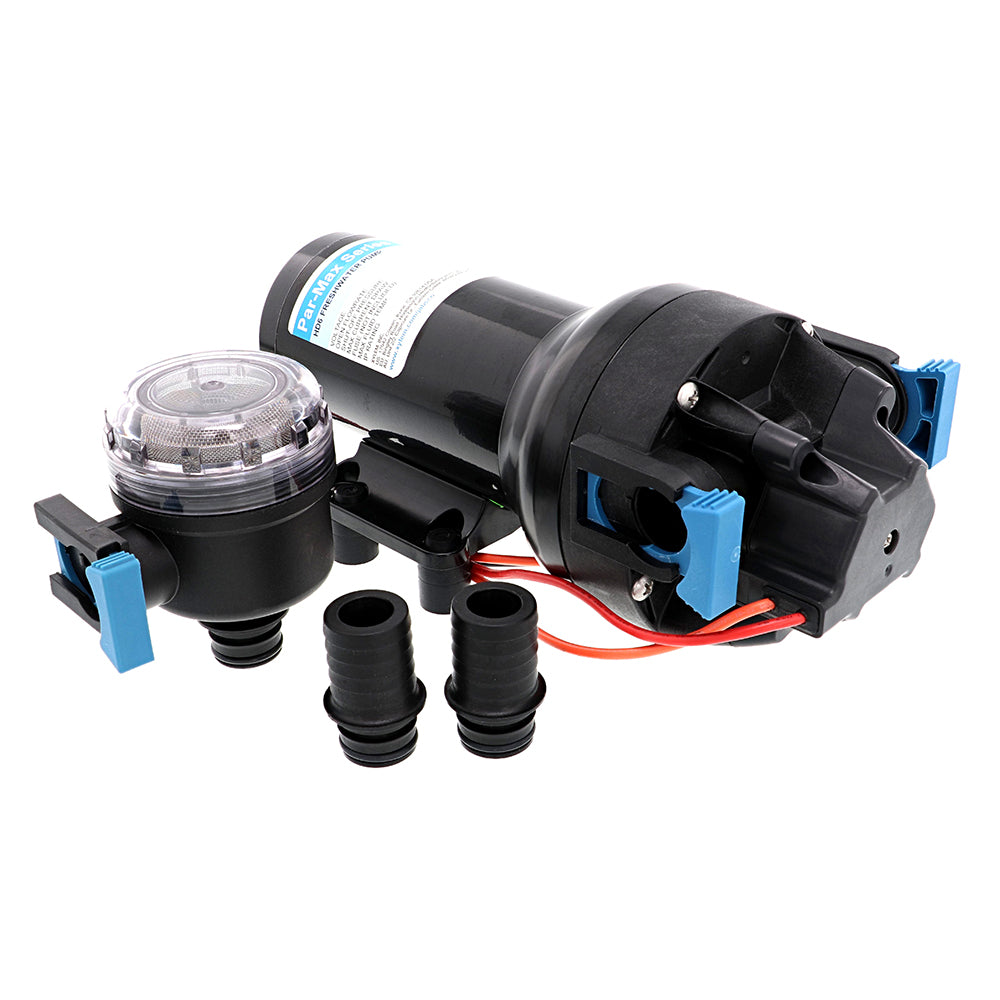

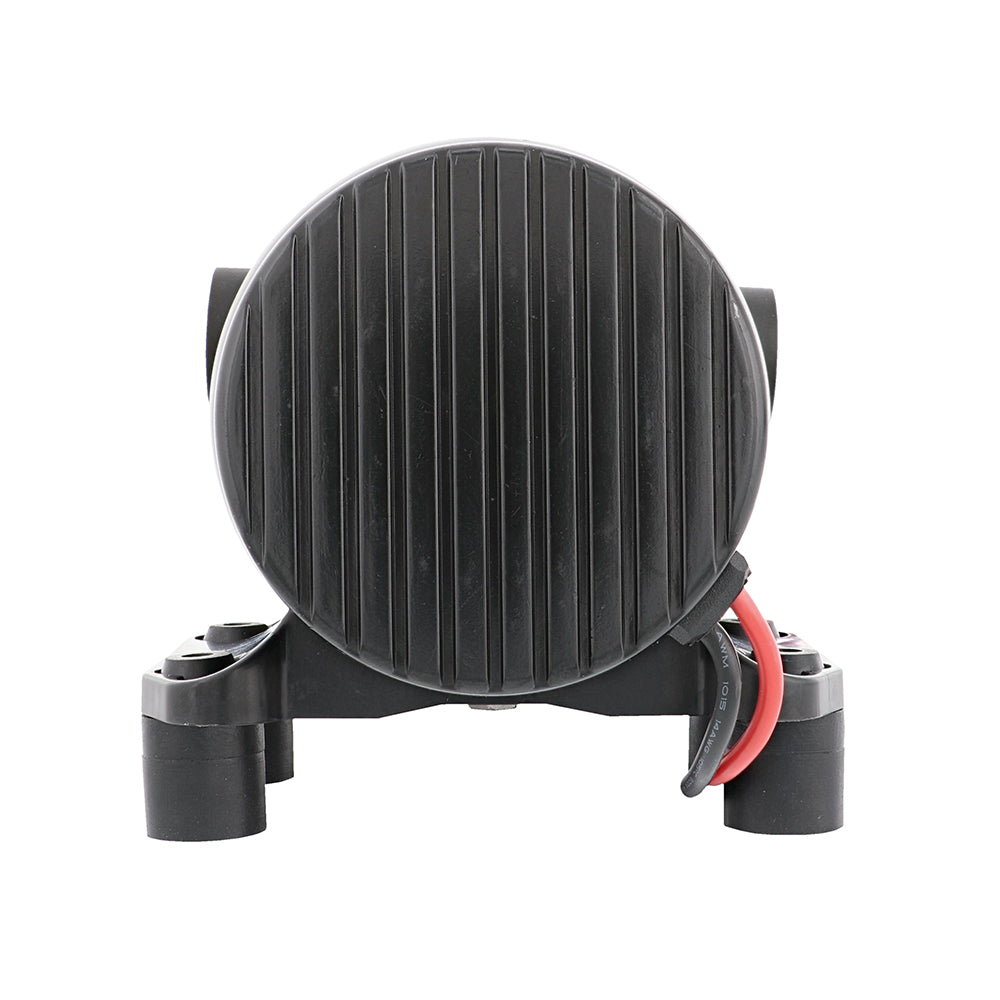

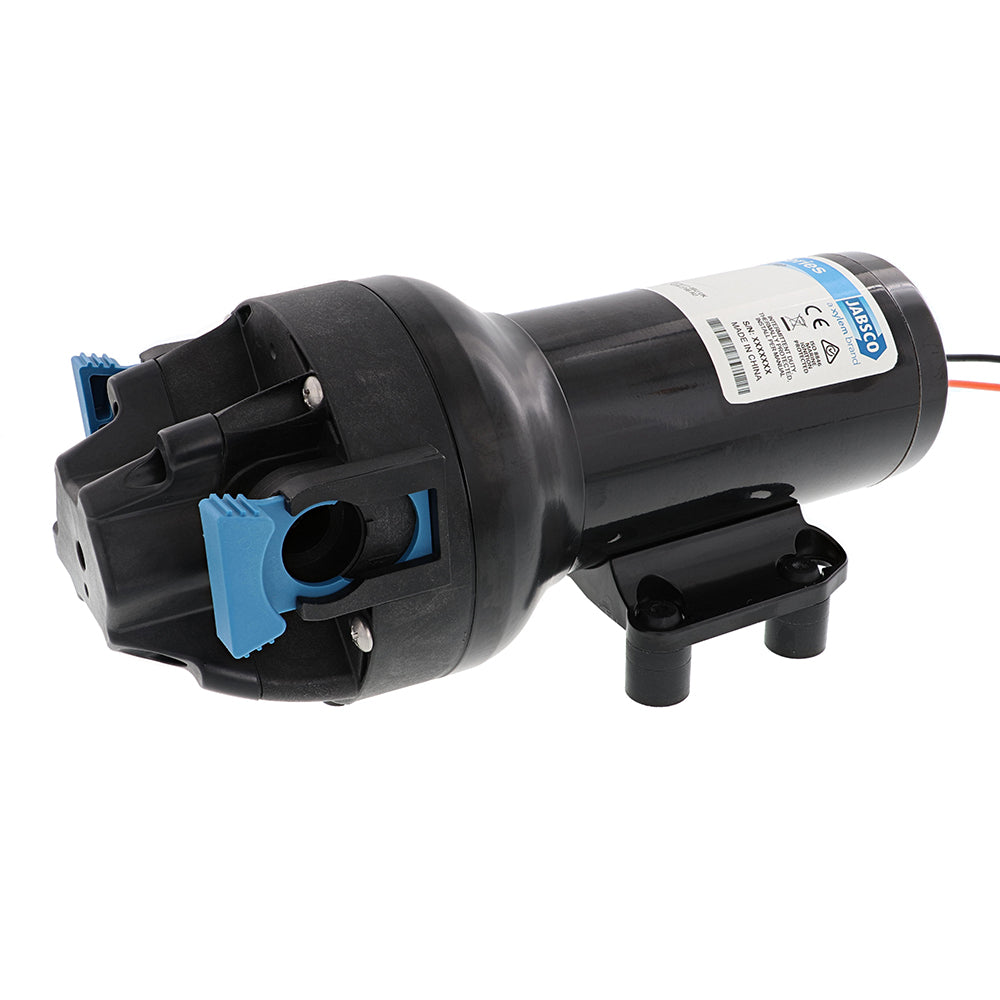

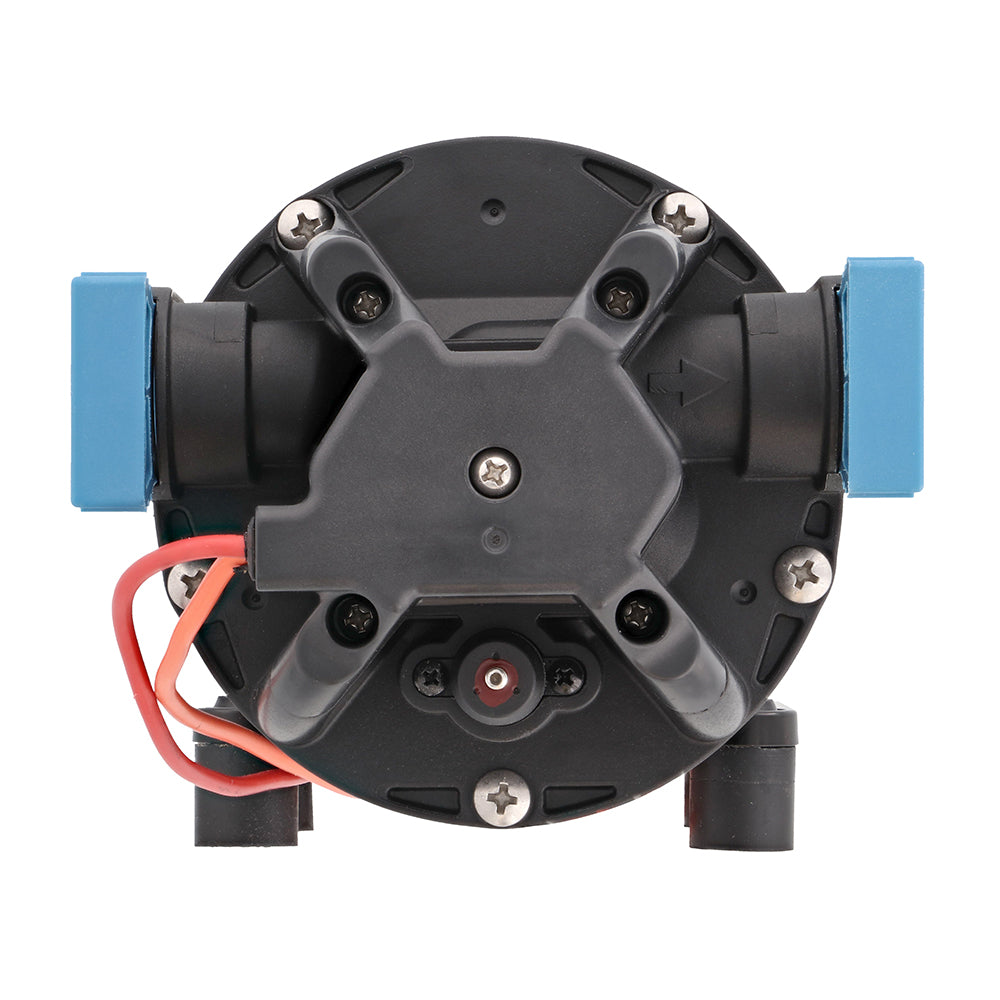

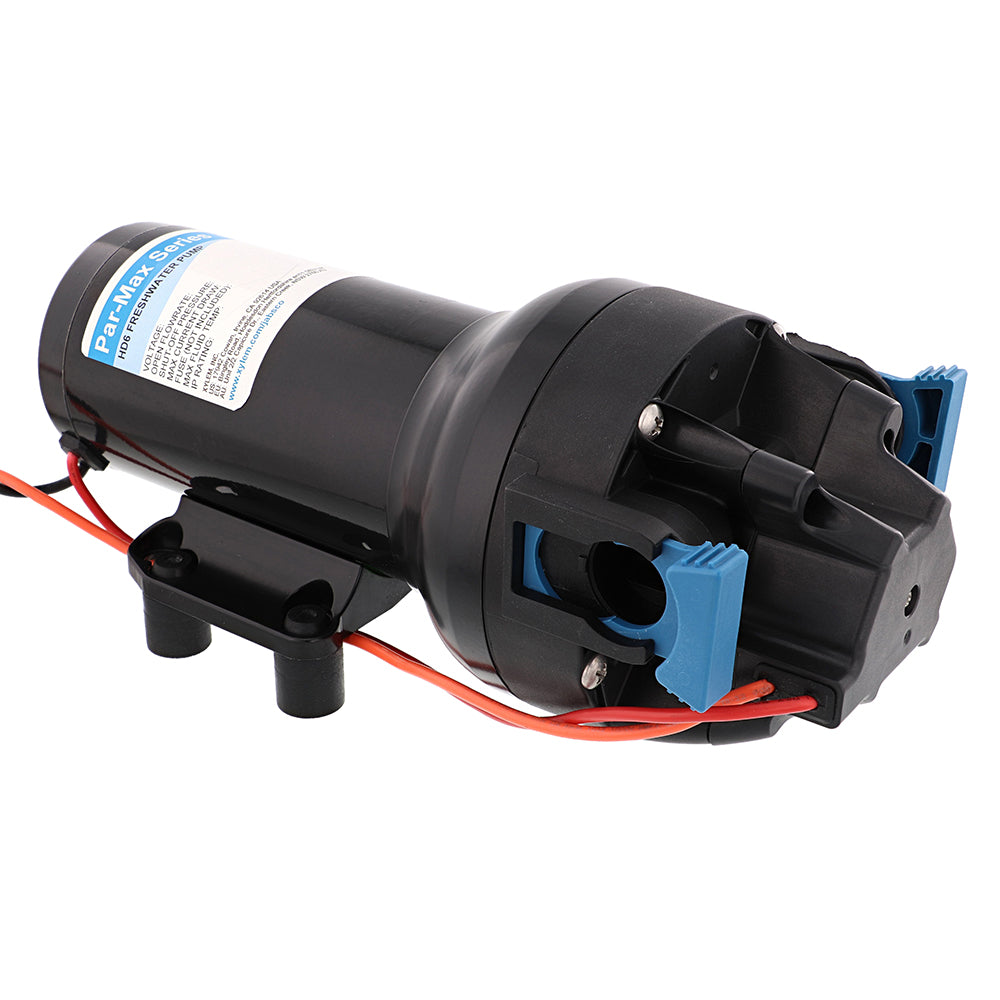

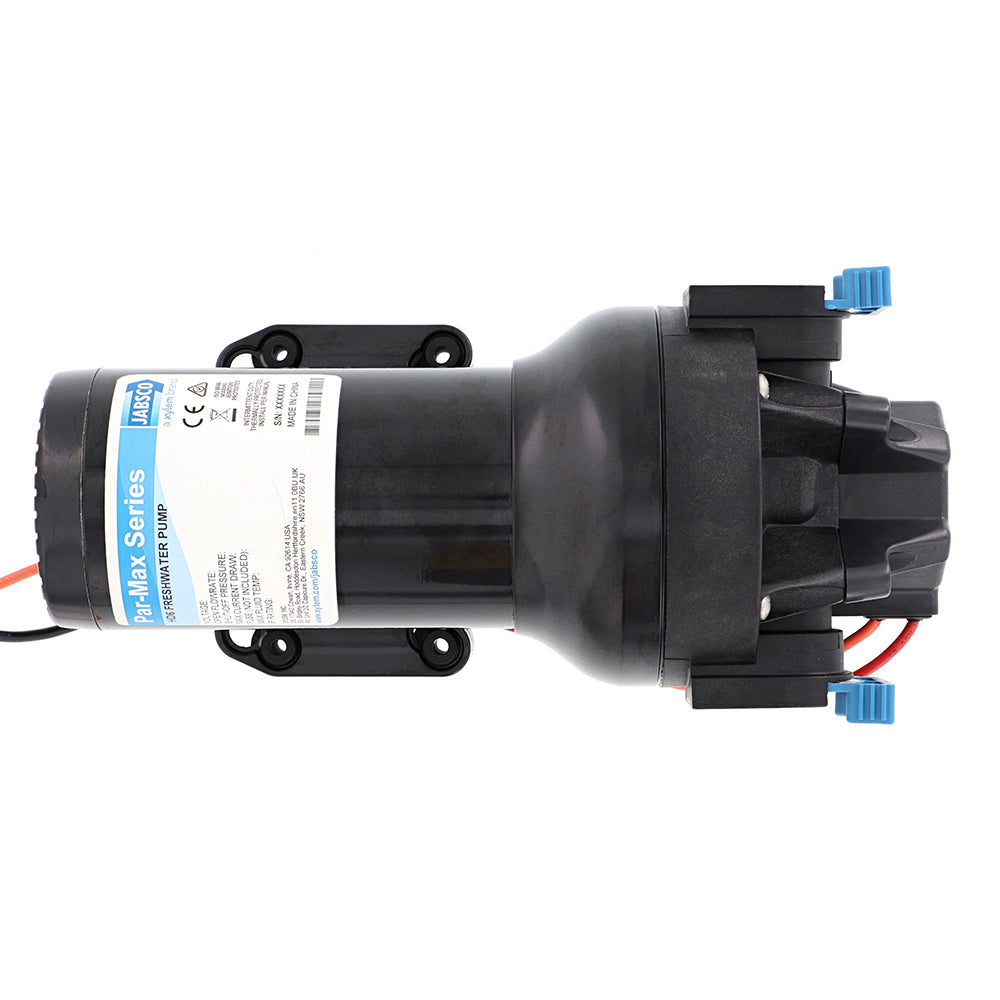

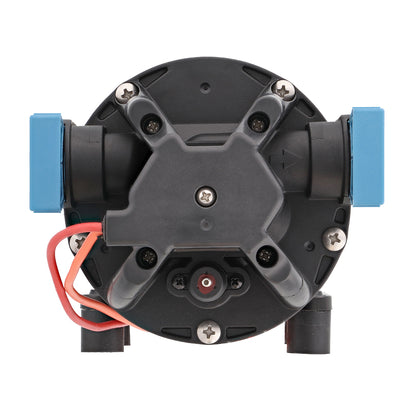

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump, 12V, 6 GPM, 40 PSI

The Jabsco Par-Max HD6 is a 12V heavy-duty water pressure pump designed for reliable performance in marine applications. This unit features a wide-diameter motor with a powder-coated shell and cast aluminum endbells to enhance durability and pressure capability.

Key Features:

• Co-molded TPV diaphragm technology for extended service life
• Integrated, sealed pressure switch for automatic on-demand operation
• Equipped with a bypass module to reduce cycling and deliver smooth flow
• Self-priming design allows for flexible installation and can run dry without damage
• Quick-connect ports facilitate easy installation and maintenance
• Vibration-dampening mounting feet

Specifications:

• Voltage: 12V
• Max Flow Rate: 6 GPM
• Max PSI: 40 PSI
• Motor Design: Brushed, permanent magnet TENV
• Max Inlet Pressure: 30 PSI (2.1 Bar)
• Fluid Temperature Range: 32°F to 140°F (0°C to 60°C)
• Self-Priming Capability: 7 ft min
• Ingress Protection: IPX6
• Materials: Glass fiber reinforced polypropylene upper housing; TPV diaphragm; EPDM check valves
• Certifications: CE, ISO8846, RCM
• Model Number: P601J-215S-3A

Regulatory Note: This product contains chemicals, including Antimony Oxide (Antimony Trioxide), known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
