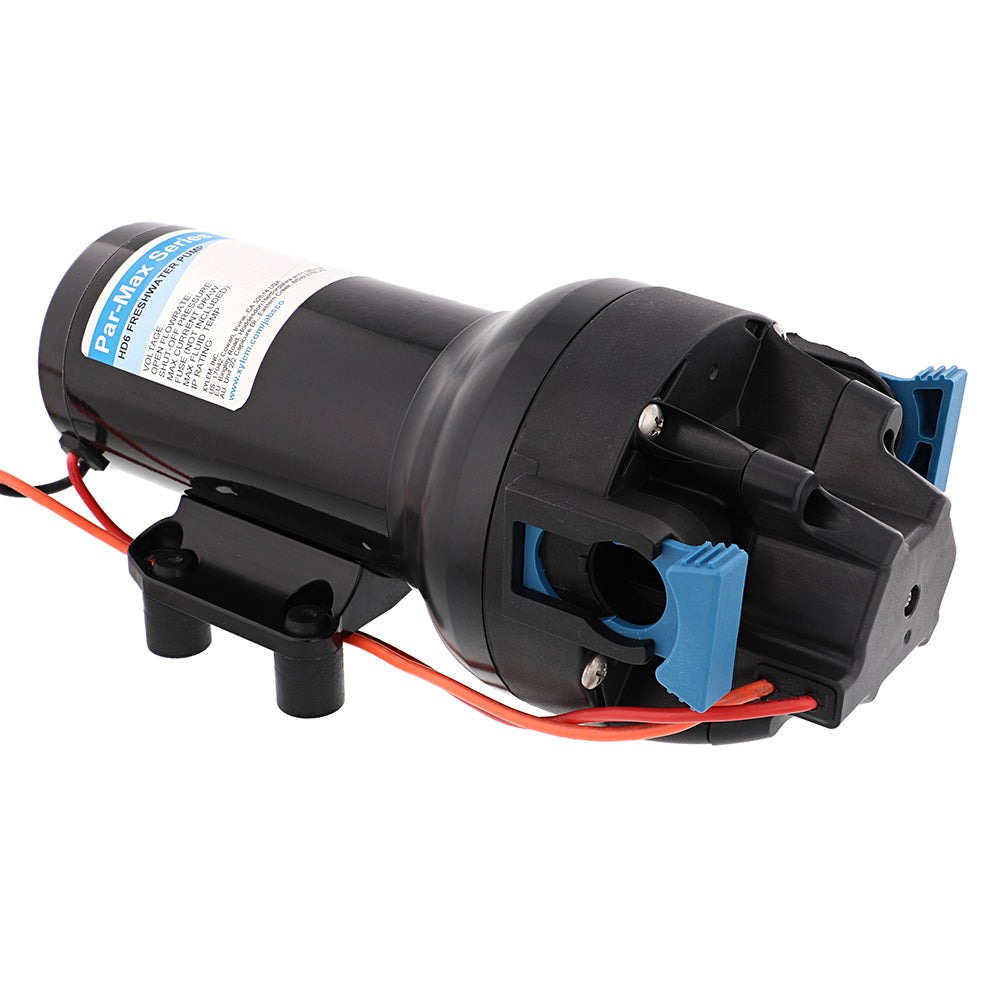

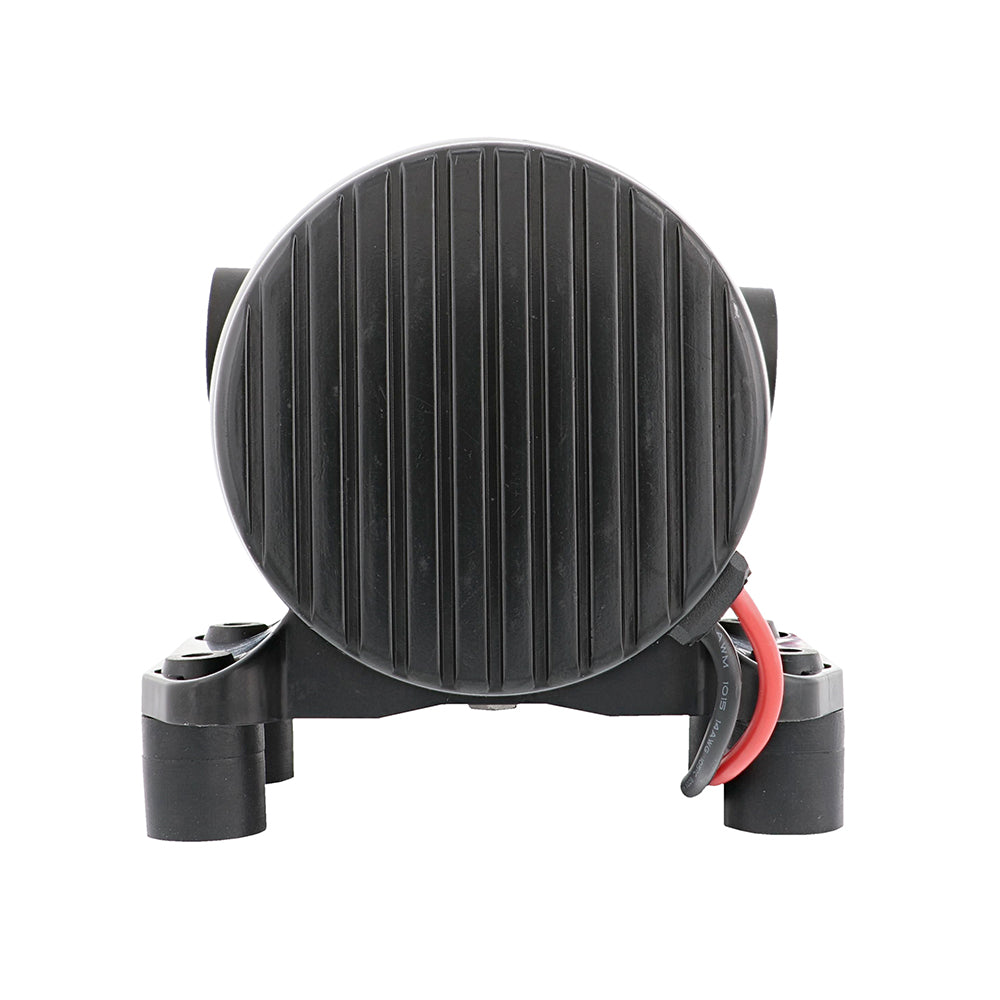

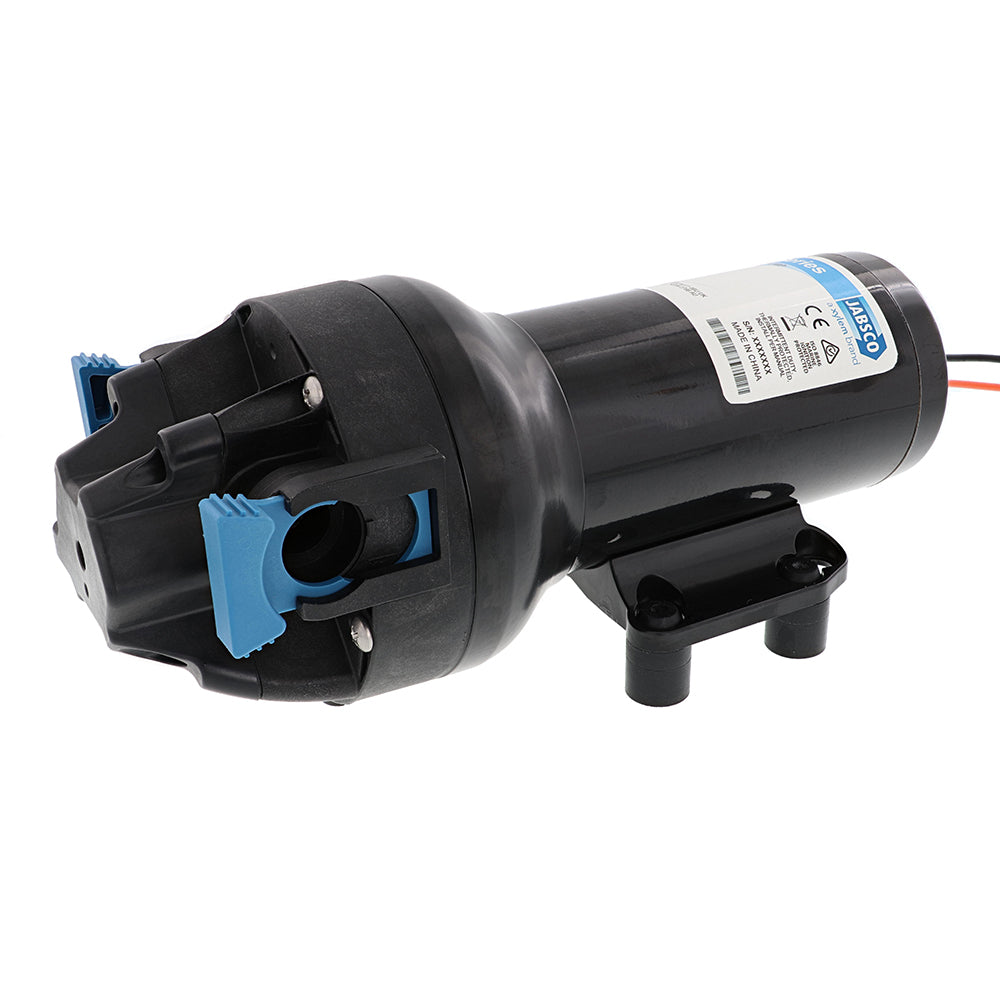

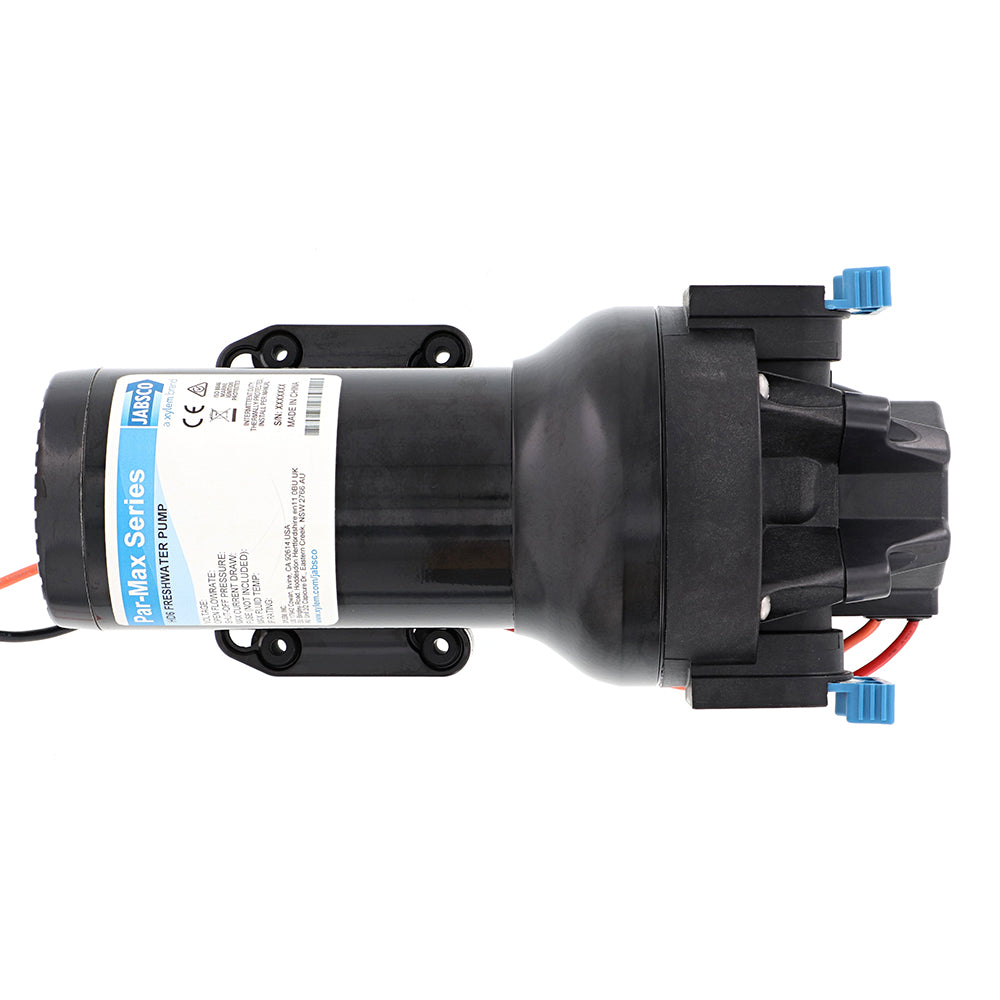

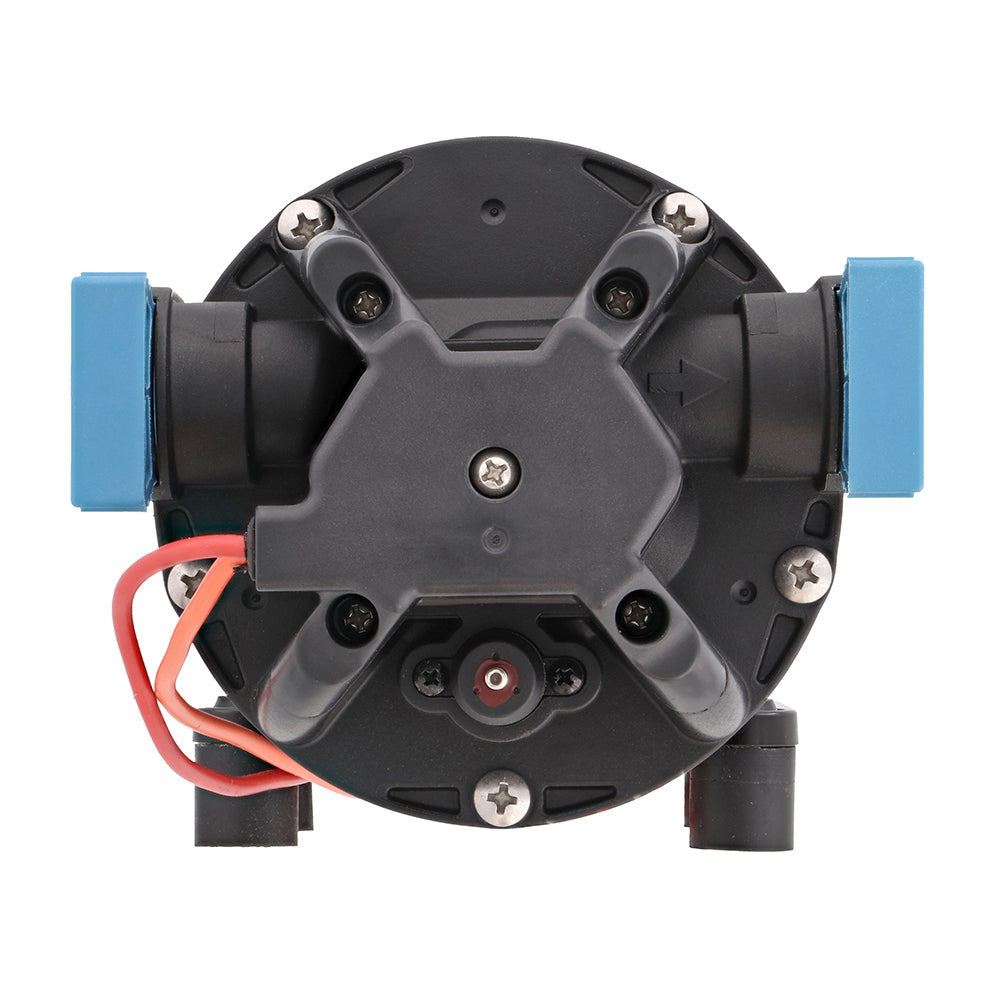

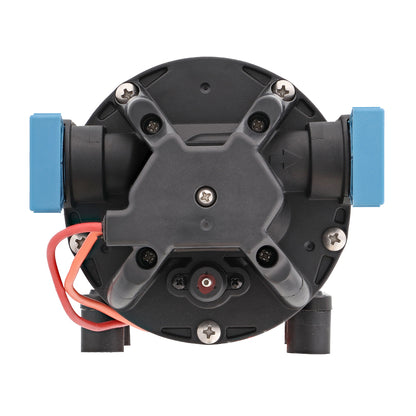

Jabsco Par-Max HD6 Water Pump, 24V 6GPM 40PSI

Experience powerful and consistent water flow throughout your marine or RV fresh water system with the Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump. Engineered for reliability and demanding applications, this 24V pump delivers a robust 6 GPM at 40 PSI, ensuring ample pressure for multiple outlets. Its heavy-duty construction, featuring a powder-coated motor shell and cast aluminum components, is built to withstand harsh environments. Certified to CE, ISO8846 Marine (Ignition Protection), and RCM standards, this pump offers peace of mind through proven performance and safety. Upgrade to Jabsco Par-Max HD6 for dependable water pressure wherever you need it.

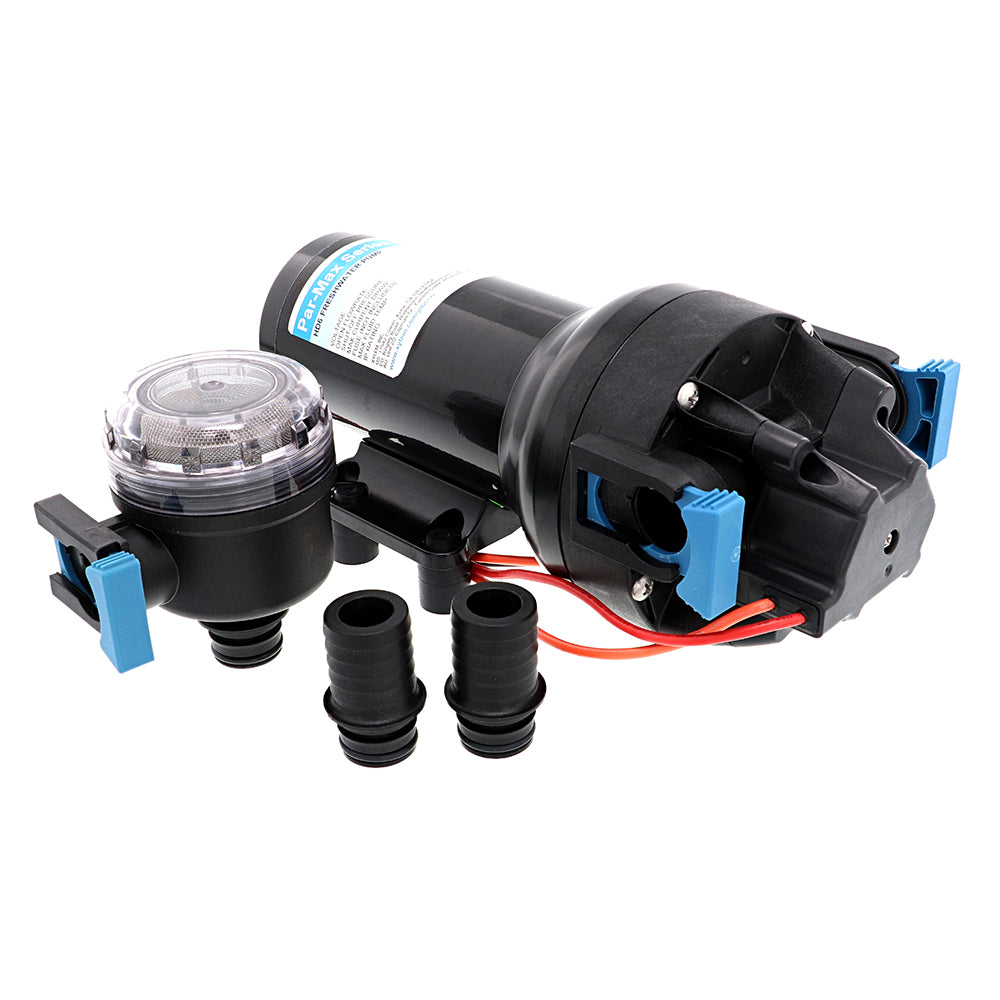

In the Box:

• Jabsco Par-Max HD6 Water Pressure Pump (P602J-215S-3A)
• 2 x 3/4" (19mm) Straight Hosebarb Snap-In Port Fittings
• 1 x 40 Mesh Strainer

Key Benefits & Specifications:

• High Flow Rate: Delivers 6 Gallons Per Minute (22.7 LPM) at a maximum pressure of 40 PSI (2.8 bar cut-out), providing robust water pressure for multiple fixtures.
• Heavy-Duty Construction: Features a wider diameter motor with a powder-coated shell, cast aluminum endbells, and lower housing for enhanced durability and extended life under high pressure.
• Integrated Bypass Module: Equipped to reduce cycling and deliver a smoother, more consistent flow without the need for an accumulator tank.
• Self-Priming Capability: Effortlessly primes up to 7 feet (2.1 meters) dry, allowing for flexible installation options.
• Run-Dry Protection: Designed to run dry without incurring damage, safeguarding the pump in low-water conditions.
• Sealed Pressure Switch: An integrated, sealed pressure switch ensures reliable on-demand operation and protects against moisture ingress.
• Marine-Grade Ingress Protection: Rated IPX6, offering robust protection against powerful water jets, ideal for challenging marine environments.
• Durable Diaphragm Technology: Utilizes co-molded TPV diaphragm technology for long service life and resistance to wear.
• Quiet & Efficient Operation: Features a permanent magnet TENV (Totally Enclosed Non-Ventilated) brushed motor and vibration-dampening mounting feet for reduced noise and efficient performance.
• Certified Quality: Meets CE, ISO8846 Marine (Ignition Protection), and RCM certifications, ensuring compliance with international safety and quality standards.

Compatibility & Pairings:

• Ideal for fresh water systems with four or more outlets.
• Connects easily with 3/4-inch hose barb plumbing.
