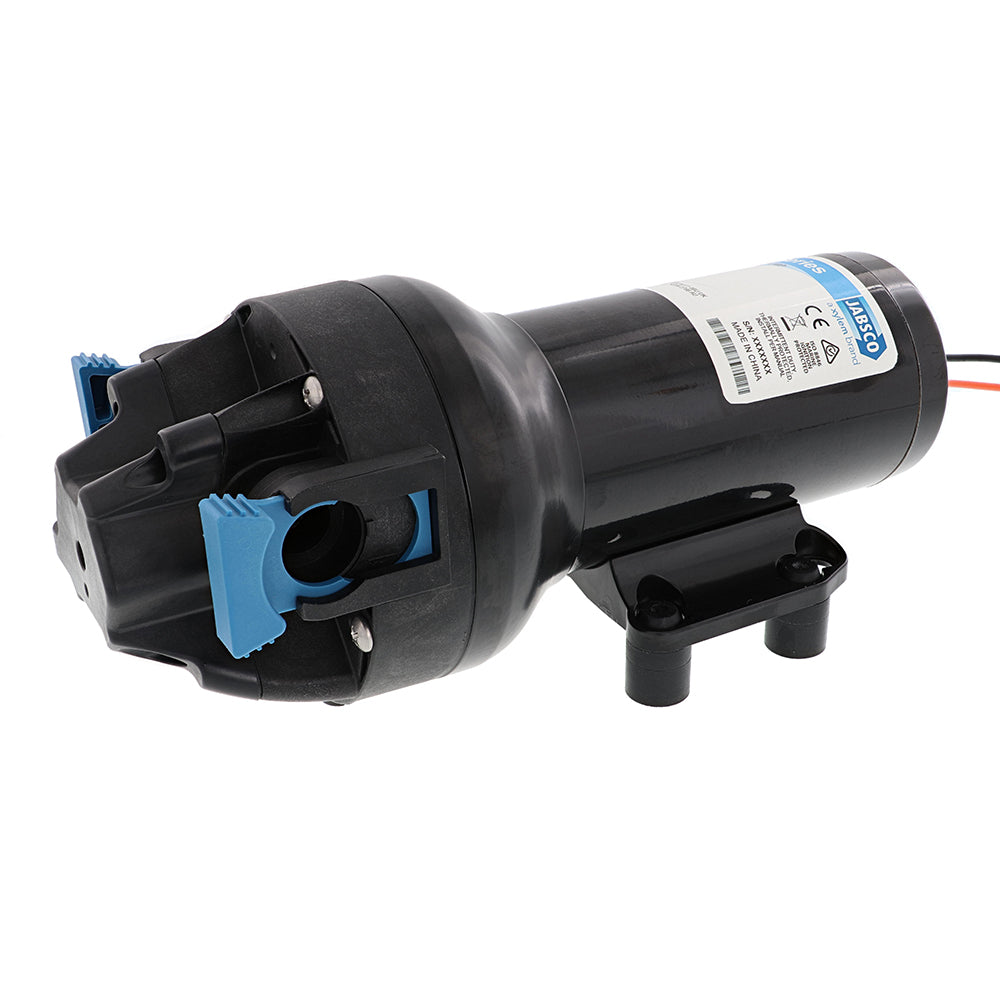

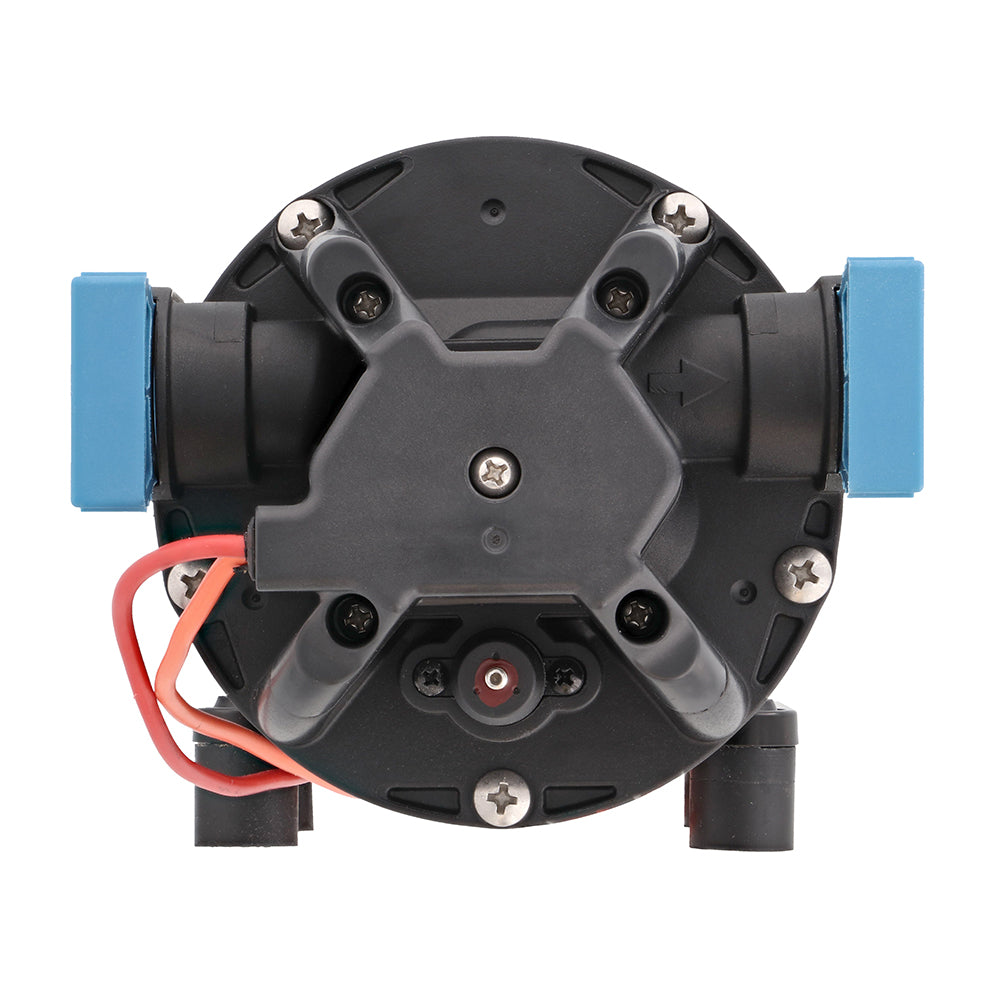

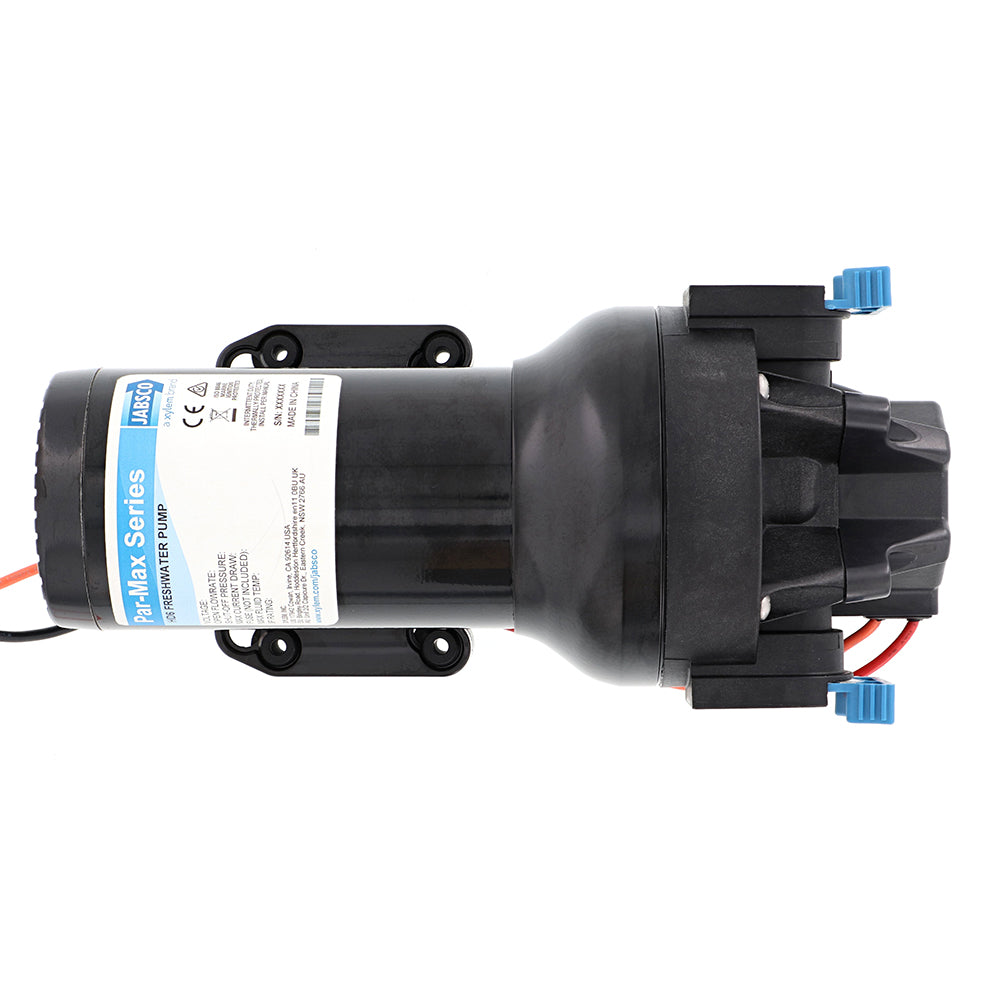

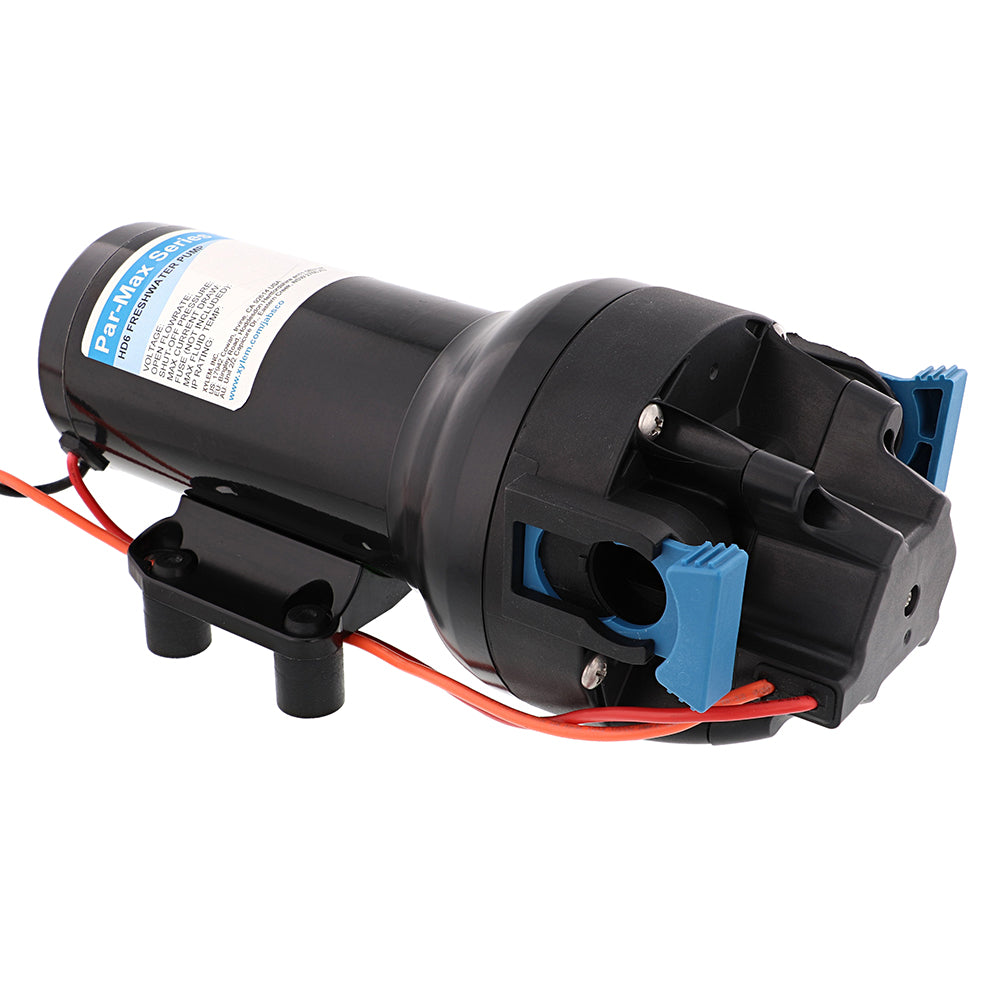

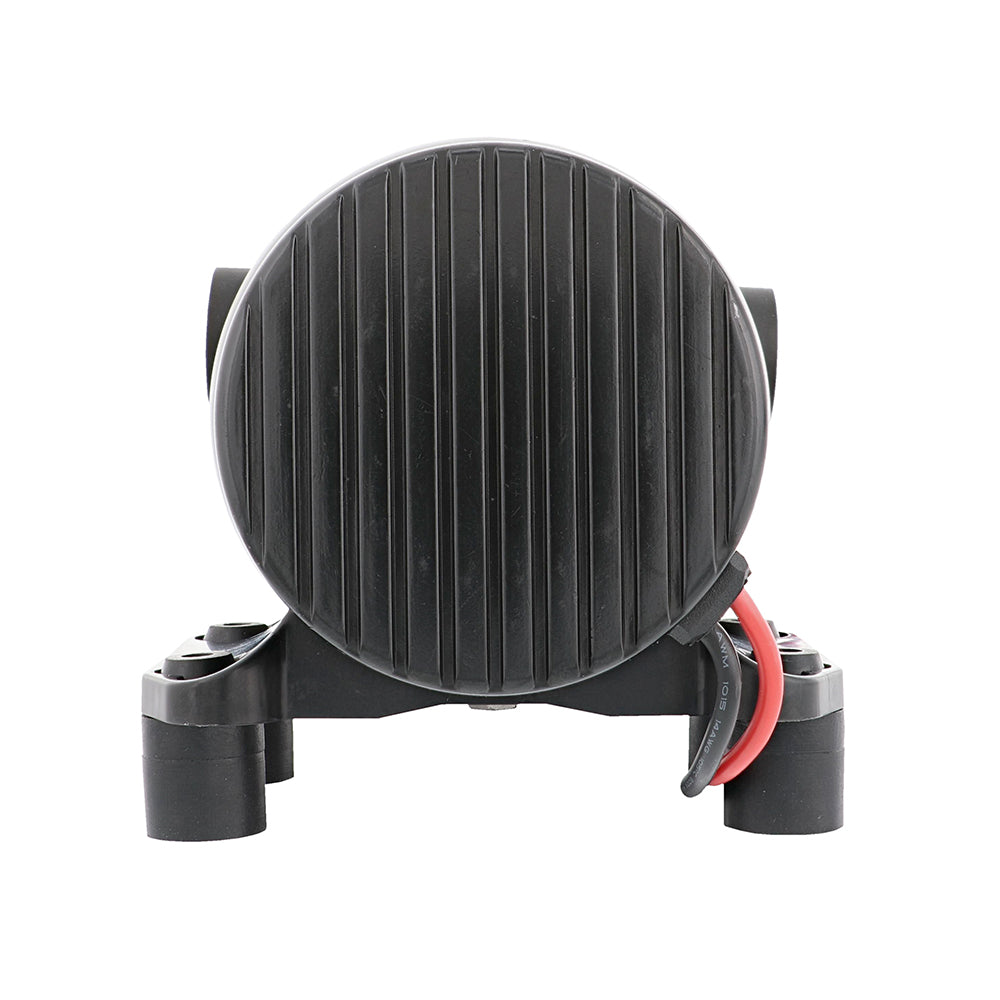

Jabsco Par-Max HD6 Freshwater Delivery Pump, 24V 6 GPM 60 PSI – IPX6 Certified

Ensure robust and smooth water delivery across your marine systems with the Jabsco Par-Max HD6 Heavy Duty Freshwater Delivery Pump. Engineered for demanding applications, this pump features a wider diameter motor with a powder-coated shell and cast aluminum endbells and lower housing, ensuring enhanced durability and consistent performance even at high pressures. An integrated bypass module effectively reduces cycling, providing a quiet and efficient operation comparable to residential water pressure. Built to withstand harsh marine environments, this pump is CE, ISO8846, RCM certified and boasts an IPX6 ingress protection rating. Upgrade your onboard water system today with Jabsco's renowned reliability and powerful performance.

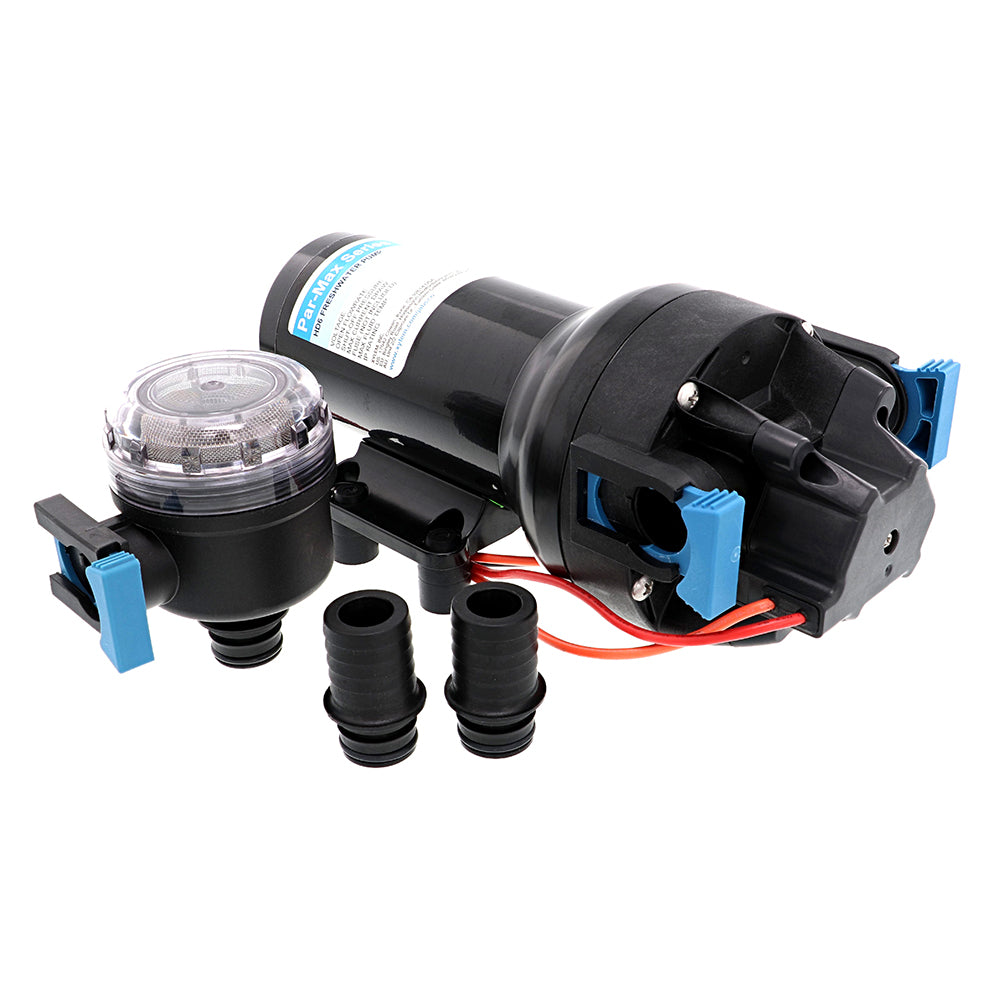

• Jabsco Par-Max HD6 Pump Unit
• Two (2) 3/4 inch Straight Hosebarb Quick-Connect Port Fittings
• One (1) 90-degree 40 Mesh Strainer

• High Flow & Pressure: Delivers up to 6 GPM open flow rate and 60 PSI shut-off pressure, ensuring ample freshwater supply for multiple outlets.
• 24V DC Operation: Provides powerful and reliable performance compatible with standard marine electrical systems.
• Durable Construction: Features heavy-duty motor, cast aluminum endbells, and lower housing for extended life, even under continuous high-pressure use.
• Co-Molded Diaphragm Technology: Utilizes advanced co-molded TPV diaphragm for superior longevity and consistent performance.
• Integrated Bypass Module: Minimizes pump cycling and provides a smoother, more consistent water flow for improved user experience.
• Dry-Run Capability: Engineered to run dry without damage, protecting the pump in low-water conditions.
• Integrated Pressure Switch: Ensures automatic, on-demand water flow for convenient operation.
• Self-Priming: Capable of dry self-priming up to 7 feet (2.1 meters), allowing for versatile installation options.
• Quick-Connect Ports: Facilitates easy installation, servicing, and maintenance.
• Vibration-Dampening Feet: Reduces noise and vibration for quiet operation aboard your vessel.
• Certified Durability: CE, ISO8846, and RCM certified with an IPX6 ingress protection rating, offering robust protection against powerful water jets and harsh marine environments.

• Motor Design: Brushed, permanent magnet TENV
• Pumphead Upper Housing Material: Glass fiber reinforced polypropylene
• Check Valves: EPDM
• Maximum Inlet Pressure: 30 PSI (2.1 Bar)
• Fluid Temperature Range: 32°F – 140°F (0°C – 60°C)

Recommended Usage: Designed for use with fresh water ONLY. Ideal for vessels with multiple outlets, typically requiring 1 GPM per outlet for optimal pressure.
