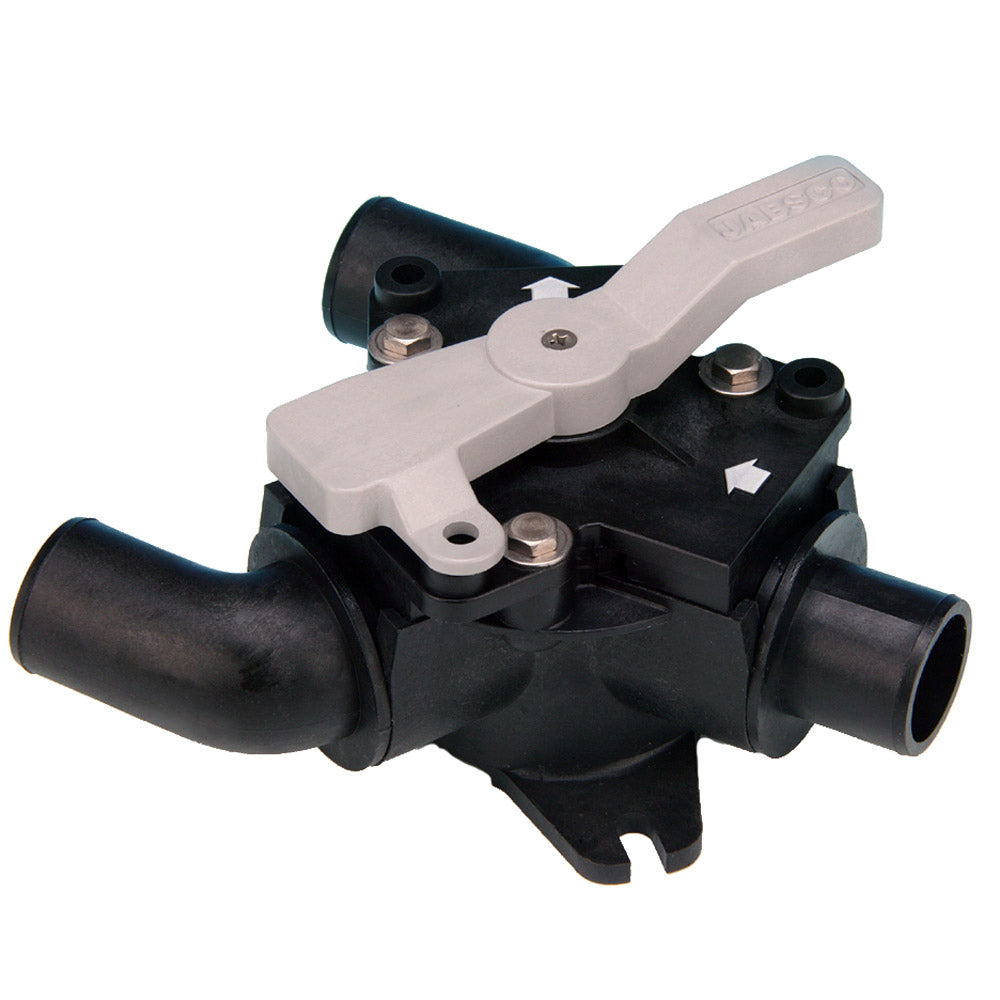

Jabsco Y-Valve for Marine Waste & Bilge Systems

Optimize your onboard waste management and bilge pumping systems with the versatile Jabsco Y-Valve. Designed for ultimate flexibility, this diverter valve allows you to direct waste from your marine head into an onboard holding tank or, where legally permitted, directly overboard. It is also ideal for selecting between two separate bilge pickups with a single pump, enhancing efficiency and simplifying your vessel's plumbing. Invest in reliable marine fluid control with Jabsco.

Key Features & Benefits:

• Durable Construction: Crafted from chemical and corrosion-resistant polypropylene and stainless steel for long-term reliability in harsh marine environments.
• Versatile Port Sizing: Supplied with 1-1/2" (38 mm) ports and an additional 1" (25 mm) straight inlet port, offering adaptability for various hose sizes and applications.
• Flexible Plumbing Configuration: Features rotatable ports, allowing discharge plumbing to be routed away in parallel, at 90°, or in opposite directions without disassembly.
• Padlock Security: Includes a padlock-compatible selector lever (lock not included) to secure the valve in the holding tank position, ensuring compliance with "No-Discharge Zone" regulations.
• Trouble-Free Operation: A self-cleaning design prevents debris accumulation on sealing surfaces, ensuring consistent and reliable performance.
• Clear Flow Indication: Molded-in flow direction indicator arrows provide clear visual guidance for correct plumbing and operation.
• Easy Installation & Maintenance: Designed with easy access mounting feet for quick installation and a removable top cover for straightforward maintenance.
• Bulkhead Mounting Option: Compatible with an optional shaft extension (Model 45500-1000) for through-bulkhead mounting up to 1-3/4" thick, keeping only the selector handle exposed.

Recommended Pairings: Ideal for use with Jabsco marine toilets, holding tanks, and bilge pumps for complete waste and fluid management systems.
