Johnson Pump
Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
SKUCT-104476
Regular price
$345.26
Regular price
Sale price
$345.26
Shipping calculated at checkout.
Out of stock
Quantity
Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question
Product details
Review the details before ordering.

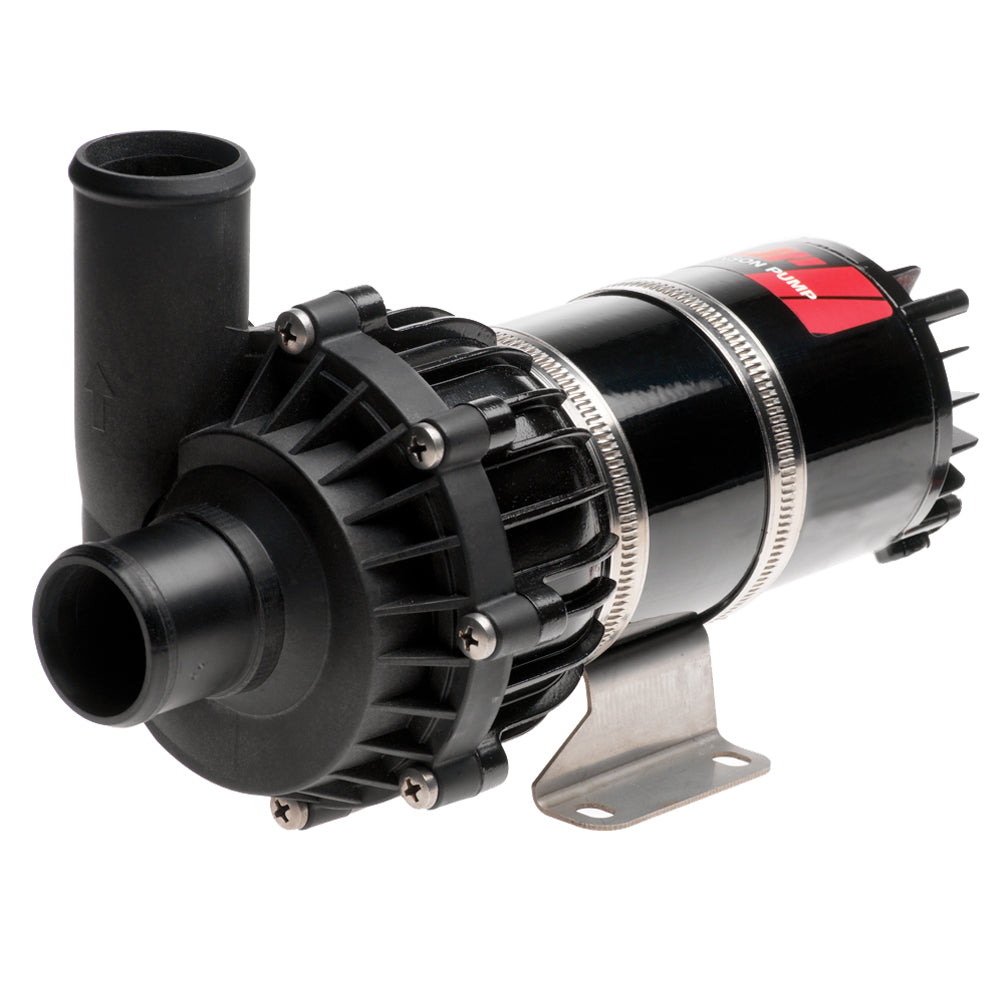

CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces
