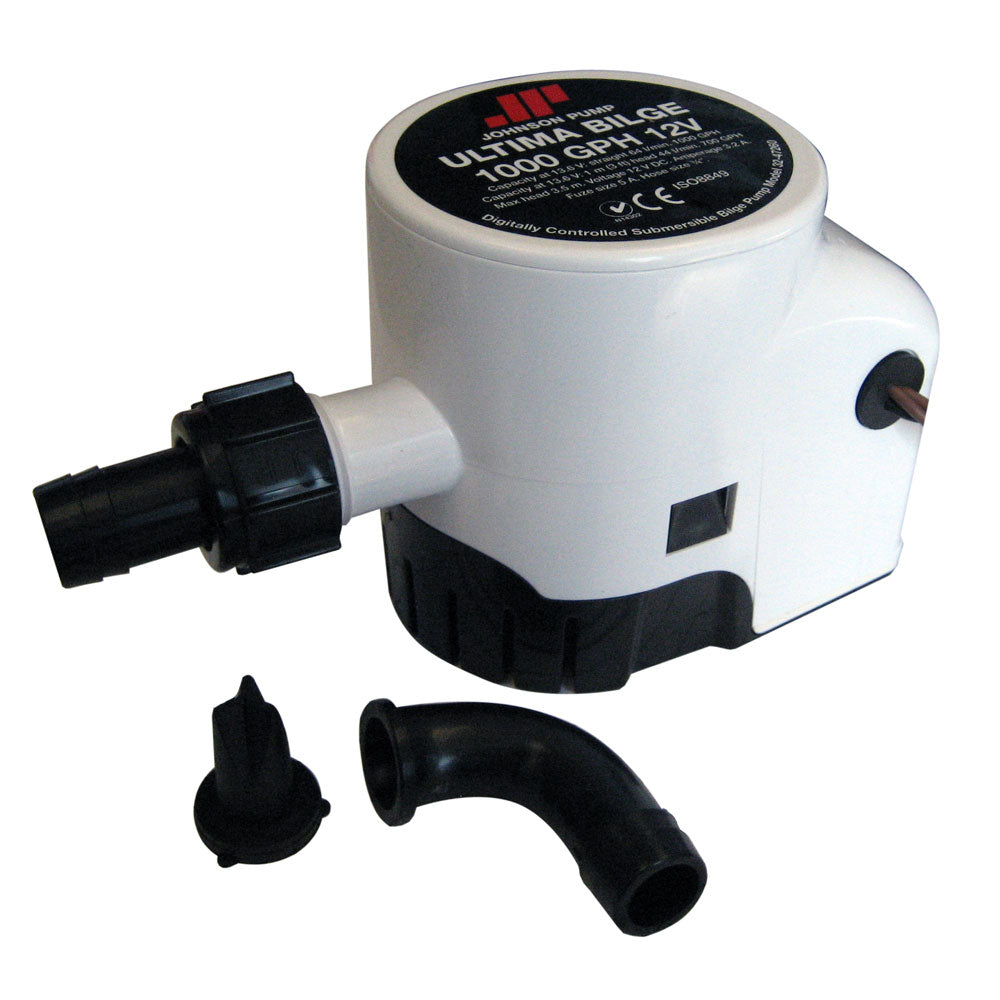

Johnson Pump Ultima Bilge 1000 GPH Automatic Pump with Dura-Ports, 12V

Ensure reliable, hands-free bilge management with the Johnson Pump Ultima Bilge 1000 GPH Automatic Pump. This compact, all-in-one unit integrates patented 'field effect' sensing technology, eliminating the need for an external float switch and providing dependable automatic operation. Designed for durability and ease of maintenance, it's the professional's choice for efficient water removal. Upgrade your vessel with trusted Johnson Pump technology today.

In the Box:

• Johnson Pump Ultima Bilge 1000 GPH Automatic Pump
• Straight 3/4" Dura-Port discharge elbow
• 90-degree 3/4" Dura-Port discharge elbow
• Removable check valve

Key Benefits & Features:

• Integrated Ultima Switch: Features patented 'field effect' sensing technology within the pump body, providing automatic activation without moving parts that can jam or corrode, ensuring reliable operation even in dirty bilge environments.
• High-Capacity Water Removal: Delivers a robust 1000 Gallons Per Hour (GPH) capacity (at straight discharge, 13.6V) for rapid and efficient dewatering of your bilge.
• Dura-Port Discharge System: Includes both straight and 90-degree 3/4" Dura-Port fittings, specifically designed to prevent stress cracking from over-tightened hose clamps and offer versatile hose routing.
• Durable Construction: Built with an ABS pump body and a robust stainless steel shaft (SS2343) for exceptional corrosion resistance and extended service life in harsh marine conditions.
• Energy Efficient & Quiet: Features a water-cooled motor designed for long service intervals, quiet operation, and extremely low power consumption (3.2A draw).
• Tool-Free Maintenance: The removable clip-on basket and impeller cover allow for quick and easy cleaning or replacement without the need for specialized tools.
• Environmentally Conscious: Designed with no mercury components and sensors that detect water levels without activating for oil, contributing to safer marine environments.
• Versatile Operation: A 3-wire device that supports both automatic and manual override modes via an optional bilge control panel.
• International Standards Compliant: CE-approved and meets the international marine standard ISO 8849, ensuring high levels of safety and performance.

Specifications:

• Capacity (Straight Discharge, 13.6V): 1000 GPH (64 l/min)
• Capacity (3 ft Head, 13.6V): 700 GPH (44 l/min)
• Voltage: 12V DC
• Amperage: 3.2 A
• Fuse Size: 5 A
• Hose Connection: 3/4" (19mm)
• Dimensions (L x W x H): 6" x 3.2" x 4.1" (142mm x 82mm x 105mm)
• Weight: 0.66 kg (23.3 oz)

Recommended Pairings: For manual control, integrate with a Johnson Pump bilge control panel.
