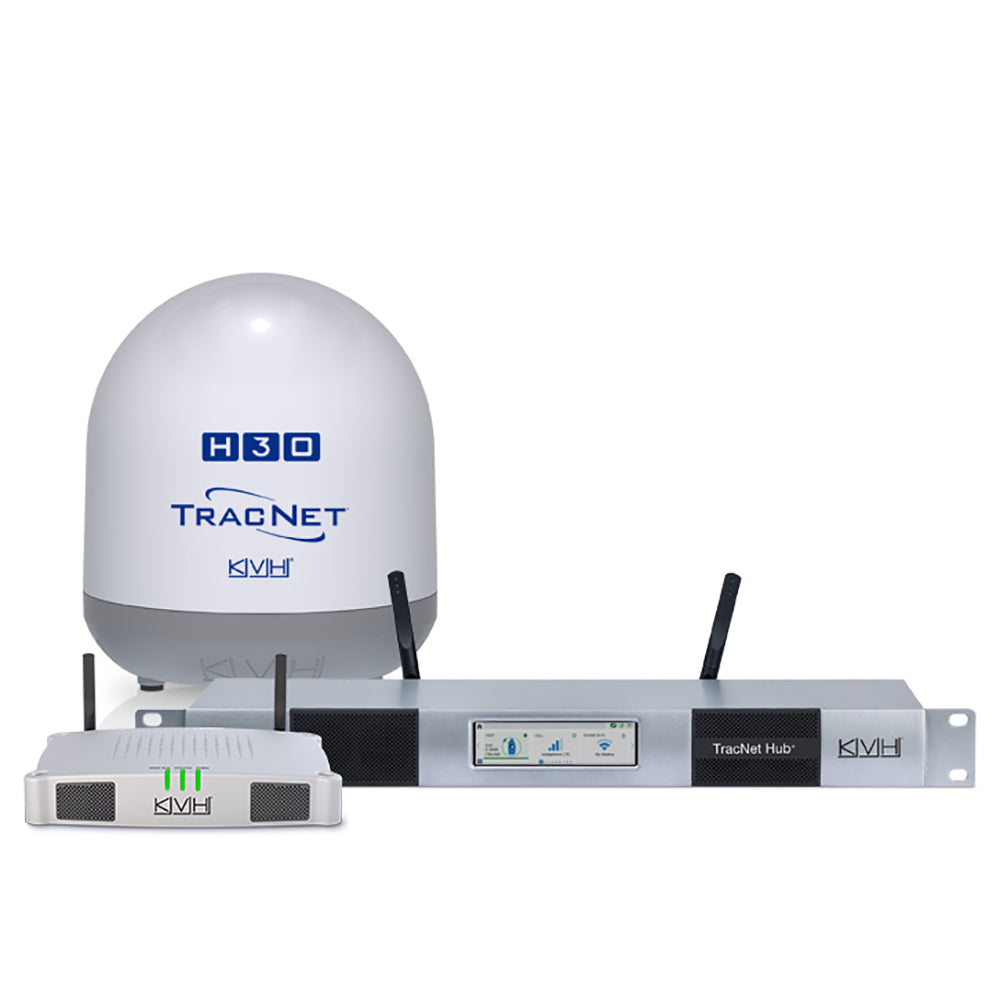

KVH TracNet H30 Ku-Band Antenna with TracNet Hub (01-0432-11)

The KVH TracNet H30 is an ultra-compact, hybrid satellite antenna system designed to provide reliable connectivity for boats 30 feet and longer. Featuring the KVH ONE hybrid network, this system utilizes intelligent, automatic switching between Ku-band satellite, cellular, and shore-based Wi-Fi networks to maintain a consistent connection in diverse sea states. The terminal incorporates RingFire design and a dielectric rod feed for high-efficiency reception in challenging weather conditions.

Key Features:

• Hybrid connectivity supporting global HTS Ku-band satellite, cellular (150+ countries), and shore Wi-Fi.
• Automatic network switching based on connection quality and cost.
• Two-axis stabilized skew.
• Integrated terminal and network security.
• Up to 51% lighter than competitive systems.
• Simple single-coax cable installation.
• Subscription required for network services.

Technical Specifications:

• Dome Diameter: 14.5 in. (36.8 cm)
• Dome Weight: 24.6 lbs (11.1 kg)
• Performance: Up to 6 Mbps download and 2 Mbps upload speeds.
• Elevation/Azimuth Range: 7.7° to 75° / Unlimited rotation.
• Operating Temperature: -22°F to 131°F (-30°C to 55°C).
• Power: DC provided by the included TracNet Hub.
