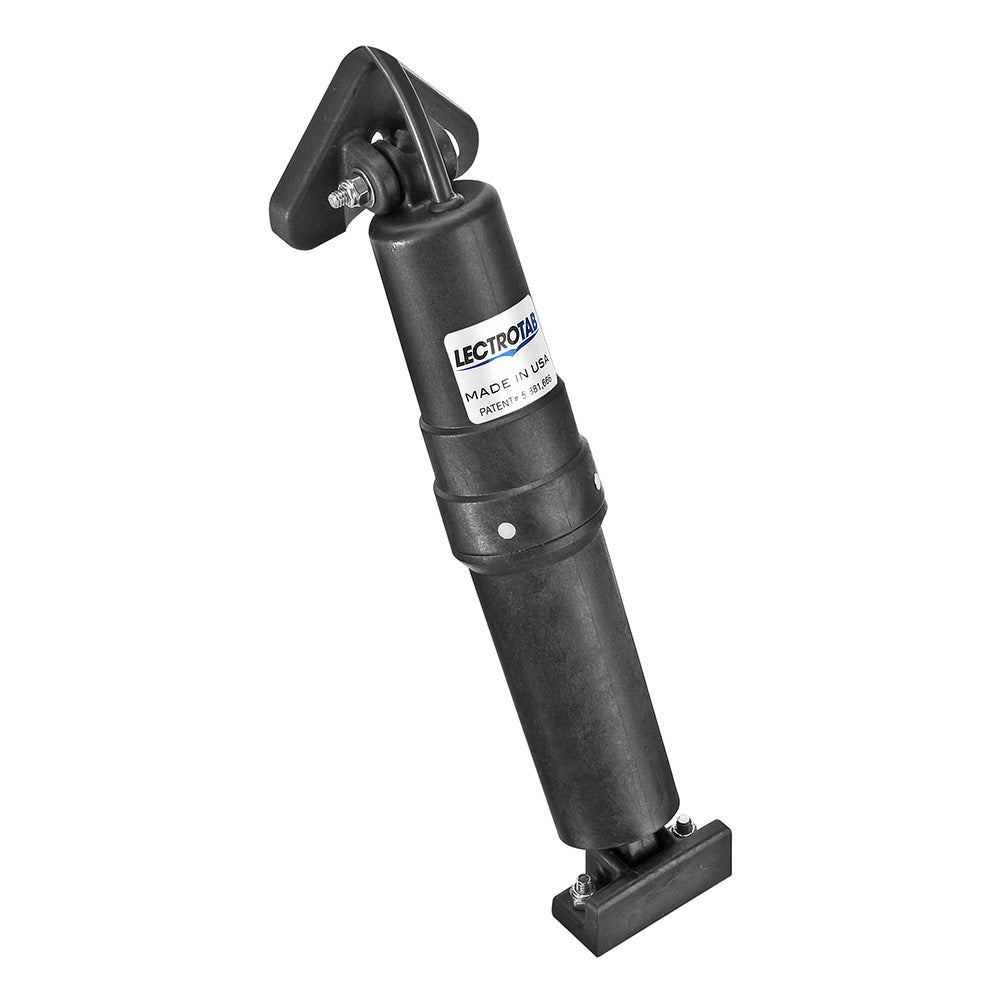

Lectrotab Standard Trim Tab Actuator, 12V, 28 ft. Cable (Model A-BK-24)

The Lectrotab Standard Trim Tab Actuator is a precision-engineered, electromechanical unit designed for quiet, maintenance-free operation. This non-hydraulic, self-contained actuator eliminates the risk of oil leaks and features a non-metallic, sealed housing that resists corrosion and sun damage. It is engineered to provide 1,000 lbs. of lift force and includes an internal brake system to maintain tab positioning during operation.

Key Features:

• Internal pressure equalization system
• Internal brake prevents unwanted movement when underway or backing down
• Upper ram seal protected from debris and barnacle growth
• Compatible with all Lectrotab tabs and serves as an upgrade for most major hydraulic and electromechanical systems
• Fully load tested to 1,000 lbs. of force
• Voltage: 12V DC
• Cable length: 28 ft. (8.5 m)
• Stroke length: 2.25 in. (57 mm)
• Stroke speed: 8 seconds
• Distance from bolt to pin: 11.5 in. (292 mm)
• Vertical height when fully retracted: 11.875 in. (302 mm)
• Mounting brackets: Standard upper and lower
• Sold as an individual unit
