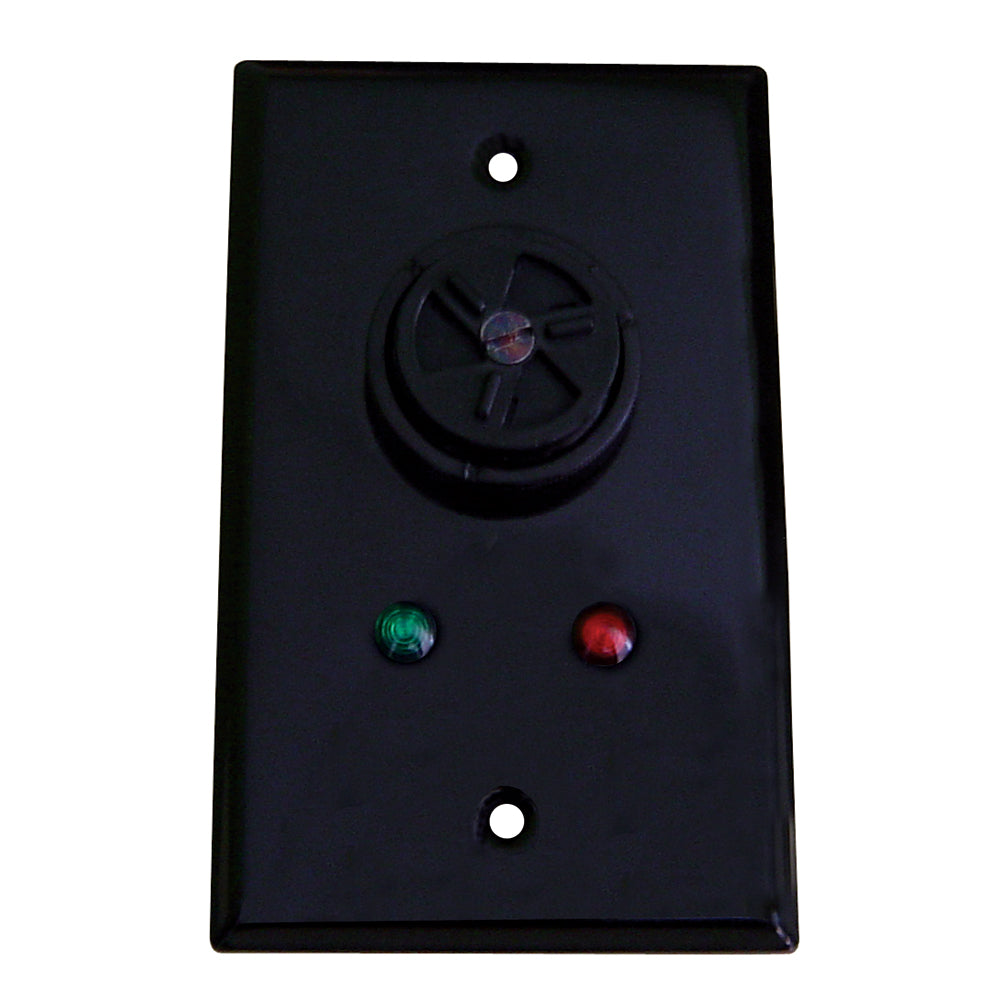

Maretron ALM100-01 Alarm Module, 105dB, NMEA 2000 Certified – Made in USA

Elevate your vessel's safety and situational awareness with the Maretron ALM100-01 Alarm Module. This powerful, NMEA 2000® certified device delivers immediate visual and audible alerts for critical onboard conditions, integrating seamlessly into your marine network. Designed for the demanding marine environment and proudly made in the USA, the ALM100-01 ensures you're always informed. Upgrade your monitoring system for comprehensive protection today.

• Maretron ALM100 Alarm Module
• Black Faceplate
• Mounting Hardware (Stainless Steel Screws)
• Faceplate Mounting Screws
• Faceplate Gasket
• Sounder Volume Control Baffle Plate
• User Manual

• High-Decibel Audio Alert: Features an extremely loud 105 dB SPL Piezoelectric sounder, ensuring critical alarms are heard over engine noise and environmental factors.
• Clear Visual Indicators: Equipped with a high-brightness red LED for alarm conditions and a green LED to confirm power status, providing instant visual feedback.
• Customizable Alarm Patterns: Offers 32 distinct, pre-programmed audible alarm patterns, including IMO Code 1a (General Emergency), Code-3 (Smoke/Fire), and Temporal 4 (CO), allowing for different alerts for various events.
• NMEA 2000® Certified: Fully compliant with NMEA 2000® (IEC 61162-3) standards, enabling flexible installation anywhere on your vessel and seamless integration with your existing marine electronics.
• Rugged Waterproof Design: Completely waterproof with an IP67 rating, suitable for both interior and exterior mounting in harsh marine environments.
• Versatile Mounting Options: Can be mounted in a standard electrical box or flush-mounted directly onto any surface.
• External Integration Capability: Includes dry contacts for triggering external hardware such as larger air horns or strobe lights, extending your alert system.

The ALM100-01 can be triggered by alarms generated through Maretron's N2KView® Vessel Monitoring System or Maretron's DSM250/DSM410 Color Graphics Displays, enhancing your overall monitoring and control capabilities.
