Brand: Maretron

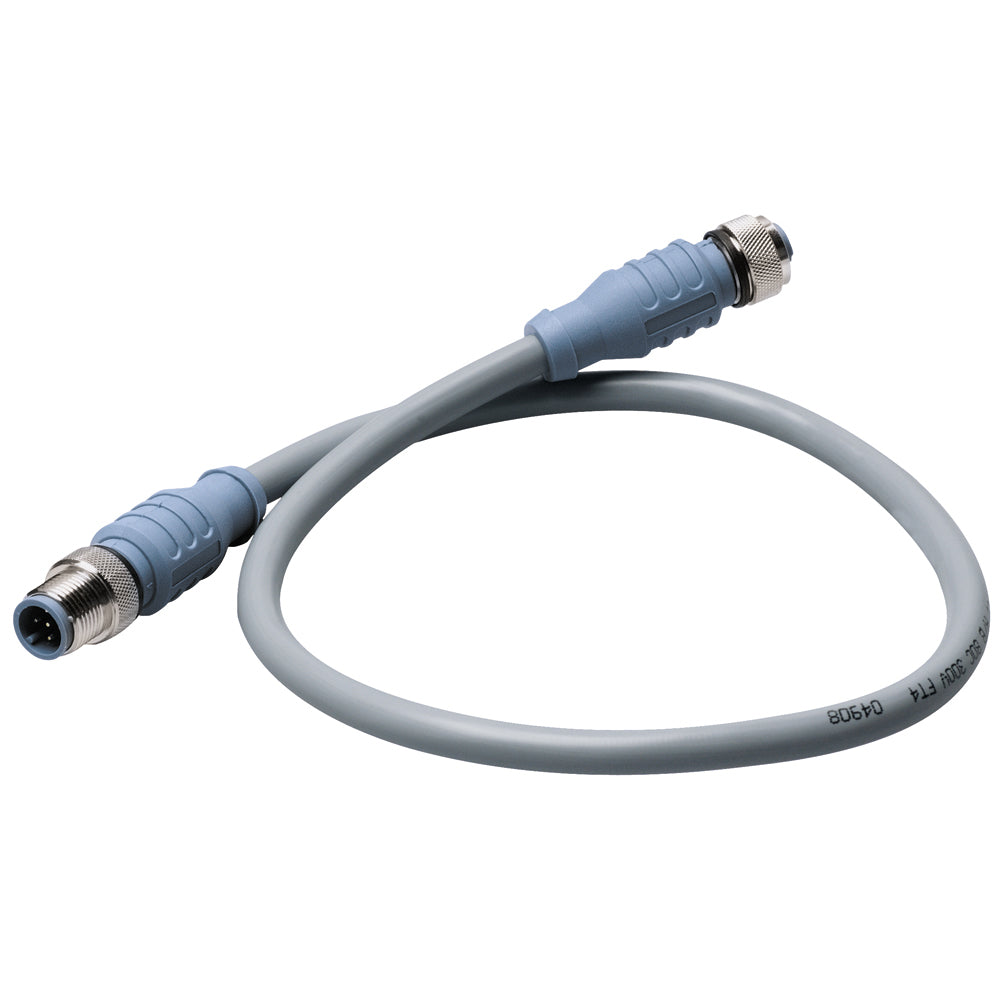

Maretron NMEA 2000 Micro Double-Ended Cordset, Male-to-Female, 1 m, CM-CG1-CF-01.0
Maretron NMEA 2000 Micro Double-Ended Cordset, Male-to-Female, 1 m, CM-CG1-CF-01.0
10+ available
About this product
This Maretron micro double-ended cordset provides a 1 m male-to-female connection for NMEA 2000 backbone or drop-cable installations.
- Data interface: NMEA 2000
- Connector type: Male-to-female backbone/drop cable connectors
- Cable length: 1 m
- Contact carrier and molded body: Thermoplastic PUR, blue-gray
- Contacts: Brass with gold plating
- Coupling nut: Brass with nickel plating
- Connector outside diameter: 0.59 in.
- Current rating: 4.0 A
- Voltage rating: 250 V
- Outer jacket: PVC, gray
- Conductor insulation: HDPE data pair and SRPVC power pair
- Conductors: 4 x 22 AWG plus 22 AWG drain wire
- Shielding: Three foil layers covering the overall cable, power pair, and data pair
- Protection class: IEC IP68 and NEMA 1, 3, 4, 6P
- Temperature rating: -40 deg C to 80 deg C and -40 deg F to 176 deg F
- Approvals: NMEA 2000 Approved; cable markings include UL PLTC and AWM ratings and CSA CMX-OUTDOOR-CMG and AWM ratings
- Manufacturer part number: CM-CG1-CF-01.0
- UPC: 873804001517
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-100951
- Model / MPN
- CM-CG1-CF-01.0
- UPC / GTIN
- 873804001517
- Package dimensions (H × W × L)
- 1" X 6" X 7"
- Package weight
- 0.19 lb
- Country of origin
- MEXICO
Specifications
- Connection Gender
- Male-Female
- Data Interface
- NMEA 2000
- Cable Length (Meters)
- 1m
- NMEA 2000 Connectors
- Backbone/Drop Cables
