Brand: Maretron

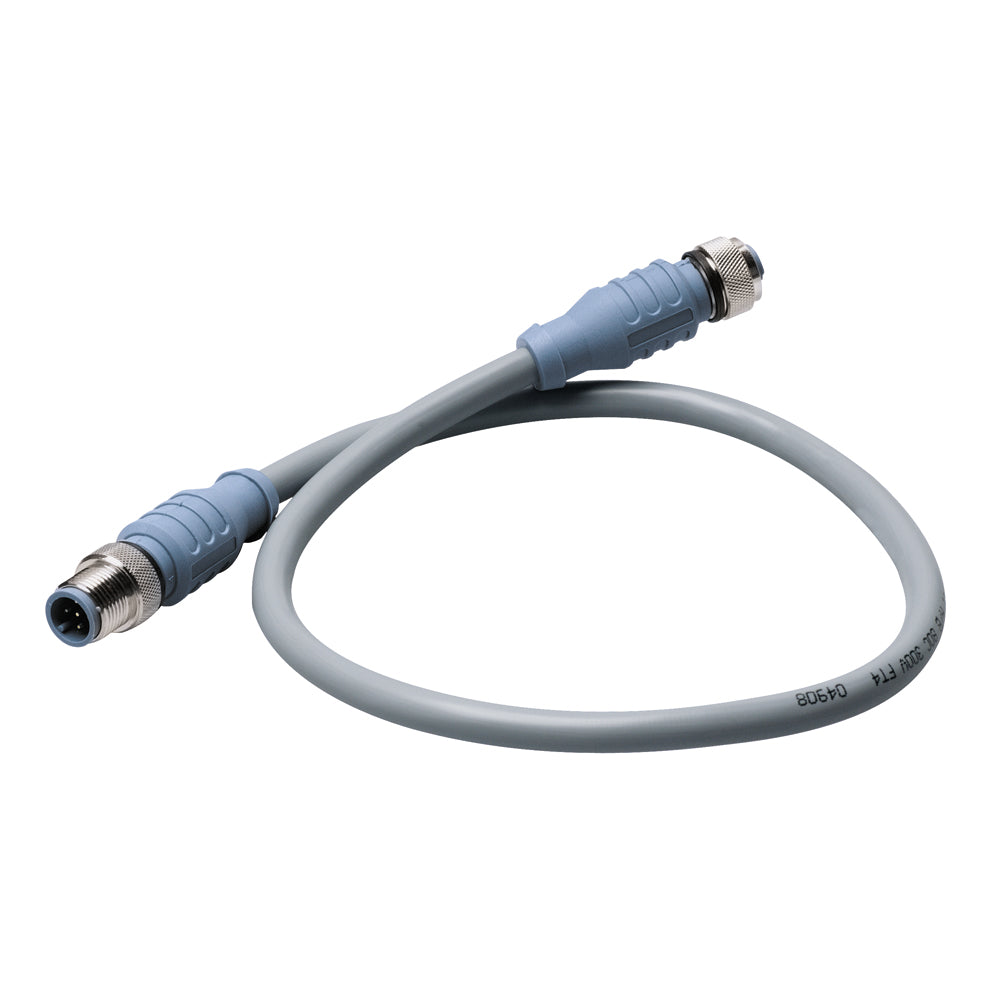

Maretron Micro Double-Ended NMEA 2000 Cordset, 2 Meter
Maretron Micro Double-Ended NMEA 2000 Cordset, 2 Meter
Sold out
This Maretron Micro double-ended cordset is designed for NMEA 2000 network backbones or drop cable connections. This 2-meter cable features high-quality construction for reliable marine data communication.
- Interface: NMEA 2000
- Length: 2 meters
- Connectors: Gold-plated brass contacts with nickel-plated brass coupling nuts
- Cable Jacket: Gray PVC
- Conductors: 4 x 22 AWG with 22 AWG drain wire
- Shielding: Triple-level foil shielding (overall, power pair, and data pair)
- Electrical Ratings: 4.0 Amps, 250 V
- Environmental Rating: IP68, NEMA 1, 3, 4, 6P
- Temperature Range: -40°F to 176°F (-40°C to 80°C)
- Regulatory/Approvals: NMEA 2000 Approved, UL PLTC 75°C Sunlight Resistant (E90625), CSA CMX-OUTDOOR-CMG (LL54185)
- Manufacturer Part Number: CM-CG1-CF-02.0
Product facts
- CT SKU
- CT-101182
- Model / MPN
- CM-CG1-CF-02.0
- UPC / GTIN
- 873804001524
- Package dimensions
- 1" X 7" X 7"
- Package weight
- 0.35 lb
- Specifications
- Cable Length (Feet) = 6'
